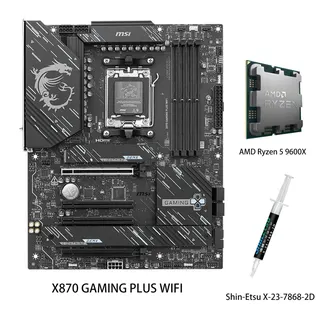

ATX motherboard with dark heatsinks and CPU in socket

MSI

MSI X870 GAMING PLUS WIFI AMD motherboard with Ryzen 5 9600X CPU

SKU CH-GVW5-Q3DHS

An AM5 motherboard paired with a Ryzen 5 9600X CPU, supporting DDR5 up to 8200 MT/s, PCIe 5.0 graphics, Gen5 M.2 storage, Wi-Fi 7 and 5G LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedNon-ECC

+CPU R5 9600X

  • Ready for Ryzen 9000, 8000 and 7000 series CPUs
  • 14+2+1 Duet Rail power system with dual 8-pin CPU connectors
  • DDR5 memory up to 8200 MT/s overclocked on four slots
  • PCIe 5.0 x16 slot plus Gen 5 M.2 for fastest storage
  • Wi-Fi 7 and 5G LAN with Realtek 8126VB controller

AM5 motherboard and Ryzen 5 9600X bundle

This combo pairs an X870 chipset board with a Ryzen 5 9600X processor for AM5 socket builds. The board supports Ryzen 9000, 8000 and 7000 series CPUs and four DDR5 slots up to 256 GB. Dual 8-pin CPU power feeds a 14+2+1 Duet Rail power system. Wi-Fi 7 and 5G LAN provide modern connectivity for gaming and workstation use.

60A SPS VRM with extended heatsinks

A 60 A SPS VRM is cooled by an extended heatsink, MOSFET thermal pads rated for 7W/mK and additional choke pads. The EZ M.2 Shield Frozr II covers the primary M.2 slot. An 8-layer PCB with 2 oz copper helps spread heat across the board. These features keep thermals controlled during typical gaming or productivity workloads.

PCIe 5.0 graphics and Gen5 M.2 under load

The primary PCIe 5.0 x16 slot and the CPU-linked M.2_1 slot running at Gen5 x4 maintain bandwidth during sustained transfers. Three M.2 slots and four SATA 6Gb/s ports support RAID 0 and 1 for NVMe drives. Realtek ALC897 delivers 7.1 channel audio while the Realtek 8126VB 5G LAN holds steady throughput during long sessions.

Highlights

  • Ready for Ryzen 9000, 8000 and 7000 series CPUs
  • 14+2+1 Duet Rail power system with dual 8-pin CPU connectors
  • DDR5 memory up to 8200 MT/s overclocked on four slots
  • PCIe 5.0 x16 slot plus Gen 5 M.2 for fastest storage
  • Wi-Fi 7 and 5G LAN with Realtek 8126VB controller

Specifications

BrandMSI
ModelX870 GAMING PLUS WIFI +R5 9600X
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPU
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Other SlotsPCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices
M2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAIDSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB 5G LAN
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Clear CMOS Button
2 x USB 5Gbps Type-A
2 x USB 10Gbps Type-A
4 x USB 2.0
1 x 5G LAN
2 x Wi-Fi / Bluetooth
3 x Audio connectors
1 x Flash BIOS Button
1 x HDMI
1 x USB 40Gbps Type-C
1 x USB 20Gbps Type-C
Onboard USB4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Other Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
Windows 11Support for Windows 11 64-bit

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the Ryzen 5 9600X into the AM5 socket and what step do people often miss?

Lift the retention lever, align the gold triangle on the CPU with the socket marker, place the chip gently without force, lower the lever, then connect both 8-pin CPU power cables so the 14+2+1 Duet Rail VRM can deliver full current.

Which parts of the X870 GAMING PLUS WIFI will need attention or replacement after extended use?

The MOSFET thermal pads rated for 7W/mK and the additional choke thermal pads under the extended heatsink can dry out over time; the EZ M.2 Shield Frozr II screws may loosen from thermal cycling, so re-check torque during routine cleaning.

What limit appears first when the board runs sustained heavy loads?

The 60A SPS VRM stages set the practical ceiling; once the 14+2+1 power phases hit their thermal saturation point the firmware will throttle the Ryzen 5 9600X to protect the MOSFETs.
