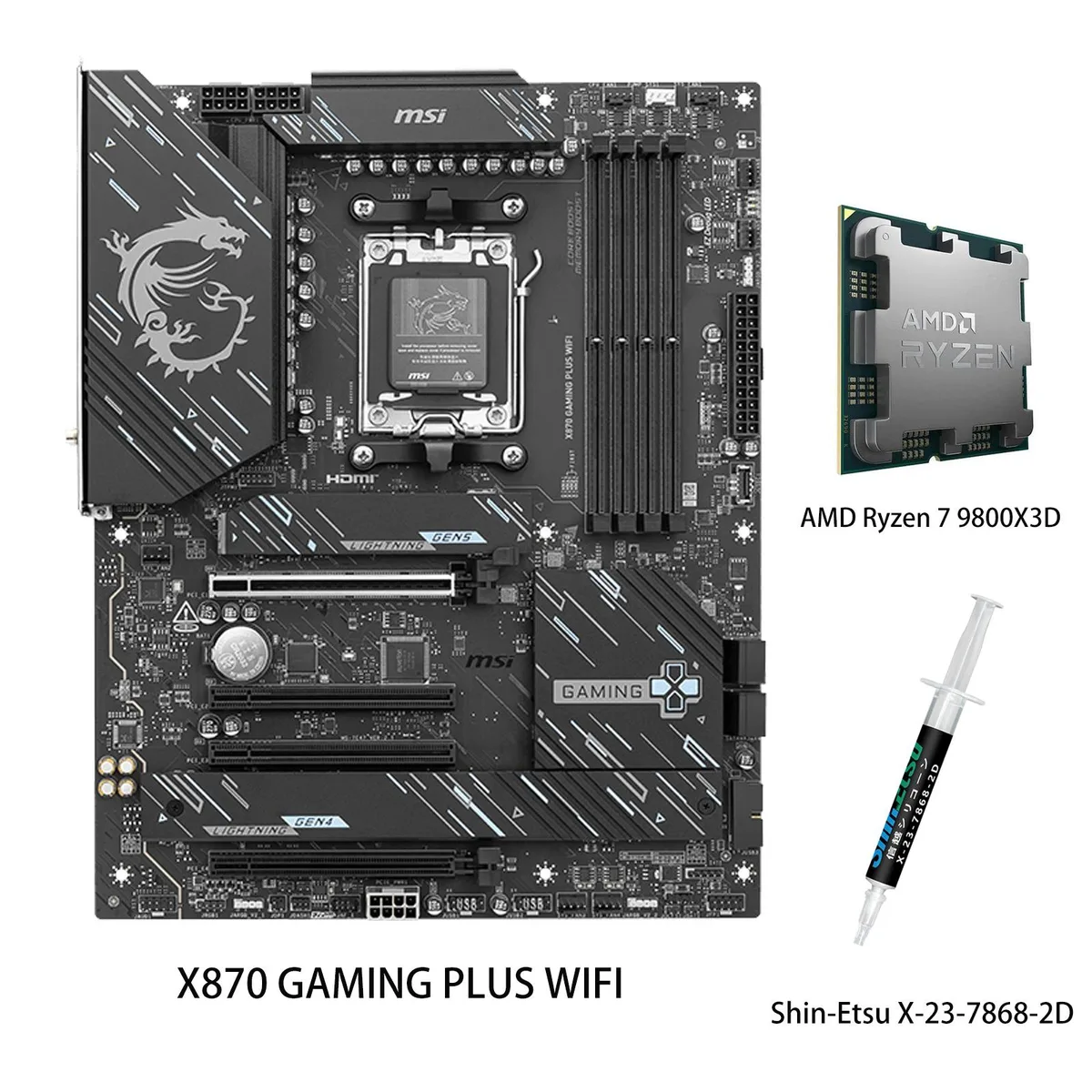

MSI X870 motherboard with AM5 socket, black heatsinks and silver accents, Ryzen 7 9800X3D CPU in tray

MSI

MSI X870 GAMING PLUS WIFI + Ryzen 7 9800X3D AMD motherboard combo

SKU CH-5WZP-SMTW7

AM5 motherboard and Ryzen 7 9800X3D CPU combo with 14+2+1 power phases, DDR5 up to 8200 MT/s, PCIe 5.0 x16, Wi-Fi 7 and 5G LAN

  • CPU Socket TypeAM5
  • ChipsetAMD X870
  • Number of Memory Slots4x288pin (DDR5)
  • Maximum Memory Supported256GB
  • Channel SupportedDual Channel
  • ECC SupportedNon-ECC

+CPU R7 9800X3D

  • Ready for high-end gaming with AMD Ryzen 7 9800X3D CPU included
  • DDR5 memory overclocked to 8200 MT/s for fast system responsiveness
  • 60 A SPS VRM with 14+2+1 power phases delivers stable CPU voltage
  • PCIe 5.0 graphics slot and Gen 5 M.2 enable next-gen storage and GPU speed
  • Wi-Fi 7 and 5 GbE LAN provide low-latency wireless and wired connectivity

AM5 X870 Motherboard with Ryzen 7 9800X3D

This bundle pairs an MSI X870 GAMING PLUS WIFI board with an AMD Ryzen 7 9800X3D processor on the AM5 socket. The board uses the X870 chipset and a 14+2+1 Duet Rail power system with dual 8-pin CPU connectors. It supports Ryzen 9000, 8000 and 7000 series CPUs and up to 256GB of DDR5 across four 288-pin slots.

Gamers wanting 3D V-Cache and PCIe 5.0 M.2

The Ryzen 7 9800X3D targets players who benefit from extra L3 cache in latency-sensitive titles. Builders needing PCIe 5.0 x16 graphics and a PCIe 5.0 M.2 slot from the CPU will use the primary lanes. Users limited to PCIe 4.0 CPUs such as the 8700 or 8600 series lose the 5.0 x16 link and should consider a different platform.

Sustained load on 60A VRM and Frozr Guard

The 60A SPS VRM stages feed the CPU through an 8-layer PCB with 2oz copper. MOSFET thermal pads rated for 7W/mK and additional choke pads transfer heat to the extended heatsink. The EZ M.2 Shield Frozr II covers the primary M.2_1 slot, keeping a Gen5 drive at stable temperatures during long sessions.

Highlights

  • Ready for high-end gaming with AMD Ryzen 7 9800X3D CPU included
  • DDR5 memory overclocked to 8200 MT/s for fast system responsiveness
  • 60 A SPS VRM with 14+2+1 power phases delivers stable CPU voltage
  • PCIe 5.0 graphics slot and Gen 5 M.2 enable next-gen storage and GPU speed
  • Wi-Fi 7 and 5 GbE LAN provide low-latency wireless and wired connectivity

Specifications

BrandMSI
ModelX870 GAMING PLUS WIFI +R7 9800X3D
CPU Socket TypeAM5
ChipsetAMD X870
Number of Memory Slots4x288pin (DDR5)
Maximum Memory Supported256GB
Channel SupportedDual Channel
ECC SupportedNon-ECC
Buffer SupportedUn-buffered
Memory FeatureMemory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8200+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 4800+ MT/s
Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*
* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPU
PCI Express 5.0 x16PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI Express x4PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 3.0 supports up to x1 (From Chipset)
Other SlotsPCI_E1 slot
- Supports PCIe 5.0 x16 (For Ryzen 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen 8500/ 8300 Series processor)
* PCI_E4 slot will run at x2 speed when installing M.2 SSD in the M2_3 slot.
Serial ATA (SATA)4 x SATA 6Gb/s
M.23x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 2280/2260 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 22110/2280 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2, supports 2280/2260 devices
M2_1 slot
- Supports up to PCIe 5.0 x4 (For Ryzen 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen 8000 Series processors)
*Please refer to the manual for M.2 SSD heatsink restrictions.
SATA RAIDSupports RAID 0 and RAID 1 for M.2 NVMe storage devices
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN ChipsetRealtek 8126VB 5G LAN
Max LAN Speed5Gbps
Wireless LANWi-Fi 802.11 be
BluetoothBluetooth 5.4
Back I/O Ports1 x Clear CMOS Button
2 x USB 5Gbps Type-A
2 x USB 10Gbps Type-A
4 x USB 2.0
1 x 5G LAN
2 x Wi-Fi / Bluetooth
3 x Audio connectors
1 x Flash BIOS Button
1 x HDMI
1 x USB 40Gbps Type-C
1 x USB 20Gbps Type-C
Onboard USB4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Other Connectors1 x CPU Fan
1 x Combo Fan (Pump_Sys Fan)
6 x System Fan
1 x EZ Conn-header (JAF_1)
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Tuning Controller connector(JDASH)
3 x Addressable V2 RGB LED connector (JARGB_V2)
1 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Power Pin1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x Power Connector(PCIE_PWR 8pin)
Windows 11Support for Windows 11 64-bit

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What DDR5 memory do I need to reach the 8200+ MT/s overclocked speed?

You need DDR5 modules rated for 8200 MT/s or higher. The board has four 288-pin slots supporting dual-channel up to 256 GB. With Ryzen 9000 series, 1DPC 1R configurations can hit 8200+ MT/s, 1DPC 2R up to 6400+ MT/s. JEDEC baseline is 4800-5600 MT/s.

Will my PCIe 4.0 graphics card work in the PCI_E1 slot that is wired for PCIe 5.0 x16?

Yes. The PCI_E1 slot runs at PCIe 5.0 x16 from the CPU but is backward compatible with PCIe 4.0 and 3.0 cards. The card will operate at its native generation and lane width.

How can I confirm the M.2_1 slot is running at PCIe 5.0 x4 after installing a drive?

Check the BIOS NVMe information page or use a Windows tool such as HWInfo. It will report the link width and generation for M.2_1, which is wired from the CPU for PCIe 5.0 x4 and accepts 2280 or 2260 form factors.
