Dark green micro-ATX board with silver CPU socket, four black DIMM slots, twin M.2 heatsinks, black I/O shield and silver PCIe slots

MSI

MSI Z390M-S01 Intel motherboard

SKU CH-JCBT-4XG4X

Micro ATX board for 8th and 9th generation Intel CPUs on LGA 1151 with four DDR4 slots up to 128 GB, dual M.2, four SATA 6Gb/s and 7.1 audio

  • CPU Socket TypeLGA 1151
  • CPU Type8th/9th generation Core i9/i7/i5/i3/Pentium/Celeron
  • ChipsetZ390
  • Number of Memory Slots4×DDR4 DIMM
  • Memory Standard4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/
  • Maximum Memory Supported128GB
  • Supports 8th/9th Gen Intel Core CPUs via LGA 1151 socket
  • Four DDR4 slots handle up to 128 GB at speeds up to 4400 MHz OC
  • Dual M.2 connectors plus four SATA 6 Gb/s ports for flexible storage
  • Realtek ALC892 codec delivers 7.1 channel audio with S/PDIF out
  • Micro ATX board fits 9.6 × 9.6 inch cases with two PCIe 3.0 x16 slots

Z390 Micro ATX foundation

The MSI Z390M-S01 is a Micro ATX board built on the Intel Z390 chipset with an LGA 1151 socket. It accepts 8th and 9th generation Core i9, i7, i5, i3, Pentium and Celeron processors. Four DDR4 DIMM slots and dual M.2 sockets give compact builds room to grow. The 9.6 by 9.6 inch form factor fits smaller cases while keeping full chipset features.

Memory and storage headroom

Four slots support up to 128 GB of DDR4 across a wide OC range from 2133 to 4400 MHz. Two M.2 connectors and four SATA 6 Gb/s ports handle boot drives and bulk storage, with RAID 0, 1, 5 and 10 available on the SATA array. The primary PCIe 3.0 x16 slot runs at x16 or x4 depending on configuration, while a second x16 slot and a x1 slot add expansion flexibility. One M.2 E-key slot is reserved for Intel CNVi wireless modules.

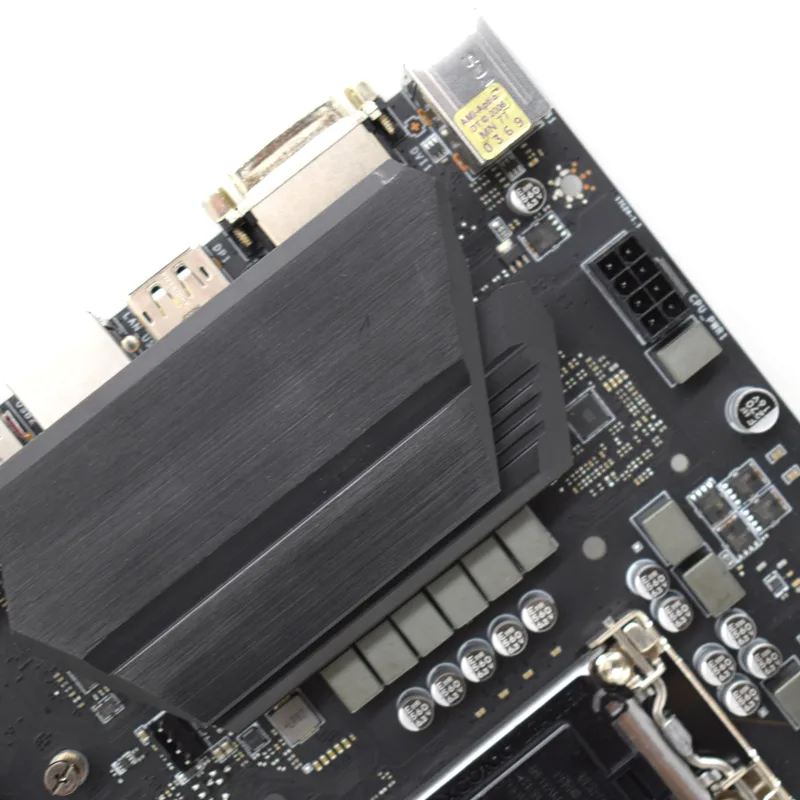

Thermals and power delivery

The Z390 chipset and VRM area are cooled by passive heatsinks suited to stock and moderate overclock operation. A Realtek ALC892 codec provides 7.1 channel audio with S/PDIF output. A single Realtek 8111H controller drives Gigabit LAN. Rear video includes DVI-I and DisplayPort 1.2 for integrated graphics. USB connectivity covers 21 Gen2 10 Gbps ports, 8 Gen1 ports and 4 USB 2.0 headers. The board ships with motherboard, I/O shield and one SATA cable.

Highlights

  • Supports 8th/9th Gen Intel Core CPUs via LGA 1151 socket
  • Four DDR4 slots handle up to 128 GB at speeds up to 4400 MHz OC
  • Dual M.2 connectors plus four SATA 6 Gb/s ports for flexible storage
  • Realtek ALC892 codec delivers 7.1 channel audio with S/PDIF out
  • Micro ATX board fits 9.6 × 9.6 inch cases with two PCIe 3.0 x16 slots

Specifications

BrandMSI
SeriesMSI Z390M-S01
ModelZ390M-S01
CPU Socket TypeLGA 1151
CPU Type8th/9th generation Core i9/i7/i5/i3/Pentium/Celeron
ChipsetZ390
Number of Memory Slots4×DDR4 DIMM
Memory Standard4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3300(OC)/ 3200(OC)/ 3000(OC) / 2800(OC)/ 2666/ 2400/ 2133 MHz
Maximum Memory Supported128GB
PCI Express 3.0 x162x PCIe 3.0 x16, 1x PCIe 3.0 x1
PCI Slots2 PCIe 3.0 x16 slots (supports x16/x4 modes)
1 PCIe 3.0 x1 slot
1 M.2 slot (E key) for installing Intel CNVi wireless modules only
Serial ATA (SATA)4 x SATA 6Gb/s
M.22 x M.2
SATA RAID0/1/5/10
Audio ChipsetRealtek ALC892 decoding chip
7.1 channel high-quality sound effects
Supports S/PDIF output
LAN Chipset1 Realtek 8111H network interface card

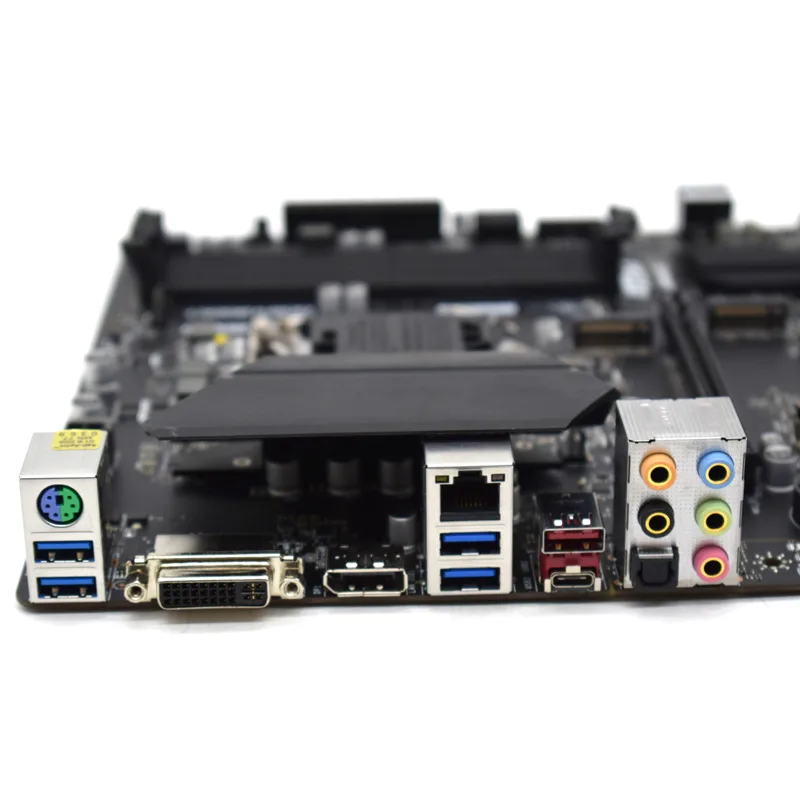

Video Ports1x DVI-I , 1x DisplayPort 1.2
Onboard USBIntel Z390 chipset
21 USB 3.1 Gen2 (SuperSpeed USB 10Gbps) ports (1 Type-A port on the backplane)
8 USB 3.1 Gen1 (SuperSpeed USB) ports (4 front ports and 4 back ports)
4 USB 2.0 front ports
Form FactorMicro ATX
Dimensions (W x L)9.6 x 9.6
Package ContentsPlease note: the package only includes the motherboard and one I/O shield , no aditional accessories, no CMOS battery, no original packaging. Please confirm you buy the right product for your other components. We will full check and test the motherboard before shipping, including the socket pins, please take more care when you open the socket cover to avoid damaging the pins, thanks.

Questions about this item

Will my existing DDR4-2666 memory work at rated speed on the Z390M-S01 without overclocking?

Yes, 2666 MHz is listed as a native DDR4 speed on this board, so your modules will run at their rated frequency without enabling any OC profile.

How can I confirm the Realtek ALC892 audio is functioning after assembly?

Connect speakers or headphones, install the Realtek driver from MSI, then open the Sound control panel and verify 7.1 channel output and S/PDIF are both detected.

Does the box contain a CMOS battery and SATA cable, or must I buy them separately?

The package includes the motherboard, one SATA cable and the rear I/O shield; a CMOS battery is not included and must be purchased separately.
