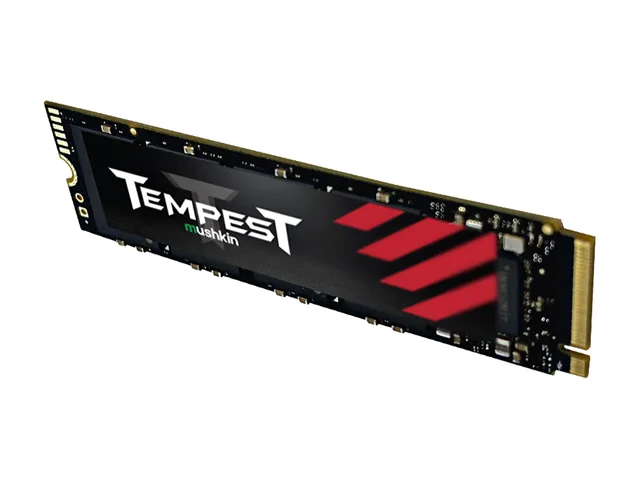

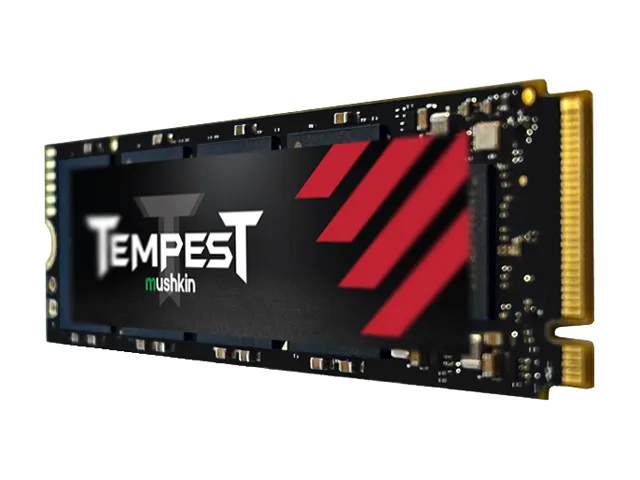

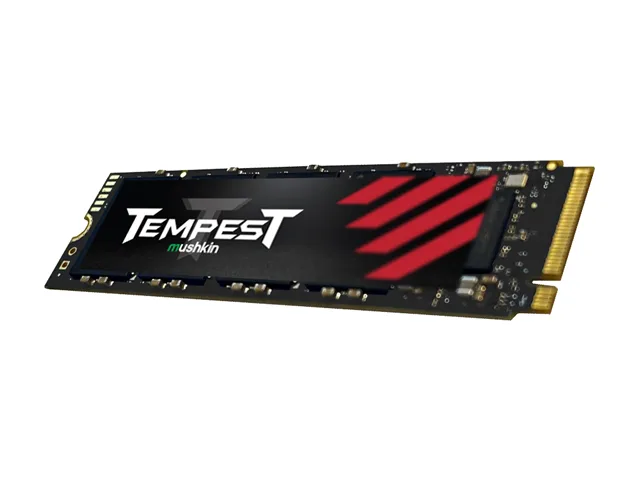

M.2 2280 circuit board with black label and gold edge connector

Mushkin Enhanced

Mushkin Enhanced Tempest MKNSSDTS256GB-D8 256GB internal SSD

SKU CH-J5A6-5765J MPN MKNSSDTS256GB-D8

A 256 GB M.2 2280 NVMe drive delivering up to 3100 MBps read and 1400 MBps write with 125 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity256GB
  • Memory Components3D NAND
  • InterfacePCIe Gen3 x4 NVMe 1.4

Options 256GB

  • Up to 3100 MBps sequential read for fast boot and load times
  • Up to 1400 MBps sequential write to move large files quickly
  • 344000 IOPS random read and 343000 IOPS random write keep multitasking responsive
  • 125 TBW endurance rating and 1500000-hour MTBF support long-term reliability
  • M.2 2280 form factor with PCIe Gen3 x4 NVMe 1.4 interface fits modern motherboards

Tempest 256GB NVMe 1.4 SSD

This Mushkin Enhanced Tempest drive is a 256GB internal solid-state drive built for consumer workloads. It uses a PCIe Gen3 x4 interface with NVMe 1.4 protocol and an InnoGrit IG5216 controller. 3D NAND flash delivers sequential reads up to 3100 MBps and writes up to 1400 MBps. Random 4KB performance reaches 344000 read IOPS and 343000 write IOPS.

Check M.2 2280 slot and PCIe Gen3 support

Verify that your motherboard or laptop has an M.2 2280 key-M slot wired for PCIe Gen3 x4 NVMe. Confirm the BIOS or UEFI firmware recognises NVMe 1.4 boot devices. Ensure the operating system includes an NVMe driver or can load one during installation. The drive draws 0.3W at idle and requires no extra power cables.

Fits ultra-portable and desktop builds

The 2280 form factor slots directly into compatible boards, freeing 2.5-inch bays for other storage. MEDS data-protection suite with 4th generation LDPC ECC and end-to-end path protection guards data integrity. Rated at 125TB written and 1500000 hours MTBF, it sustains heavy multi-tasking workloads. Seek time stays below .1 ms for responsive access.

Highlights

  • Up to 3100 MBps sequential read for fast boot and load times
  • Up to 1400 MBps sequential write to move large files quickly
  • 344000 IOPS random read and 343000 IOPS random write keep multitasking responsive
  • 125 TBW endurance rating and 1500000-hour MTBF support long-term reliability
  • M.2 2280 form factor with PCIe Gen3 x4 NVMe 1.4 interface fits modern motherboards

Specifications

BrandMushkin Enhanced
SeriesTempest
ModelMKNSSDTS256GB-D8
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity256GB
Memory Components3D NAND
InterfacePCIe Gen3 x4 NVMe 1.4
ProtocolNVMe 1.4
ControllerInnoGrit IG5216
Max Sequential ReadUp to 3100 MBps
Max Sequential WriteUp to 1400 MBps
4KB Random ReadUp to 344,000 IOPS
4KB Random WriteUp to 343,000 IOPS
Seek Time< 0.1 ms
Terabytes Written (TBW)125TB
MTBF1,500,000 hours
FeaturesMEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected
- Built-in 4th Generation LDPC ECC provides the most-powerful data correction level in use today
- End-to-end data path protection
- SLC Caching
- Data shaping increases endurance
- StaticDataRefresh ensures data integrity
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan
Enhanced Power Management
NVMe Security Erase support
NVMe Deallocate function support (NVMe equivalent of TRIM command)
High-reliability 3D NAND flash
S.M.A.R.T. support
Temperature sensor
RoHS, FC
Power Consumption (Idle)0.3W
Power Consumption (Active)3W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height3.80mm
Width22.00mm
Depth80.00mm
Weight7.00g
Shipping weight0.07 kg
Package size80 × 22 × 0 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the Mushkin Tempest 256GB M.2 2280 drive include a heatsink or mounting screw in the box?

The drive is supplied as the bare M.2 2280 module; a motherboard mounting screw and any heatsink must be sourced separately.

Should I choose this 256GB model or a larger capacity for the InnoGrit IG5216 controller?

The 256GB capacity delivers up to 3100 MBps sequential read and 1400 MBps sequential write with 125 TBW endurance using the same controller.

What does the 3100 MBps sequential read figure mean for actual Windows boot and game loading?

The PCIe Gen3 x4 NVMe 1.4 interface and 3D NAND enable fast OS boot and level loading, while 344000 IOPS random read handles small files efficiently.
