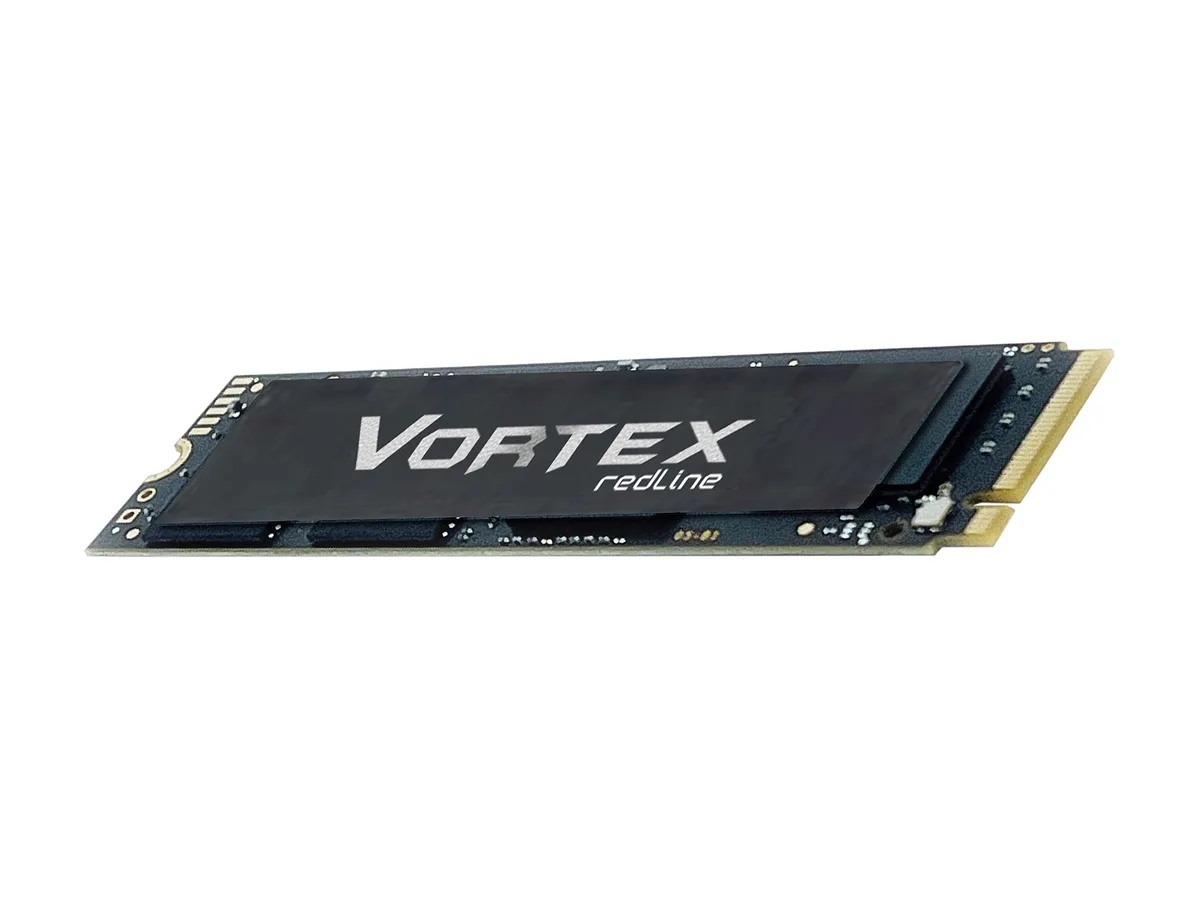

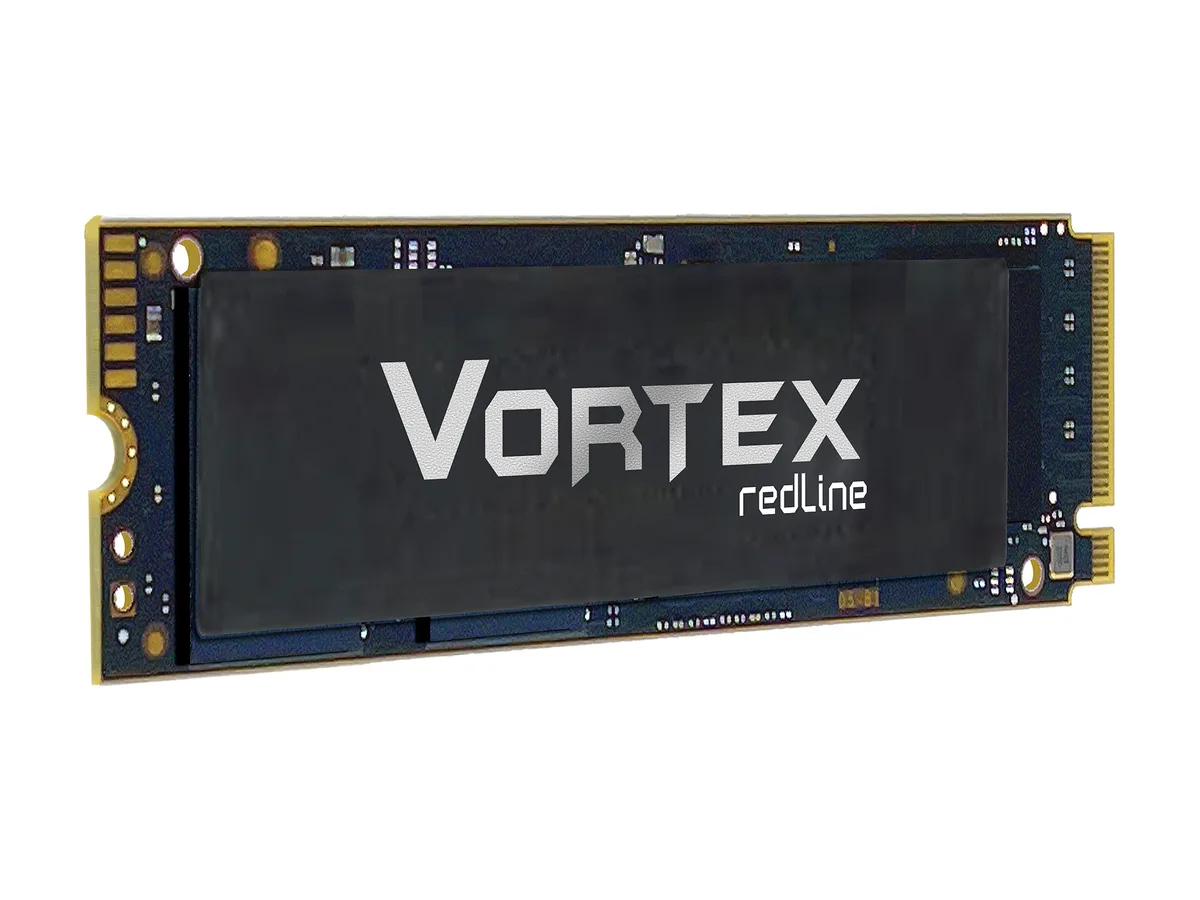

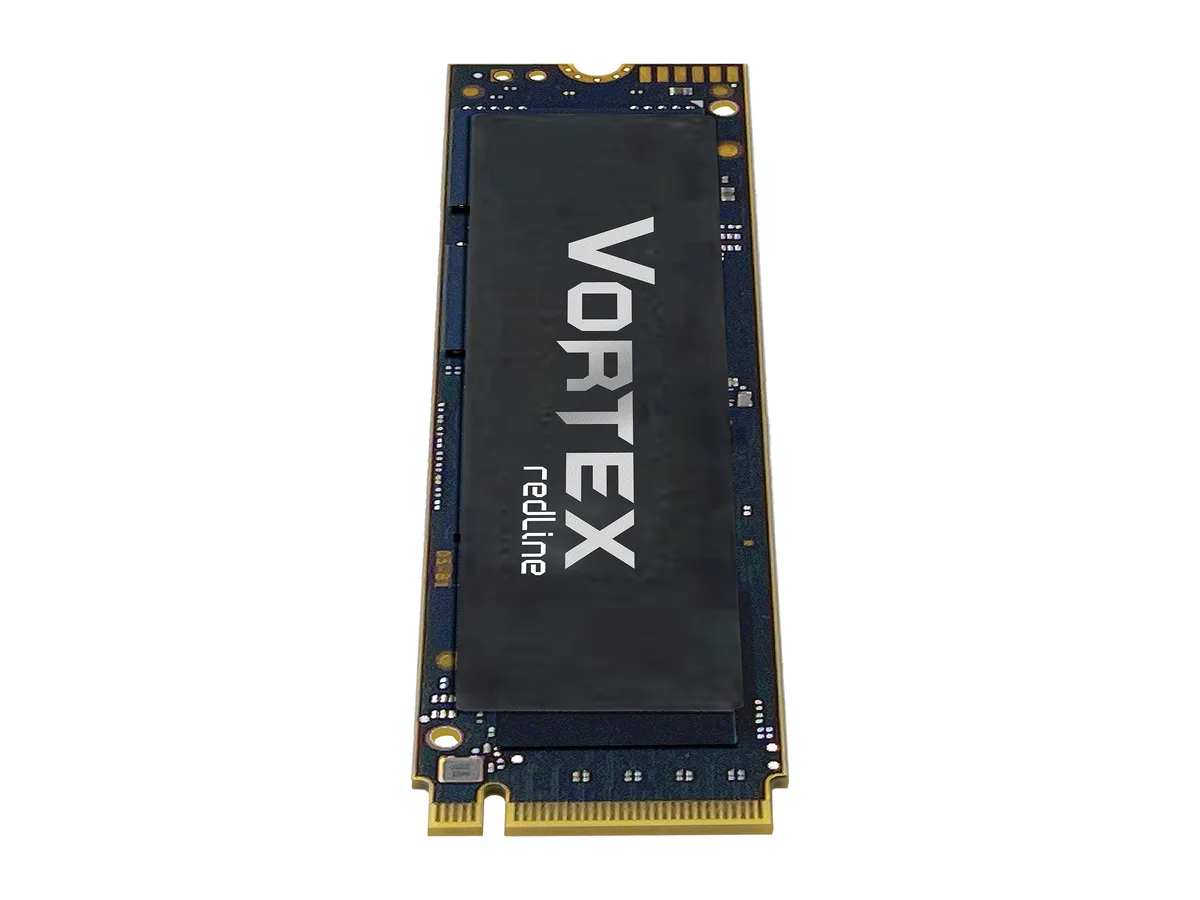

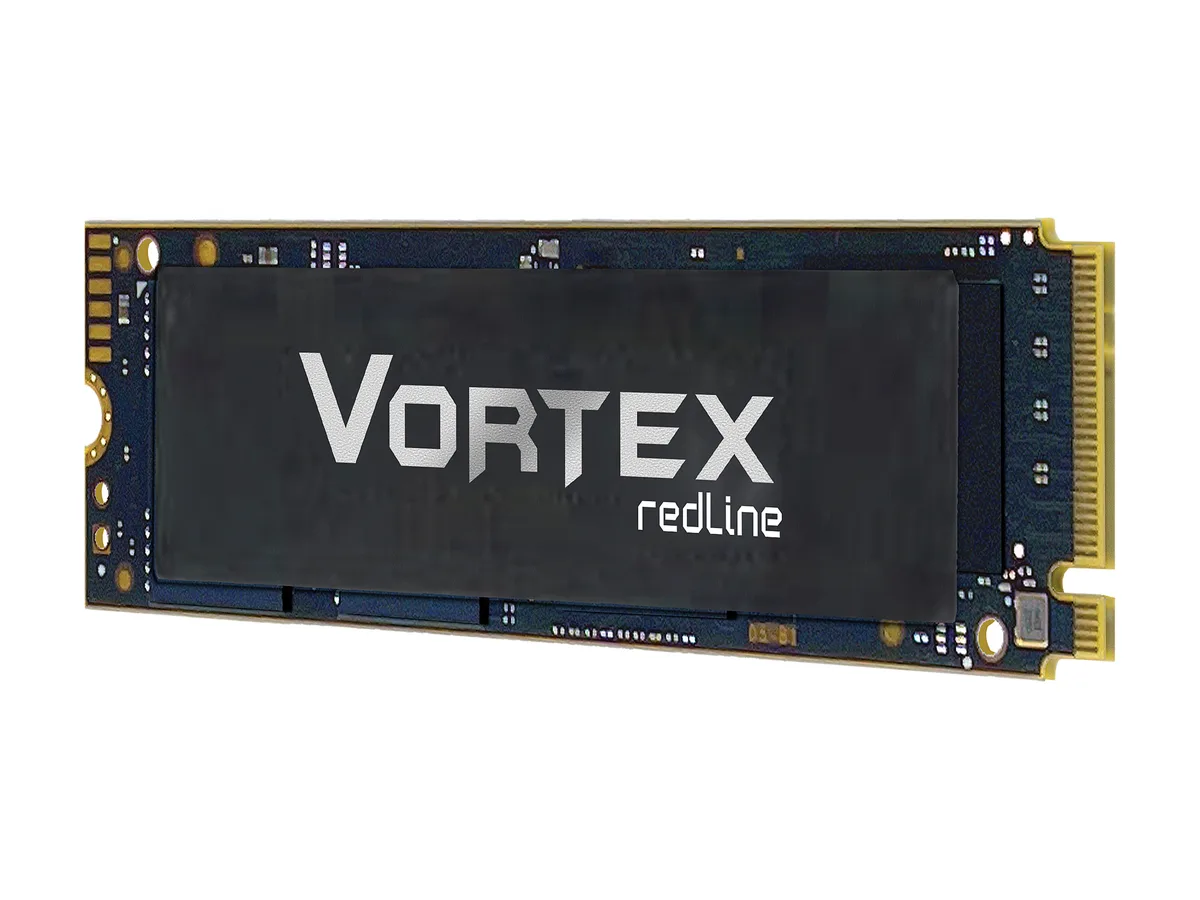

A thin green circuit board with gold edge connectors and a silver sticker label

Mushkin Enhanced

Mushkin Enhanced Vortex MKNSSDVT2TB-D8 2TB PCIe Gen4 x4 NVMe 1.4 M.2 2280 internal SSD

SKU CH-ZX49-495MP MPN MKNSSDVT2TB-D8

A 2 TB M.2 2280 PCIe Gen4 NVMe 1.4 SSD delivering up to 7415 MBps read and 6800 MBps write with 1000 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCIe Gen4 x4 NVMe 1.4

Options 2TB

  • Fast game loads from 7415 MBps read speed
  • Quick file saves with 6800 MBps write speed
  • Responsive multitasking via 1500000 IOPS random write
  • Data safety through MEDS protection suite
  • Long service life backed by 1000TB endurance

2TB PCIe Gen4 x4 NVMe 1.4 M.2 2280 SSD

The Mushkin Enhanced Vortex MKNSSDVT2TB-D8 is a 2TB internal solid-state drive built on the M.2 2280 form factor. It connects through a PCIe Gen4 x4 interface running the NVMe 1.4 protocol and uses 3D NAND memory managed by an InnoGrit IG5236 controller. Sequential reads reach up to 7415 MBps and writes up to 6800 MBps.

PS5 Gamer Compatible and consumer workloads

The drive is marked as PS5 Gamer Compatible and targets consumer use cases such as gaming, content creation and general high-speed storage. It suits systems that provide a PCIe Gen4 x4 NVMe 1.4 M.2 slot. Builds limited to PCIe Gen3 x4 or older interfaces will not achieve the rated throughput and should consider a drive matched to that link speed.

1000TB TBW endurance rating

The Terabytes Written specification is 1000TB, backed by an MTBF of 1,500,000 hours. Features include MEDS data-protection suite, 4th generation LDPC ECC, end-to-end data path protection, SLC caching, a DRAM cache buffer, global wear-levelling and L1.2 low-power mode support. This endurance figure is the primary metric for deciding whether the drive meets a given write-intensive workload.

Highlights

  • Fast game loads from 7415 MBps read speed
  • Quick file saves with 6800 MBps write speed
  • Responsive multitasking via 1500000 IOPS random write
  • Data safety through MEDS protection suite
  • Long service life backed by 1000TB endurance

Specifications

BrandMushkin Enhanced
SeriesVortex
ModelMKNSSDVT2TB-D8
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCIe Gen4 x4 NVMe 1.4
ProtocolNVMe 1.4
ControllerInnoGrit IG5236
Max Sequential ReadUp to 7415 MBps
Max Sequential WriteUp to 6800 MBps
4KB Random ReadUp to 730,000 IOPS
4KB Random WriteUp to 1,500,000 IOPS
Seek Time<0.1ms
Terabytes Written (TBW)1000TB
MTBF1,500,000 hours
FeaturesMEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected
- Built-in 4th Generation LDPC ECC provides the most-powerful data correction level in use today
- End-to-end data path protection
- SLC Caching
- DRAM Cache Buffer
- L1.2 power mode support for ultra-low power consumption
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan
Enhanced Power Management
NVMe Security Erase support
NVMe Deallocate function support (NVMe equivalent of TRIM command)
High-reliability 3D NAND flash
S.M.A.R.T. support
Temperature sensor
RoHS, FC
Power Consumption (Idle)0.1W
Power Consumption (Active)9W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height3.80mm
Width22.00mm
Depth80.00mm
Weight7.00g
Shipping weight0.05 kg
Package size137 × 107 × 13 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Which capacity of the Mushkin Vortex series should I choose for my build?

The Vortex model MKNSSDVT2TB-D8 is offered in a single 2TB capacity with 3D NAND and the InnoGrit IG5236 controller, so there is no smaller or larger version of this specific model to select.

What does the 7415 MBps sequential read figure mean once the drive is installed in my system?

That figure represents the maximum sequential read throughput the controller can deliver over a PCIe Gen4 x4 link; actual speeds depend on your motherboard's PCIe generation, workload type, queue depth and thermal conditions.

The drive uses a PCIe Gen4 x4 NVMe 1.4 interface — what does that cap in practice?

The Gen4 x4 electrical interface caps the theoretical bandwidth at 8 GBps; the drive's rated 7415 MBps read and 6800 MBps write sit within that ceiling, while random performance reaches 730000 IOPS read and 1500000 IOPS write.
