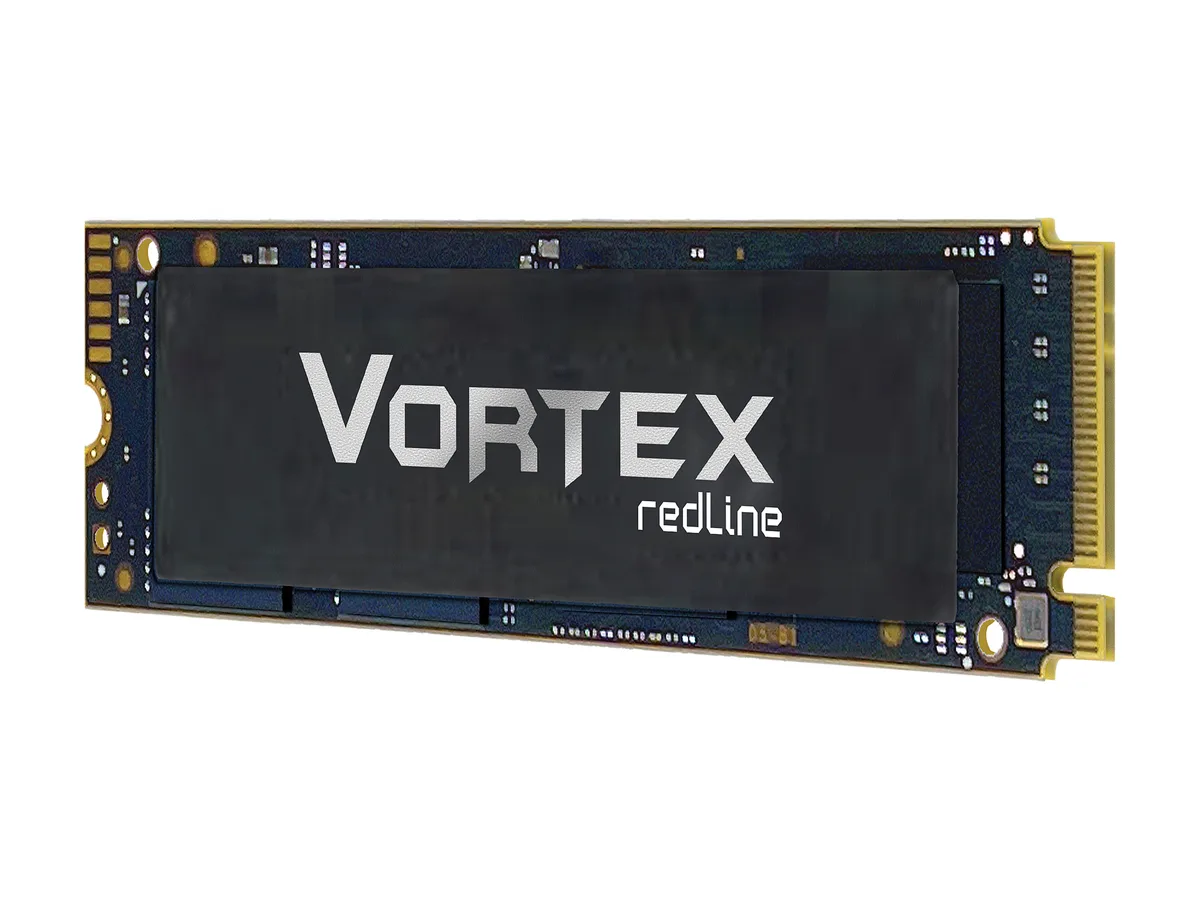

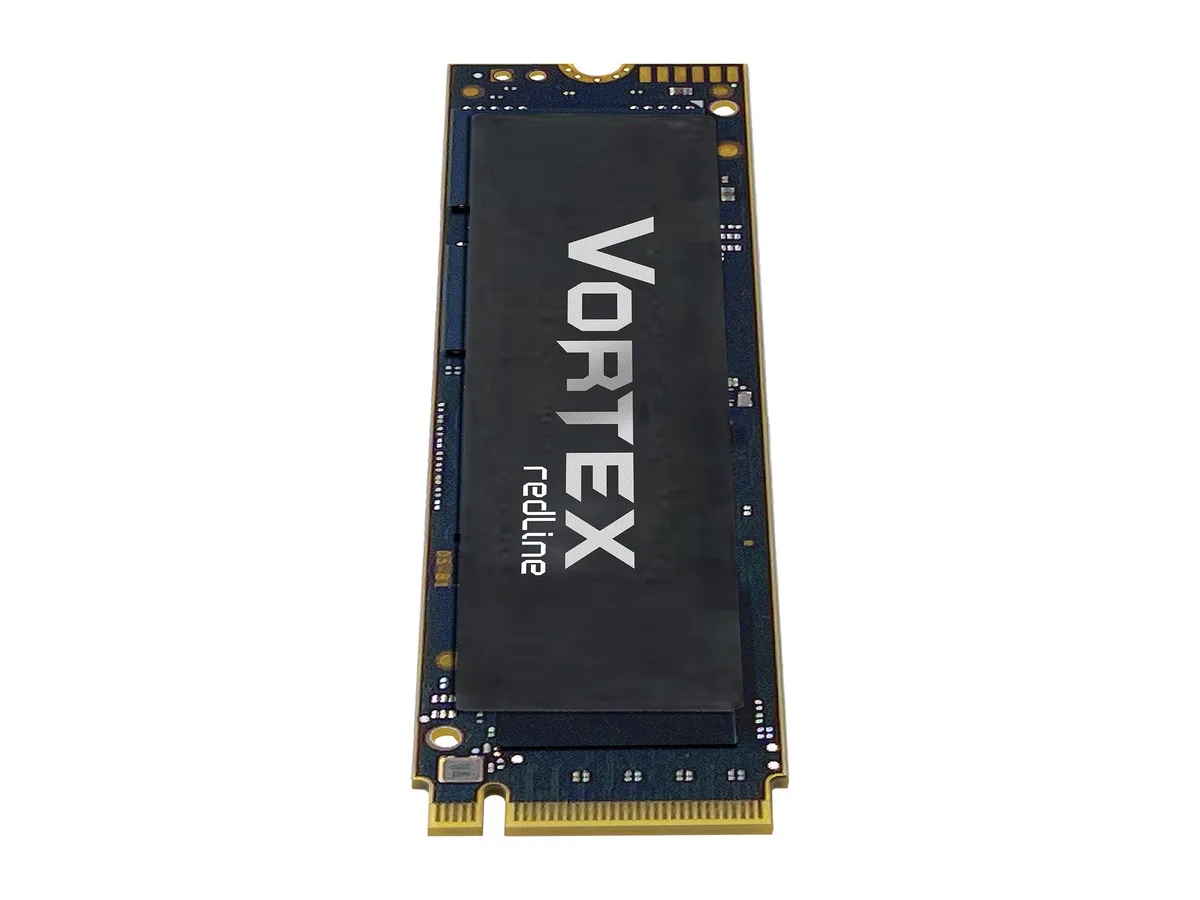

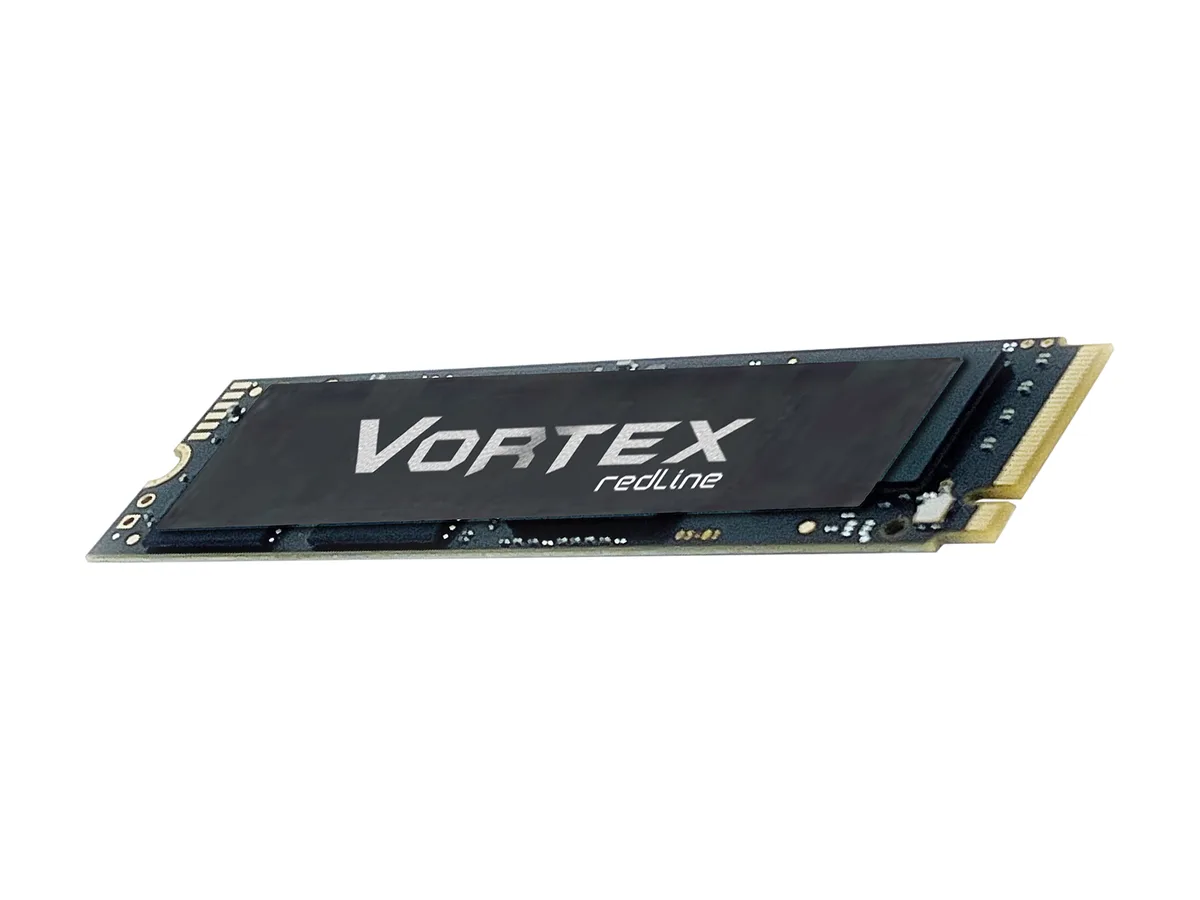

Green rectangular M.2 2280 circuit board with black controller and gold edge connector

Mushkin Enhanced

Mushkin Enhanced Vortex MKNSSDVT512GB-D8 512GB M.2 2280 internal SSD

SKU CH-3VN6-CYCCN MPN MKNSSDVT512GB-D8

M.2 2280 512 GB NVMe SSD delivers up to 6750 MBps reads and 2635 MBps writes with 250 TBW endurance

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D NAND
  • InterfacePCIe Gen4 x4 NVMe 1.4

Options 512GB

  • Fast boot and load times from up to 6750 MBps sequential read
  • Responsive multitasking with up to 645000 IOPS random write
  • Long-term reliability backed by 250TB written endurance
  • Data integrity protected by MEDS suite and 4th generation LDPC ECC
  • Low idle power draw of 0.1W extends laptop battery life

512GB PCIe Gen4 NVMe drive for consumer PCs

The Mushkin Enhanced Vortex MKNSSDVT512GB-D8 is a 512GB internal solid-state drive built for everyday computing workloads. It uses 3D NAND flash and an InnoGrit IG5236 controller to deliver up to 6750 MBps sequential read and 2635 MBps sequential write speeds. Random performance reaches 200000 IOPS read and 645000 IOPS write.

M.2 2280 form factor with on-board data protection

The single-sided M.2 2280 module plugs directly into a compatible motherboard slot without cables or brackets. MEDS and fourth-generation LDPC ECC protect stored data, while end-to-end data path protection and global wear-levelling extend the drive’s 250TB written endurance. Idle power drops to .1W and active draw peaks at 7W with L1.2 support.

Verify motherboard slot and firmware before ordering

Confirm your board provides an M.2 socket wired for PCIe Gen4 x4 NVMe 1.4 operation; some sockets share lanes with other devices and may limit bandwidth. Check that the system BIOS or UEFI is current enough to recognise the controller and enable features such as NVMe Deallocate and Security Erase. Ensure adequate airflow over the module if the slot sits beneath a graphics card.

Highlights

  • Fast boot and load times from up to 6750 MBps sequential read
  • Responsive multitasking with up to 645000 IOPS random write
  • Long-term reliability backed by 250TB written endurance
  • Data integrity protected by MEDS suite and 4th generation LDPC ECC
  • Low idle power draw of 0.1W extends laptop battery life

Specifications

BrandMushkin Enhanced
SeriesVortex
ModelMKNSSDVT512GB-D8
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D NAND
InterfacePCIe Gen4 x4 NVMe 1.4
ControllerInnoGrit IG5236
Max Sequential ReadUp to 6750 MBps
Max Sequential WriteUp to 2635 MBps
4KB Random ReadUp to 200,000 IOPS
4KB Random WriteUp to 645,000 IOPS
Seek Time<0.1ms
Terabytes Written (TBW)250TB
MTBF1,500,000 hours
FeaturesMEDS (Mushkin Enhanced Data-protection Suite) ensures valuable data is protected
- Built-in 4th Generation LDPC ECC provides the most-powerful data correction level in use today
- End-to-end data path protection
- SLC Caching
- DRAM Cache Buffer
- L1.2 power mode support for ultra-low power consumption
- Global wear-leveling evens program/erase counts across data blocks to extend lifespan
Enhanced Power Management
NVMe Security Erase support
NVMe Deallocate function support (NVMe equivalent of TRIM command)
High-reliability 3D NAND flash
S.M.A.R.T. support
Temperature sensor
RoHS, FC
Power Consumption (Idle)0.1W
Power Consumption (Active)7W
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height3.80mm
Width22.00mm
Depth80.00mm
Weight7.00g
Shipping weight0.05 kg
Package size127 × 102 × 10 mm

Other versions of this model

1 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What speed does the PCIe Gen4 x4 NVMe 1.4 interface cap at on this drive?

The interface supports up to 6750 MBps sequential read and 2635 MBps sequential write on the MKNSSDVT512GB-D8.

What physical slot and screw spacing does the M.2 2280 form factor require?

It fits a standard M.2 2280 slot — 22 mm wide, 80 mm long — secured by a single motherboard standoff screw.

How is the drive installed and which step is often missed?

Insert the drive at an angle into the M.2 slot, press flat, and fasten the standoff screw; many forget to enable the NVMe controller in BIOS before cloning or installing an OS.
