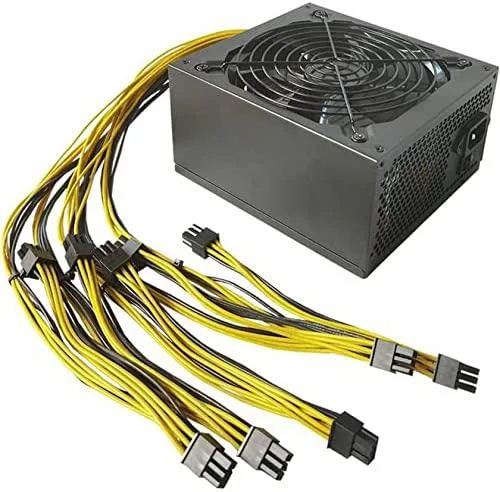

Rectangular 4U mining PSU with black 14cm fan and multiple 12V connectors

myVolts

myVolts 1800W ATX Mining Power Supply 10×12V 14cm Fan

SKU CH-1HD5-BSGR6

An 1800 W ATX unit with ten 12 V connectors, active PFC, six protection circuits and a 14 cm quiet fan

  • TypeAT
  • Delivers 1800W for high-density mining rigs
  • Ten 12 V connectors power multiple graphics cards
  • Active PFC corrects input from 180 to 240 V
  • Six safety circuits guard against voltage and current faults

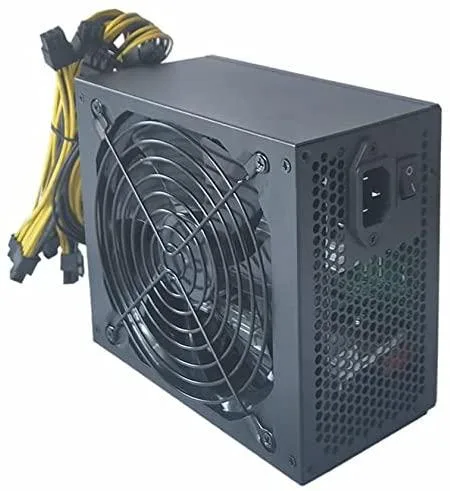

  • 14 cm fan cools quietly with insect-resistant grille

Mining power supply 1800W

This ATX power supply delivers 1800W for multi-GPU mining rigs. It operates on 180-240V input with active PFC and a dual 12V rail design based on the 12V 2.3 specification. The unit includes ten 6-pin connectors for graphics cards and a 6-pin CPU power interface.

Upgrade from lower-wattage ATX units

Replaces standard desktop power supplies when a build needs more than ten 12V outputs for mining cards. The jump is worth it when a single rail cannot feed all GPUs or when the existing unit lacks the 12V 2.3 dual-rail layout required by the motherboard and graphics interfaces.

Ten 12V outputs with six protections

Comfortably handles mining configurations that demand ten simultaneous 6-pin connections under continuous load. Over-voltage, under-voltage, over-current, overload, short-circuit and anti-thunder protections guard the system. Headroom runs out when the total draw exceeds 1800W or when additional connector types beyond 6-pin are required.

Highlights

  • Delivers 1800W for high-density mining rigs
  • Ten 12 V connectors power multiple graphics cards
  • Active PFC corrects input from 180 to 240 V
  • Six safety circuits guard against voltage and current faults
  • 14 cm fan cools quietly with insect-resistant grille

Specifications

TypeAT

Questions about this item

What form factor does this 1800W unit use and will it fit a standard ATX case?

The supply follows the ATX 12V 2.0 standard and includes a 14cm fan, so it matches the depth and mounting holes of a regular ATX power supply.

Which cables must be connected first when installing this mining PSU to avoid a no-post situation?

Plug the 24-pin ATX motherboard cable and the 6-pin CPU power connector before attaching any of the ten 12V graphics-card leads; the board will not initialise without both primary feeds.

How often should the 14cm cooling fan be cleaned in a dusty mining environment?

Remove the side panel and blow compressed air through the fan grille every three to six months; the anti-insect grille reduces blockages but fine dust still builds up on the blades.
