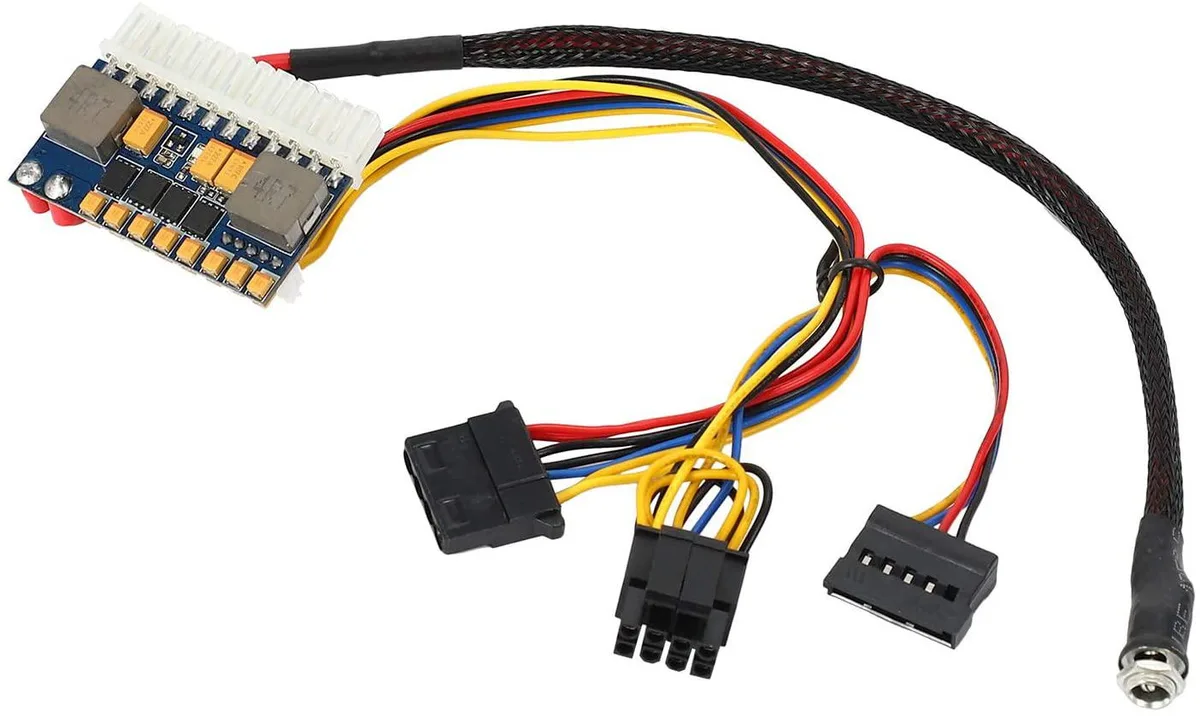

Compact blue white black Pico ATX PSU with 24 pin and SATA cables

myVolts

myVolts 19V 200W Pico ATX Power Supply

SKU CH-S793-HARG8

19 V DC input Pico ATX supply delivers 200 W with 24-pin, 4-pin CPU, SATA and Molex connectors for compact ITX builds

  • TypeAT
  • Delivers 200 W continuous power from a compact Pico ATX design
  • Active PFC ensures stable 19 V input between 16 V and 24 V
  • Fully modular cables include 24-pin ATX, 4-pin CPU, SATA and Molex connectors
  • Supplies +3.30 V, +5.00 V, +12.00 V and -12.00 V rails for desktop or server builds
  • Single 12 V input with 2.5 mm inner and 5.5 mm outer diameter barrel connector

Compact Pico ATX supply for 19 V systems

This myVolts Pico ATX power supply accepts a 16 V to 24 V DC input and delivers up to 200 W through a full set of ATX connectors. It is built for small-form-factor desktops or servers that run from a 19 V external adapter rather than mains voltage.

Suitable for ITX builds with a 19 V brick.

The unit connects to a 2.5 mm by 5.5 mm DC jack and provides a 24-pin ATX, 4-pin CPU, SATA, Molex and floppy power lead. Builders whose chassis require an internal AC-DC PSU or who need more than one SATA power connector should look at other designs.

200 W rated output from a 19 V DC source

Active PFC and a fully modular cable set keep the installation tidy inside tight ITX enclosures. The single 12 V input rail feeds +3.3 V, +5 V and +12 V outputs at the rated 200 W, making the power rating the key figure for matching the supply to the system load.

Highlights

  • Delivers 200 W continuous power from a compact Pico ATX design
  • Active PFC ensures stable 19 V input between 16 V and 24 V
  • Fully modular cables include 24-pin ATX, 4-pin CPU, SATA and Molex connectors
  • Supplies +3.30 V, +5.00 V, +12.00 V and -12.00 V rails for desktop or server builds
  • Single 12 V input with 2.5 mm inner and 5.5 mm outer diameter barrel connector

Specifications

TypeAT

Questions about this item

What motherboard power connector does this PSU provide?

It supplies a 20+4 pin ATX connector for the main board power.

Can I keep using my existing 4-pin CPU power cable?

Yes, the unit includes a 4-pin AUX connector that matches that CPU power header.

How can I confirm the PSU is delivering power after I connect it?

The 24-pin ATX, SATA and Molex outputs will be live when the 19 V input is present and the PSU switch is on.
