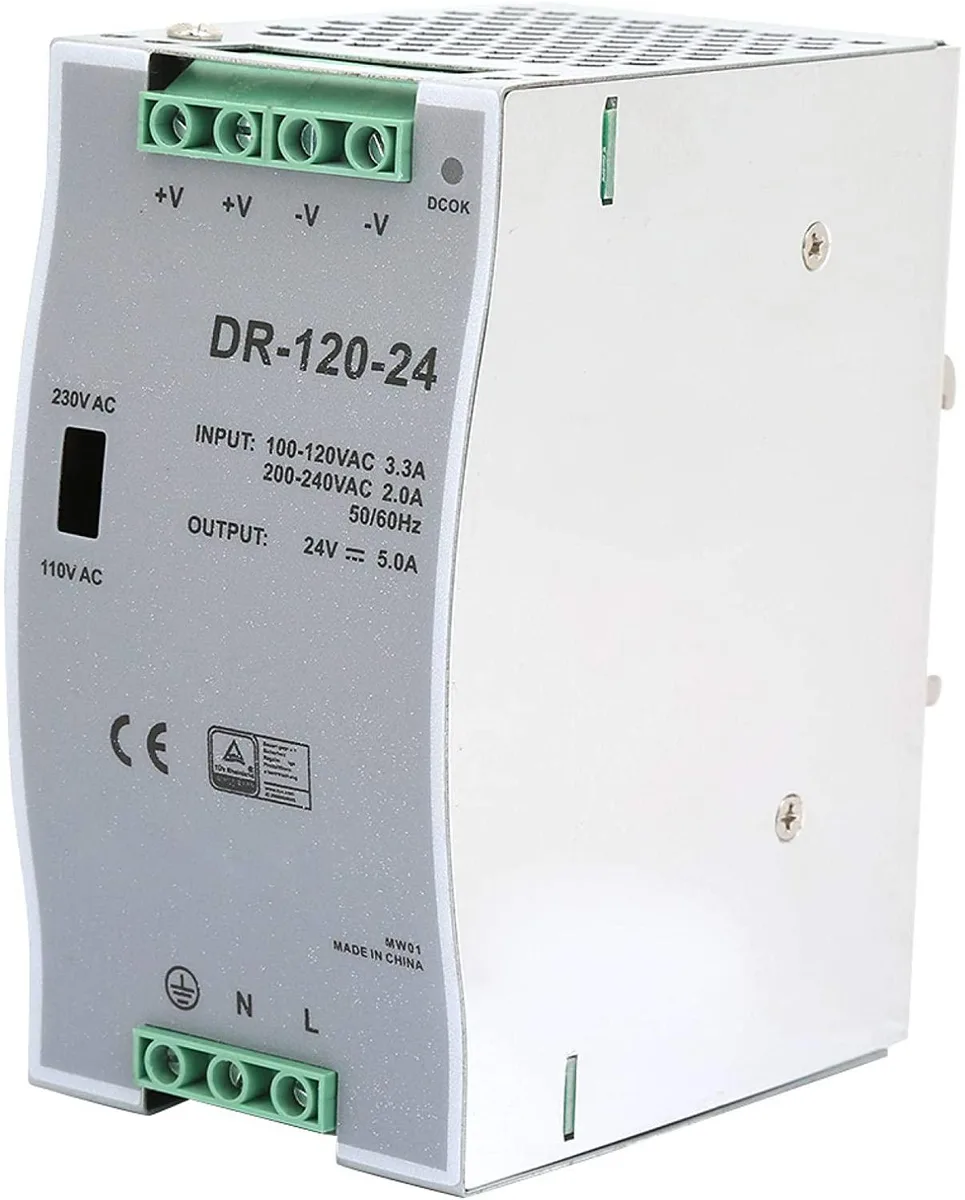

Compact silver metal DIN-rail power supply unit with ventilation slots and terminal blocks

myVolts

myVolts 24V 5A 120W DIN Rail Power Supply

SKU CH-83QY-KF5R5

A 24 V, 5 A industrial DIN-rail power supply delivering 120 W from a 100–240 V input with 85 % efficiency and overload, over-voltage, short-circuit and over-current protection

  • TypeAT
  • 120 W output powers demanding 24 V industrial loads
  • Universal 100-240 V input works worldwide without a selector switch
  • 85 % efficiency reduces heat and running costs
  • Hollow thickened casing and automatic dissipation keep temperatures low on a 35 mm DIN rail
  • Overload, over-voltage, short-circuit and over-current protections safeguard connected equipment

24V 5A DIN Rail Supply

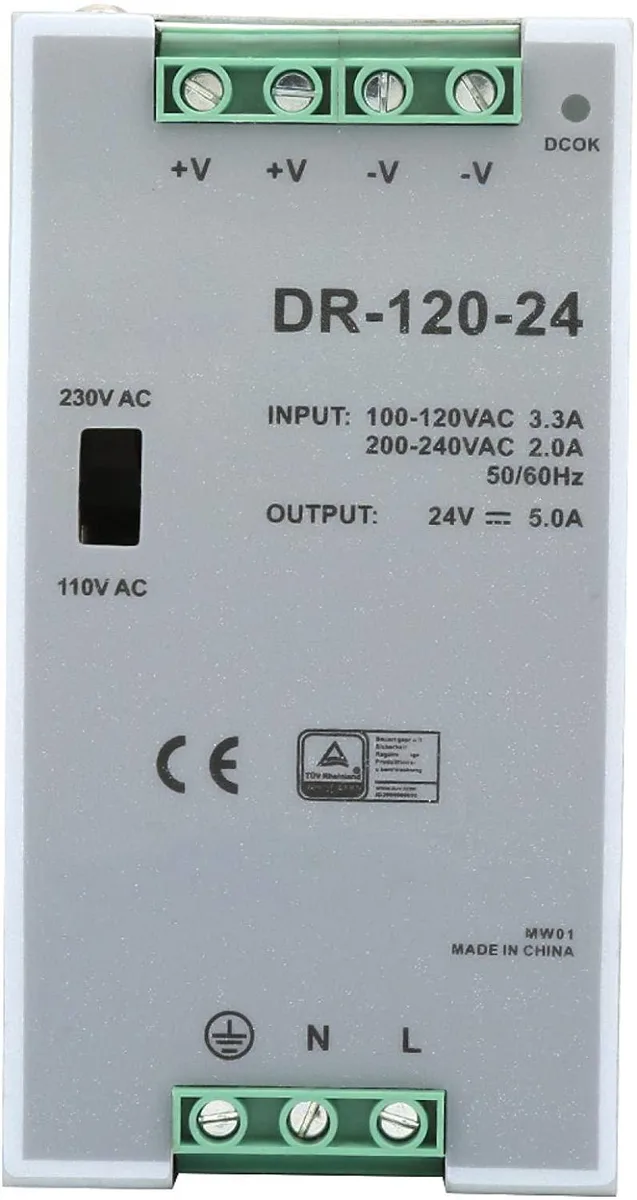

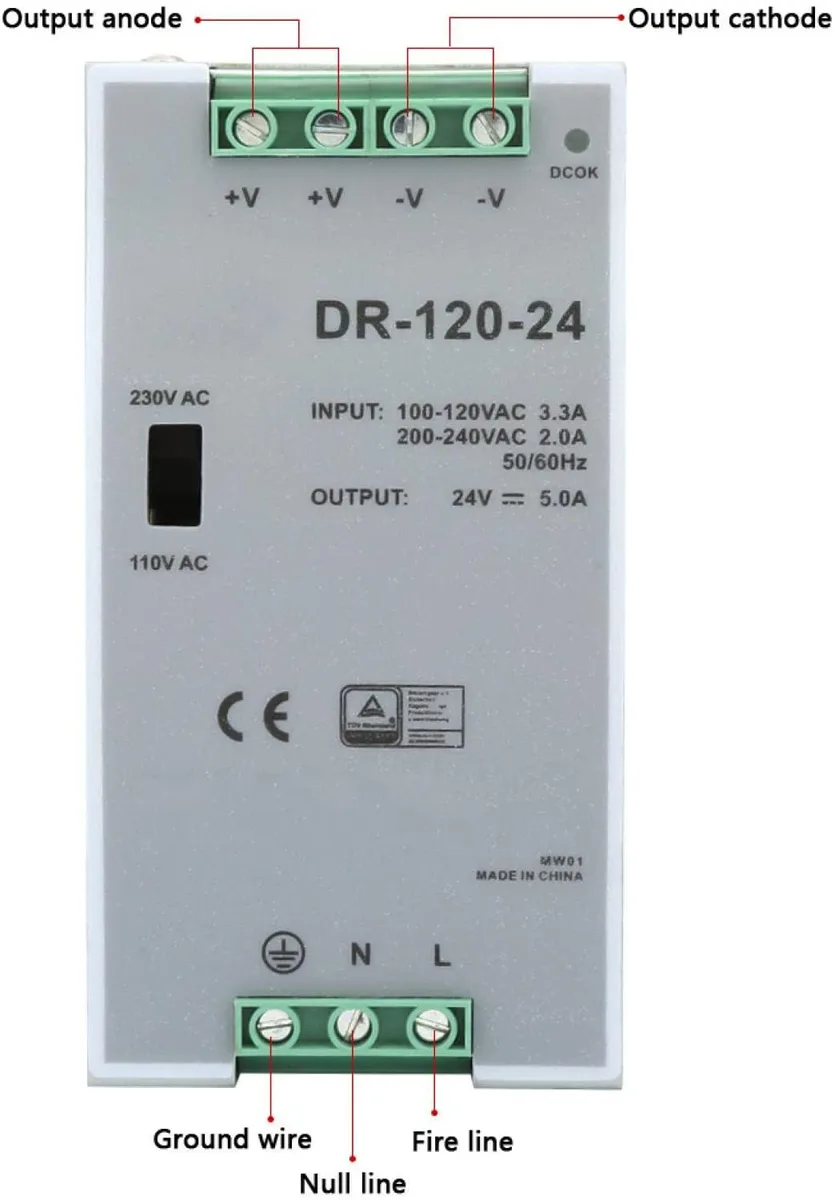

The myVolts 24V 5A 120W DIN Rail Power Supply converts 100-240V AC input into a regulated 24V DC output delivering up to 5A. It mounts on standard 35mm DIN rail for industrial control panels, lighting systems and security monitoring equipment. The enclosed unit weighs 10kg and uses forced-air cooling.

Suits 35mm Rail Panels Not High Density Racks

Installers fitting 35mm DIN rail enclosures for automation, lighting or surveillance will find the guide-rail mounting straightforward. The hollow-shell design aids passive heat dissipation at 85% efficiency. Builders needing redundant supplies, higher current density or rackmount form factors should look at other solutions.

120W Output at 85% Efficiency

Continuous 120W output at 24V 5A with 85% working efficiency determines thermal load and wiring gauge. Ripple stays within 200mVp-p and voltage accuracy is ±1% across the 100-240V universal input range. Automatic recovery protects against overload, over-voltage, short-circuit and over-current events.

Highlights

  • 120 W output powers demanding 24 V industrial loads
  • Universal 100-240 V input works worldwide without a selector switch
  • 85 % efficiency reduces heat and running costs
  • Hollow thickened casing and automatic dissipation keep temperatures low on a 35 mm DIN rail
  • Overload, over-voltage, short-circuit and over-current protections safeguard connected equipment

Specifications

TypeAT

Questions about this item

What mains voltage range does this 24V 5A supply accept?

The unit operates from 100 to 240 V AC, so it works on standard mains worldwide without a selector switch.

Will it fit on the 35 mm DIN rail already in my cabinet?

Yes, the supply is designed for guide-rail mounting on a standard 35 mm DIN rail.

How can I confirm the output is within spec after wiring it up?

Measure the DC output with a multimeter; it should read 24 V ±1 % with ripple below 200 mV peak-to-peak.
