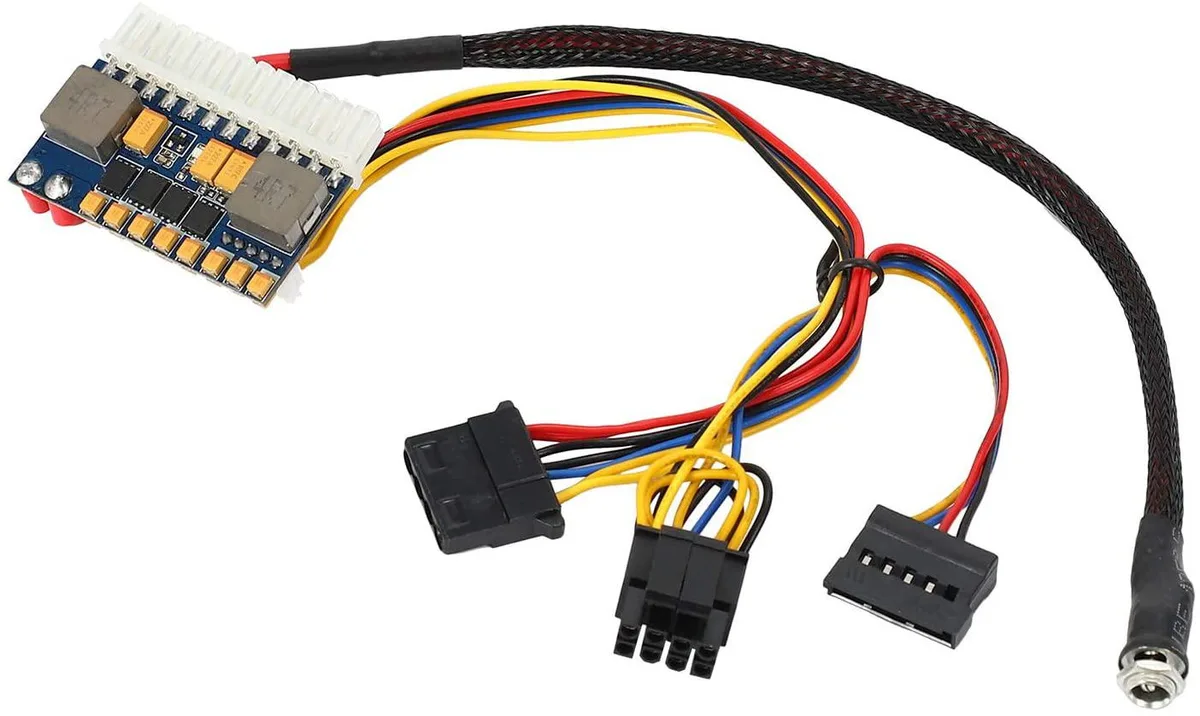

Compact white and black Pico ATX power supply with 24-pin ATX, 4-pin CPU, SATA, Molex and floppy connectors, 2.5 mm DC input jack

myVolts

myVolts Andifany 19V 200W Pico ATX Power Supply

SKU CH-N0TC-KEZW1

A 19V 200W Pico ATX supply converts 16V-24V DC input to 3.30V, 5.00V and 12.00V rails for ITX boards

  • TypeAT
  • Delivers 200 W from a 19 V input
  • Active PFC improves efficiency across 16 V–24 V range
  • Full modular cables simplify ITX builds
  • Single SATA connector powers one drive
  • 4-pin CPU and 24-pin ATX support standard motherboards

19V 200W Pico ATX Power Supply

This compact Pico ATX unit converts a 19V DC input into standard ATX rails for small-form-factor builds. It delivers up to 200W through a full-modular cable set with active PFC. The supply accepts 16V to 24V input via a 5.5mm barrel connector. It targets ITX motherboards needing a space-saving power solution.

Suits ITX builds running on external DC bricks

Builders powering compact desktops or servers from a single 19V adapter will fit this supply easily. It provides one SATA connector, one 4-pin CPU plug and a 24-pin ATX harness. Systems requiring multiple drive power leads or a 12V graphics card connector cannot use this unit. Buyers needing higher wattage or more peripheral outputs should look elsewhere.

Single 200W rating at 19V input

The supply is rated for 150W to 250W operation with a 200W nominal figure at the suggested 19V input. Output rails include +3.30V, +5.00V and +12.00V for motherboard and drive power. No PCIe power cables are included in the package. The 200W limit defines the maximum system load this unit can support.

Highlights

  • Delivers 200 W from a 19 V input
  • Active PFC improves efficiency across 16 V–24 V range
  • Full modular cables simplify ITX builds
  • Single SATA connector powers one drive
  • 4-pin CPU and 24-pin ATX support standard motherboards

Specifications

TypeAT

Questions about this item

How can I confirm the 19V 200W Pico ATX supply is delivering stable rails after connecting it to my ITX board?

Measure the +3.30 V, +5.00 V and +12.00 V outputs at the 24-pin ATX connector with a multimeter while the system is running; each rail should read within a few percent of its rated voltage.

What cables come in the box with the Andifany unit and what must I source separately?

The package includes the PSU with an attached 24-pin ATX cable, a 4-pin CPU auxiliary lead, one SATA power connector, one 4-pin Molex and one floppy drive plug; any extra SATA, PCIe or peripheral cables are not included.

Which input-voltage version should I select for a 19 V DC source?

Choose the model that accepts 16 V–24 V DC input with a 2.5 mm inner-diameter, 5.5 mm outer-diameter barrel jack; 19 V is the suggested nominal voltage for that range.
