Black PCB breakout board with 17 six-pin PCIe ports and LED voltage display

myVolts

myVolts ATX Breakout Board 17 x 6Pin 12V 2400W

SKU CH-4VEY-VSSJW

ATX breakout board converts a single 24-pin server PSU connector into 17 six-pin PCIe outputs for multi-GPU mining rigs, rated at 120 A / 2400 W with an electronic on/off switch

  • TypeAT
  • Electronic on/off switch retains its state after power loss
  • 17 PCIe ports accept 6-pin connectors for multi-GPU builds
  • On-board LED voltage meter shows 12 V rail status in real time
  • Supports up to 120 A or 2400 W from compatible Dell PSUs
  • Compact 90 x 92 mm board fits tight server chassis

ATX Breakout Board for Dell Server PSUs

This adapter converts a single Dell server power supply into seventeen 6-pin PCIe outputs for graphics cards. An on-board LED voltage meter and a latching electronic switch allow the board to remember its on or off state. It is built on a black PCB measuring approximately 90 by 92 millimetres and is sold without the required ATX 2x3-pin input cable. The unit supports up to 120 amps at 12 volts.

Mining and multi-GPU builders needing many 6-pin

The board suits miners or compute users powering multiple GPUs from one high-wattage Dell PSU. Builders who need ATX 24-pin motherboard power or other connector types must look elsewhere because the board provides only 6-pin PCIe outputs. It cannot drive a standard desktop PSU because the 24-pin input pin-out is specific to the listed Dell models.

Confirmed Dell PSU compatibility list

Compatibility is limited to the exact Dell part numbers printed in the specifications across 750, 1100, 1600, 2000 and 2400 watt units. Using any other power supply will not work because the 24-pin connector wiring differs from the standard ATX layout. Verify your PSU model against the list before purchase.

Highlights

  • Electronic on/off switch retains its state after power loss
  • 17 PCIe ports accept 6-pin connectors for multi-GPU builds
  • On-board LED voltage meter shows 12 V rail status in real time
  • Supports up to 120 A or 2400 W from compatible Dell PSUs
  • Compact 90 x 92 mm board fits tight server chassis

Specifications

TypeAT

Questions about this item

What are the board dimensions so I know if it fits my chassis?

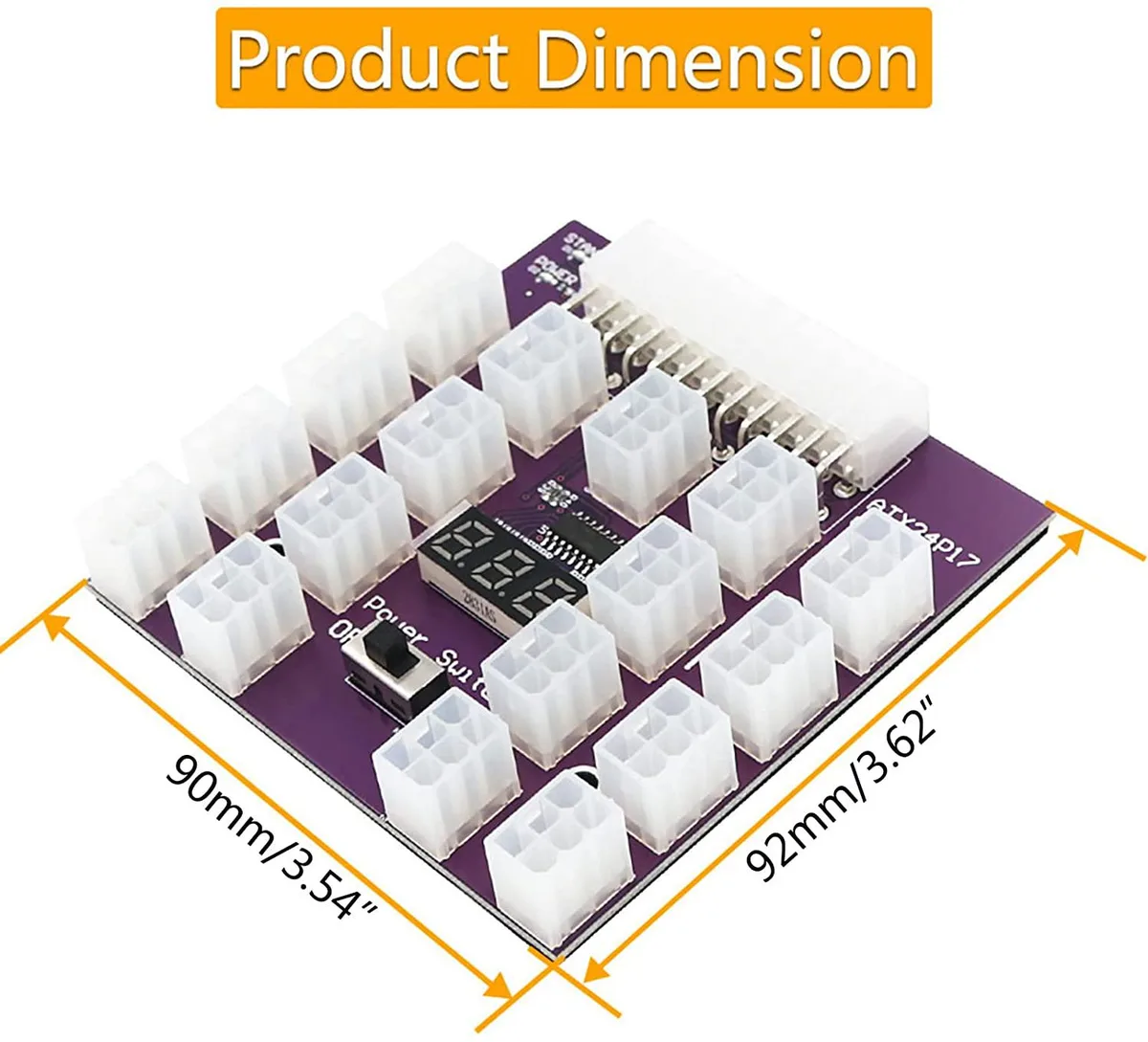

The PCB measures approximately 90 by 92 millimetres, or 3.62 by 3.54 inches, with a possible 0 to 2 centimetre tolerance from manual measurement.

How do I connect the board to a compatible Dell PSU and what is the common mistake?

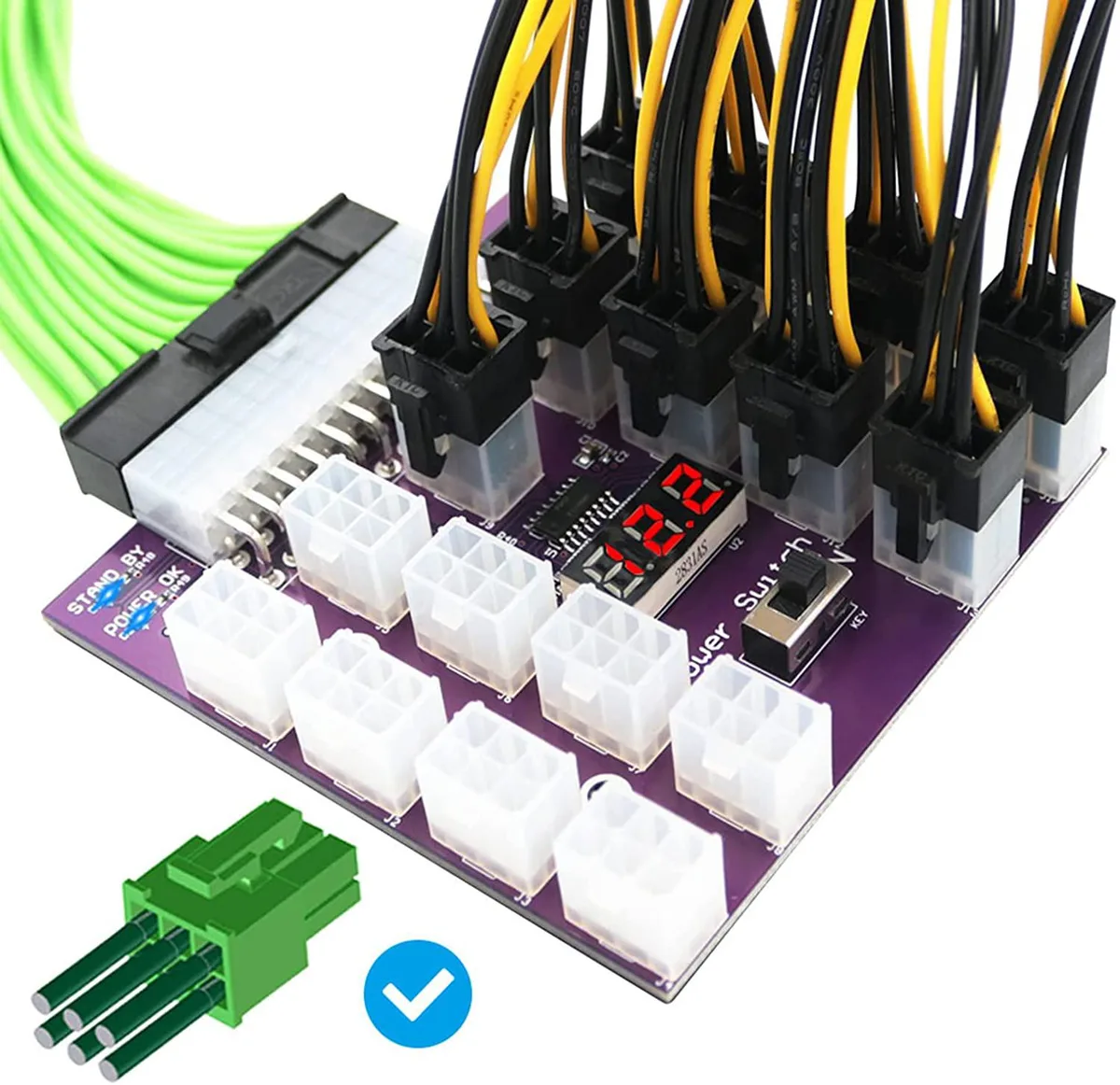

Plug the PSU's 24-pin ATX connector into the board's matching socket, then attach up to 17 six-pin PCIe cables; the step often missed is toggling the electronic on/off switch, which retains its state, to actually enable power output.

Which Dell power supplies are confirmed to work with this breakout board?

The board supports Dell units from 750 W to 2400 W, including D750E-S1, DS1100PED-3-A, D1600E-S0, D2000E-S0, D2400E-S0 and their listed part-number equivalents.
