Green circuit board with a 24-pin ATX connector, eight 4-pin IDE and two 6-pin GPU power outputs

myVolts

myVolts ATX PSU Server Power Board 24Pin to 8x IDE 4Pin + 2x 6Pin

SKU CH-1XH4-NP3M0

Converts an ATX 24-pin supply into eight IDE and two 6-pin outputs for up to 30 hard drives

  • TypeAT

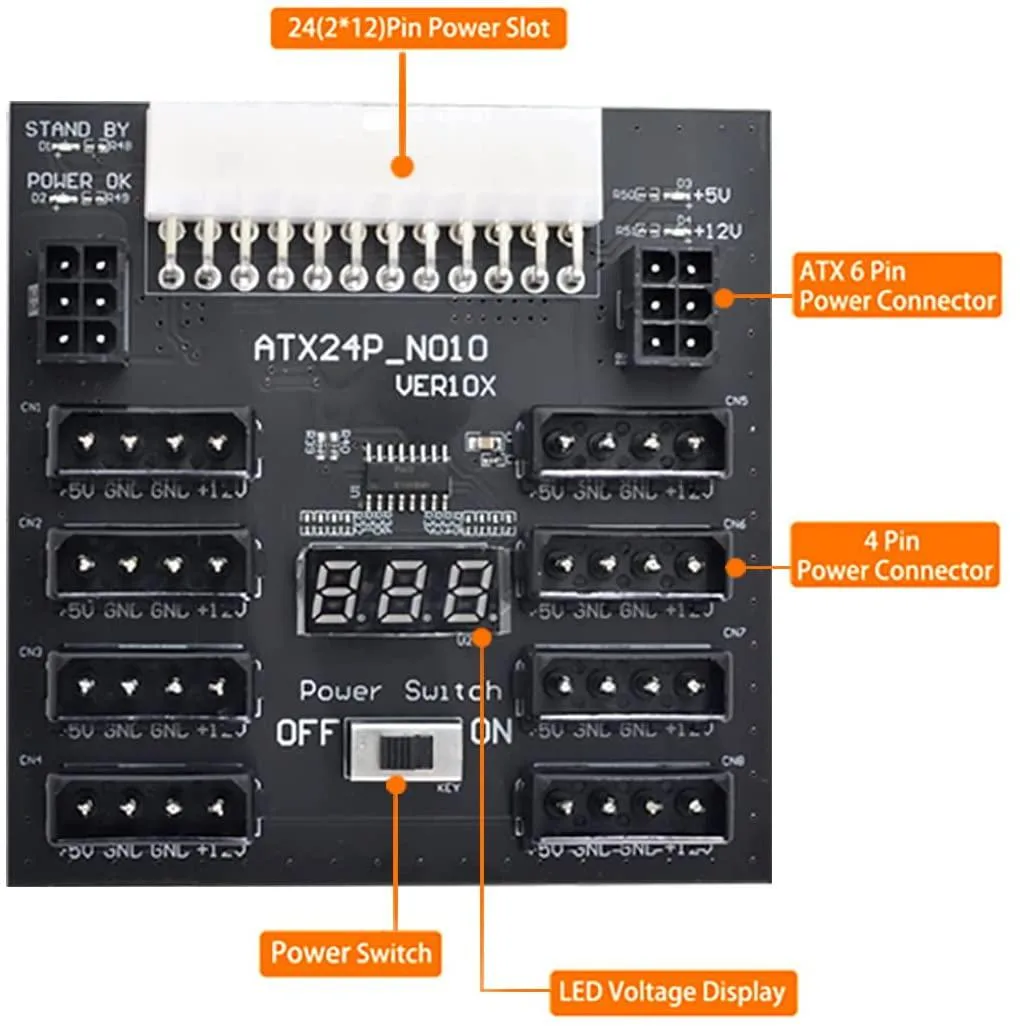

  • Converts one ATX 24‑pin connector into eight IDE 4‑pin and two GPU 6‑pin outputs
  • Delivers both 5 V and 12 V rails to power hard drives for mining rigs
  • Drive count scales with the PSU 5 V limit — 15 A supports up to 30 disks
  • Single board expands a desktop power supply for CHIA, ETH or BTC mining setups
  • Simple plug‑in design adds multiple drive connectors without extra power units

Adapter board for mining rigs

This adapter board connects to a desktop ATX power supply through a 24-pin input and provides eight 4-pin IDE connectors plus two 6-pin GPU connectors. It delivers 5 V and 12 V DC power for hard drives used in CHIA, ETH and BTC mining setups. The board is sold new and requires a separate ATX PSU to operate.

Suited for builders expanding drive counts

The board suits miners who need to run many IDE-powered drives from a single ATX unit; the number of drives supported depends on the 5 V current rating of the host supply. Builders whose power supply delivers less 5 V current than their planned drive array requires should look at a higher-rated ATX unit instead.

5 V current limit determines drive capacity

The key specification is the 5 V current upper limit of the ATX power supply, because each drive draws from that rail. If the supply outputs 15 A on 5 V, up to 30 drives can be connected, making this figure the deciding factor for whether the board meets the build’s needs.

Highlights

  • Converts one ATX 24‑pin connector into eight IDE 4‑pin and two GPU 6‑pin outputs
  • Delivers both 5 V and 12 V rails to power hard drives for mining rigs
  • Drive count scales with the PSU 5 V limit — 15 A supports up to 30 disks
  • Single board expands a desktop power supply for CHIA, ETH or BTC mining setups
  • Simple plug‑in design adds multiple drive connectors without extra power units

Specifications

TypeAT

Questions about this item

What existing power supply is required to use this board?

You need a standard desktop ATX power supply with a 24-pin main connector to plug into the board's input.

Can I keep using my older IDE hard drives with this adapter?

Yes, the board provides eight IDE 4-pin connectors that deliver 5 V and 12 V power for those drives.

How do I verify the board is delivering power correctly after installation?

Check that your drives spin up and are detected by the system; the number you can run depends on your PSU's 5 V current limit (for example, 15 A supports about 30 drives).
