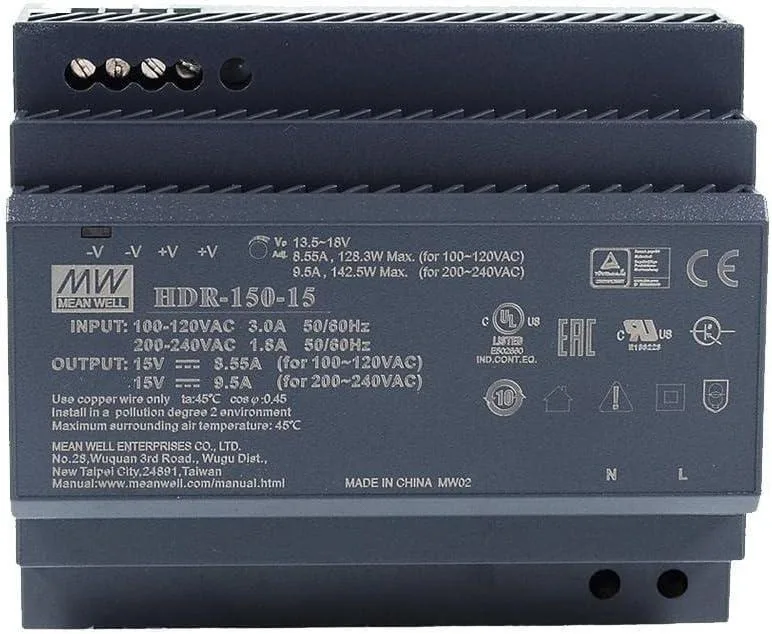

Grey plastic DIN-rail power supply, 105 mm wide, with screw terminals and LED indicator

myVolts

myVolts HDR-150-15 150W DIN Rail Power Supply

SKU CH-9XZR-TZ4V8

A 150W DIN rail power supply delivering 15V at 8.55A with universal 85-264VAC input and 90.5% efficiency

  • TypeAT
  • Space-saving 105 mm ultra-slim DIN rail width
  • Universal 85–264 VAC input with 277 VAC operational tolerance
  • High 90.5 % efficiency for cooler cabinet operation
  • Wide -30 °C to 70 °C ambient temperature range
  • Comprehensive short-circuit, overload and over-voltage protection

Industrial DIN Rail Power Supply

The myVolts HDR-150-15 is a 150W DIN rail power supply built for household automation, building control and industrial machinery. It delivers a fixed 15V output at 8.55A from a universal 85 to 264VAC input. The unit carries IEC62368-1, UL62368-1, UL61010 and EN61558-2-16 certifications for home and industrial apparatus. A plastic housing prevents electrical hazards while an LED indicates power-on status.

Cabinet Integration Requirements

The ultra-slim 105mm (6SU) width saves space inside electrical cabinets and mounts on standard TS-35/7.5 or TS-35/15 rails. Cooling relies on free air convection so adequate airflow around the unit is required. The DC output voltage is adjustable and no-load power consumption stays below 0.3W. Built-in protections cover short circuit, overload and over-voltage events. Operating temperature range spans -30 to 70 degrees Celsius.

Automation Engineers and Panel Builders

This supply suits engineers wiring building automation, factory control systems or electro-mechanical apparatus that need a certified 15V 150W source on a DIN rail. Buyers who need a different output voltage such as 12V, 24V or 48V should select the matching HDR-150 variant. Installations requiring forced-air cooling, redundant supplies or battery-backup integration will need additional equipment not provided here.

Highlights

  • Space-saving 105 mm ultra-slim DIN rail width
  • Universal 85–264 VAC input with 277 VAC operational tolerance
  • High 90.5 % efficiency for cooler cabinet operation
  • Wide -30 °C to 70 °C ambient temperature range
  • Comprehensive short-circuit, overload and over-voltage protection

Specifications

TypeAT

Questions about this item

What is the first limit reached under sustained load?

The unit delivers up to 150 W at 15 V and 8.55 A before overload protection activates.

How much heat and noise does it produce when running continuously?

Fanless convection cooling keeps it silent; the plastic housing operates from -30 °C to 70 °C ambient at up to 90.5 % efficiency.

What mounting hardware is required before installation?

A standard TS-35 DIN rail, either 7.5 mm or 15 mm profile, is needed to clip the 105 mm wide supply in place.
