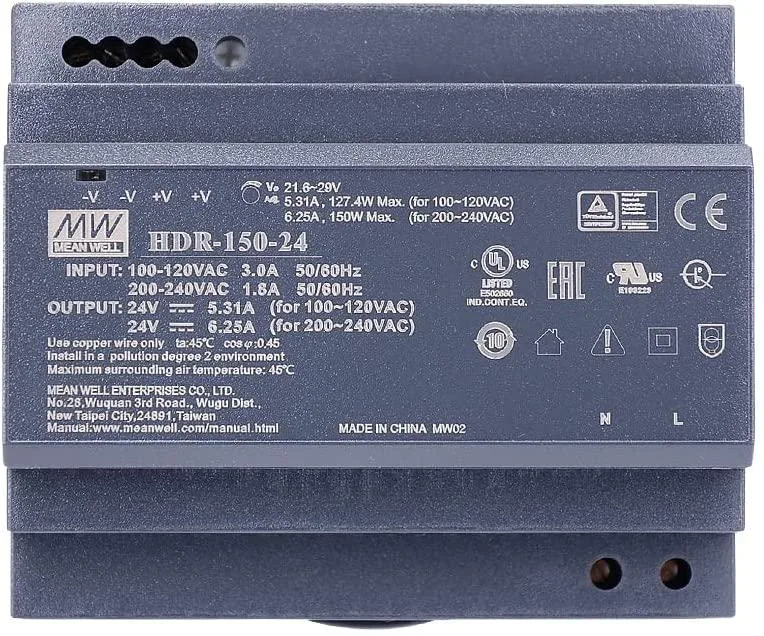

Ultra slim 150W DIN rail power supply in plastic housing with LED indicator

myVolts

myVolts HDR-150-24 150W DIN Rail Power Supply

SKU CH-WCQK-7QZTY

150W DIN rail power supply with 24V DC output, 85-264VAC input, and -30 to 70°C operation

  • TypeAT
  • Delivers 150W reliable power for industrial automation
  • Ultra slim 105mm width saves valuable cabinet space
  • Wide 85-264VAC input suits global voltage standards
  • High 90.5% efficiency reduces energy waste and heat
  • Operates from -30 to 70 degrees for harsh environments

150W DIN Rail Power Supply

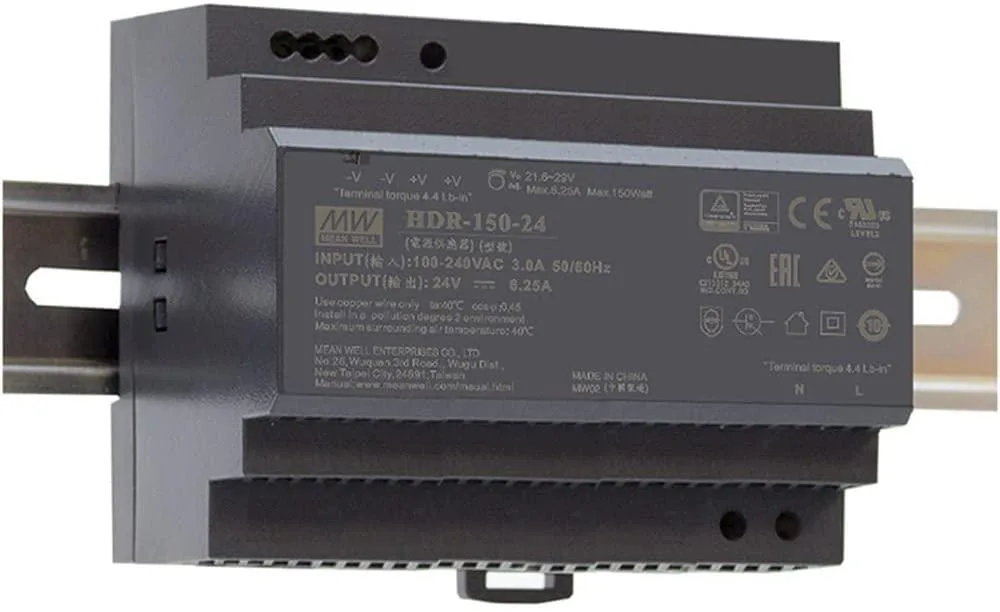

The myVolts HDR-150-24 delivers 150 watts of regulated 24V DC power at 5.31A from a universal 85-264V AC input. Its ultra-slim 105mm (6SU) plastic housing mounts on standard TS-35 DIN rails, saving space inside control cabinets. Designed for household automation, building management and industrial control systems, it operates reliably from -30°C to 70°C using only free-air convection cooling.

Interface and Standard Limits

The unit accepts a wide AC input range up to 277V operational and conforms to EN61000-3-2 harmonic current limits for European installations. Output voltage is adjustable to suit specific load requirements. Built-in protections cover short circuit, overload and over-voltage conditions. Safety certifications include IEC62368-1, UL62368-1, UL61010 and EN61558-2-16 for household and industrial apparatus.

Upgrade Context and Fit

This supply replaces older, bulkier DIN rail units that lack the 105mm slim profile or the full 85-264V AC input range. The jump is worthwhile when cabinet space is tight, when equipment must meet current harmonic standards, or when operating temperatures exceed the range of conventional enclosed supplies. It is not suited for applications requiring forced-air cooling, redundant paralleling or output voltages other than the fixed 12V, 15V, 24V or 48V models available in the series.

Highlights

  • Delivers 150W reliable power for industrial automation
  • Ultra slim 105mm width saves valuable cabinet space
  • Wide 85-264VAC input suits global voltage standards
  • High 90.5% efficiency reduces energy waste and heat
  • Operates from -30 to 70 degrees for harsh environments

Specifications

TypeAT

Questions about this item

Which output voltage version should I choose for my application?

The HDR-150-24 delivers 24 V at 5.31 A. Other versions are 12 V at 10.2 A, 15 V at 8.55 A, and 48 V at 2.72 A. Match the voltage to your load and ensure the current rating covers peak draw.

What does the 150 W rating mean when the unit is installed in a cabinet?

At up to 90.5 % efficiency the supply provides 150 W continuous output from -30 °C to 70 °C ambient using only free-air convection. The 105 mm wide plastic housing fits TS-35/7.5 or TS-35/15 DIN rails and leaves space for adjacent modules.

What AC input range does the HDR-150-24 accept and what standard does it meet for harmonics?

Universal input covers 85–264 V AC (277 V AC operational) and complies with EN61000-3-2 for harmonic current limits.
