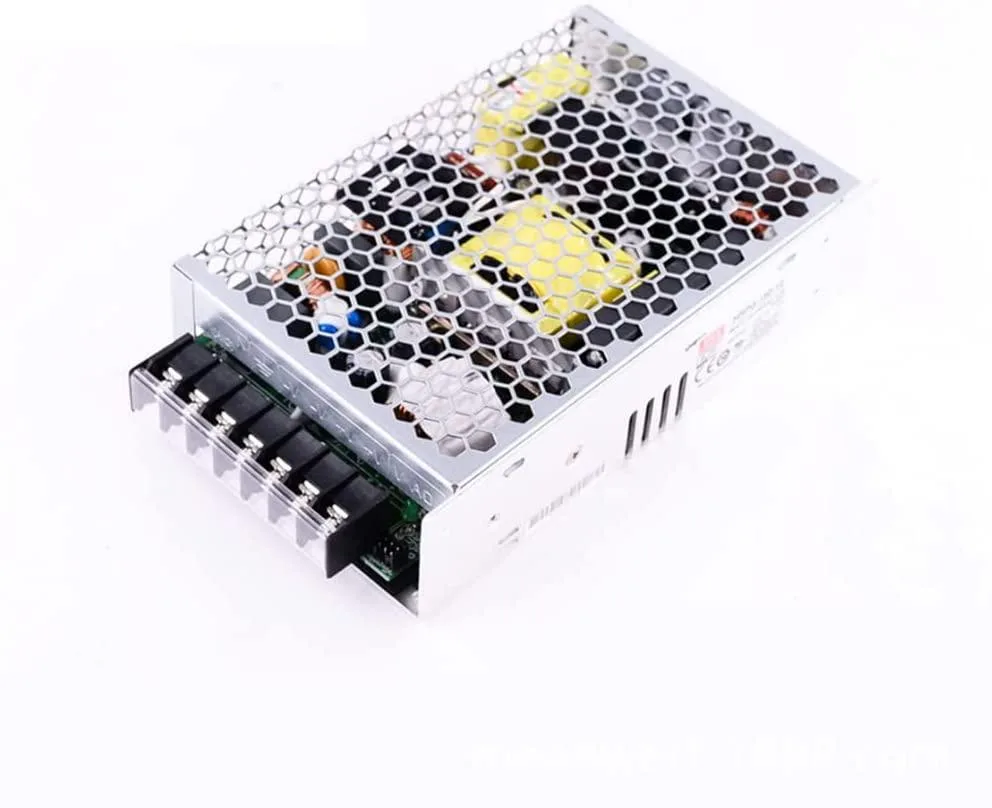

Rectangular metal power supply unit with perforated sides and screw terminals

myVolts

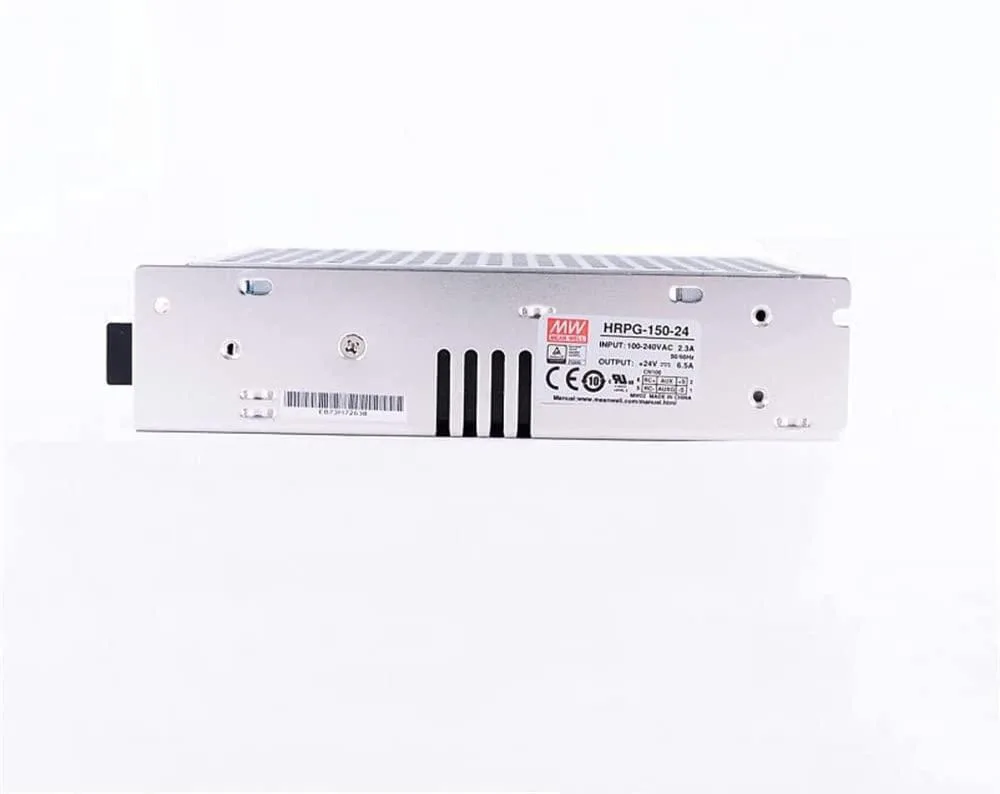

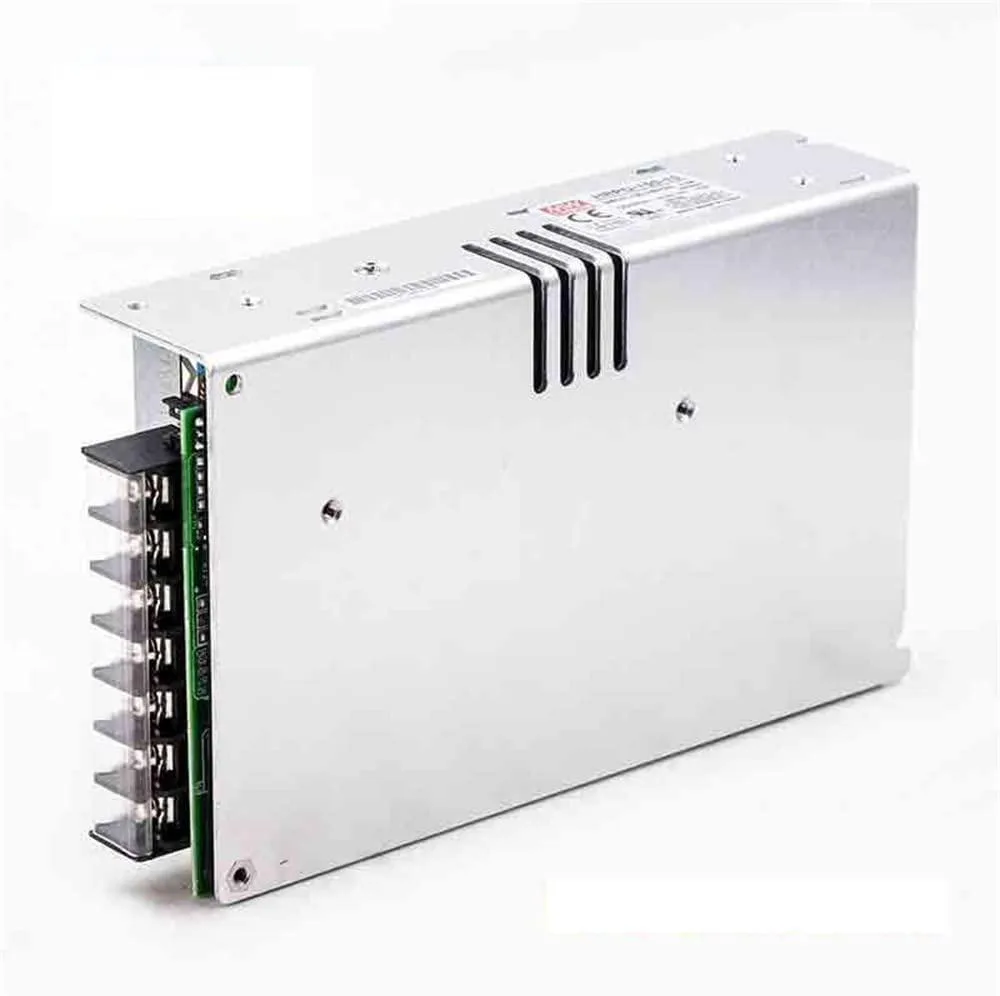

myVolts HRPG-150-24 150W 24V 6.5A Power Supply

SKU CH-A792-7224Y

Delivers 24 V at 6.5 A with active PFC above 0.95, 88 % efficiency, full protection suite and convection cooling in a 38 mm low-profile enclosure

  • TypeAT
  • High efficiency up to 88% reduces energy waste
  • Active PFC with PF>0.95 improves power quality
  • Withstands 300VAC surge input for 5 seconds
  • Multiple protections guard against short circuit and overload
  • No-load power consumption under .5W saves standby energy

150 W 24 V Enclosed Power Supply

The myVolts HRPG-150-24 is a 150 W single-output unit delivering 24 V at 6.5 A. It accepts a universal AC input range and includes active PFC with a power factor above 0.95. The enclosure measures 38 mm in height for 1U low-profile mounting. Cooling is handled by free air convection with no internal fan.

Industrial and LED Lighting Installations

This supply suits engineers who need a compact 24 V source for LED lighting arrays, automation panels or test bench equipment. It also fits 1U rack builds where convection cooling is preferred. Buyers who require multiple voltage rails, higher current at 24 V or forced-air cooling for dense enclosures should consider other form factors.

Screw-Terminal Wiring and Convection Clearance

Installation uses screw terminals for both AC input and DC output; no specialised connectors are required. The built-in remote on-off and remote sense functions simplify system integration. The most common issue is insufficient airflow around the 38 mm case, which triggers over-temperature protection under sustained full load. Ensure the mounting orientation allows unrestricted convection paths.

Highlights

  • High efficiency up to 88% reduces energy waste
  • Active PFC with PF>0.95 improves power quality
  • Withstands 300VAC surge input for 5 seconds
  • Multiple protections guard against short circuit and overload
  • No-load power consumption under .5W saves standby energy

Specifications

TypeAT

Questions about this item

What AC voltage range does the HRPG-150-24 accept for the mains connection?

The unit accepts universal AC input across the full range without a selector switch.

Can I use the built-in remote ON-OFF control with a simple switch or logic signal?

Yes, the supply includes a built-in remote ON-OFF control that can be driven by an external switch or logic level.

How can I verify the power supply is regulating correctly after wiring it up?

Measure the output with a multimeter; it should read 24 V at up to 6.5 A load, and the built-in remote sense function helps maintain that voltage at the load.
