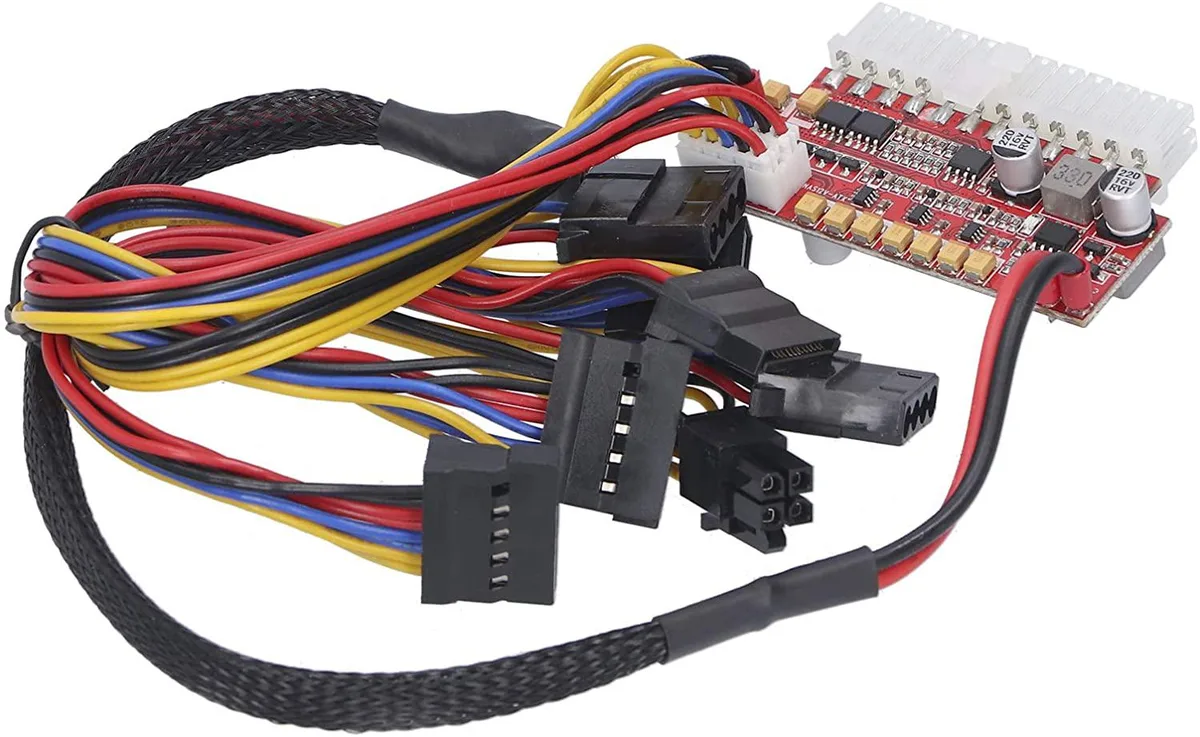

Compact 200W ATX power board with 24-pin plug and short cables

myVolts

myVolts LD-NAS200L 200W ATX Power Supply

SKU CH-ZGTP-WQCT5 MPN LD-NAS200L

A 200W ATX power module plugs directly into the 24-pin connector, supplies 12V/12A and 5V/10A rails, and includes SATA, IDE and CPU4Pin cables for compact systems

  • TypeAT
  • Direct plug-in removes 24 cables for tidy builds
  • 200W output on 12V input powers compact systems

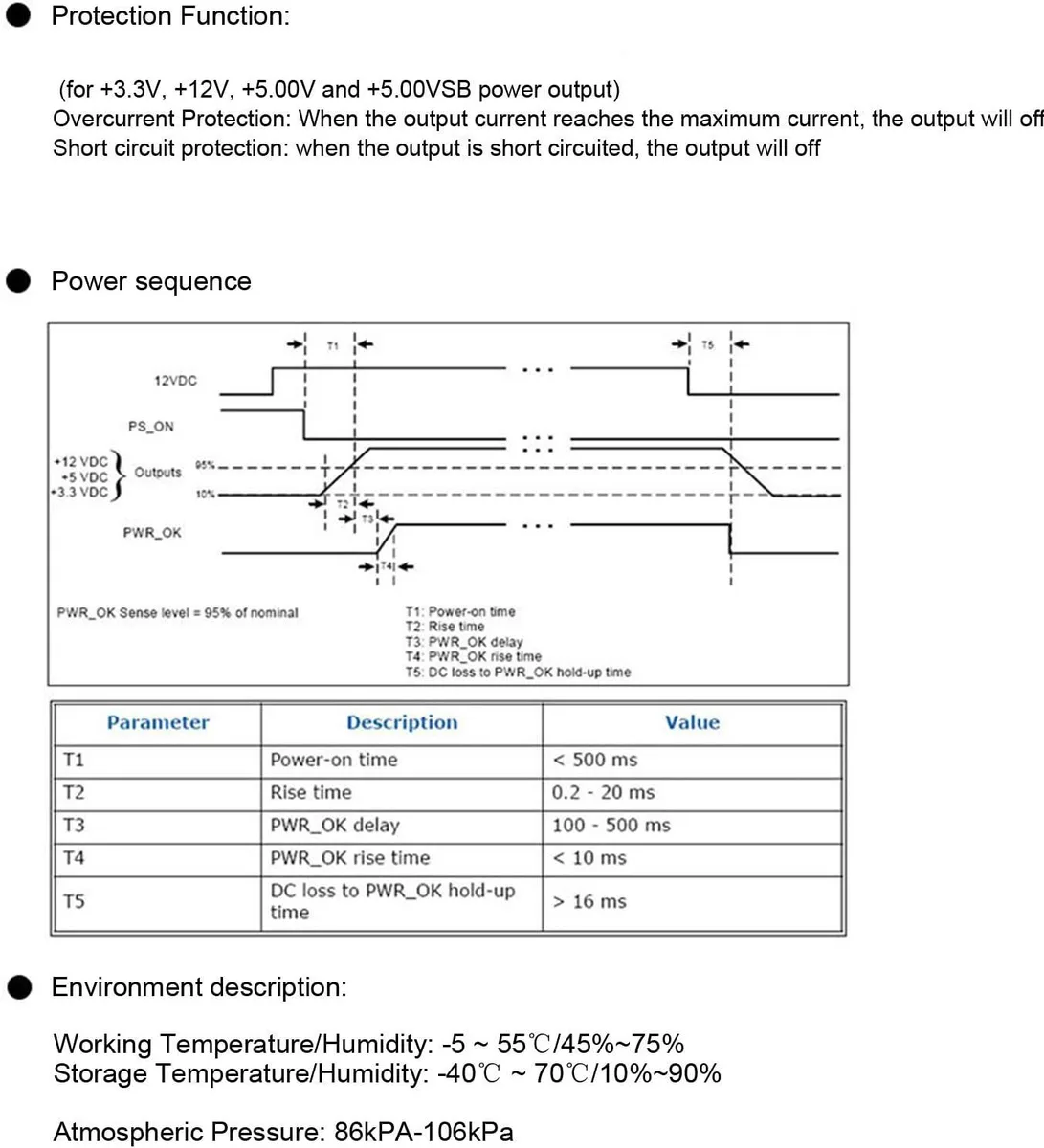

  • Over-current and short-circuit protection shuts down on fault
  • High-heat-resistance PCB material keeps operation stable
  • SATA, IDE, CPU and DC5525 connectors cover varied drives

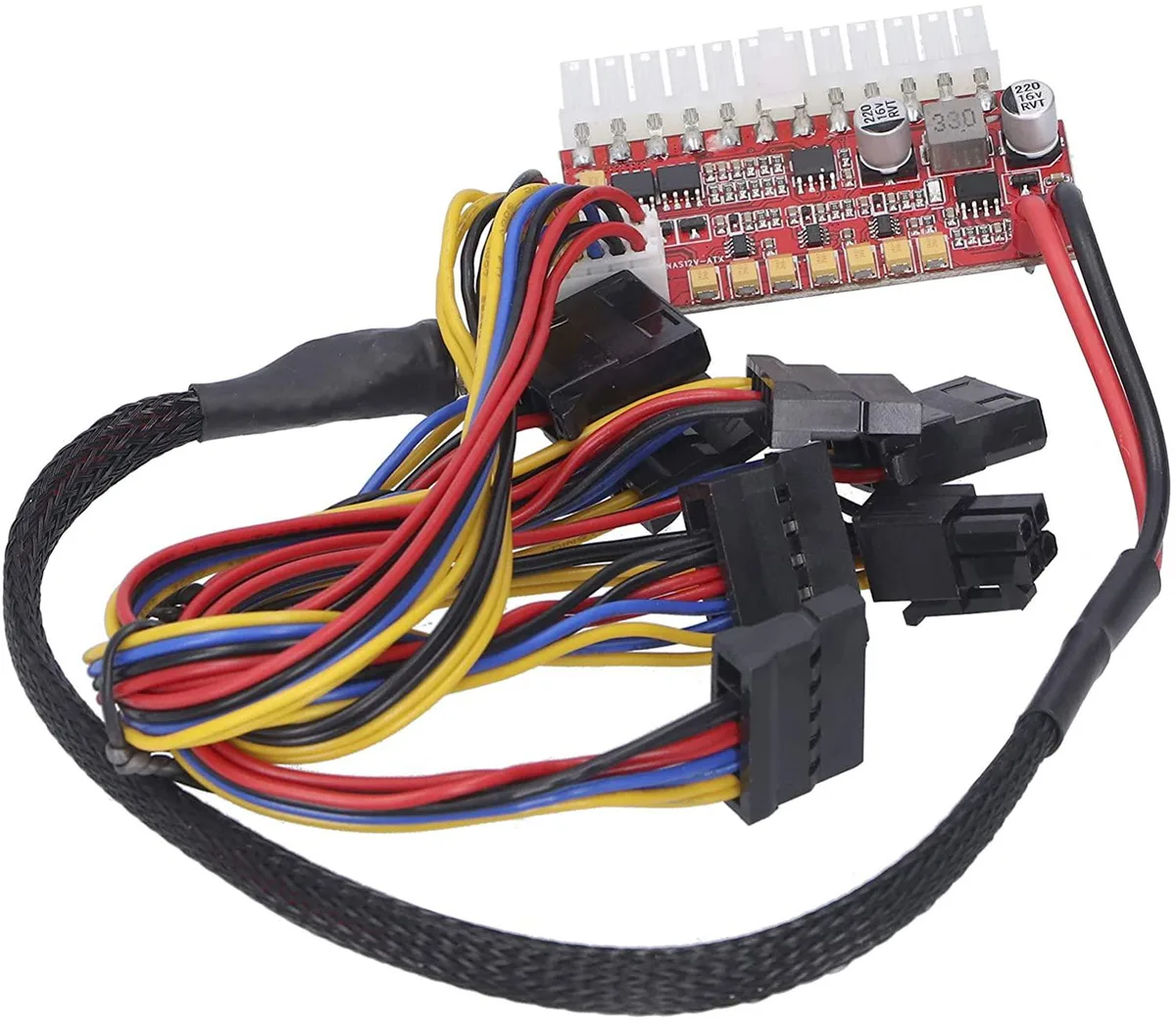

Direct-plug ATX power module

The myVolts LD-NAS200L is a 200 W ATX power adapter board that plugs straight into the motherboard 24-pin connector. It supplies 12 V input converted to +3.3 V, +5 V, +12 V, -12 V and +5 VSB rails for mini PCs, HTPCs, POS terminals, ITX builds and industrial control systems.

Installation and common issues

The board eliminates 24 separate wires, so cable routing is reduced to a DC jack lead of 320 mm, a CPU 4-pin lead of 210 mm, IDE leads of 200 mm and SATA leads of 150 mm. Over-current and short-circuit protection shut the output down if peak current is exceeded, preventing damage during a wiring fault.

Compatibility checks before ordering

Verify that your motherboard uses a standard ATX 24-pin power socket and a CPU 4-pin connector. Confirm the chassis can accommodate the DC 5525 jack and the listed cable lengths. Ensure the 12 V source can deliver the required 200 W load across the +12 V 12 A, +5 V 10 A, +3.3 V 8 A and +5 VSB 2 A rails.

Highlights

  • Direct plug-in removes 24 cables for tidy builds
  • 200W output on 12V input powers compact systems
  • Over-current and short-circuit protection shuts down on fault
  • High-heat-resistance PCB material keeps operation stable
  • SATA, IDE, CPU and DC5525 connectors cover varied drives

Specifications

TypeAT

Questions about this item

How do I confirm the myVolts LD-NAS200L is working after plugging it into the ATX24Pin connector?

The board powers on when the motherboard receives +12V at 12A, +5V at 10A, +3.3V at 8A, +5VSB at 2A and -12V at 0.05A; over-current or short-circuit protection will shut the output off if limits are exceeded.

What cables and connectors come with the LD-NAS200L and what must I source separately?

Included are a 320mm DC5525 lead, 210mm CPU4Pin, two 200mm IDE, four 150mm SATA and the direct-plug ATX24Pin; a 12V external power brick is not supplied.

Which LD-NAS200L variant should I choose for a Mini-ITX HTPC build?

Only the single 200W LD-NAS200L model exists; it fits small ATX boards, delivers 12A on the +12V rail and includes all cables needed for SATA drives and a CPU4Pin header.
