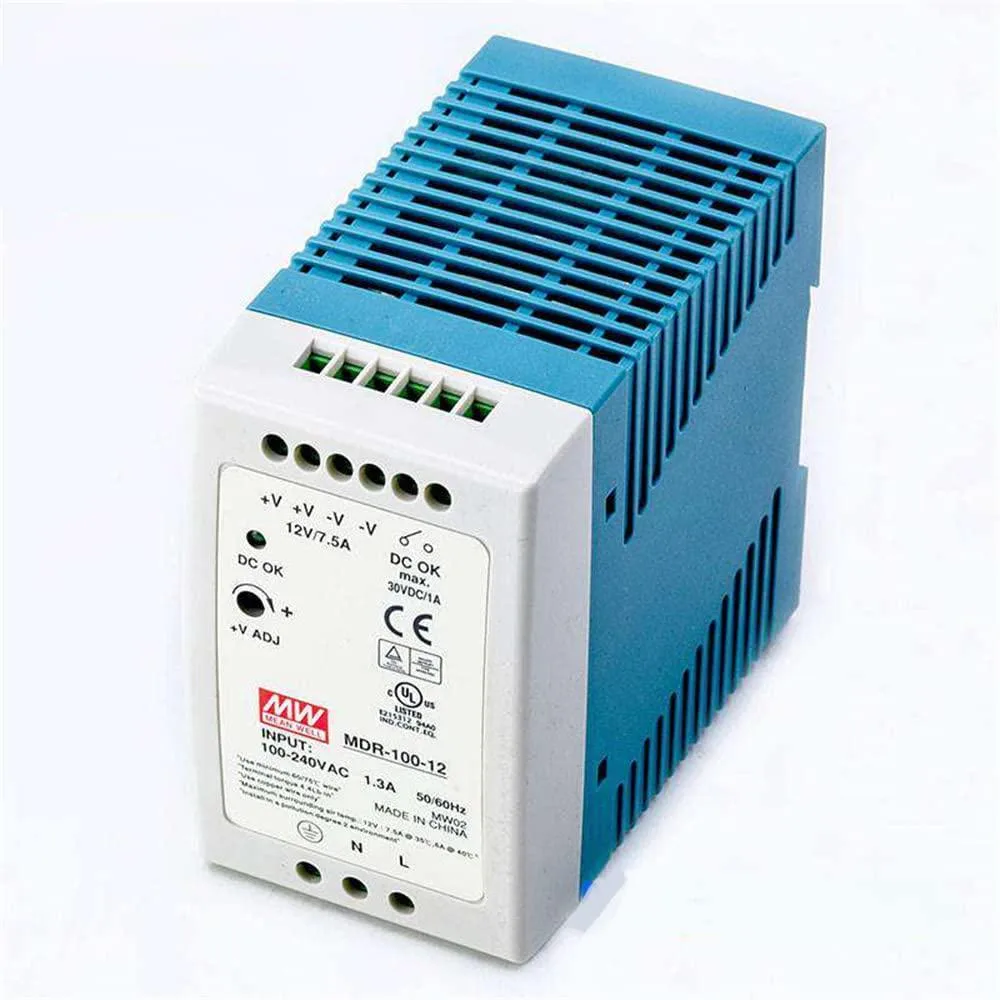

Ultra-slim DIN rail power supply in a plastic case, 100W 12V output

myVolts

myVolts MDR-100-12 100W 12V DIN Rail Power Supply

SKU CH-QCKR-P9R5G

Ultra-slim DIN rail power supply delivering 12 V at 100 W with short-circuit, overload, over-voltage and over-temperature protection

  • TypeAT
  • 100 W output powers industrial PLCs and sensors reliably
  • Ultra-slim design fits DIN rail TS-35/7.5 or 15 for tight cabinets
  • Universal AC input accepts full voltage range worldwide
  • Multiple protections guard against short circuit overload over voltage and over temperature
  • No-load consumption below 1 W cuts standby energy waste

Industrial DIN-rail power supply

The myVolts MDR-100-12 is a 100W single-output unit delivering 12V at 7.5A. It is built for industrial PLCs, sensors, robots, automated factories, test equipment, distribution cabinets and subway gate control systems. The ultra-slim plastic case mounts on standard TS-35/7.5 or 15 DIN rails. Cooling is by free air convection with no fan.

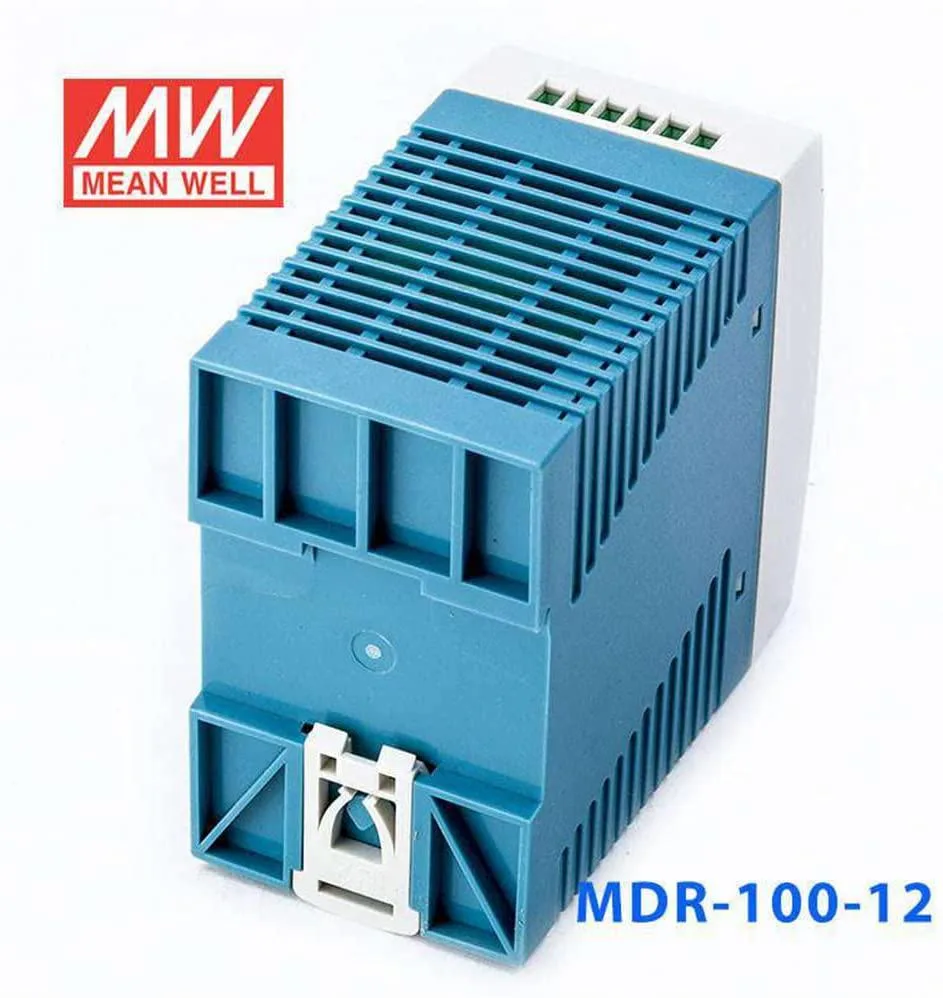

Snap-on rail mounting with basic wiring

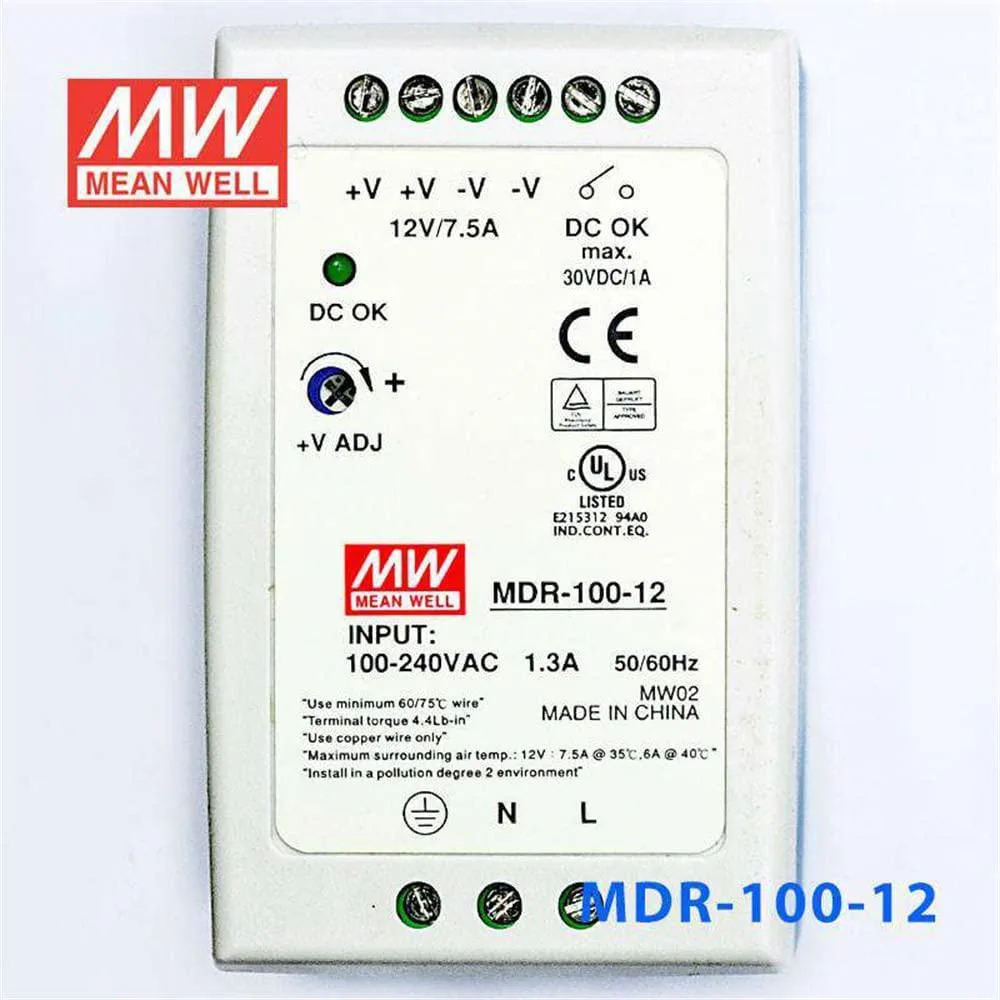

Installation consists of clipping the housing onto a compatible DIN rail and connecting the AC input and DC output terminals. The universal AC input accepts a full voltage range automatically. Built-in protections cover short circuit, overload, over voltage and over temperature. A DC OK relay contact and a power-on LED give immediate status feedback. No-load consumption stays below 1W.

Suits control-panel builds needing 12V

This unit fits panels that require a compact 12V 100W source with relay signalling and convection cooling. It is not intended for applications that need a different output voltage such as 24V or 48V, nor for builds that demand forced-air cooling or a non-DIN enclosure format. Buyers who need multiple output rails or higher power should look at other models.

Highlights

  • 100 W output powers industrial PLCs and sensors reliably
  • Ultra-slim design fits DIN rail TS-35/7.5 or 15 for tight cabinets
  • Universal AC input accepts full voltage range worldwide
  • Multiple protections guard against short circuit overload over voltage and over temperature
  • No-load consumption below 1 W cuts standby energy waste

Specifications

TypeAT

Questions about this item

How can I confirm the MDR-100-12 is operating correctly once it is mounted on the DIN rail?

The built-in LED indicator lights when the unit is powered on, and the DC OK relay contact provides a signal that the output voltage is within specification.

What comes in the box with the MDR-100-12 and what must I source separately?

The power supply itself is supplied; you will need to provide a TS-35/7.5 or TS-35/15 DIN rail for mounting and your own AC input and DC output wiring.

Which output voltage version should I select for a 12 V industrial PLC sensor system?

Choose the MDR-100-12 model, which delivers 12 V at 7.5 A; the range also includes 24 V and 48 V versions for different voltage requirements.
