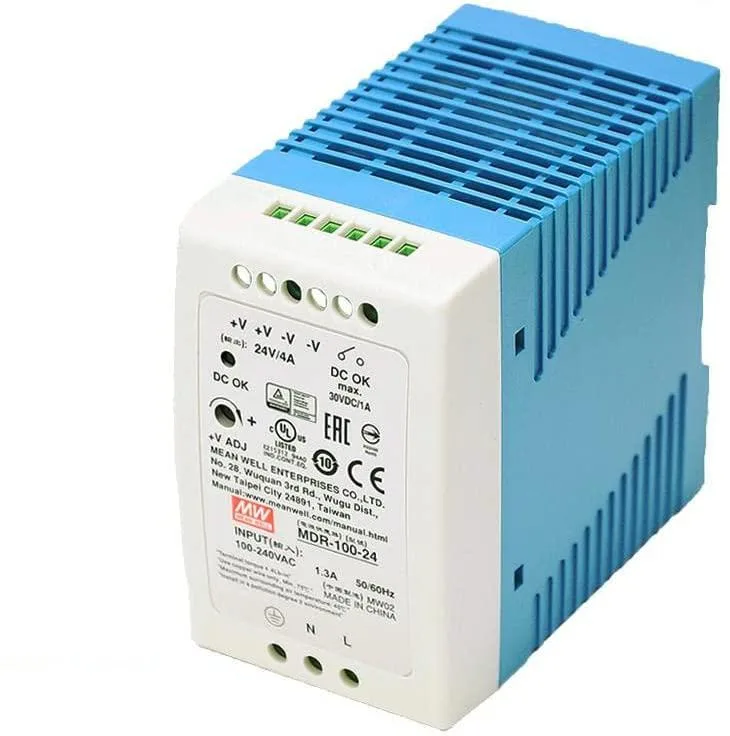

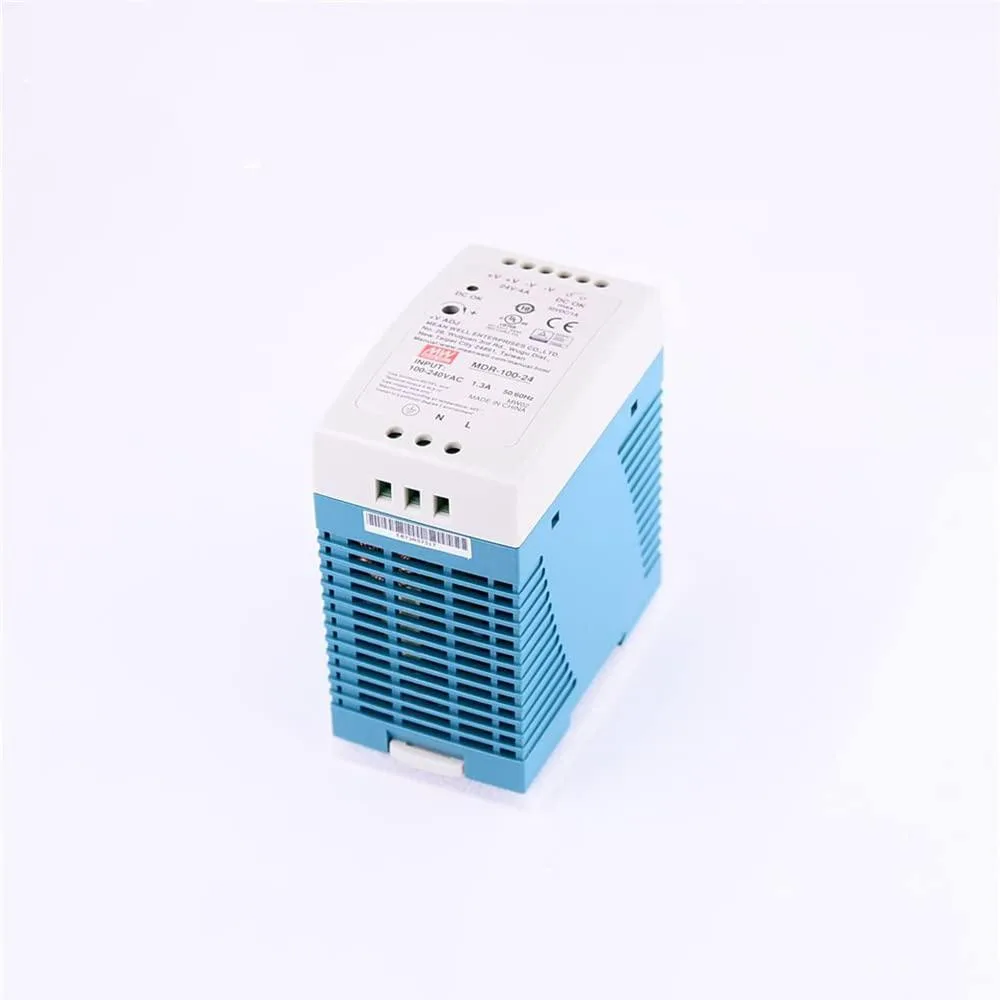

Ultra-slim DIN rail power supply in plastic case, grey finish

myVolts

myVolts MDR-100-24 24V 4A DIN Rail Power Supply

SKU CH-DWER-AFVF4

Delivers 24 V at 4 A for industrial PLCs, sensors and robots with universal AC input, DIN rail mounting and short-circuit, overload, over-voltage and over-temperature protection

  • TypeAT
  • Delivers stable 24V 4A output for industrial PLC sensors
  • Ultra-slim DIN rail design fits TS-35/7.5 or 15 mounting rails
  • Multiple protections guard against short circuit overload over voltage and over temperature
  • Free-air convection cooling with no-load consumption under 1W
  • DC OK relay contact and LED indicator confirm power status

Industrial DIN Rail Power Supply

The myVolts MDR-100-24 is a 24 V 4 A AC-DC power supply built for DIN rail TS-35/7.5 or 15 mounting in control cabinets. It delivers 100 W of regulated output with universal AC input and protections against short circuit, overload, over voltage and over temperature. Cooling is by free air convection and a DC OK relay contact provides status signalling.

Suited for PLC and sensor systems

This unit fits automation panels powering industrial robots, automated factory lines, test equipment, power distribution cabinets, vision systems, gate controls and environmental purification equipment. Installers who need a different output voltage such as 12 V 7.5 A or 48 V 2 A should select the corresponding model from the same series. Buyers requiring redundant or hot-swap supplies will need a different topology.

Capacity and headroom

At 24 V the supply provides 4 A continuous current with no-load consumption below 1 W. The 100 W rating covers typical PLC, sensor and actuator loads in compact cabinets. Systems drawing more than 100 W or needing parallel operation for higher current must use a higher-power supply.

Highlights

  • Delivers stable 24V 4A output for industrial PLC sensors
  • Ultra-slim DIN rail design fits TS-35/7.5 or 15 mounting rails
  • Multiple protections guard against short circuit overload over voltage and over temperature
  • Free-air convection cooling with no-load consumption under 1W
  • DC OK relay contact and LED indicator confirm power status

Specifications

TypeAT

Questions about this item

What DIN rail standard must my cabinet already have for the MDR-100-24 to clip on?

The unit fits TS-35/7.5 or 15 rails, so your cabinet needs a standard 35 mm DIN rail with either 7.5 mm or 15 mm depth.

Will the 24 V 4 A output run alongside a legacy 12 V sensor on the same rail without interference?

Yes, the MDR-100-24 provides a single 24 V output with short-circuit, overload, over-voltage and over-temperature protection, so a separate 12 V device on the same rail is electrically isolated.

How do I confirm the supply is delivering 24 V correctly after wiring it up?

The front-panel LED lights when the output is live, and the built-in DC OK relay contact closes, giving you a hard-wired signal that the 24 V rail is within specification.
