Compact rectangular ATX power module, black plastic and metal casing, 24-pin connector, fanless design

myVolts

myVolts Pico ATX PSU 12V 160W 24-pin

SKU CH-A1V4-KT2JT

A fanless 160 W ATX power module that converts 12 V DC input to 24-pin output for compact ITX builds

  • TypeAT
  • Fanless design keeps builds silent
  • 160 W output from a 12 V source
  • ATX 24-pin connector supplies +12 V, +5 V, +3.3 V and -5 VSB
  • Solid polymer capacitors rated for high temperature and long life
  • Compact 53 x 27.5 x 11.5 mm module fits tight ITX cases

Pico ATX PSU 160W 12V Input

This fanless power module accepts a 12V DC source and delivers up to 160W through a standard 24-pin ATX connector. It provides +12V, +5V, +3.3V and -5VSB rails for small-form-factor or embedded builds. The compact 53 x 27.5 x 11.5mm board uses solid polymer capacitors for high-temperature stability. Builders needing an internal AC-DC unit or higher wattage should look elsewhere.

Input Connector 2.5mm 5.5mm DC Jack

The single specification that decides compatibility is the 2.5mm inner, 5.5mm outer diameter DC barrel jack requiring a 12V supply. Your source must match this exact connector geometry and voltage or the module will not power on. No adapter is included in the package.

Cables and Capacitor Variants

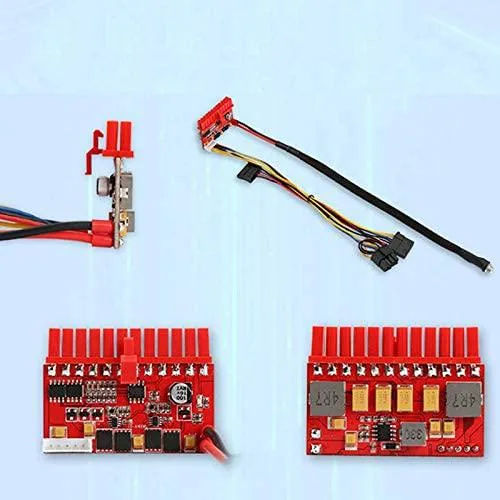

The bundle adds one set of power cables to reach the motherboard and peripherals. Because capacitor batches vary, the physical appearance of the board may differ from product photos without changing electrical performance. No mounting hardware, software or additional connectors are supplied.

Highlights

  • Fanless design keeps builds silent
  • 160 W output from a 12 V source
  • ATX 24-pin connector supplies +12 V, +5 V, +3.3 V and -5 VSB
  • Solid polymer capacitors rated for high temperature and long life
  • Compact 53 x 27.5 x 11.5 mm module fits tight ITX cases

Specifications

TypeAT

Questions about this item

What does the 160 W rating mean when this unit is installed in a Mini-ITX build?

It is the maximum combined power the module can deliver across its +12 V, +5 V, +3.3 V and -5 VSB rails from a 12 V DC source.

What does the 2.5 mm / 5.5 mm barrel jack limit in practice?

It restricts the input to a 12 V DC supply fitted with a matching 5.5 mm outer, 2.5 mm inner connector.

Will the 53 mm × 27.5 mm × 11.5 mm board fit inside a standard Pico-ITX enclosure?

The module measures 53 mm long, 27.5 mm wide and 11.5 mm high, so it fits most Pico-ITX cases that accept those dimensions.
