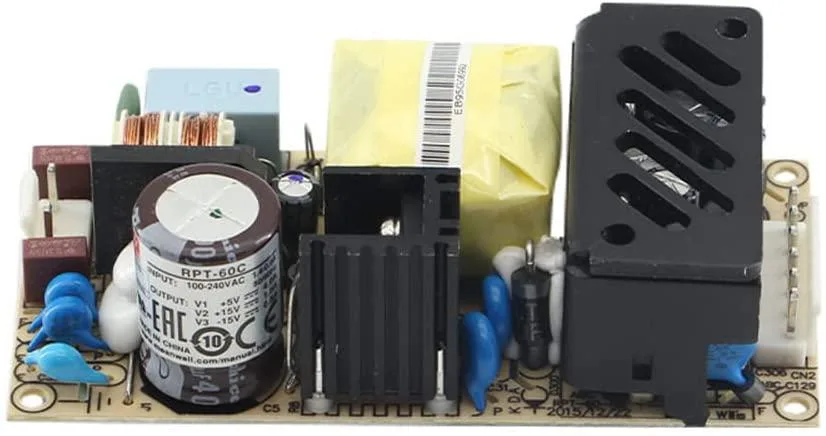

Green open-frame PCB power supply, four by two inches, triple output, medical grade

myVolts

myVolts RPT-60C 60W Triple Output Medical Power Supply

SKU CH-DEF5-DY9D1

Delivers triple-output power at 60W with 2×MOPP medical safety approval and extremely low leakage current

  • TypeAT
  • Triple output rails power medical devices reliably
  • 60W continuous delivery meets demanding equipment needs
  • 2×MOPP medical certification ensures patient safety
  • 90-264VAC universal input works worldwide
  • 4×2 inch compact footprint saves board space

Medical-grade power platform

The myVolts RPT-60C delivers 60W from a 4"×2" open-frame PCB. It is approved to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1 with 2×MOPP isolation for BF-type applied parts. Extremely low leakage current stays below 150 µA. The unit suits oral irrigators, hemodialysis machines, medical monitors and sleep-apnea devices.

Build integration

The supply accepts 90–264Vac and fits a compact footprint without forced-air cooling. Triple outputs include 5V at 4.4A, 12V at 2.2A and a choice of -5V, -12V or -15V at 0.55A/0.65A. Class B EMI performance to BS EN/EN55011 eases system-level compliance. Short-circuit, overload, over-voltage and over-temperature protections guard connected loads.

Sustained operation

Free-air convection handles continuous thermal load across the full input range. Green-design efficiency targets reduce waste heat during 24-hour duty cycles in clinical equipment. The 3-year warranty period reflects the manufacturer's confidence in long-term reliability under constant medical use.

Highlights

  • Triple output rails power medical devices reliably
  • 60W continuous delivery meets demanding equipment needs
  • 2×MOPP medical certification ensures patient safety
  • 90-264VAC universal input works worldwide
  • 4×2 inch compact footprint saves board space

Specifications

TypeAT

Questions about this item

What is the total continuous power limit of the RPT-60C under sustained load?

The unit is rated for 60 W total continuous output across all three rails.

How does the supply manage heat during all-day operation?

It uses free-air convection cooling with no internal fan, relying on the open-frame PCB layout to dissipate heat.

What input voltage range must the installation site provide?

The supply accepts 90 to 264 V AC, so it works on standard mains worldwide without a selector switch.
