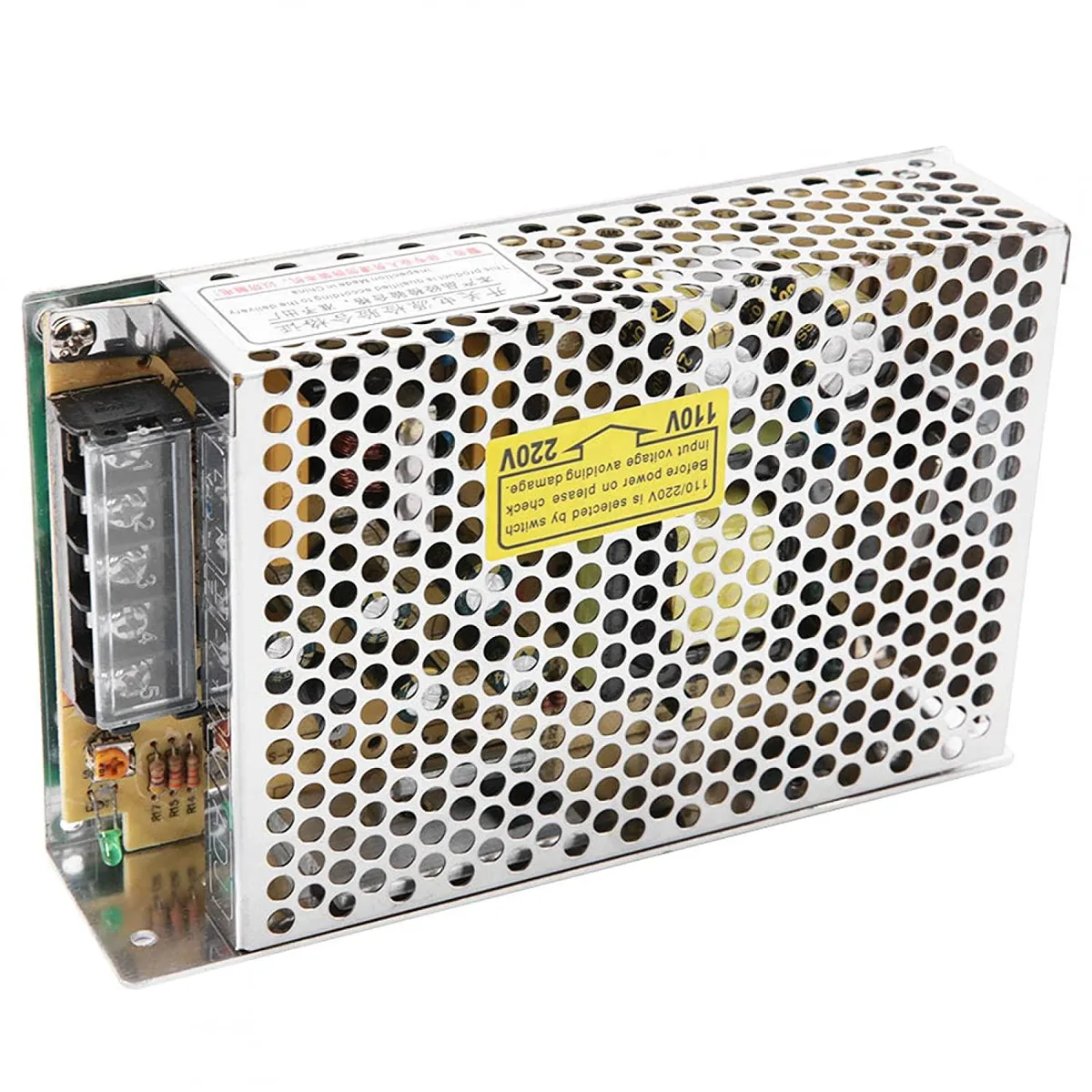

Rectangular metal power supply unit with screw terminals and voltage selector switch

myVolts

myVolts S-50-24 24V 2.1A 50.4W Security Monitoring Outdoor power supply

SKU CH-S5T5-RTYVN MPN S-50-24

Delivers 24V at 2.1A (50.4W) with selectable 85–132VAC or 170–264VAC input, 86% efficiency and copper-coil reliability for industrial and outdoor monitoring

  • TypeAT
  • Stable 24V output with ±1% regulation for sensitive security gear
  • 4W continuous power from 2.1A rated current handles demanding loads
  • Selectable 85-132VAC or 170-264VAC input suits global installations
  • Copper coil transformer and magnetic ring capacitor boost reliability and noise filtering
  • Compact, lightweight design with simple wiring speeds up outdoor deployment

Industrial 24V DC Power Supply

The myVolts S-50-24 is a switching power supply that delivers 24V at 2.1A for a total of 50.4W. It is built for industrial control systems, PLC equipment and transportation facilities that need a stable DC source.

Input range and output stability

The unit accepts 85-132VAC or 170-264VAC selected by a switch, plus 240-370VDC at 47-63Hz. Output voltage holds within ±1% with line regulation of ±0.5% and load regulation of ±0.5%, while ripple and noise stay at 200mVp-p.

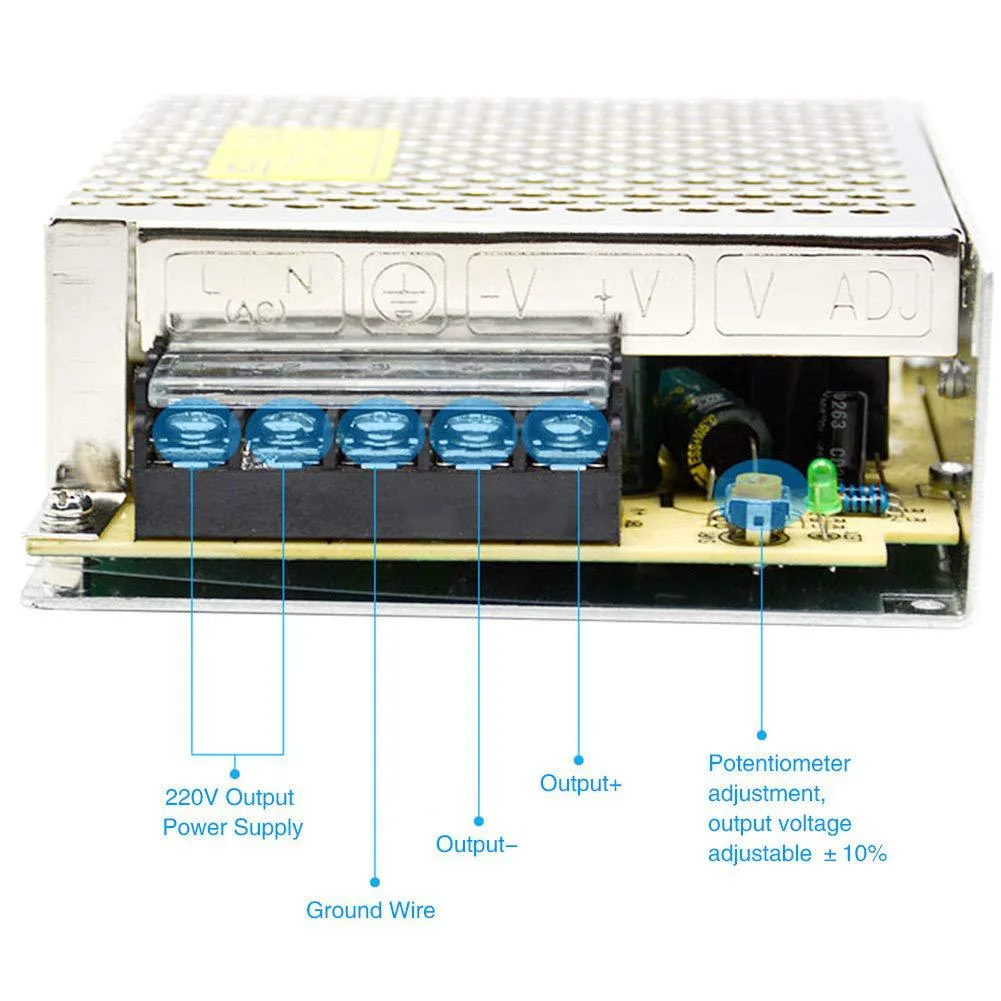

Wiring and adjustment

Simple screw terminals allow straightforward wiring and the DC voltage can be trimmed by ±10% via the onboard adjuster. Inrush current reaches 45A on cold start at 230VAC so the supply circuit must be rated accordingly, and leakage current remains below 2mA at 240VAC.

Highlights

  • Stable 24V output with ±1% regulation for sensitive security gear
  • 4W continuous power from 2.1A rated current handles demanding loads
  • Selectable 85-132VAC or 170-264VAC input suits global installations
  • Copper coil transformer and magnetic ring capacitor boost reliability and noise filtering
  • Compact, lightweight design with simple wiring speeds up outdoor deployment

Specifications

TypeAT

Questions about this item

Which output current rating should I pick for my 24 V load?

The unit delivers a fixed 24 V at up to 2.1 A, so choose it when your device draws 2.1 A or less.

What does the 50.4 W rating mean when the supply is installed?

It is the maximum continuous DC power the unit can provide at 24 V and 2.1 A with 86 % efficiency.

What AC input range does the selector switch cover and what voltage does that cap?

The switch selects 85-132 VAC or 170-264 VAC at 47-63 Hz, limiting the DC output to 24 V ±1 %.
