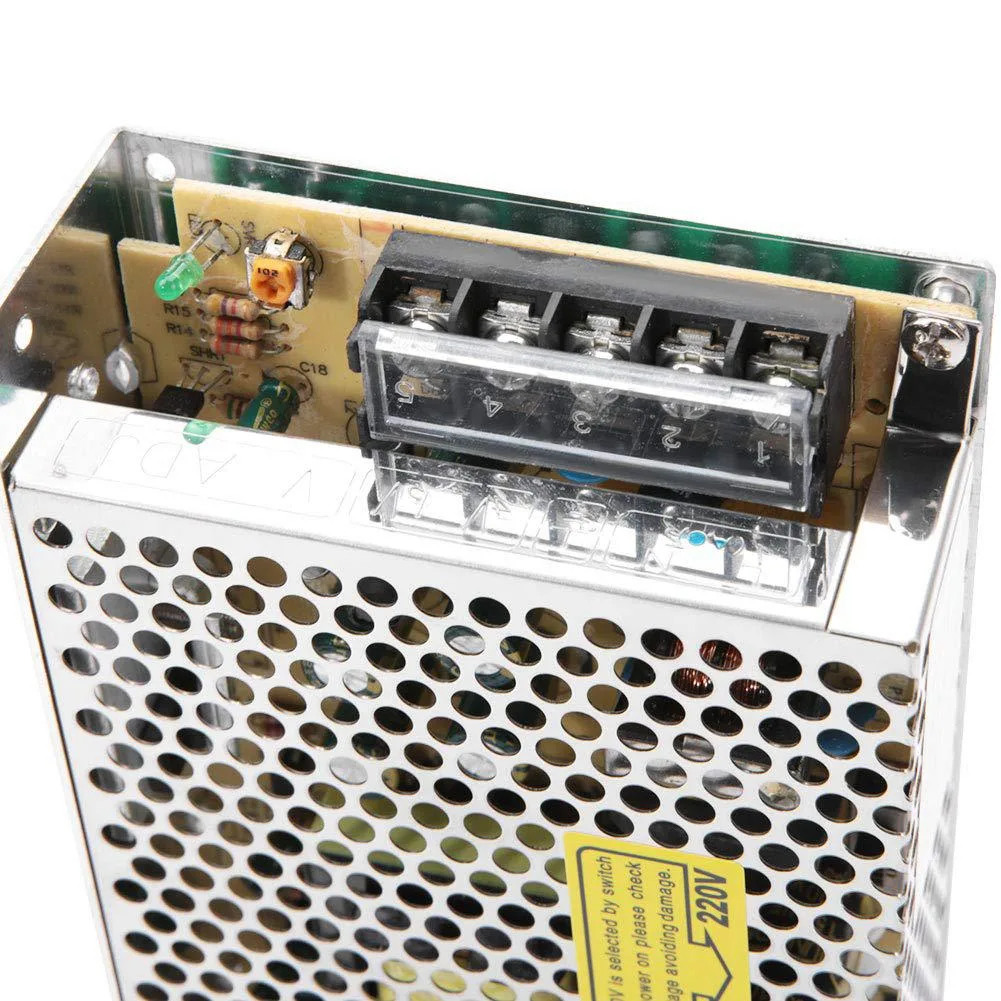

Rectangular silver metal power supply unit with terminal blocks and voltage selector switch

myVolts

myVolts S-50-24 24V 50.4W 2.1A outdoor power supply

SKU CH-MP34-WDDBP MPN S-50-24

Delivers 24V DC at 2.1A with 50.4W output and 86% efficiency from 85-264VAC input

  • TypeAT
  • Delivers stable 24 V DC for industrial equipment
  • 4 W output handles demanding loads with 86 % efficiency
  • Selectable 85-132 V or 170-264 V AC input suits global sites
  • Ripple and noise limited to 200 mVp-p for clean power
  • Simple wiring and copper coil transformer make installation safe and quick

Industrial 24V 50.4W Switching Supply

This 24 V, 2.1 A switching power supply delivers 50.4 W for industrial control panels, PLC systems and transportation equipment. It accepts a selectable AC input of 85-132 VAC or 170-264 VAC at 47-63 Hz, plus 240-370 VDC. A copper coil transformer and magnetic-ring filter capacitor provide stable output with 86 % efficiency. Simple wiring makes installation straightforward for technicians and system integrators.

Continuous 2.1 A with ±1 % regulation

The unit maintains rated current from 0 to 2.1 A while holding output voltage within ±1 % and ripple below 200 mVp-p. Line and load regulation each stay within ±0.5 %, so sensitive logic circuits receive clean power. Inrush current reaches 45 A at 230 VAC on cold start, and leakage remains under 2 mA at 240 VAC. Voltage can be trimmed ±10 % to compensate for cable drops in long runs.

Adjustable output and rugged construction

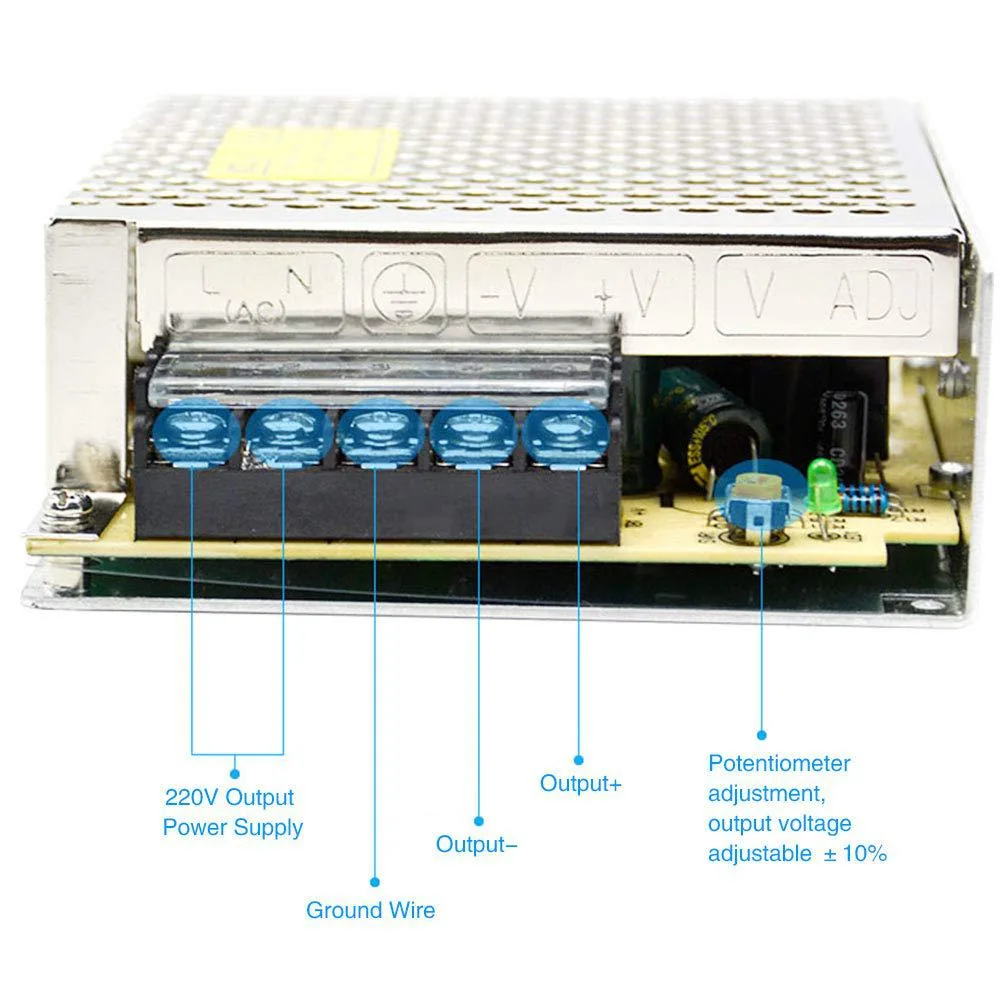

A built-in switch selects the AC input range, while a trim potentiometer allows ±10 % voltage adjustment without extra tools. The copper coil design improves thermal reliability in demanding environments. No mounting brackets, DIN-rail clips or configuration software are included, so installers must provide their own mechanical fixing and monitoring. The supply suits fixed indoor or sheltered outdoor cabinets where a compact, lightweight DC source is required.

Highlights

  • Delivers stable 24 V DC for industrial equipment
  • 4 W output handles demanding loads with 86 % efficiency
  • Selectable 85-132 V or 170-264 V AC input suits global sites
  • Ripple and noise limited to 200 mVp-p for clean power
  • Simple wiring and copper coil transformer make installation safe and quick

Specifications

TypeAT

Questions about this item

Will the S-50-24 run on my existing 115 VAC mains without rewiring?

Yes, the built-in selector switch lets you choose the 85-132 VAC range for 115 V operation.

How can I verify the unit is delivering a clean 24 V once installed?

Measure the DC output with a multimeter; it should read 24 V ±1 % with ripple below 200 mVp-p.

Does the box include mounting brackets or an AC power cord?

Only the power supply itself is supplied; brackets and an AC cord must be sourced separately.
