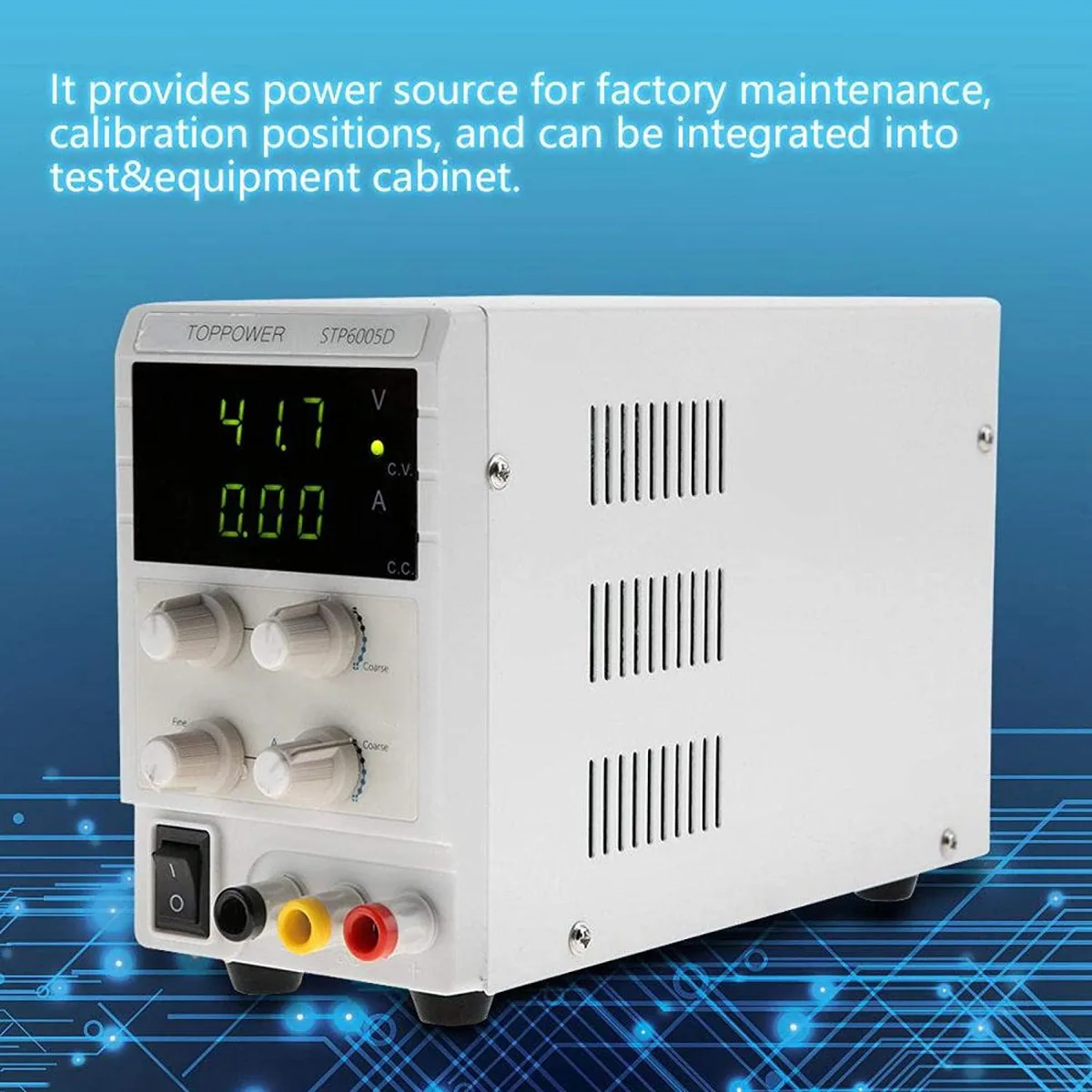

Rectangular bench power supply unit with dual digital displays and front panel controls

myVolts

myVolts STP6005D 300W 0-60V 0-5A 110/220V power supply

SKU CH-T8VQ-22HY9 MPN STP6005D

A 300 W regulated DC supply delivers 0 to 60 V and 0 to 5 A with CV/CC auto-switching, dual readouts and short-circuit plus over-temperature protection

  • TypeAT
  • Adjustable 0-60 V and 0-5 A output covers diverse test needs
  • Automatic CV/CC switching maintains stable operation under changing loads
  • Dual independent displays show voltage and current simultaneously for clear monitoring
  • Built-in current-limiting, short-circuit and over-temperature protection safeguards connected equipment
  • Up to 80 % efficiency reduces heat and energy waste during extended use

0-60V 0-5A bench supply

The myVolts STP6005D is a regulated DC bench supply that delivers continuously adjustable output from 0 to 60 volts and 0 to 5 amps. It operates on 110 or 220 volt mains and provides up to 300 watts of power. Dual independent displays show voltage and current simultaneously. Built-in protections include current-limiting buck, short-circuit and over-temperature safeguards.

Replaces fixed-voltage units

This supply replaces single-output adapters when a test point needs variable voltage or current. The jump is worth it when calibration, prototype bring-up or repair work demands CV/CC automatic crossover and regulation rates of 0.5% plus 3 mV for voltage and 0.2% plus 3 mA for current. Ripple and noise stay at 50 mV rms and 50 mA rms respectively across the stated bandwidth.

Fits open-frame test racks

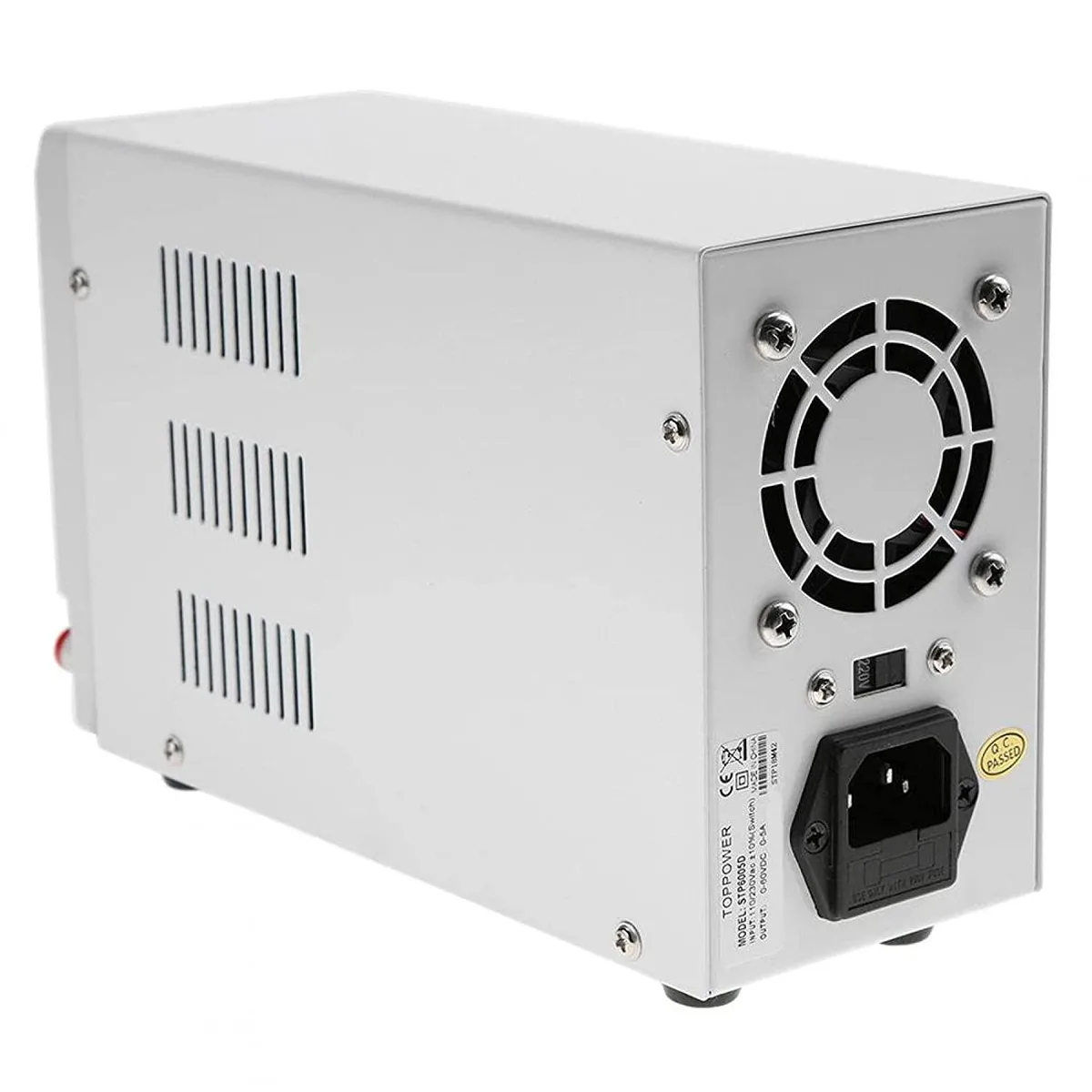

The AT-type chassis is designed for integration into test and equipment cabinets. It requires a 250 VAC F5AL fuse and operates reliably between 0 and 40 degrees Celsius at up to 80 percent relative humidity. Efficiency reaches 80 percent, reducing waste heat in enclosed racks. The unit frees bench space by combining voltage and current metering in one dual-display head.

Highlights

  • Adjustable 0-60 V and 0-5 A output covers diverse test needs
  • Automatic CV/CC switching maintains stable operation under changing loads
  • Dual independent displays show voltage and current simultaneously for clear monitoring
  • Built-in current-limiting, short-circuit and over-temperature protection safeguards connected equipment
  • Up to 80 % efficiency reduces heat and energy waste during extended use

Specifications

TypeAT

Questions about this item

What AC input voltage and fuse rating does the STP6005D require for safe operation?

The unit accepts 110V or 220V AC mains and is protected by a F5AL 250VAC fuse.

Which step is often missed when setting the CV/CC automatic changeover on this supply?

Users frequently forget to adjust both the voltage and current limit knobs before enabling output, so the supply stays in the wrong mode.

How often should the internal F5AL 250VAC fuse be inspected or replaced under normal 0-40°C use?

Check the fuse annually or after any over-current event; replace it only with an identical F5AL 250VAC type.
