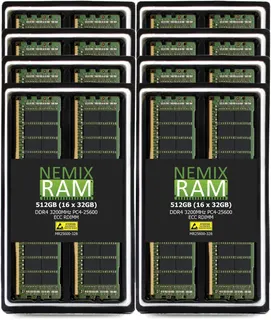

Sixteen green DDR4 RDIMM sticks in anti-static tray

NEMIX RAM

NEMIX RAM 512GB 16x32GB DDR4 3200 CL22 ECC RDIMM memory upgrade for Tyan Transport CX GC68A-B8036

SKU CH-7NM0-GCPE1

512 GB DDR4-3200 ECC registered kit with sixteen 32 GB modules at CL22 for Tyan Transport CX GC68A-B8036

  • Capacity512GB (16 x 32GB)
  • SpeedDDR4 3200 (PC4 25600)
  • ECCYes
  • Buffered/RegisteredRegistered
  • ChipsetMajor OEM Samsung, Micron, Hynix
  • Voltage1.20V
  • 512 GB total capacity for memory-intensive server workloads
  • 16 x 32 GB modules fill all slots on Tyan Transport CX GC68A-B8036
  • DDR4 3200 PC4-25600 speed matches platform specification
  • ECC registered RDIMM with CL22 latency ensures data integrity
  • 2 V operation at 2Rx8 rank keeps power draw low

512GB DDR4 ECC RDIMM kit for Tyan Transport CX

This 512GB kit contains sixteen 32GB DDR4 3200 registered ECC modules built for the Tyan Transport CX GC68A-B8036. It targets server and workstation administrators who need maximum registered memory capacity for virtualization, database or compute workloads. The 2Rx8 organization and CL22 latency match the platform's qualified memory list.

Tool-free DIMM installation

Modules insert vertically into the 288-pin DDR4 slots and lock with the ejection levers; no screws or cables are required. The most common error is stopping before both levers click, which leaves the module partially seated and causes boot failure or memory errors. A second frequent issue is mixing these registered DIMMs with unbuffered memory, which the platform does not support.

Verify DIMM population rules

Check the motherboard manual for the approved 16-DIMM population sequence and any rank-per-channel limits that apply to 2Rx8 modules. Confirm the system BIOS is at or above the version that qualifies 32GB registered parts at 3200 MT/s. Ensure the chassis provides clearance for the full set of 288-pin modules without cable interference.

Highlights

  • 512 GB total capacity for memory-intensive server workloads
  • 16 x 32 GB modules fill all slots on Tyan Transport CX GC68A-B8036
  • DDR4 3200 PC4-25600 speed matches platform specification
  • ECC registered RDIMM with CL22 latency ensures data integrity
  • 2 V operation at 2Rx8 rank keeps power draw low

Specifications

BrandNEMIX RAM
SeriesTyan Server/Workstation Motherboard Compatible Series Memory
ModelTyan DDR4 3200MHZ ECC RDIMM Registered Server Memory
Part NumberMR25600-328K16
Capacity512GB (16 x 32GB)
SpeedDDR4 3200 (PC4 25600)
ECCYes
Buffered/RegisteredRegistered
ChipsetMajor OEM Samsung, Micron, Hynix
Voltage1.20V
Compatible SystemTyan
CAS LatencyCL22
Heat SpreaderNo
Type288-Pin DDR4 RDIMM
Rank2Rx8
FeaturesDDR4 ECC Registered RDIMM Server Motherboard Compatible
Package Content512GB (16X32GB) DDR4 3200MHZ PC4-25600 2Rx8 1.2V CL22 288-PIN ECC RDIMM Registered Server Memory KIT

Questions about this item

How can I confirm the 512GB DDR4 3200 CL22 ECC RDIMM kit is running at full speed after installation?

Enter the system BIOS or UEFI and verify the memory frequency reads 3200 MT/s with timings at CL22; the registered ECC modules will also report 1.20 V and 2Rx8 organisation.

What does the MR25600-328K16 package contain and is anything else required?

The box holds sixteen 32 GB 288-pin DDR4 RDIMM modules for a total of 512 GB; no extra cables, brackets or cooling parts are needed for the Tyan Transport CX GC68A-B8036.

Why choose the 512 GB 16x32 GB DDR4 3200 CL22 ECC registered kit over a smaller capacity?

Select this 16-module kit when the Tyan Transport CX GC68A-B8036 requires the full 512 GB maximum; each 32 GB 2Rx8 RDIMM fills one slot at the rated 3200 speed.
