Two green circuit-board SODIMM modules with black chips and gold contacts no heat spreader

NEMIX RAM

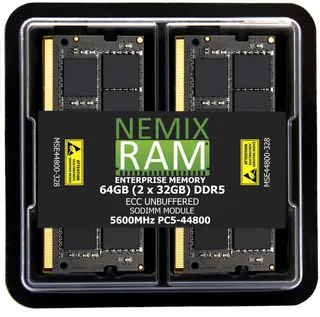

NEMIX RAM 64GB (2x32GB) DDR5 5600 ECC SODIMM for Supermicro X14SAV-LVDS memory upgrade

SKU CH-FYTT-1DABX

64 GB dual-channel kit of 262-pin DDR5 5600 ECC unbuffered SODIMMs validated for the Supermicro X14SAV-LVDS motherboard

  • Capacity64GB (2 x 32GB)
  • Type262-Pin DDR5 ECC SODIMM
  • SpeedDDR5 5600 (PC5 44800)
  • CAS LatencyCL46
  • Voltage1.10V
  • ECCYes

Size 64GB 2X32GB

  • 64 GB capacity from two 32 GB modules for maximum supported memory
  • DDR5 5600 speed with CL46 timing matches the controller specification exactly
  • ECC protection detects and corrects single-bit errors to prevent data corruption
  • Unbuffered 262-pin SODIMM form factor fits the Supermicro X14SAV-LVDS slot precisely
  • 1 V operation at 2Rx8 rank meets the motherboard voltage and density requirements

Exact-fit DDR5 ECC SODIMM for Supermicro X14SAV-LVDS

This 64 GB kit (2 x 32 GB) is built to the precise rank, voltage and timing the Supermicro X14SAV-LVDS memory controller expects. The 262-pin DDR5 ECC unbuffered SODIMM form factor matches the board's slot layout and population rules so the full capacity is recognised at rated speed. It is not a full-size UDIMM or RDIMM and will not fit those slots.

64 GB capacity with DDR5-5600 bandwidth and ECC

Two 32 GB modules deliver 64 GB of addressable memory at 5600 MT/s (PC5-44800) with CL46 latency at 1.10 V. The 2Rx8 organisation and on-die ECC correct single-bit errors on the fly, stopping silent data corruption before it crashes the system. Workloads that exceed 64 GB will need a board with more slots or higher-density modules.

Drops into the X14SAV-LVDS SODIMM slots without

The kit uses the 262-pin unbuffered ECC SODIMM form factor the board requires, so no adapters, voltage converters or registered DIMMs are involved. Installing the pair frees the remaining slots for future expansion within the platform's population limits. Builders who need RDIMM, LRDIMM or non-ECC memory cannot use this kit.

Highlights

  • 64 GB capacity from two 32 GB modules for maximum supported memory
  • DDR5 5600 speed with CL46 timing matches the controller specification exactly
  • ECC protection detects and corrects single-bit errors to prevent data corruption
  • Unbuffered 262-pin SODIMM form factor fits the Supermicro X14SAV-LVDS slot precisely
  • 1 V operation at 2Rx8 rank meets the motherboard voltage and density requirements

Specifications

BrandNEMIX RAM
SeriesNEMIX RAM Original Series Memory
ModelDDR5 ECC Unbuffered SODIMM Memory
Part NumberMSE44800-328K2
Capacity64GB (2 x 32GB)
Type262-Pin DDR5 ECC SODIMM
SpeedDDR5 5600 (PC5 44800)
CAS LatencyCL46
Voltage1.10V
ECCYes
Buffered/RegisteredUnbuffered
Rank2Rx8
ChipsetMajor OEM Samsung, Micron, Hynix
Heat SpreaderNo
Compatible SystemSupermicro
FeaturesDDR5 ECC Unbuffered SODIMM Motherboard Compatible
Package Content64GB 2X32GB DDR5 5600MHz PC5-44800 2Rx8 1.1V 262-PIN ECC SODIMM KIT

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 2Rx8 262-pin DDR5 5600 modules work alongside any existing DDR5 SODIMMs already installed in my Supermicro X14SAV-LVDS?

The kit is validated for the X14SAV-LVDS at DDR5 5600 CL46 1.10 V 2Rx8. Mixing ranks or speeds can prevent the board from training at 5600 MHz, so populate all slots with identical modules for guaranteed operation.

How can I confirm the kit is running at DDR5 5600 CL46 with ECC active after installation?

Enter the system BIOS or UEFI and verify the memory frequency shows 5600 MT/s, CAS latency 46, voltage 1.10 V, and ECC status enabled. Operating-system tools such as dmidecode or CPU-Z will also report 2Rx8 organization and ECC capability.

Does the MSE44800-328K2 package include only the two 32 GB SODIMMs, or are any tools or adapters supplied?

The box contains exactly the 64 GB (2 × 32 GB) DDR5 5600 CL46 1.10 V 262-pin ECC Unbuffered SODIMM modules. No installation tools, heat spreaders, or adapters are included.
