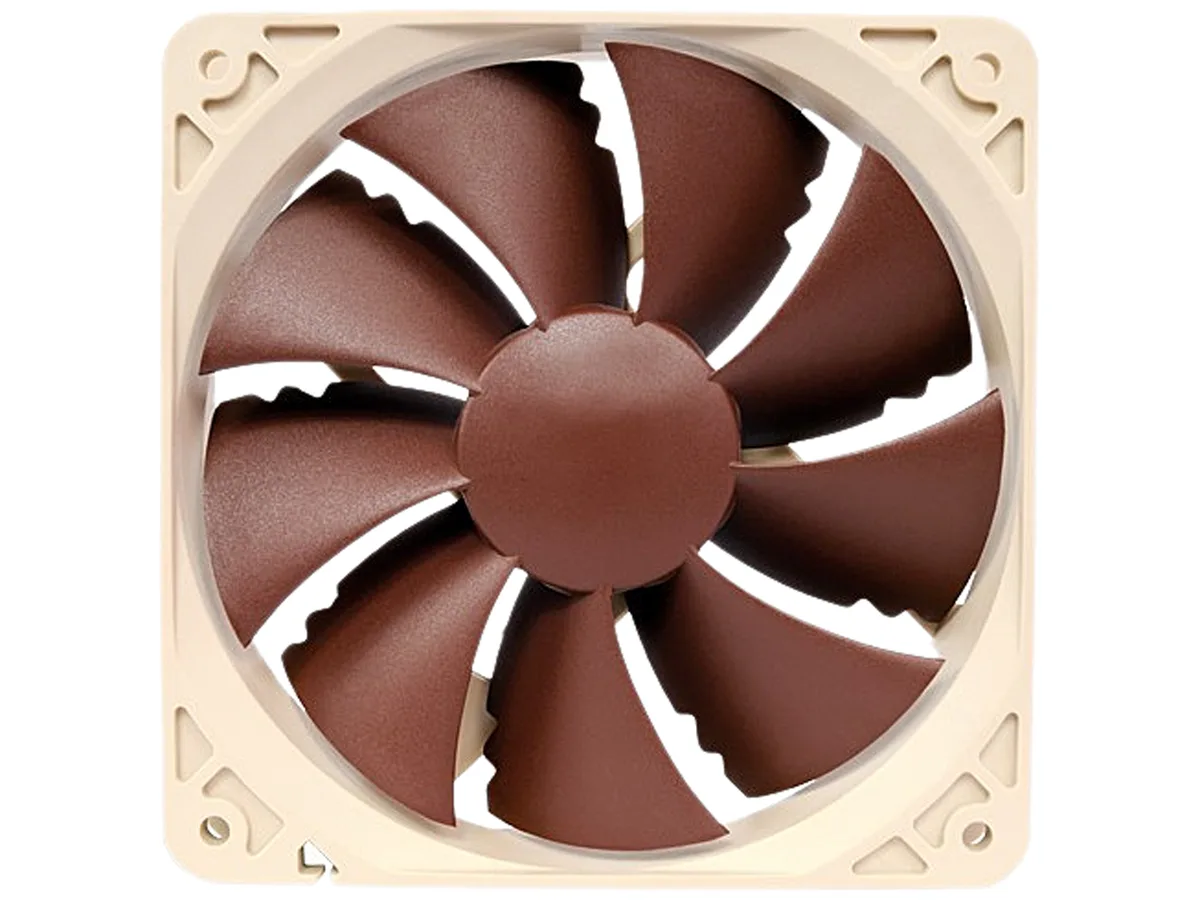

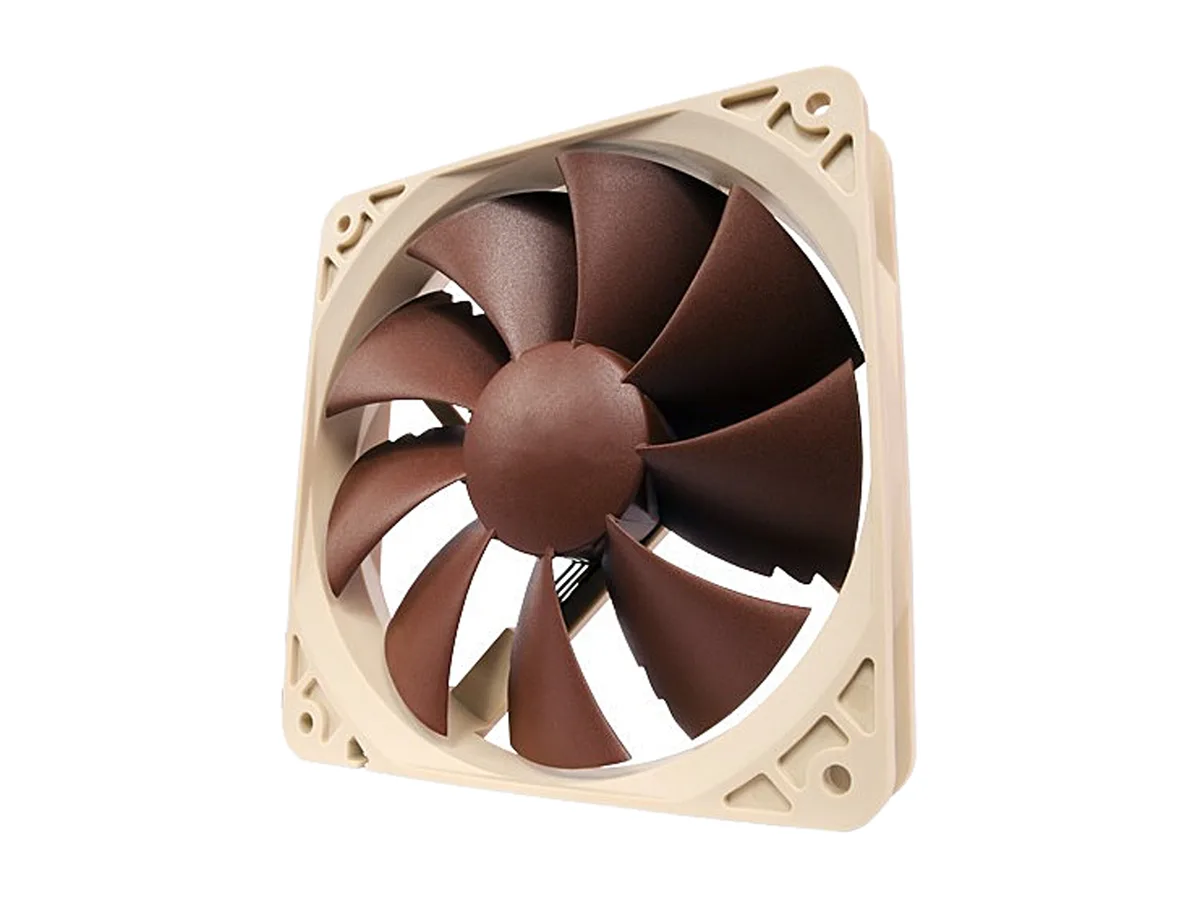

Noctua NF-P12-1300 120mm 1300 RPM case fan

Pressure-Optimised 120 mm Fan for CPU Coolers

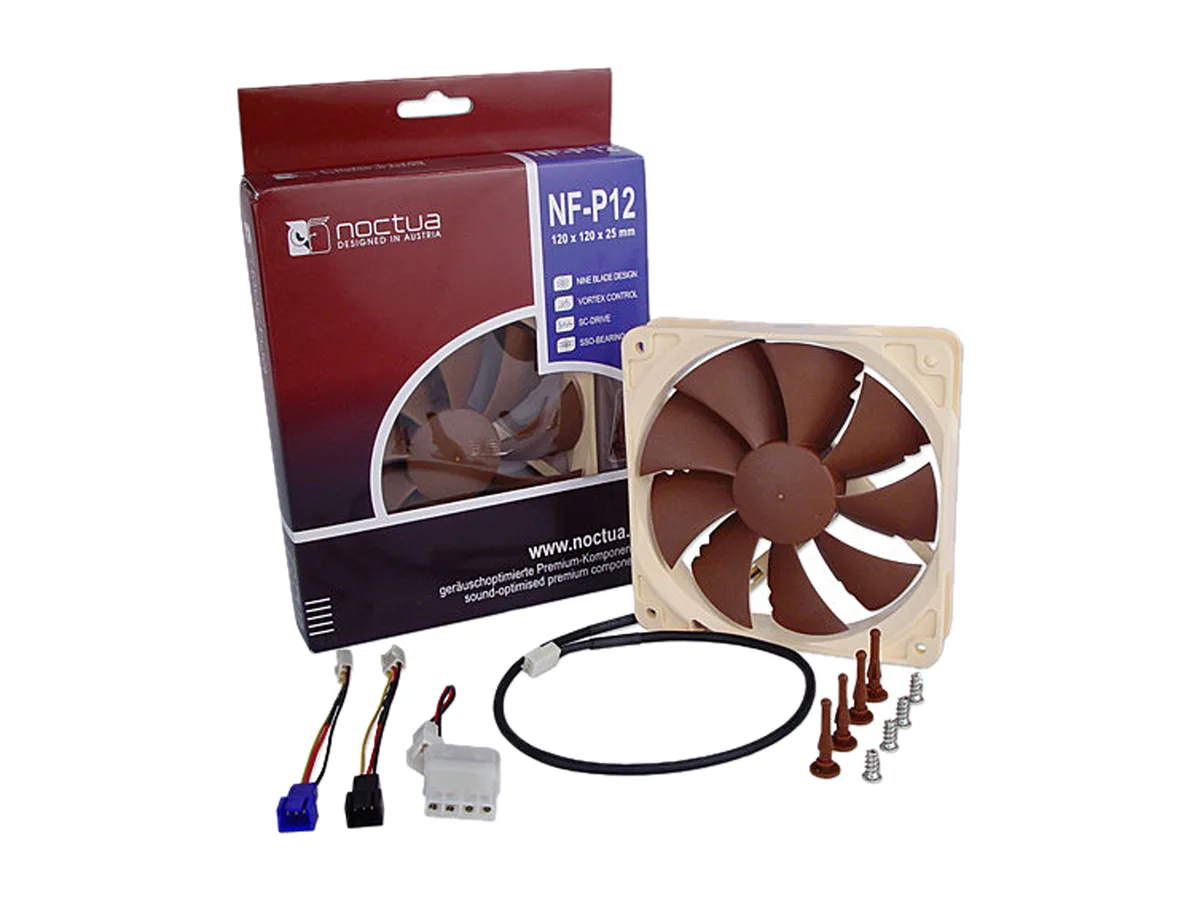

The NF-P12-1300 is a 120 mm case fan designed for high-impedance applications such as CPU coolers and water-cooling radiators. Its nine-blade geometry focuses on static pressure rather than raw airflow volume. The 3-pin power connector provides fixed-speed operation at 1300 RPM with a maximum noise level of 19.8 dB(A). A 3-to-4-pin adaptor is included for compatibility with PWM headers.

Sustained Load Acoustics and Bearing Stability

Under continuous operation the SSO bearing maintains consistent rotational speed without the wear patterns seen in sleeve designs. The Smooth Commutation Drive reduces torque ripple, keeping vibration low even when the fan runs for extended periods against dense fin stacks. Vortex-Control Notches on the blade trailing edges break up tonal frequencies, so the acoustic signature remains steady rather than developing a drone over time.

Mounting Clearance and Voltage Requirements

Verify that your chassis or heatsink offers 25 mm of mounting depth for the fan frame. The unit operates on a 12 V supply through the standard three-pin header; ensure your motherboard or fan controller can deliver that voltage without PWM signalling. No separate fan controller is included, so speed adjustment depends entirely on the header capabilities of your existing hardware.
