Green rectangular circuit board with gold edge connector, USB 3.0 bridge chip, mounting holes and thermal pads

NuoTo

NuoTo Argon ONE M.2 SATA Expansion Board for Raspberry Pi 4

SKU CH-29T8-K18CB

Adds M.2 SATA SSD support to an Argon ONE V2 Raspberry Pi 4 case via a USB 3.0 bridge for bootable storage

  • CPU TypeOther
  • Adds M.2 SATA SSD support to Raspberry Pi 4
  • Enables booting the OS directly from an attached SATA SSD
  • Uses a USB 3.0 bridge for high-speed data transfers
  • Designed exclusively for Argon ONE V2 Raspberry Pi 4 cases
  • Includes thermal pads, screws, and a USB 3.0 bridge in the package

Argon ONE V2 Case Upgrade

This NuoTo expansion board adds an M.2 SATA SSD slot to an Argon ONE V2 Raspberry Pi 4 case. It connects through a USB 3.0 bridge to enable high-speed data transfers and operating-system boot from the solid-state drive. The kit includes the circuit board, bridge, thermal pads and mounting hardware.

SATA M.2 SSD Builders Only

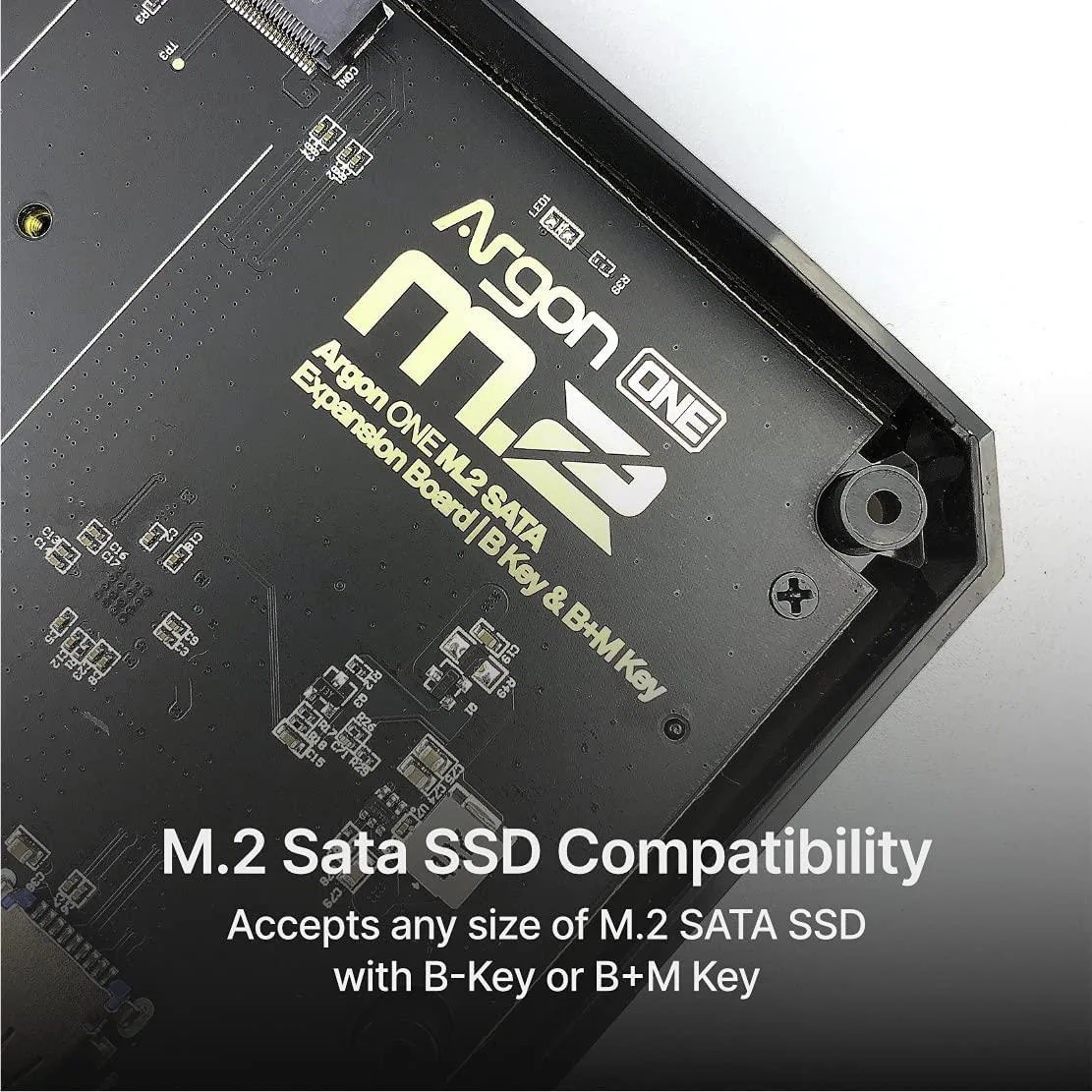

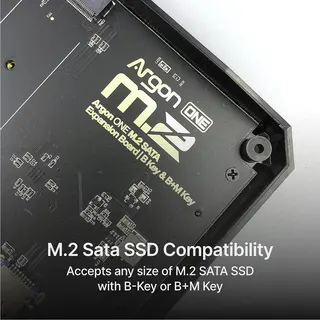

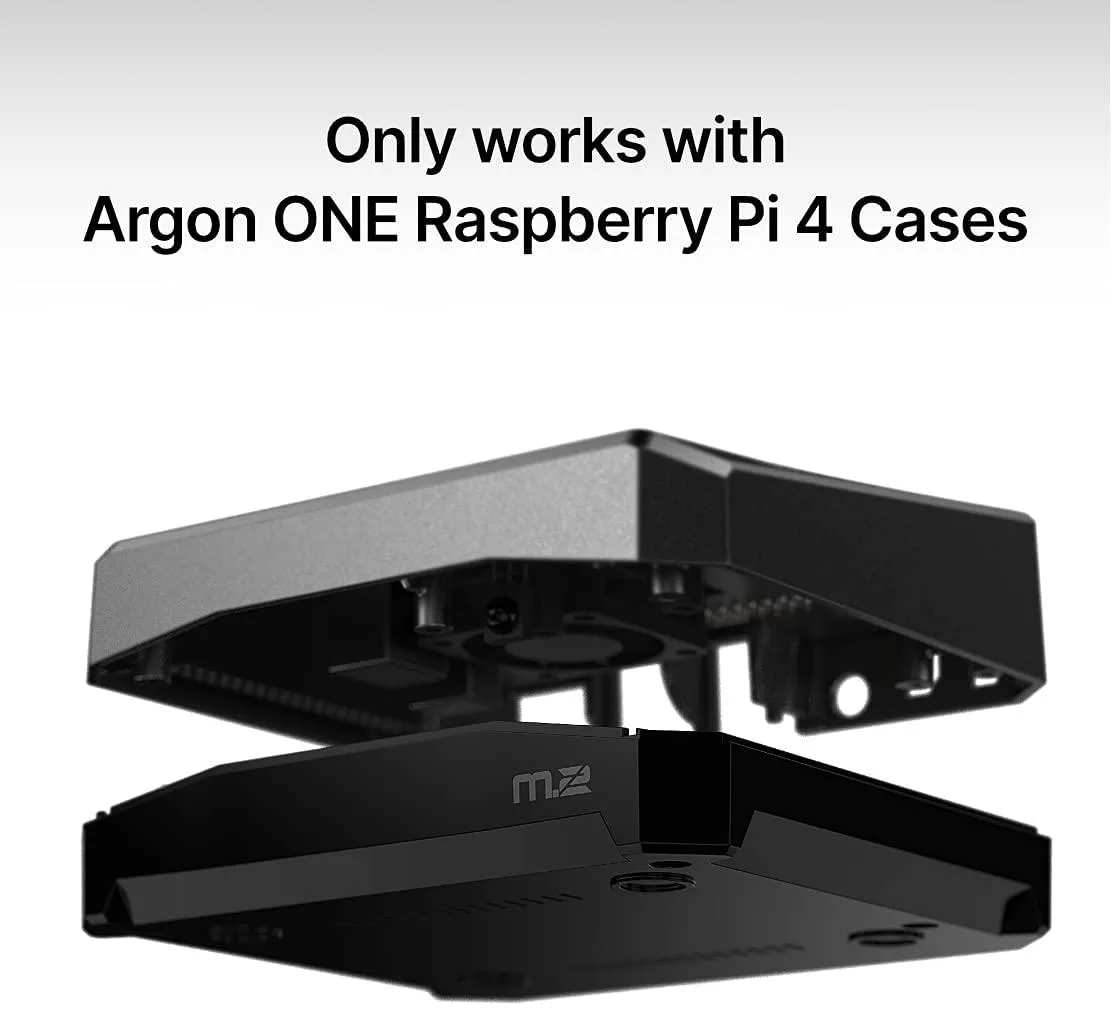

The board accepts only M.2 drives with B-Key or B+M-Key pinouts that use the SATA protocol. It is physically compatible solely with the Argon ONE V2 case, so owners of other Raspberry Pi 4 enclosures cannot install it. Builders wanting PCIe signalling or a different key layout must choose another solution.

B-Key or B+M-Key SATA Requirement

Verify that the intended M.2 SSD carries a B-Key or B+M-Key and communicates over SATA before purchase. The on-board USB 3.0 bridge handles the connection to the Raspberry Pi 4, so the drive must match this interface to function correctly.

Highlights

  • Adds M.2 SATA SSD support to Raspberry Pi 4
  • Enables booting the OS directly from an attached SATA SSD
  • Uses a USB 3.0 bridge for high-speed data transfers
  • Designed exclusively for Argon ONE V2 Raspberry Pi 4 cases
  • Includes thermal pads, screws, and a USB 3.0 bridge in the package

Specifications

CPU TypeOther

Questions about this item

Will this board work with the original Argon ONE case for Raspberry Pi 4?

No, the expansion board is only compatible with the Argon ONE V2 case, which is sold separately.

How can I confirm the board is functioning correctly after installation?

The Raspberry Pi 4 should detect the M.2 SATA SSD as a USB 3.0 storage device and allow the operating system to boot from it.

What components are included and what must I purchase separately?

The package includes the M.2 SATA board, USB 3.0 bridge, plastic bottom, two thermal pads, four screws, four rubber feet and an instruction manual; the Argon ONE V2 case and a B-Key or B+M Key M.2 SATA SSD must be bought separately.
