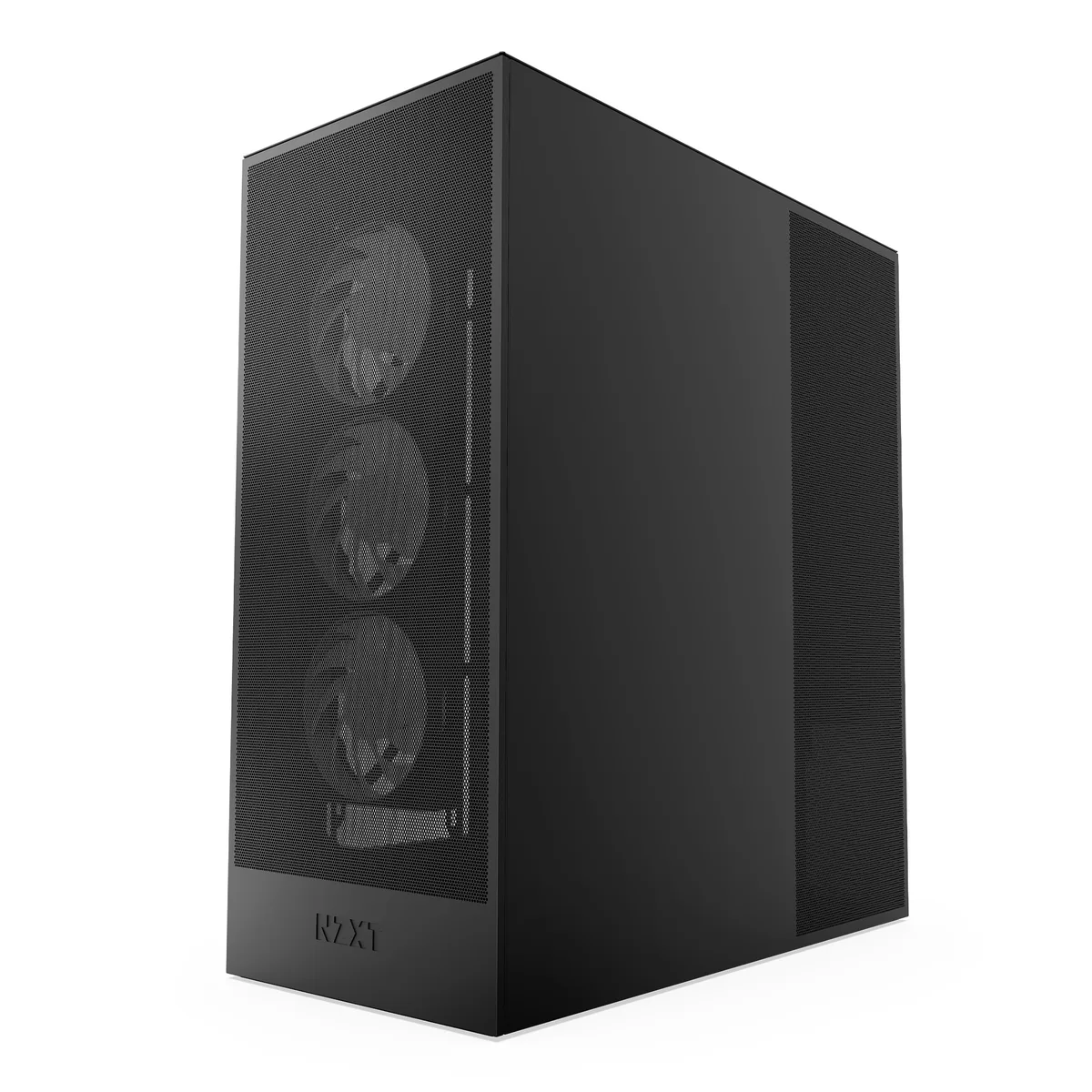

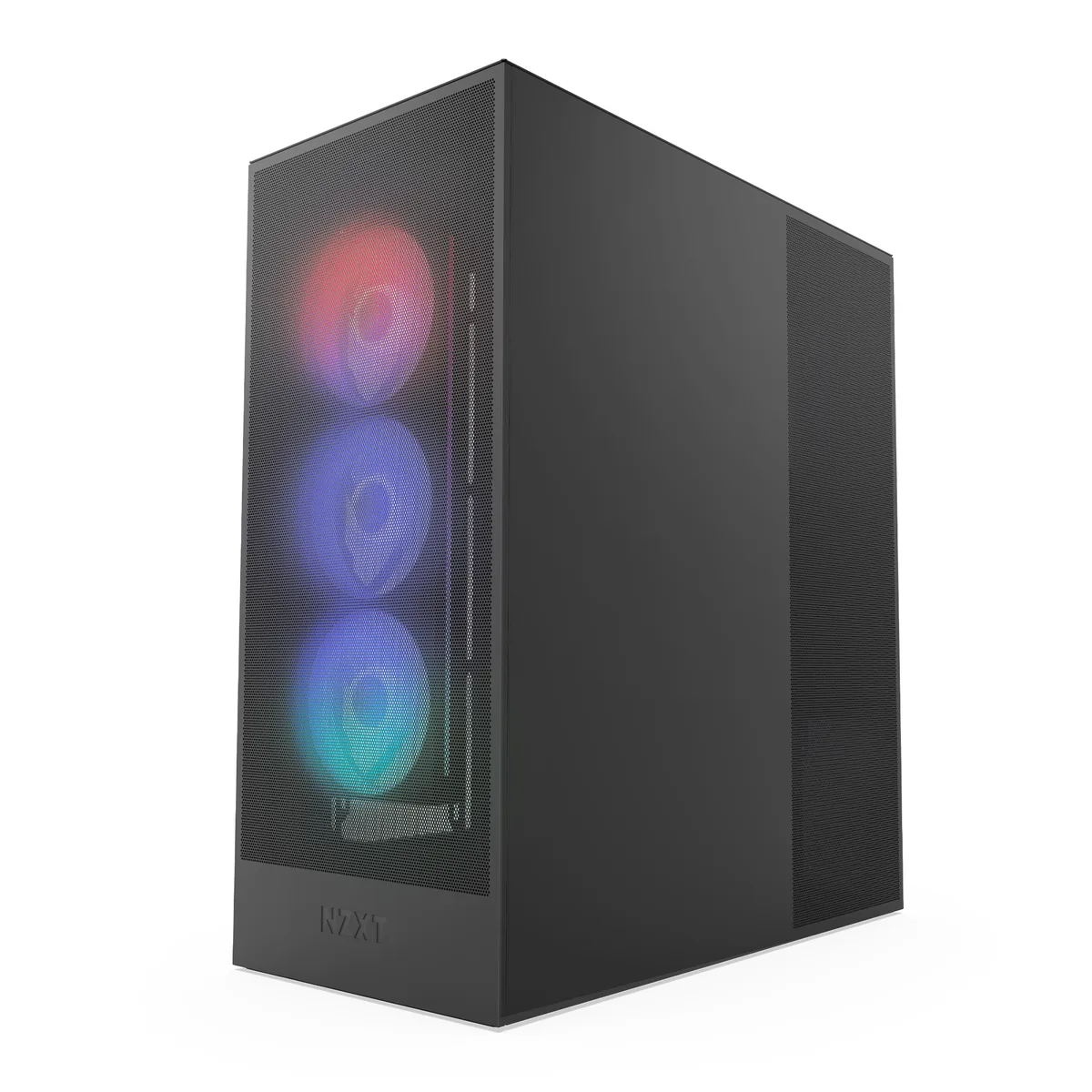

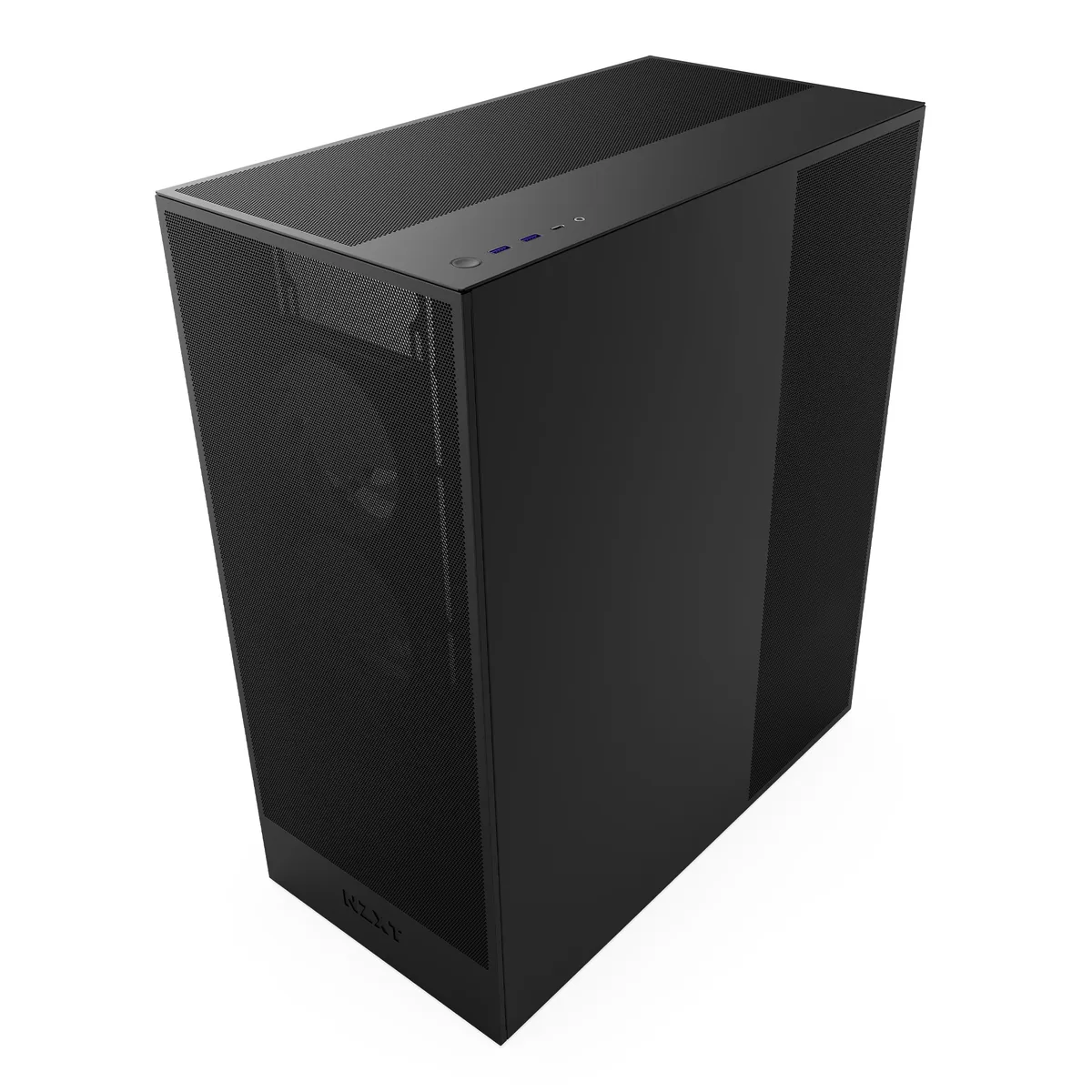

Black mid-tower case with dark tinted tempered glass side panel and front RGB fan array

NZXT

NZXT CM-H72FB-R1 H7 Flow RGB (2024) PC case

SKU CH-W4HM-4Q5ZV MPN CM-H72FB-R1

Mid-tower ATX case with high-airflow mesh panels, bottom fan mounts for direct GPU cooling, and a pre-installed 120 mm F360 RGB Core fan unit

  • Motherboard CompatibilityE-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
  • ColorBlack
  • Case MaterialSGCC Steel, Dark Tinted Tempered Glass
  • TypeATX Mid Tower
  • Side Panel1 x Side Tempered Glass Panel
  • Dust FiltersHigh Performance Mesh

Options H7 Flow RGB Black (2024)

Struck-through versions exist but are not stocked here.

  • Optimised airflow from ultra-fine perforated panels and pre-installed fans
  • Direct GPU cooling via bottom fan support and vertical PSU layout
  • F360 RGB Core single-frame fan provides cooling and lighting out of the box
  • Supports E-ATX boards up to 27.7 mm and GPUs up to 410 mm
  • Front USB 3.2 Gen 2 Type-C plus two USB 3.2 Gen 1 Type-A ports

Mid-tower case for standard builds

The H7 Flow RGB (2024) is an ATX mid-tower built from SGCC steel with a dark-tinted tempered-glass side panel. It accepts E-ATX, ATX, Micro-ATX and Mini-ITX motherboards and comes with a front-mounted F360 RGB Core single-frame fan unit running at up to 1700 RPM. The chassis targets builders who want a conventional layout with a narrow desk footprint.

Perforated panels and flexible mounting

Ultra-fine perforated panels serve as high-performance mesh dust filters across the front, top and bottom. Front I/O provides two USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 2 Type-C port and a headset audio jack. Internally there are two plus two 3.5-inch drive bays, four 2.5-inch bays and seven expansion slots for add-in cards.

Radiator and component limits

Liquid-cooling support allows up to a 420 mm radiator at the front, 360 mm at the top and 140 mm at the rear. The case clears graphics cards up to 410 mm long, CPU coolers up to 185 mm tall and power supplies up to 200 mm deep. Overall dimensions are 19.49 x 8.46 x 17.91 inches.

Highlights

  • Optimised airflow from ultra-fine perforated panels and pre-installed fans
  • Direct GPU cooling via bottom fan support and vertical PSU layout
  • F360 RGB Core single-frame fan provides cooling and lighting out of the box
  • Supports E-ATX boards up to 27.7 mm and GPUs up to 410 mm
  • Front USB 3.2 Gen 2 Type-C plus two USB 3.2 Gen 1 Type-A ports

Specifications

Motherboard CompatibilityE-ATX (Up to 27.7mm), ATX, Micro-ATX, Mini-ITX
ColorBlack
Case MaterialSGCC Steel, Dark Tinted Tempered Glass
TypeATX Mid Tower
Side Panel1 x Side Tempered Glass Panel
Dust FiltersHigh Performance Mesh
Front Ports2 x USB 3.2 Gen 1 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x Audio,
BrandNZXT
ModelCM-H72FB-R1
Part NumberCM-H72FB-R1
Internal 3.5" Drive Bays2 + 2
Internal 2.5" Drive Bays4
Expansion Slots7
Fan OptionsFront: 3 x 120 mm / 3 x 140 mm (1 x F360 RGB Core included)
Top: 3 x 120 mm / 2 x 140 mm
Bottom: 3 x 120 mm
Rear: 1 x 120 mm / 1 x 140 mm
Fan Specs
F360 RGB Core Fan (Case Version)
Speed: 1,700 ± 200 RPM
Airflow: 50.1 CFM
Static Pressure: 1.27 mm-H2O
Noise: 23.3 dBA
Fan Connector: 3-pin
Pre-installed FansFront - 3 x 120mm
Radiator OptionsFront: Up to 420 mm
Top: Up to 360 mm
Rear: Up to 140 mm
Max GPU Length410 mm
Max CPU Cooler Height185 mm
Max PSU Length200 mm
Dimensions19.49" x 8.46" x 17.91"
FeaturesThe H7 Flow stays true to a traditional mid-tower
design while adding bottom fan support for direct GPU
cooling due to the vertically-oriented PSU. This keeps
the footprint narrow and takes up less desk space,
unlike dual-chamber cases. Ultra-fine perforated panels
are optimized for airflow, and it's equipped with a
front-mounted F360 RGB Core single-frame fan unit
for out-of-the-box cooling and lighting.
Shipping weight14.42 kg
Package size632 × 566 × 328 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What USB standard does the front Type-C port use and what speed does it cap at?

The front panel includes one USB 3.2 Gen 2 Type-C port running at up to 10 Gbps, plus two USB 3.2 Gen 1 Type-A ports at 5 Gbps.

What motherboard form factors fit and what clearance limits apply for CPU cooler and GPU?

Supports E-ATX up to 27.7 mm, ATX, Micro-ATX and Mini-ITX. Maximum CPU cooler height is 185 mm and maximum graphics card length is 410 mm.

How is the pre-installed F360 RGB Core fan unit installed and which cable step is often missed?

The three-fan single frame mounts in the front with four screws. Connect its PWM lead to a motherboard fan header and its RGB lead to a 5 V ARGB header or the included controller; forgetting the ARGB cable leaves lighting inactive.
