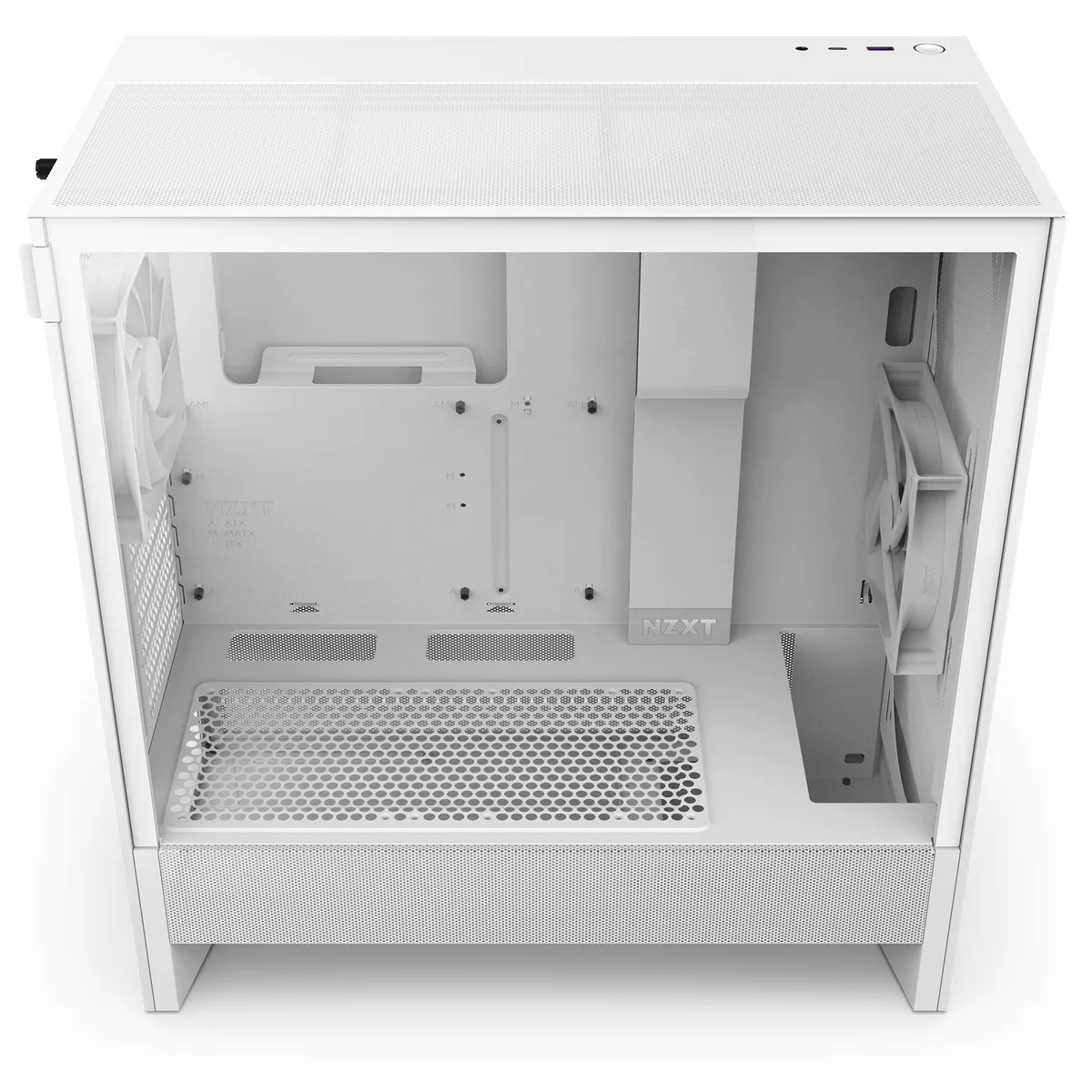

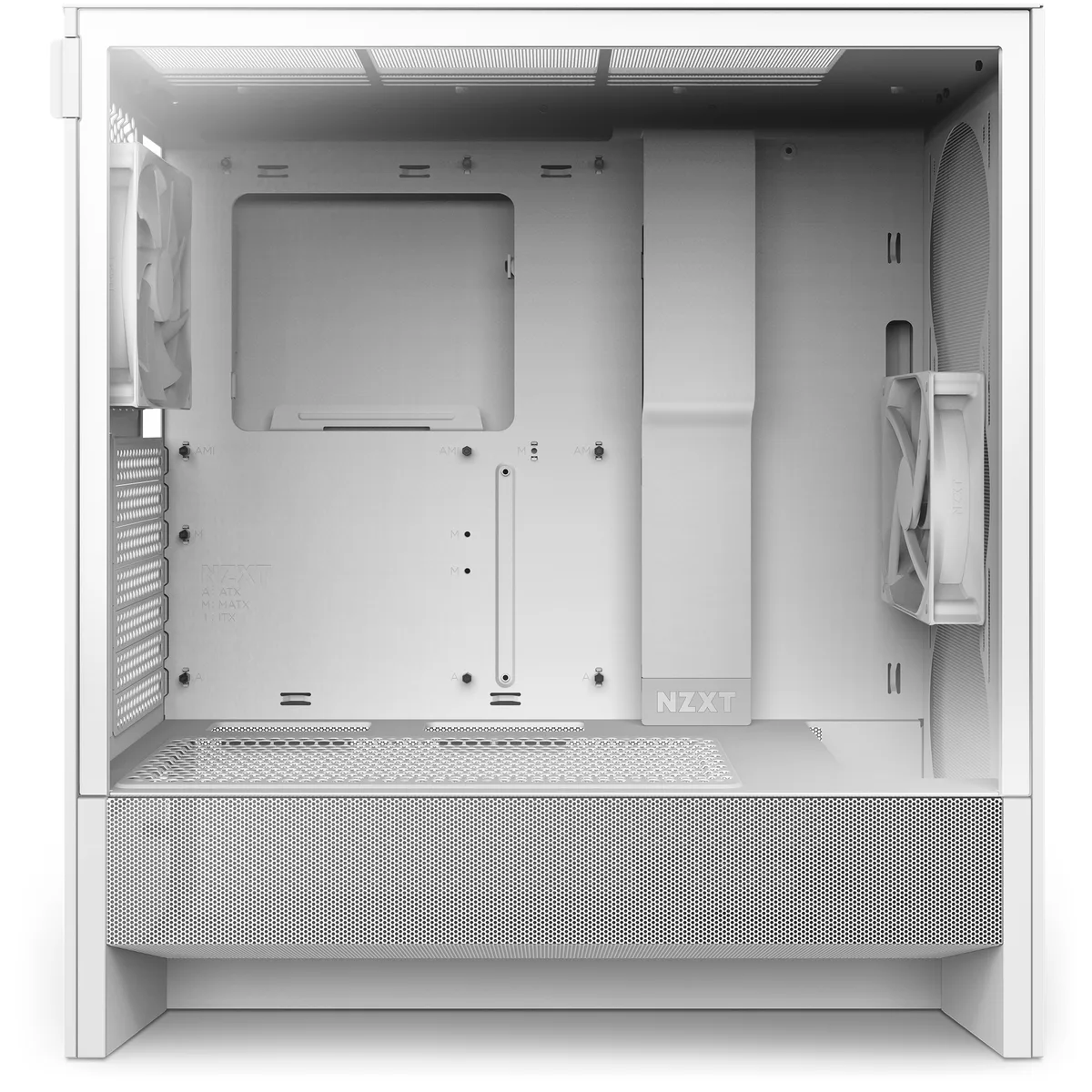

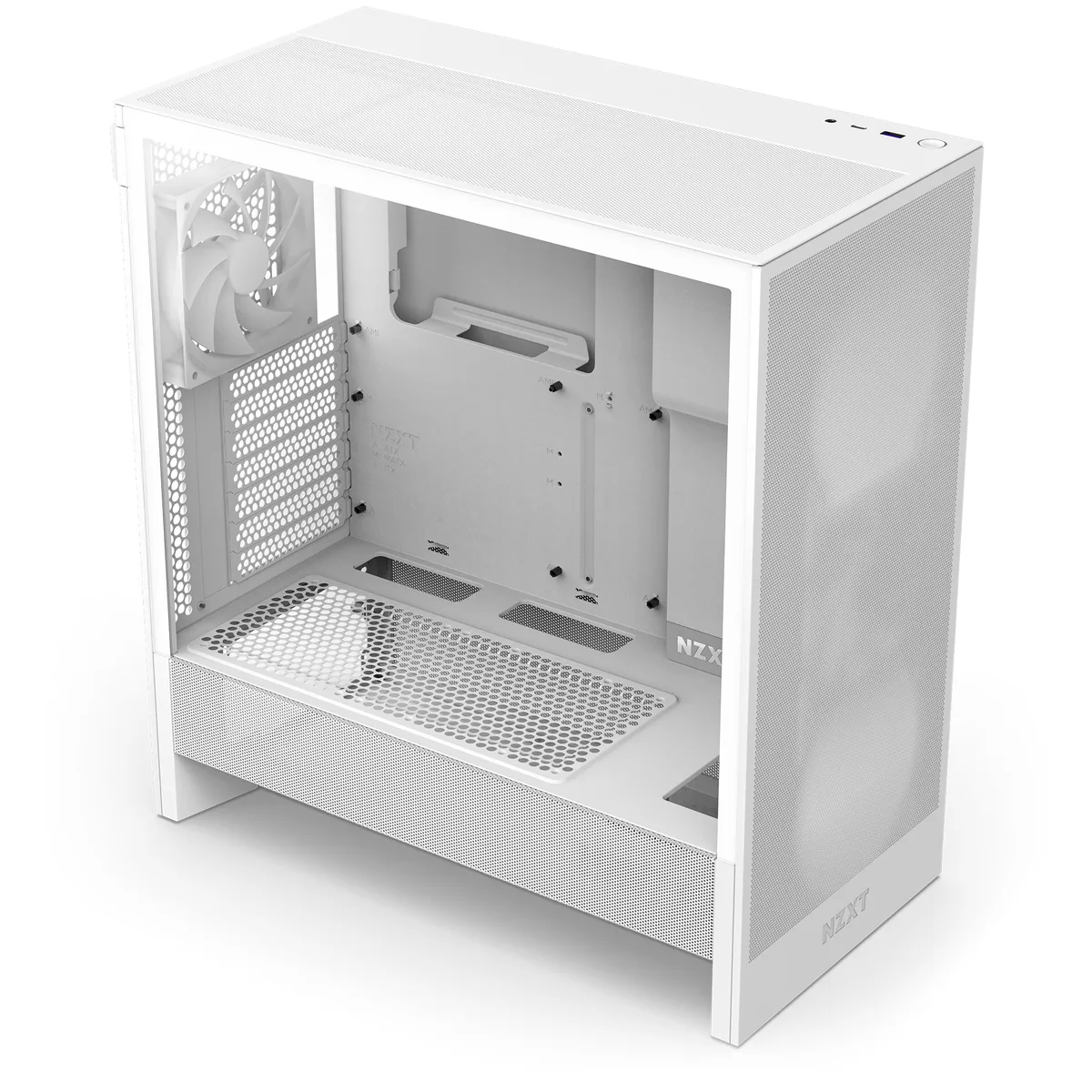

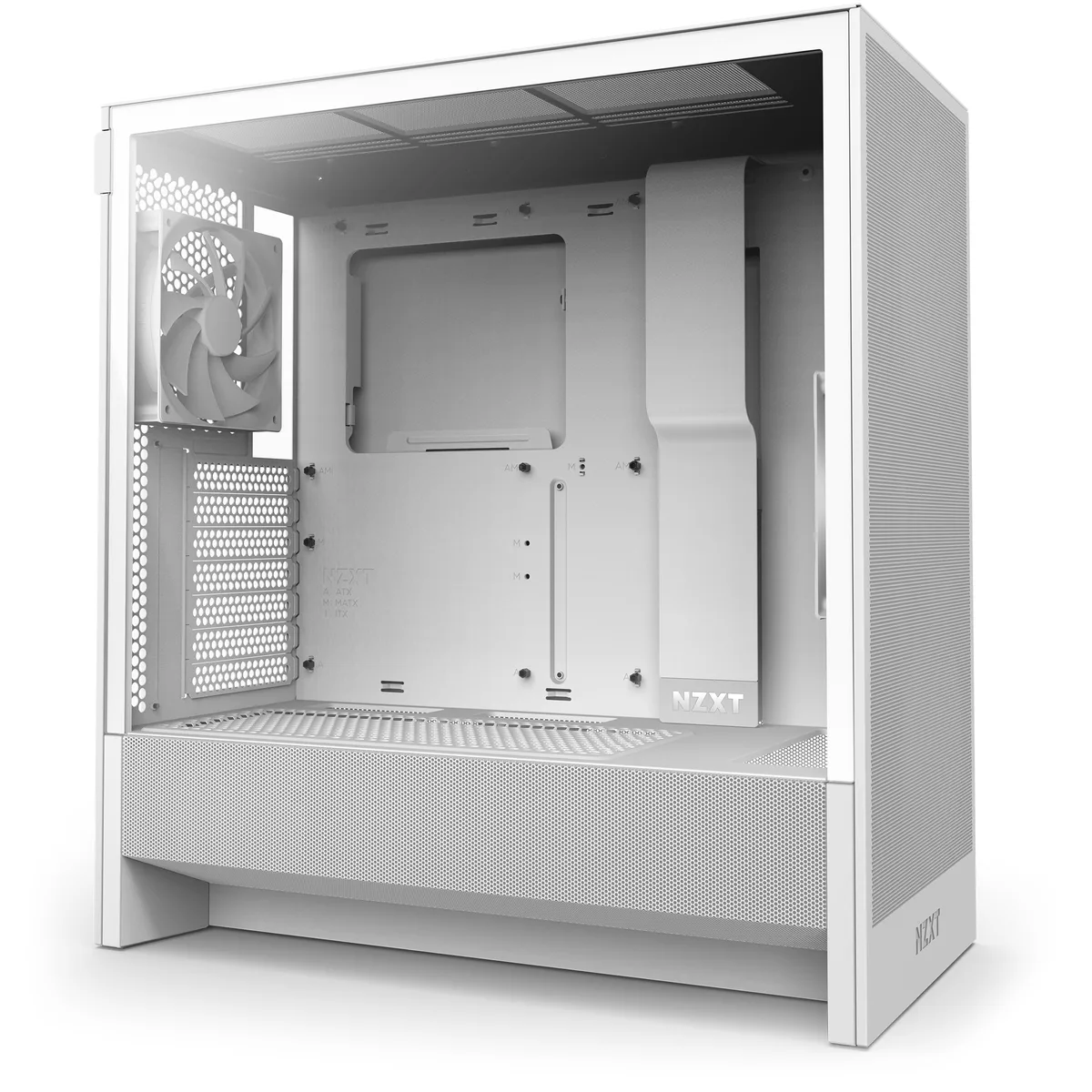

White mid-tower ATX case with tempered glass side panel and mesh front panel

NZXT

NZXT H5 Flow CC-H52FW-01 PC case

SKU CH-N27F-EAENT MPN CC-H52FW-01

White mid-tower case with perforated PSU shroud and mesh panels for high airflow, supporting 360 mm front and 240 mm top radiators plus 410 mm graphics cards

  • Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
  • Power Supply MountedBottom
  • ColorWhite
  • Case MaterialSGCC Steel / Ultra-Clear Tempered Glass
  • TypeATX Mid Tower
  • With Power SupplyNo

Options H5 Flow (White)

  • Perforated PSU shroud and mesh panels boost GPU cooling
  • Front radiator support up to 360 mm for powerful liquid cooling
  • Top radiator support up to 240 mm or 280 mm with low-profile memory
  • Ultra-fine mesh panels optimize airflow while filtering dust
  • Two pre-installed 120 mm Quiet Airflow fans provide effective cooling out of the box

Airflow Design for GPU Cooling

The H5 Flow 2024 Edition is a white ATX mid-tower built around a perforated PSU shroud and ultra-fine mesh panels that draw cool air directly toward the graphics card. It accepts ATX, E-ATX, Micro-ATX and Mini-ITX motherboards with the power supply mounted at the bottom. Two 120 mm F120Q fans are pre-installed at the front and rear to establish a baseline airflow path.

Front USB 3.2 Type-C and Mesh Dust Filters

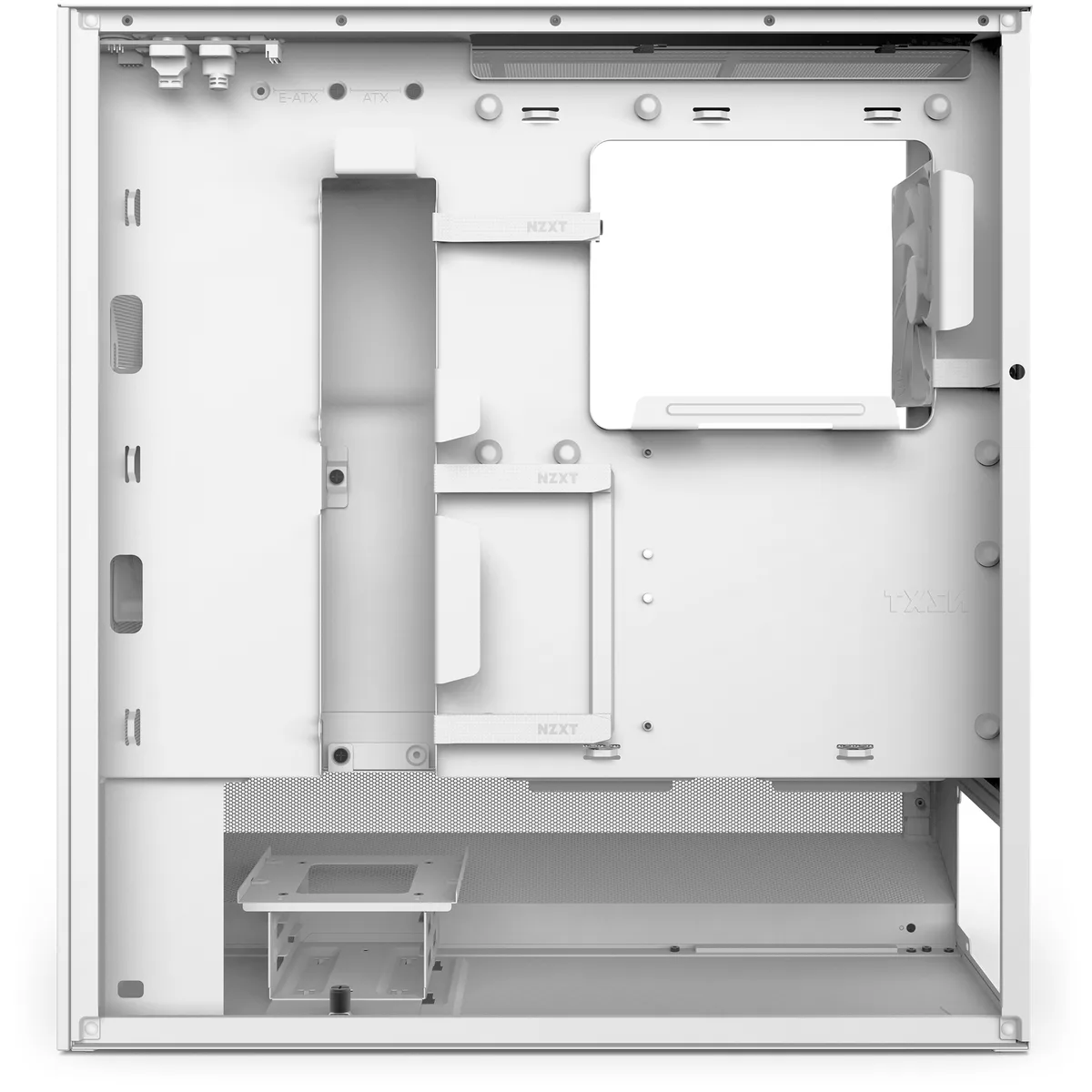

A single front-panel USB 3.2 Type-C port joins one USB 3.2 Type-A port and an audio jack for modern device connectivity. The mesh panels function as intake and exhaust surfaces while trapping dust, and dedicated filters cover the bottom, front and top openings to reduce internal buildup. Wide cable channels, hooks and straps simplify routing behind the motherboard tray.

Radiator Limits and GPU Clearance

The front mount accommodates radiators up to 360 mm, while the top accepts 240 mm or 280 mm units when low-profile memory is used. Graphics cards up to 410 mm in length fit with the front fans in place. Seven expansion slots and two 2.5-inch drive bays plus one 3.5-inch bay complete the internal layout.

Highlights

  • Perforated PSU shroud and mesh panels boost GPU cooling
  • Front radiator support up to 360 mm for powerful liquid cooling
  • Top radiator support up to 240 mm or 280 mm with low-profile memory
  • Ultra-fine mesh panels optimize airflow while filtering dust
  • Two pre-installed 120 mm Quiet Airflow fans provide effective cooling out of the box

Specifications

Motherboard CompatibilityATX / E-ATX / Micro ATX / Mini ITX
Power Supply MountedBottom
ColorWhite
Case MaterialSGCC Steel / Ultra-Clear Tempered Glass
TypeATX Mid Tower
With Power SupplyNo
Side Panel1 x Side Tempered Glass Panel
Dust FiltersBottom / Front / Top
Front Ports1 x USB 3.2 Type-A, 1 x USB 3.2 Type-C, 1 x Audio
BrandNZXT
SeriesH5 Flow
ModelCC-H52FW-01
Part NumberCC-H52FW-01
Internal 3.5" Drive Bays1
Internal 2.5" Drive Bays2
Expansion Slots7
Fan OptionsFront: 3 x 120 mm / 2 x 140 mm (1 x F120Q Case Version included)
Top: 2 x 120 mm / 2 x 140 mm
Bottom: 2 x 120 mm
Rear: 1 x 120 mm (1 x F120Q Case Version included)
Pre-installed FansFront - 1 x 120mm / Rear - 1 x 120mm
Radiator OptionsFront: Up to 360 mm
Top: Up to 240 mm (280mm with low-profile memory only)
Max GPU Length410 mm
Max CPU Cooler Height170 mm
Max PSU Length200 mm
Dimensions18.3" x 8.7" x 16.9"
Weight16.04 lbs.
FeaturesThe H5 Flow boosts airflow and GPU cooling with its fully-perforated PSU shroud, mesh panels, and robust radiator support—all in a compact mid-tower form factor.
Package Content1 x H5 Flow
2 x F120Q (CV)
1 x Installation accessories
1 x User guide
Shipping weight9.48 kg
Package size559 × 526 × 310 mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often should the front, top and bottom dust filters be cleaned on the H5 Flow?

The ultra-fine mesh panels on the front, top and bottom act as dust filters; remove and rinse them every few months or when buildup is visible to keep airflow unrestricted.

What is the maximum radiator length the front of the H5 Flow can accommodate?

The front supports a radiator up to 360 mm, allowing a triple-fan liquid-cooling loop for the CPU or GPU.

How loud are the two pre-installed 120 mm F120Q fans when the system runs all day?

The two included F120Q fans are designed for quiet airflow; at typical speeds they run quietly, rising only slightly when the curve ramps for sustained loads.
