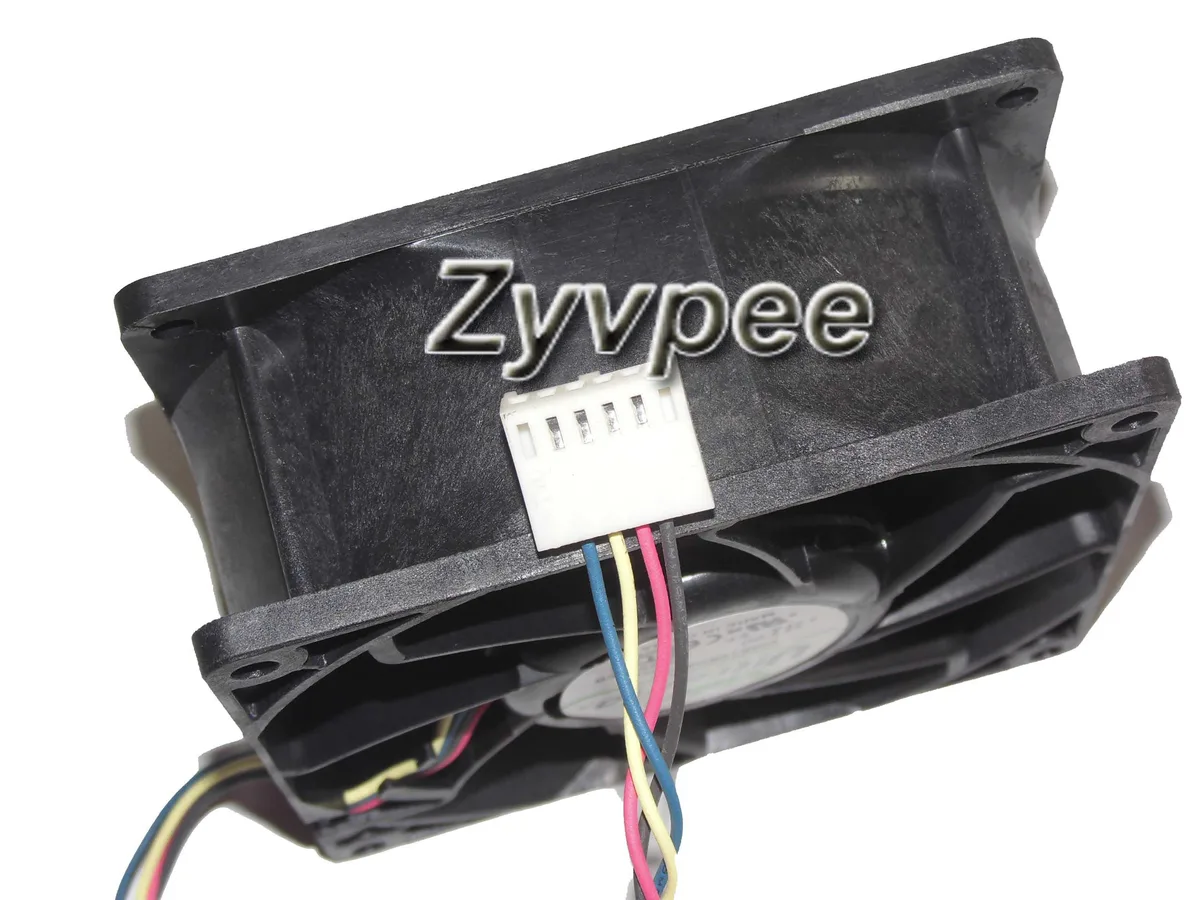

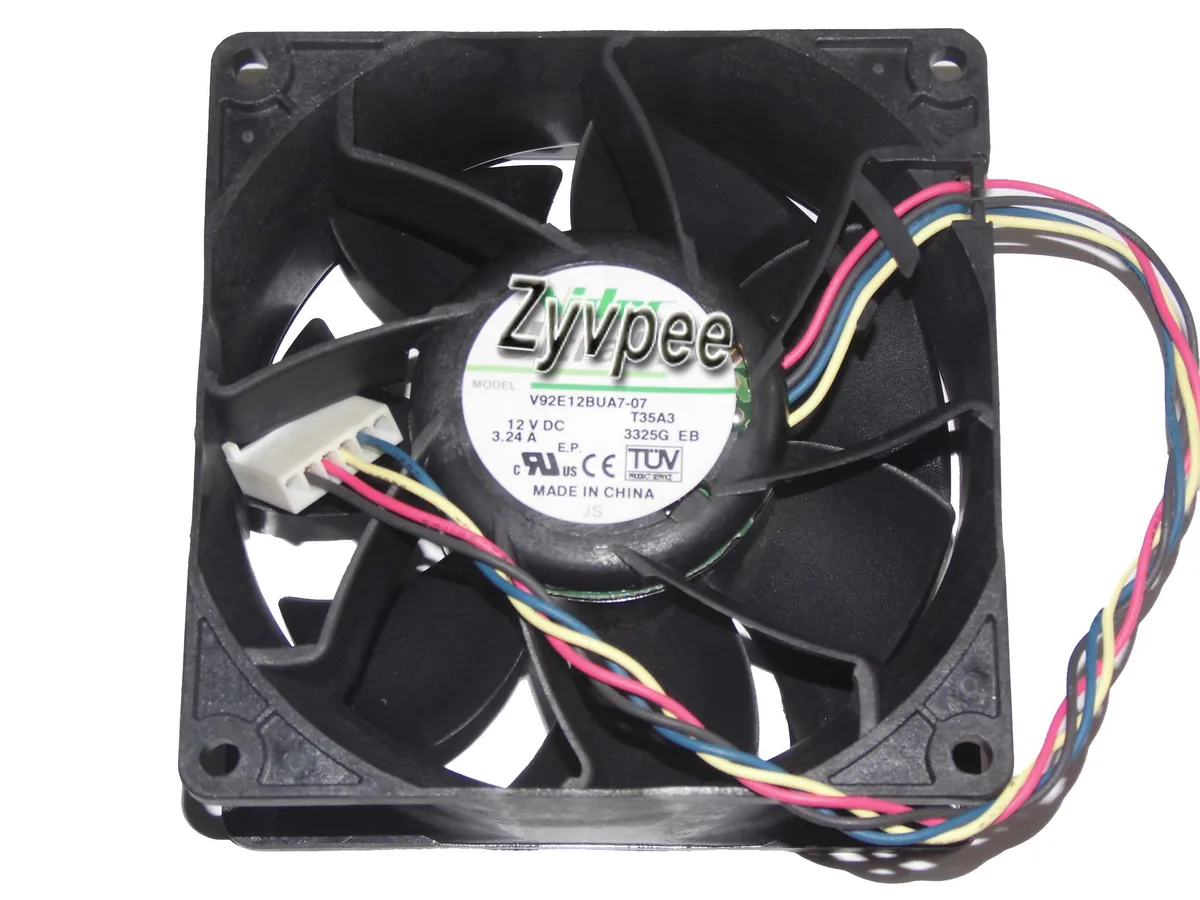

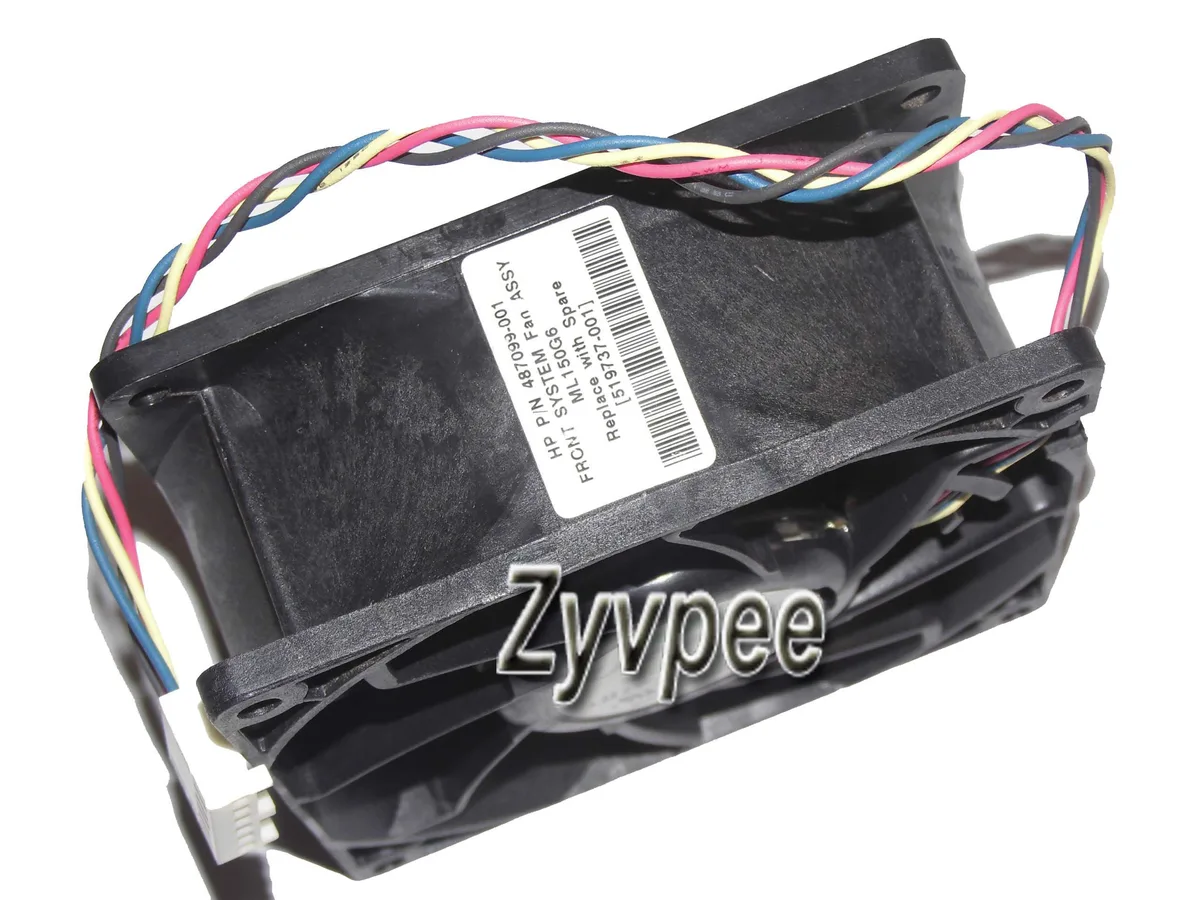

Square black 92x38mm NIDEC fan with four-wire connector

OEM Industries

OEM Industries NIDEC 9238 92x38mm 12V 3.24A 4-Wire CPU Cooler

SKU CH-EJZ0-XH7SY

A 92 mm square fan with 38 mm depth runs on 12 V at 3.24 A using a 4-wire PWM connection for server or CPU cooling

  • High airflow for demanding systems with 92x38mm frame
  • PWM speed control via 4-wire connection for precise cooling
  • High current capacity of 3.24A at 12V for reliable operation
  • NIDEC motor engineering ensures consistent performance in servers
  • Compact 92mm square design fits standard mounting points

OEM Industries NIDEC 9238 Server Cooler

This 92 mm square fan is built for server and workstation chassis that require a 9238 form factor. The 4-wire PWM connection allows precise speed control through a standard motherboard header. It suits administrators who need a direct replacement for the V92E12BUA7-07 T10A3 model.

12 V 3.24 A Power Specification

The unit draws 3.24 A at 12 V, so the motherboard or fan controller must supply that current on a single header. If the available header is rated lower, the fan will not reach full speed or may trip protection. Verify the header rating before installation.

38 mm Thickness and Airflow Headroom

At 38 mm thick, the cooler fits bays designed for the 9238 profile and moves enough air for typical 1U or 2U server workloads. It runs out of headroom in high-density racks where static pressure requirements exceed what a single 92 mm frame can deliver. Builders needing higher static pressure should consider dual-fan or larger-diameter alternatives.

Highlights

  • High airflow for demanding systems with 92x38mm frame
  • PWM speed control via 4-wire connection for precise cooling
  • High current capacity of 3.24A at 12V for reliable operation
  • NIDEC motor engineering ensures consistent performance in servers
  • Compact 92mm square design fits standard mounting points

Specifications

No published specifications for this item yet.

Questions about this item

What does the 3.24 A current draw mean for my power supply?

The cooler draws 3.24 A at 12 V, so your supply must provide at least that much on the 12 V rail for this cooler alone.

What does the 4-wire connection actually control?

The four pins carry power, ground, a tachometer signal and a PWM control line for variable speed.

Will the 92 mm by 38 mm frame fit my server chassis?

The fan measures 92 mm square and 38 mm thick; verify your chassis has that exact mounting pattern and clearance.
