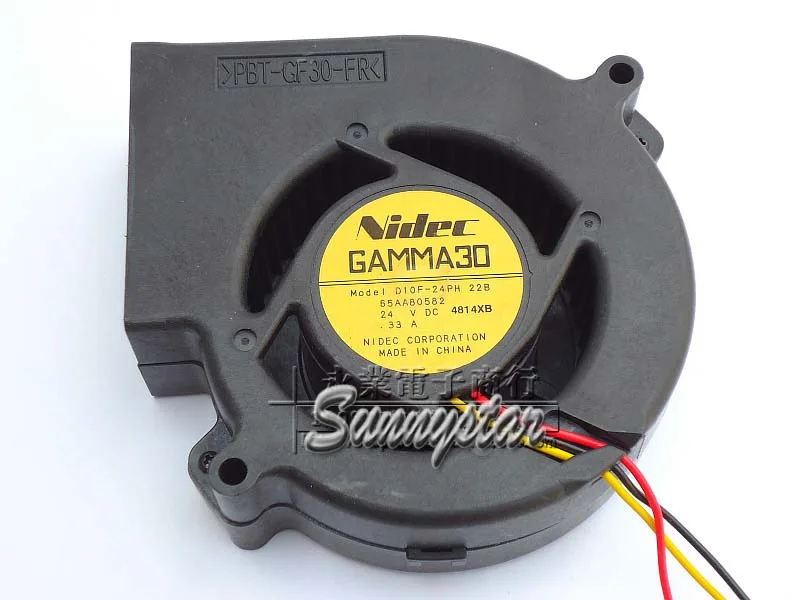

Black square blower fan 97 by 97 by 33 mm no LED

OEM Industries

OEM Industries NIDEC 9733 D10F-24PH 97*97*33mm Blower Fan

SKU CH-2QAK-39B3Q

A 97 mm blower fan with dual-ball bearings runs at 5000–5499 RPM on 24 V power

  • ColorBlack
  • TypeFan only
  • Fan Size97*97*33mm
  • Bearing Type2 Ball
  • RPM5000-5499 RPM
  • Power Connector3 Pin
  • Blower design directs airflow across heatsinks efficiently
  • Nidec 9733 motor ensures reliable long-term operation
  • Dual ball bearings reduce friction for extended lifespan
  • 24 V 0.33 A rating matches industrial power requirements
  • 5000–5499 RPM delivers strong static pressure

Blower Fan for Targeted Cooling

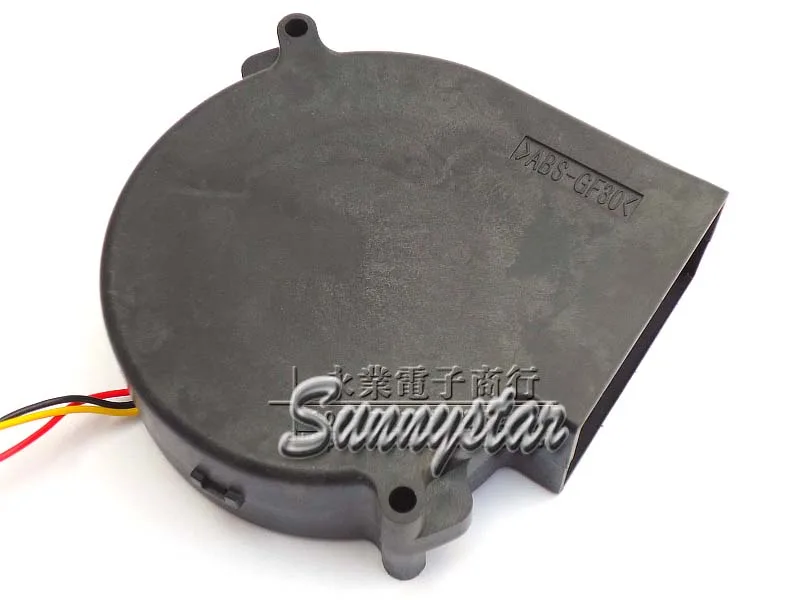

The NIDEC 9733 D10F-24PH is a 97 by 97 by 33 millimetre blower fan designed to direct airflow through a confined channel. It suits builders who need focused exhaust for small-form-factor systems or component-specific cooling where a traditional axial fan cannot reach.

24 Volt Operation and Ball Bearing

Running on 24 volts at 0.33 amps, the fan spins between 5000 and 5499 RPM using a two-ball bearing for durability. The three-pin power connector provides tachometer feedback so the system can monitor speed, though voltage control is required for adjustment.

Compact Black Housing with Four-Pin Interface

The black frame measures 97 millimetres square and 33 millimetres thick, fitting tight brackets without protruding. A four-pin interface is present alongside the three-pin power lead, but PWM control is not confirmed so buyers who need automatic speed curves should verify compatibility before purchase.

Highlights

  • Blower design directs airflow across heatsinks efficiently
  • Nidec 9733 motor ensures reliable long-term operation
  • Dual ball bearings reduce friction for extended lifespan
  • 24 V 0.33 A rating matches industrial power requirements
  • 5000–5499 RPM delivers strong static pressure

Specifications

ModelD10F-24PH
ColorBlack
TypeFan only
Fan Size97*97*33mm
Bearing Type2 Ball
RPM5000-5499 RPM
Power Connector3 Pin
LEDNo

Questions about this item

How do I connect the 3-pin power connector to a 4-pin header and which wire do I leave unused?

Align the three pins with the matching three holes on the 4-pin header; the fourth pin is for PWM control and remains empty on this fan.

When will the 2-ball bearing need replacement under continuous 5000-5499 RPM operation?

Expect several years of 24/7 running before bearing noise or vibration signals the end of service life.

At what point does the 24 V 0.33 A power limit throttle the blower during sustained load?

The fan draws a fixed 0.33 A at 24 V, so output stays constant until voltage drops or the bearing degrades.
