Black aluminium five-bay drive enclosure with front fan and Type-C ports

Orico

Orico 3559C3 5 Bay Drive Enclosure USB 3.1 Gen2 10Gbps 2.5/3.5" SATA 80TB 150W

SKU CH-C292-PASTW MPN 3559C3

A five-bay aluminium enclosure holds 2.5" or 3.5" SATA drives up to 16 TB each for 80 TB total, connects via USB 3.1 Gen 2 at 10 Gbps with a built-in 150 W supply and silent fan.

  • ColorBlack
  • Size2.5" & 3.5"
  • TypeEnclosure
  • AC AdapterYes
  • MaterialAluminum
  • External InterfaceUSB 3.1 Gen 2

Number of Bay 5 Bay

  • 4 Bay
  • 5 Bay

Struck-through versions exist but are not stocked here.

Size 5 Bay Type C 3559C3

Struck-through versions exist but are not stocked here.

  • Five bays deliver 80 TB total capacity
  • USB 3.1 Gen 2 Type-C reaches 10 Gbps transfer speed

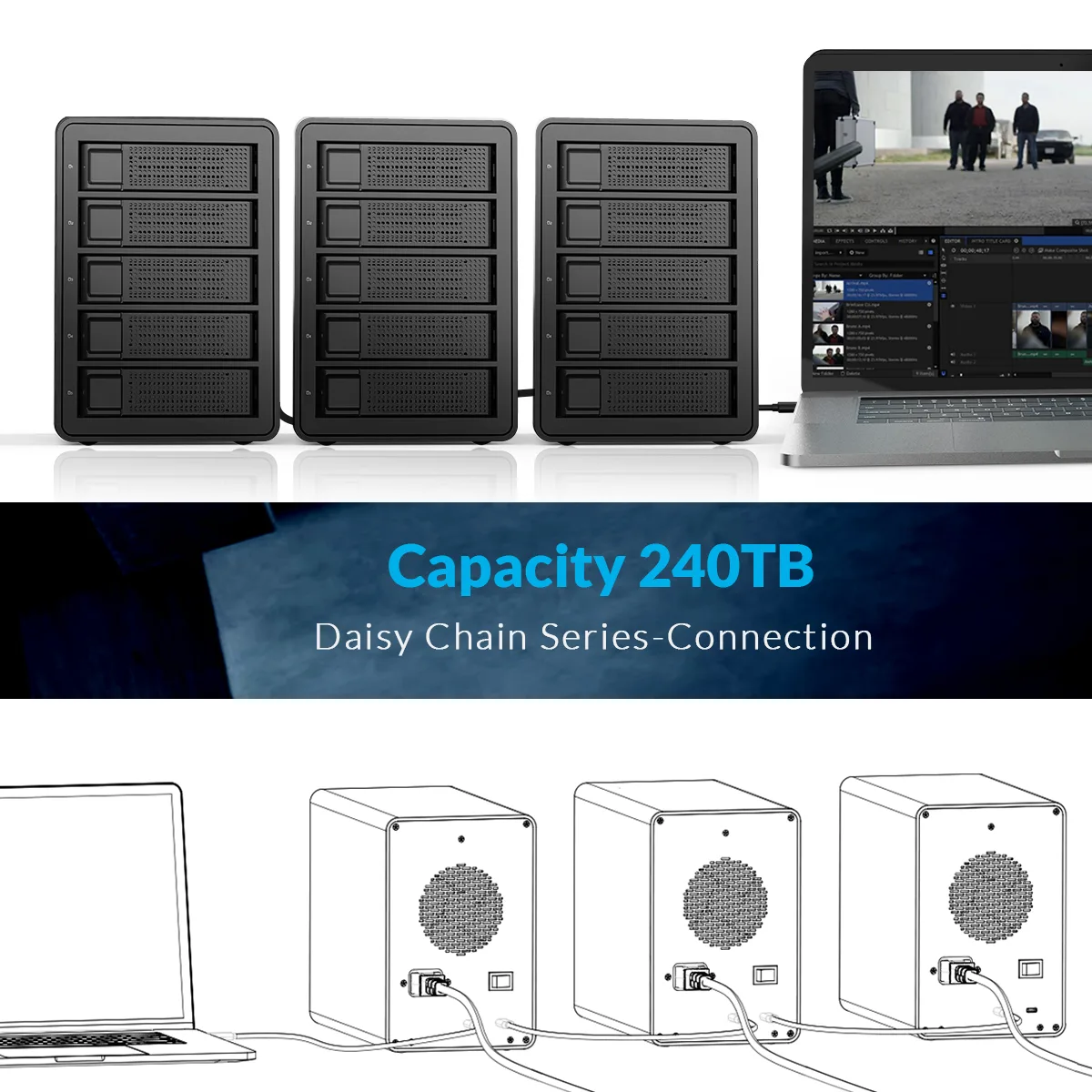

  • Daisy-chain up to three units for 240 TB combined storage
  • Built-in 150 W power supply drives all bays reliably
  • Aluminium chassis with 80 mm fan keeps drives cool

Five-Bay Aluminium Enclosure

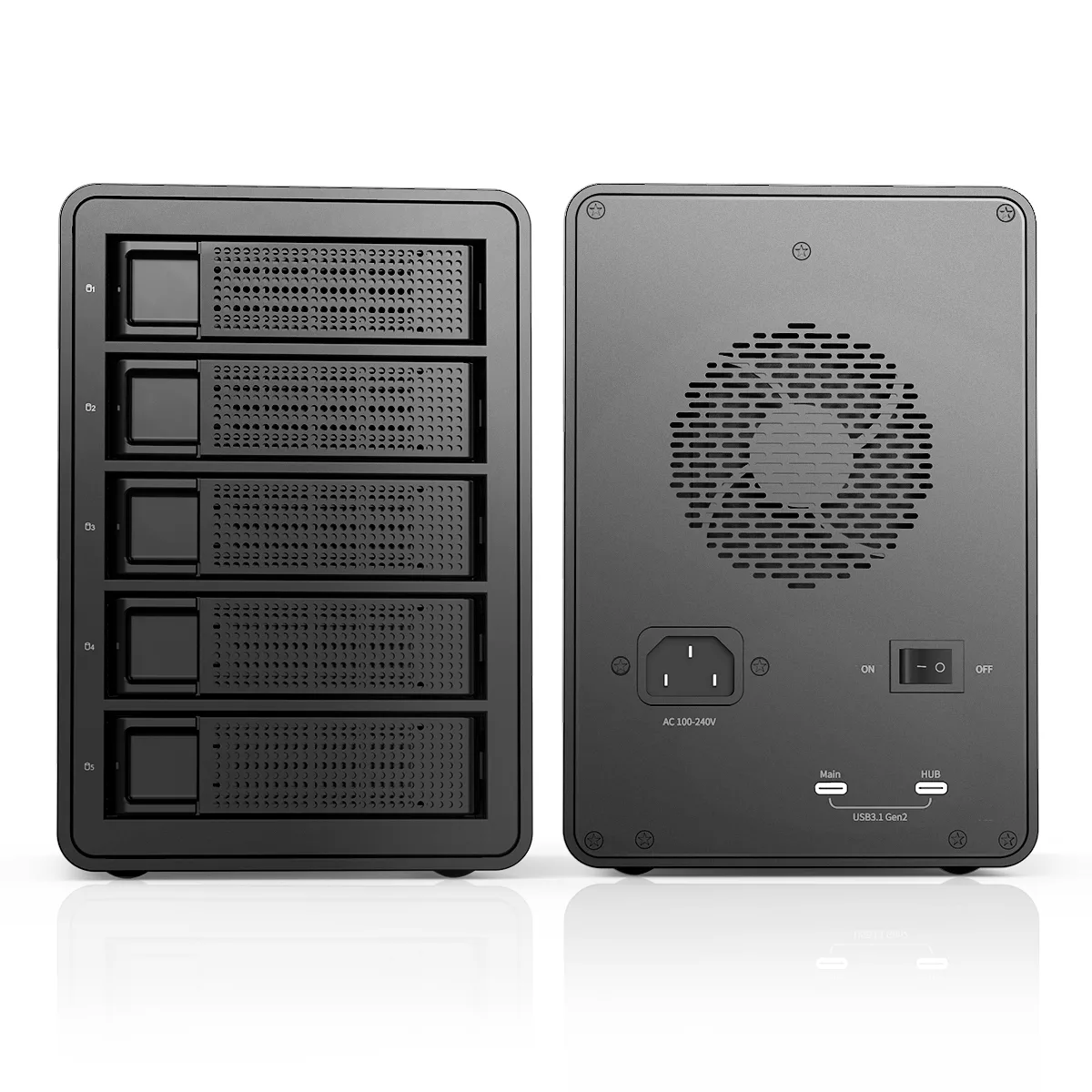

The Orico 3559C3 is a five-bay aluminium enclosure that accepts 2.5 and 3.5 inch SATA hard drives or SSDs. It connects to a host via USB 3.1 Gen 2 Type-C and includes a built-in 150 W power supply. The unit targets users who need high-capacity external storage without configuring RAID.

Sustained Load Behaviour

An 80 mm silent fan provides active cooling across all five bays during extended transfers. The controller enters an automatic sleep mode after ten minutes of inactivity, reducing drive wear and power draw. Each bay supports up to 16 TB, giving a total of 80 TB in a single enclosure.

Interface Practical Limits

The USB 3.1 Gen 2 link tops out at 10 Gbps, so combined throughput from all drives cannot exceed that ceiling. Two Type-C ports allow daisy-chaining up to three enclosures for a theoretical 240 TB pool, but the upstream 10 Gbps bottleneck remains. The enclosure works with Windows, Mac and Linux without extra drivers.

Highlights

  • Five bays deliver 80 TB total capacity
  • USB 3.1 Gen 2 Type-C reaches 10 Gbps transfer speed
  • Daisy-chain up to three units for 240 TB combined storage
  • Built-in 150 W power supply drives all bays reliably
  • Aluminium chassis with 80 mm fan keeps drives cool

Specifications

BrandORICO
SeriesORICO-3559C3-US-BK-BP
ModelORICO-3559C3-US-BK-BP
ColorBlack
Size2.5" & 3.5"
TypeEnclosure
AC AdapterYes
MaterialAluminum
External InterfaceUSB 3.1 Gen 2
HDD Count SupportedWithout RAID
Number of Bay5 Bay
Maximum Capacity (per Bay)Up to 16TB
FanYes
Dimensions264.8mm*137.0mm*200.7mm
Weight5000g

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and hot does the 80 mm fan get when the enclosure runs all day with five 16 TB drives?

The 80 mm high-power silent fan is designed for low noise and efficient heat dissipation during continuous operation.

Which cables or host ports are required to reach the 10 Gbps link speed?

A host with a USB 3.1 Gen 2 Type-C port and the supplied Type-C cable are needed for the 10 Gbps connection.

Can I daisy-chain this 3559C3 with my older 3549C3 units without losing the 10 Gbps throughput?

Yes, the HUB interface downlinks up to two additional 3549C3 or 3559C3 enclosures while maintaining USB 3.1 Gen 2 10 Gbps speeds.
