Transparent plastic mSATA enclosure 76.22x46x13mm with USB-C cable

Orico

Orico TC10 Transparent mSATA Enclosure 5Gbps USB 3.0 76.22x46x13mm

SKU CH-PV5C-J3P6K

A transparent mSATA enclosure with USB 3.0 5Gbps speed, UASP and TRIM support, tool-free installation and auto-sleep after 10 minutes

  • ColorTransparent Clear
  • SizemSATA
  • TypeEnclosure
  • AC AdapterNo
  • MaterialPlastic
  • Internal InterfaceSATA I/II/III

External Interface SATA

Size mSATA

Model 1 Bay

  • Revive idle mSATA SSDs with tool-free installation
  • Transparent PC case shows internal components clearly
  • 5 Gbps USB 3.0 with UASP and TRIM support
  • Compact 76.22×46×13 mm design fits 30×50 mm drives
  • Auto-sleep after 10 minutes saves power and extends SSD life

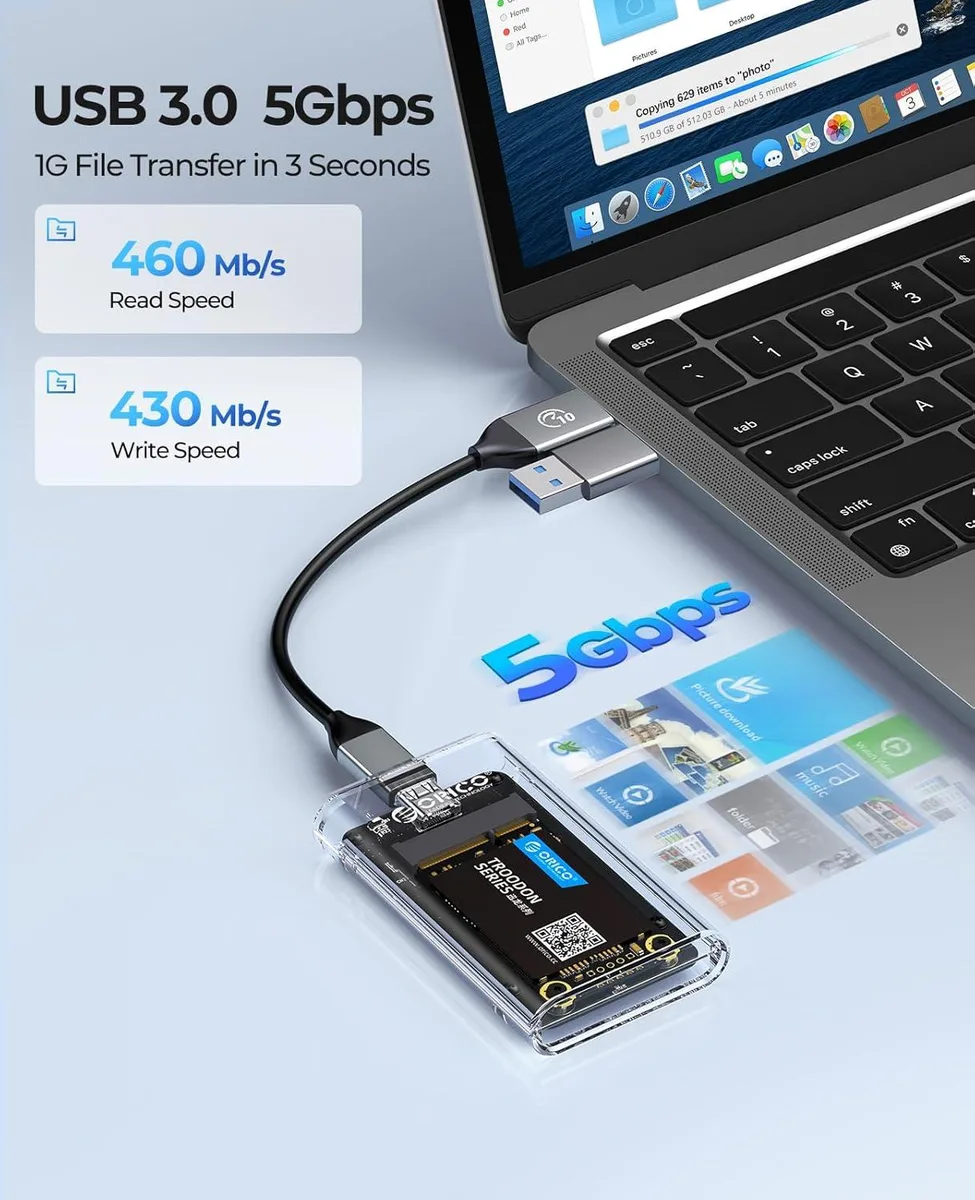

Transparent mSATA Enclosure with 5 Gbps USB 3.0

The Orico TC10 is a transparent enclosure that converts a 30 by 50 millimetre mSATA SSD into an external USB drive. It uses a high-speed chip that supports UASP and TRIM for up to 5 Gbps throughput. A combined USB-C to C and USB-C to A cable is included for immediate connection to most hosts.

For reviving laptop SSDs; not for 2.5 inch drives

Builders who have a spare mSATA module from an old notebook can install it tool-free and gain portable storage. The enclosure accepts only the 30 by 50 millimetre form factor, so 2.5 inch SATA drives or larger M.2 modules cannot be used. Automatic sleep after 10 minutes of inactivity helps preserve the SSD.

Single mSATA bay with SATA I/II/III internal

The internal connector follows the SATA I/II/III specification, limiting the drive to that protocol regardless of the external USB 3.0 link. Maximum supported capacity is 2 terabytes per the manufacturer highlights. This single specification decides whether your specific mSATA SSD will work at full potential.

Highlights

  • Revive idle mSATA SSDs with tool-free installation
  • Transparent PC case shows internal components clearly
  • 5 Gbps USB 3.0 with UASP and TRIM support
  • Compact 76.22×46×13 mm design fits 30×50 mm drives
  • Auto-sleep after 10 minutes saves power and extends SSD life

Specifications

BrandORICO
SeriesORICO-TC10-MS-GR-BP
ModelORICO-TC10-MS-GR-BP
ColorTransparent Clear
SizemSATA
TypeEnclosure
AC AdapterNo
MaterialPlastic
Internal InterfaceSATA I/II/III
External InterfaceSATA
HDD Count SupportedSingle HDD
Number of Bay1 Bay
Maximum Capacity (per Bay)Up to 6TB
FanNo
PowerNo
Features5 Gbit/s USB 3.0 mSATA SSD Enclosure
Dimensions76.22*46*13mm

Other versions of this model

3 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What comes inside the Orico TC10 box and do I need to buy anything else?

The box contains the transparent mSATA enclosure and a 2-in-1 USB-C to C/A data cable. No power adapter is required or included.

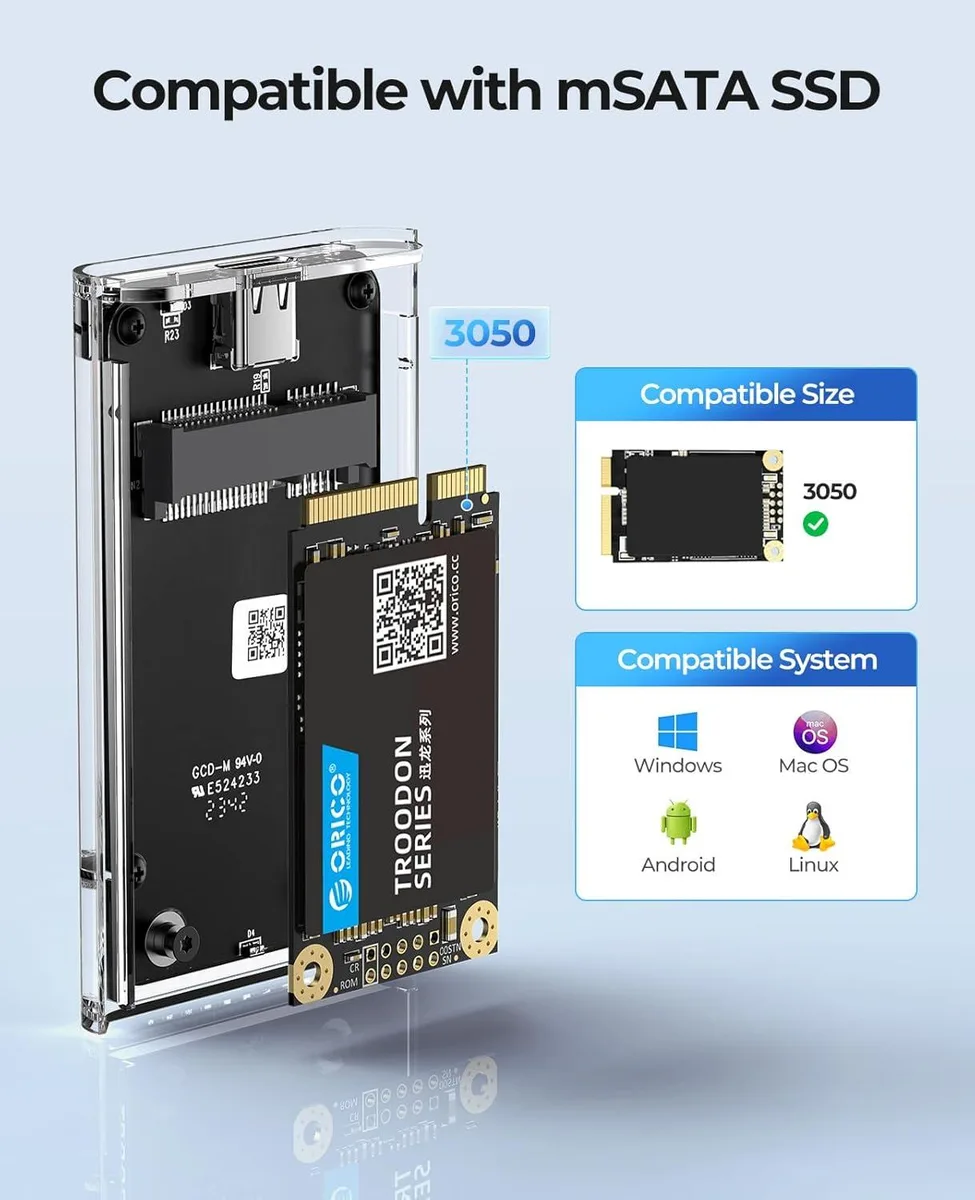

Which mSATA SSD size and capacity does the TC10 support?

It accepts a single 30x50 mm mSATA SSD (3050 form factor) up to 2 TB capacity.

What does the 5 Gbps USB 3.0 rating mean for real transfer speeds with this enclosure?

The 5 Gbps interface with UASP and TRIM support enables high-speed data transfer limited by the installed SATA SSD's own performance.
