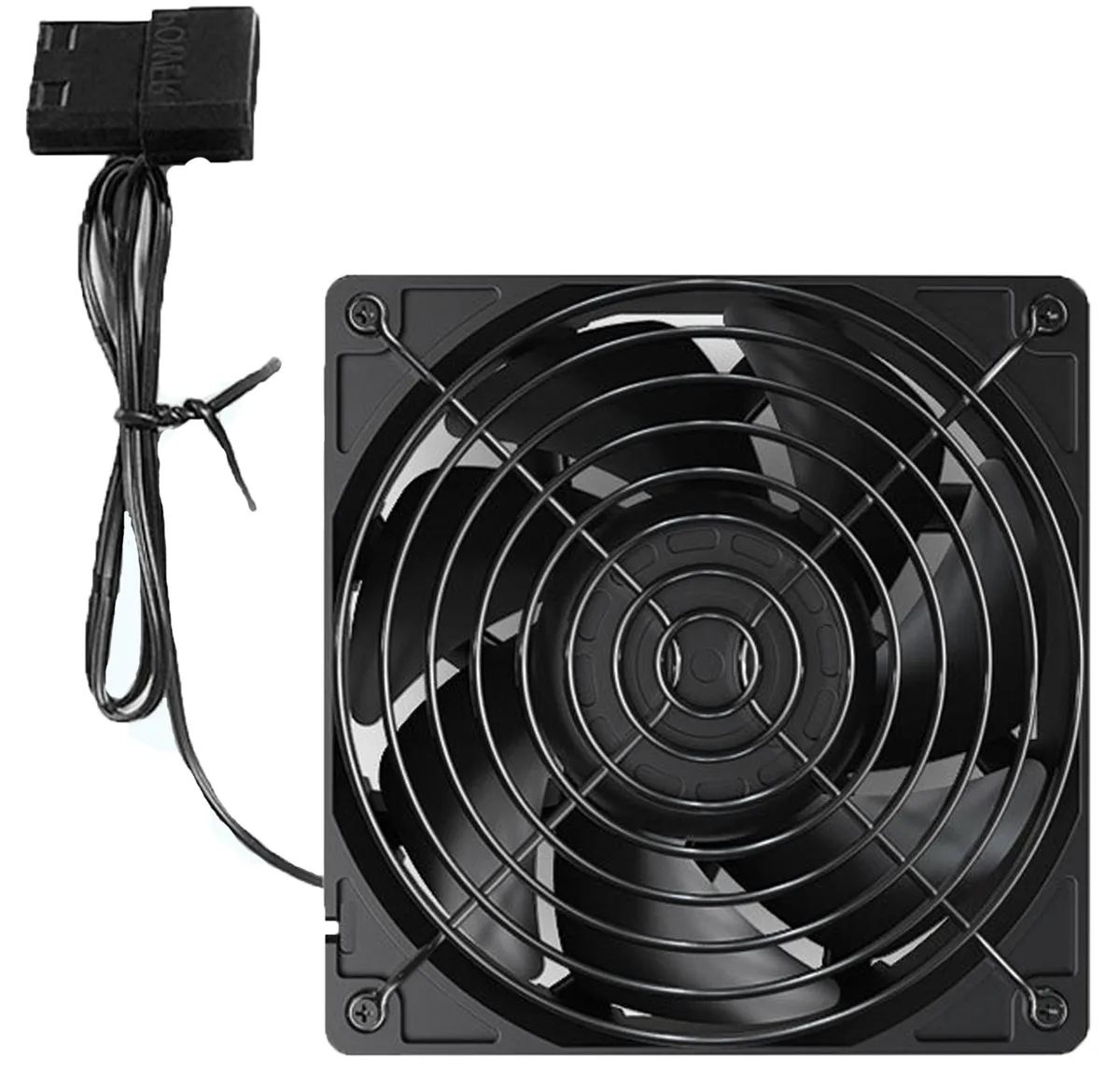

Black 120x38mm case fan with 4-pin connector and dual ball bearing

PANO-MOUNTS

PANO-MOUNTS 120x38mm Case Fan 3500 RPM 148 CFM 4-Pin

SKU CH-BNFC-Z1E33

A 120×38 mm case fan with dual ball bearing spins at 3500 RPM to deliver 148 CFM airflow through a 4-pin D-type connector

  • Fan Size120x120x38mm
  • TypeCase Fan
  • Bearing Type2 Ball
  • RPM3500 RPM±10%
  • Air Flow147.93CFM
  • Noise LevelMax 51dBA
  • Strong airflow of 148 CFM clears heat fast

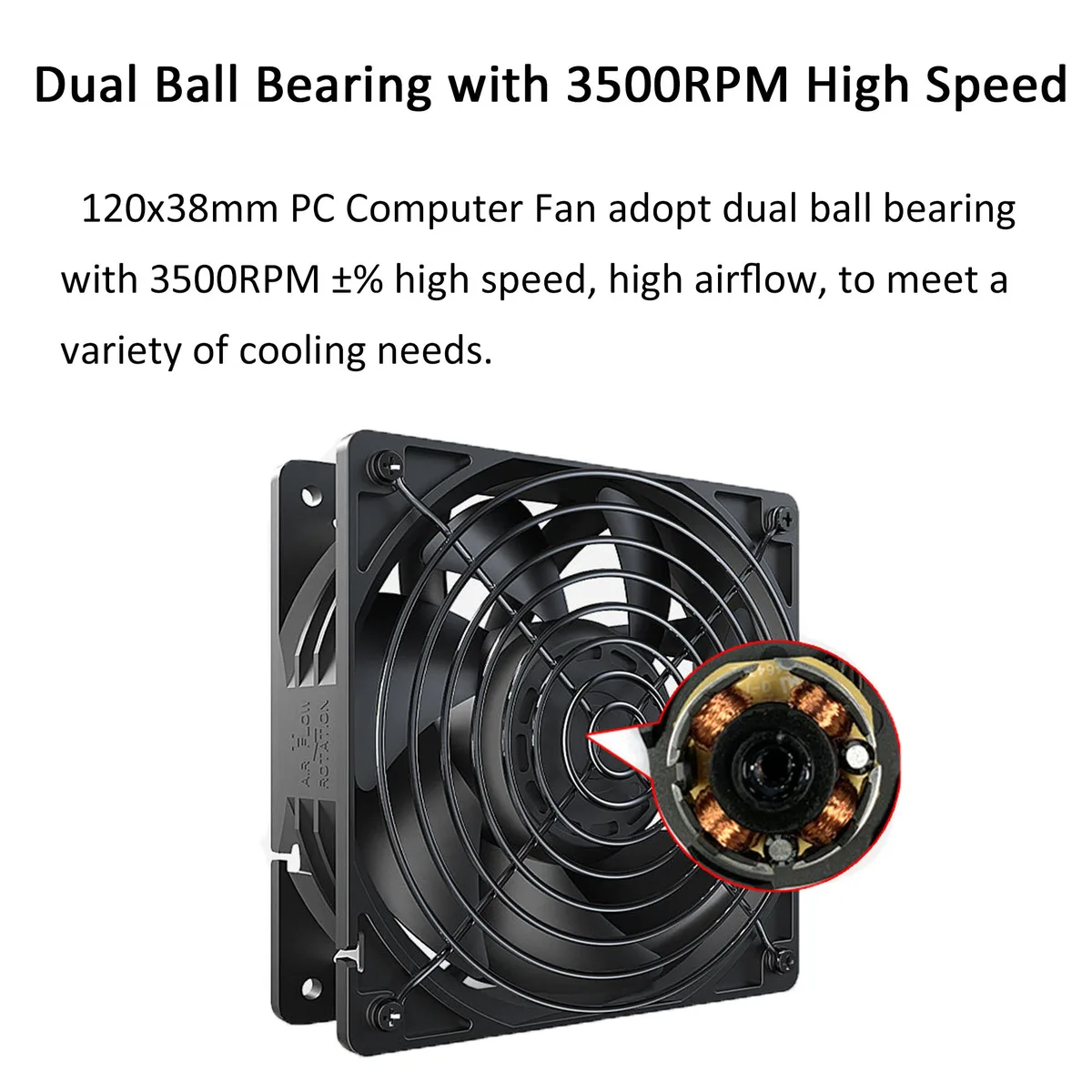

  • 3500 RPM dual ball bearing spins at high speed

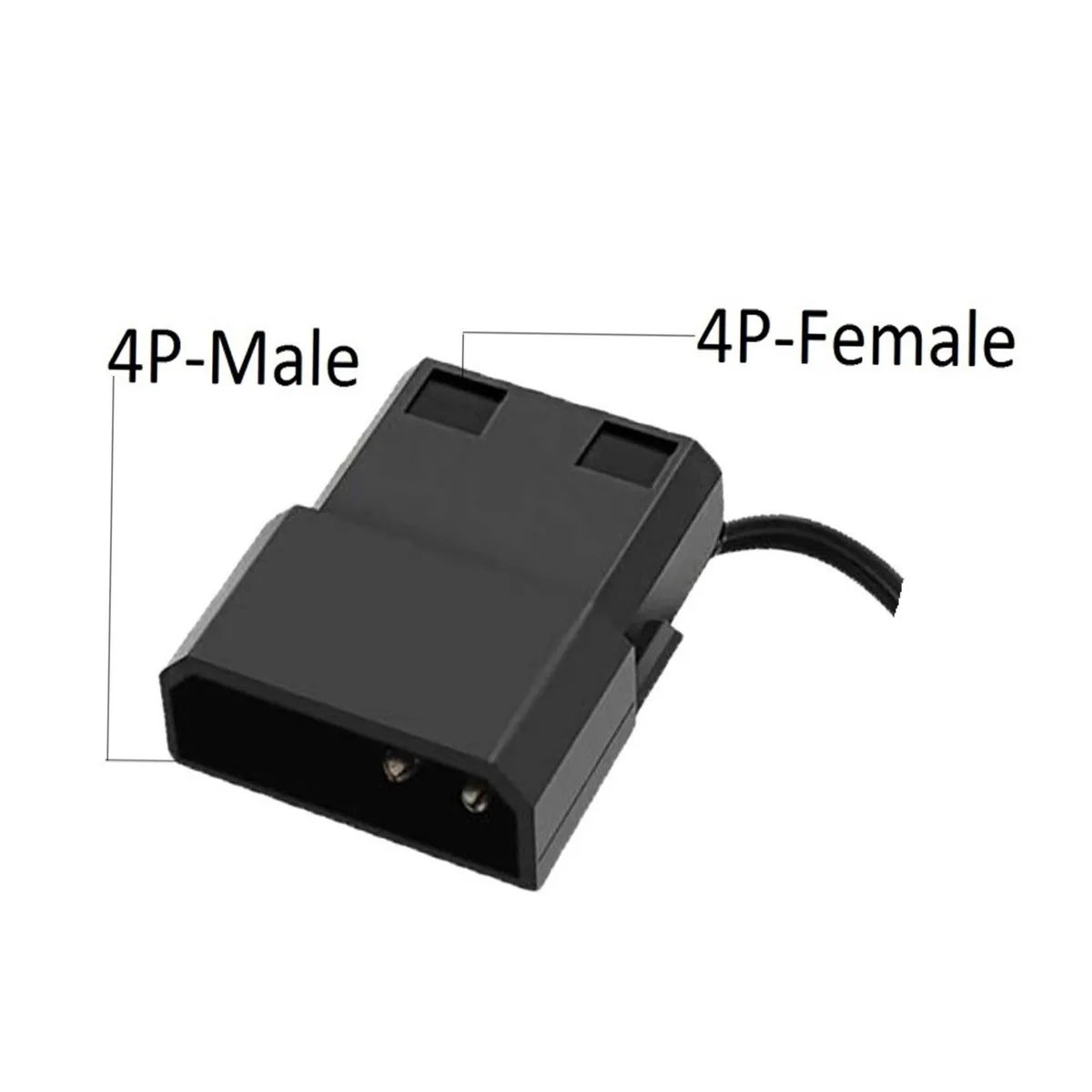

  • D-type 4-pin connector daisy-chains multiple fans
  • 38 mm thick PBT frame resists deformation
  • 51 dBA noise level suits non-quiet environments

High-Airflow 120 mm Case Fan

This PANO-MOUNTS fan measures 120 by 120 by 38 mm and spins at 3500 RPM to deliver 147.93 CFM of airflow. It uses a dual ball bearing and a 4-pin D-type power connector that allows several fans to be daisy-chained from a single PSU cable. The unit runs on 12 V DC and draws 0.5 A at 5.5 W.

Built for Maximum Air Movement

The fan suits builders who need very strong airflow for cases, radiators or DIY cooling projects such as router, amplifier or greenhouse ventilation. Buyers who prioritise silent operation should look elsewhere because the noise level reaches 51 dBA. The 38 mm thickness also means it will not fit in brackets designed for slimmer fans.

38 mm Thickness Decides Fit

The single specification that determines compatibility is the 38 mm frame depth. Verify that your case, radiator or mounting bracket accepts this thickness before purchasing. The D-type 4-pin connector requires a matching PSU lead or adapter; motherboard 4-pin headers are not used directly.

Highlights

  • Strong airflow of 148 CFM clears heat fast
  • 3500 RPM dual ball bearing spins at high speed
  • D-type 4-pin connector daisy-chains multiple fans
  • 38 mm thick PBT frame resists deformation
  • 51 dBA noise level suits non-quiet environments

Specifications

BrandPANO-MOUNTS
Fan Size120x120x38mm
TypeCase Fan
Bearing Type2 Ball
RPM3500 RPM±10%
Air Flow147.93CFM
Noise LevelMax 51dBA
Power Connector4 Pin
ColorBlack
CompatibilityCase
Fan Counts1 Fan
Fan ControllerNo Controller
Fan Thickness38mm
FeaturesHigh Airflow 148CFM
Dimensions120x120x38mm
Package Contentsfan

Questions about this item

Is the 38 mm thickness right for my case?

The fan measures 120 x 120 x 38 mm. Check your chassis clearance for a 38 mm thick fan before ordering.

What does 148 CFM actually deliver inside a build?

At 3500 RPM the fan moves 147.93 CFM with 21.8 mm H₂O static pressure, suited for restrictive radiators or dense mesh.

How does the D-type 4-pin connector work in practice?

The D-type 4-pin lets you daisy-chain several fans from one PSU cable, bypassing limited motherboard headers.
