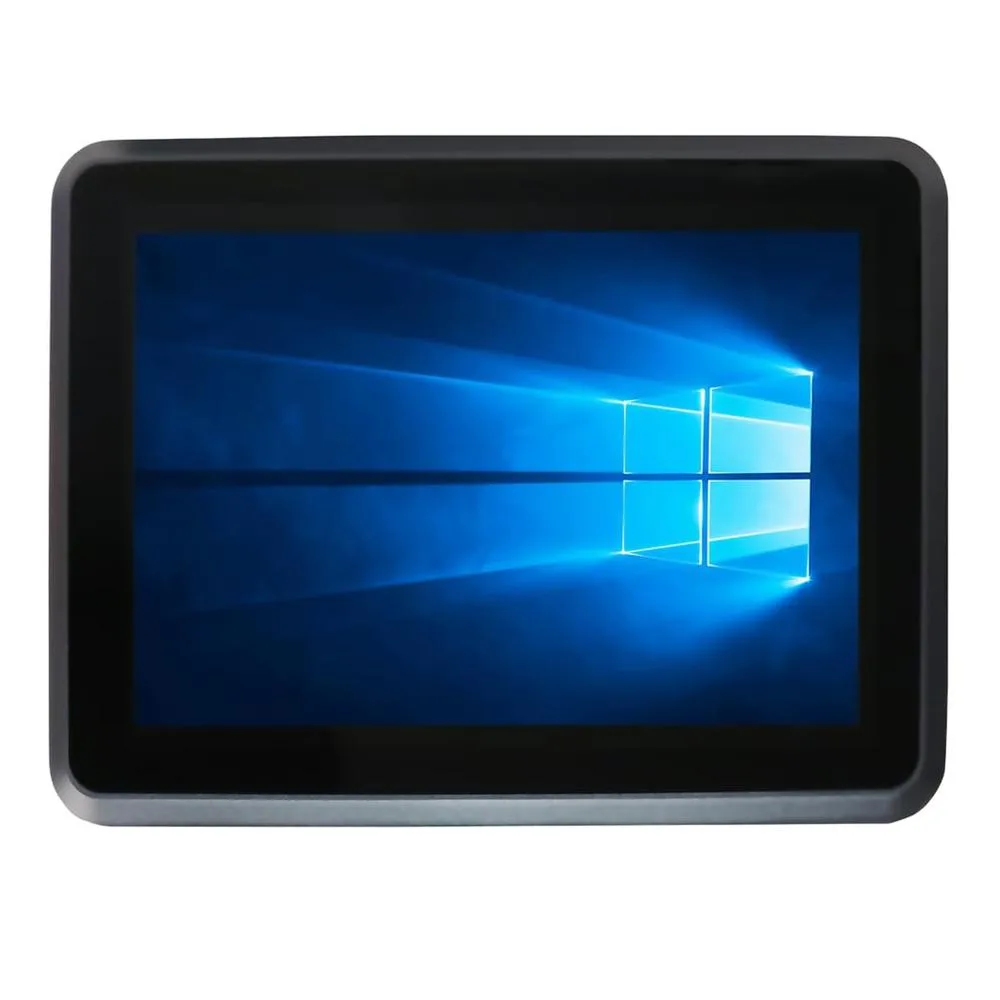

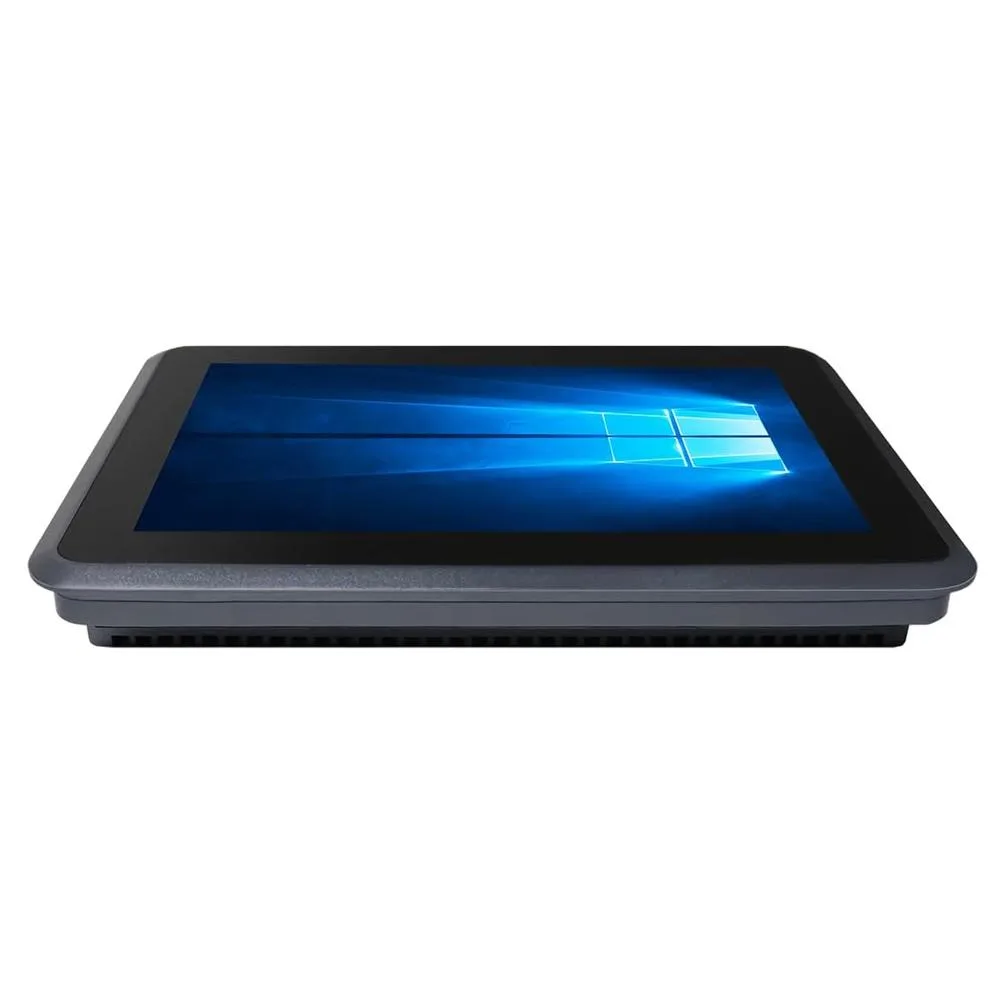

Compact 10.1 inch IP65 industrial panel PC with flat aluminium front and capacitive touchscreen

partaker

Partaker A18 10.1" IP65 Industrial All-in-One PC i5-10310U 32GB 512GB

SKU CH-BNZH-NJBS6

A 10.1" IP65-rated industrial all-in-one PC with a fanless aluminium chassis, Intel Core i5-10310U processor, 32GB DDR4 memory, 512GB SATA SSD and multi-touch capacitive screen running Windows 11 Pro

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity32GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 32GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water ingress in harsh environments
  • Intel Core i5-10310U up to 4.40 GHz handles continuous industrial workloads
  • Fanless aluminium alloy cooling runs silently with no moving parts to fail
  • 32 GB DDR4 and 512 GB SATA SSD provide ample memory and fast storage
  • 9 V to 36 V wide DC input suits unstable industrial power supplies

Industrial Panel PC for Embedded Installations

The Partaker A18 is a 10.1 inch all-in-one computer with an IP65 rated front panel and multi-touch capacitive screen. It runs Windows 11 Pro on an Intel Core i5 10310U processor with 32GB DDR4 memory and a 512GB SSD. The unit supports 9-36V wide voltage input through a Phoenix connector for industrial power environments.

Fanless Aluminium Cooling and Wide Temperature Range

An aluminium alloy chassis provides fanless cooling for silent operation and energy efficiency. The system operates from 0 to 50 degrees Celsius for commercial use and -20 to 60 degrees Celsius with an industrial SSD. Two 8-ohm 2-watt speakers deliver audio output without moving parts.

Versatile I/O and Expansion Options

Connectivity includes two COM ports for RS232/RS422/RS485, HDMI, dual Intel 1000M LAN, four USB 3.0 ports and audio jacks. A Mini PCIe slot with SIM card holder allows WiFi or 4G expansion. Storage can be expanded via one M.2 2280 SATA slot and one 2.5 inch SATA bay with RAID 0/1 support.

Highlights

  • IP65 front panel resists dust and water ingress in harsh environments
  • Intel Core i5-10310U up to 4.40 GHz handles continuous industrial workloads
  • Fanless aluminium alloy cooling runs silently with no moving parts to fail
  • 32 GB DDR4 and 512 GB SATA SSD provide ample memory and fast storage
  • 9 V to 36 V wide DC input suits unstable industrial power supplies

Specifications

ModelA18-New-I5 10310U-32G512G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity32GB DDR4
Maximum Memory Supported32 GB
SSD512GB
HDDNo
Screen Size10.1"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the Partaker A18 mounted into a 262 x 180 mm cut-out and which step is often missed?

Fasten the panel from the front using the embedded mounting clips; the step often missed is applying even pressure around the IP65 gasket so the seal seats uniformly before tightening the screws.

Which memory module will need replacement if capacity must exceed 32 GB and what type is required?

The single SODIMM DDR4-2666 slot is already populated at the 32 GB maximum; any upgrade requires a higher-capacity DDR4 SODIMM, but the platform does not support more than 32 GB.

What thermal limit appears first during continuous fanless operation at high load?

The aluminum-alloy chassis dissipates heat passively; sustained loads at the upper end of the 0–50 °C commercial or –20–60 °C industrial range will trigger CPU throttling before the case temperature becomes critical.
