Flat 21.5 inch industrial all-in-one with IP65 resistive touchscreen and fanless aluminium chassis

partaker

Partaker A22 All-in-One PC i5-10310U 16GB 256GB 21.5" Resistive Touch IP65

SKU CH-WQ9T-3BMW9

21.5" IP65 resistive-touch all-in-one PC with Core i5-10310U, 16 GB DDR4, 256 GB SSD and Windows 11 Pro for industrial 24/7 use

  • Form FactorAll-in-One
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 10th Gen
  • GPU/VGA TypeIntel UHD Graphics
  • Memory Capacity16GB DDR4
  • Maximum Memory Supported32 GB

CPU Type Intel Core i5 10th Gen

Memory Capacity 16GB DDR4

SSD 256GB

  • IP65 front panel resists dust and water ingress
  • Resistive touchscreen operates with gloves or stylus
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • 9–36 V DC input suits unstable industrial power supplies
  • Windows 11 Pro pre-installed for immediate deployment

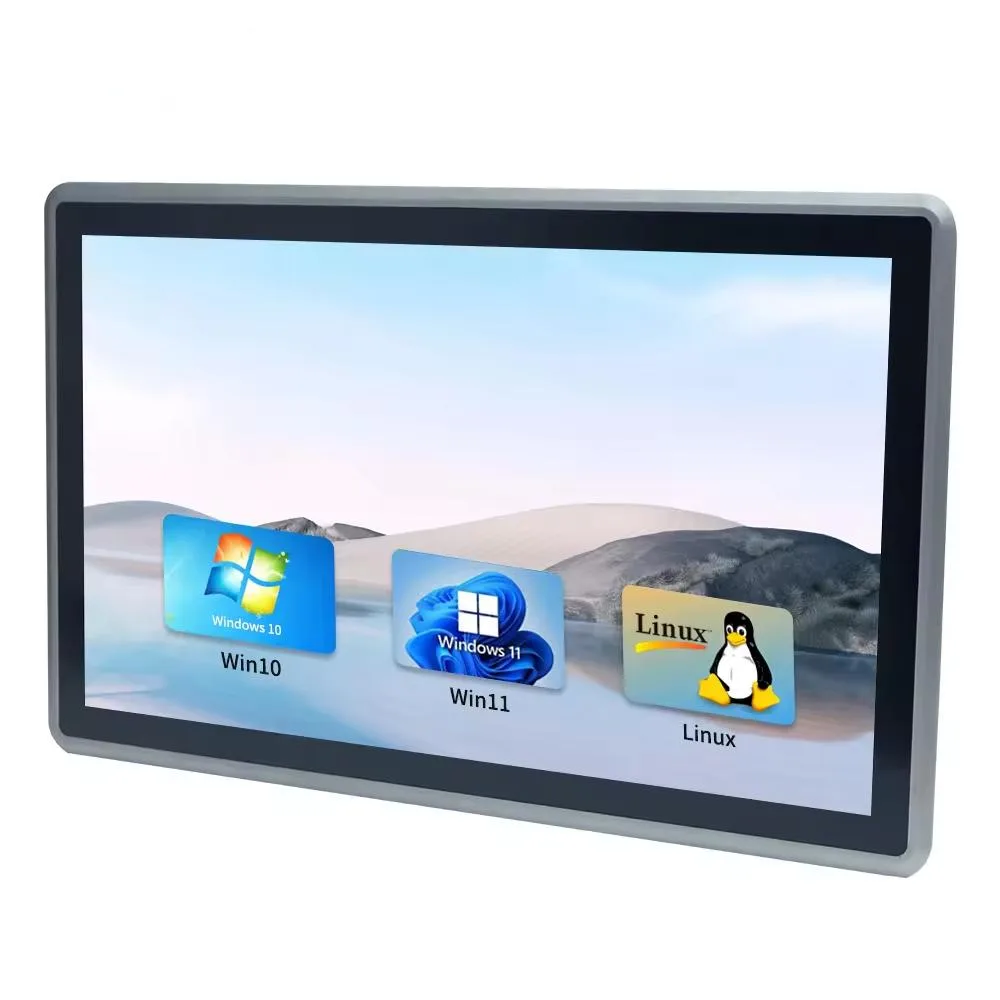

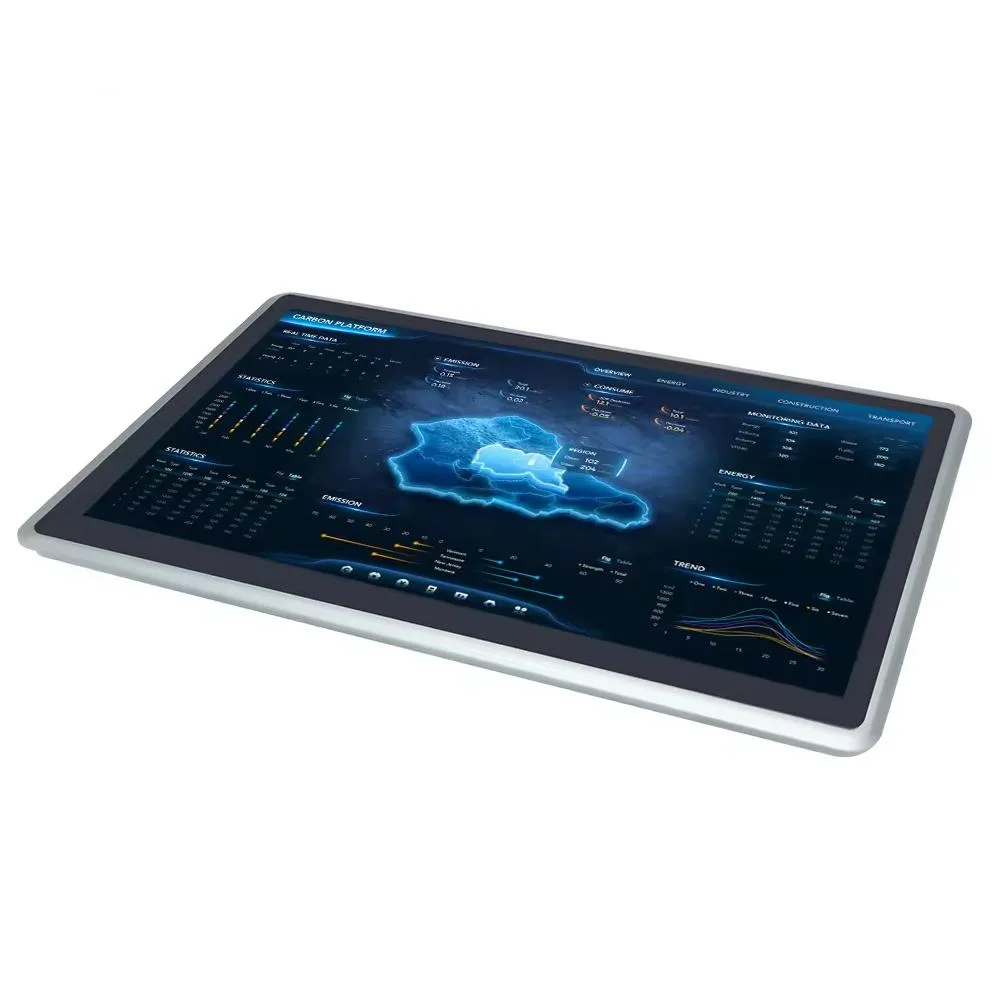

Industrial 21.5" IP65 Panel PC

The Partaker A22 is a fanless all-in-one computer with a 21.5-inch resistive touchscreen protected to IP65 on the front. It runs Windows 11 Pro on an Intel Core i5-10310U with 16GB DDR4 and a 256GB SATA SSD. The aluminium chassis is rated for continuous 24/7 operation in industrial environments.

Sustained load on fanless aluminium chassis

Without active cooling the i5-10310U relies on the full aluminium alloy body to dissipate heat during long shifts. The CPU can reach 4.40 GHz for short bursts but will throttle to stay within thermal limits under constant 100% utilisation. The 0–50°C commercial or -20–60°C industrial temperature range assumes adequate surface airflow around the 60 mm deep enclosure.

Resistive touch and legacy I/O limits

The 1920x1080 panel uses a resistive layer rated for 50 million touches, so it works with gloves or a stylus but lacks multi-touch gestures. Expansion is restricted to one Mini PCIe slot with a SIM holder for 4G or Wi-Fi add-ons. Dual Intel Gigabit LAN, two COM ports configurable for RS232/422/485, HDMI and four USB 3.0 provide the only high-speed paths. Power input accepts 9–36V DC via a two-pin Phoenix connector or the bundled 12V5A adapter.

Highlights

  • IP65 front panel resists dust and water ingress
  • Resistive touchscreen operates with gloves or stylus
  • Fanless aluminium chassis runs silently in noise-sensitive areas
  • 9–36 V DC input suits unstable industrial power supplies
  • Windows 11 Pro pre-installed for immediate deployment

Specifications

ModelA22-New-I5-10310U-16G256G
Form FactorAll-in-One
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 10th Gen
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Maximum Memory Supported32 GB
SSD256GB
HDDNo
Screen Size21.5"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much noise and heat does the fanless aluminium-alloy chassis produce during 24/7 operation?

The fanless design with an aluminium-alloy chassis provides silent, energy-efficient cooling and is rated for 7×24-hour stability at up to 60 °C with industrial SSD and surface airflow.

What must I already own to power and connect this panel PC in an industrial cabinet?

You need a 9–36 V DC source for the 2-pin Phoenix connector, plus any RS-232/422/485, HDMI, dual Intel 1000M LAN or USB 3.0 cables your peripherals require.

Will the resistive touchscreen and dual COM ports work with my existing PLC and HMI gear?

The high-sensitivity resistive screen supports over 50 million touches and the two COM ports handle RS-232, RS-422 or RS-485, matching most legacy industrial equipment.
