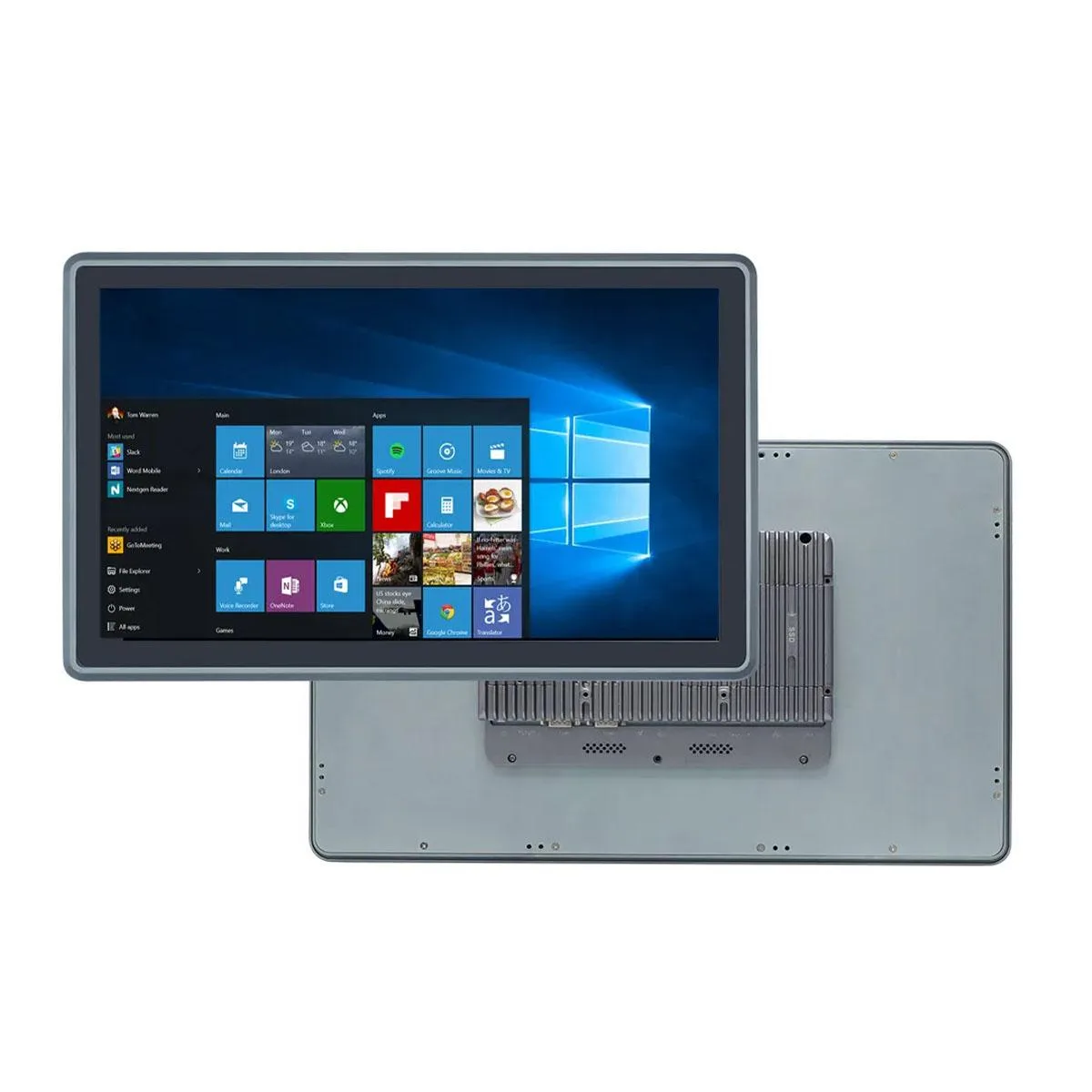

Gray 21.5 inch fanless all-in-one with resistive touchscreen and IP65 front panel

partaker

Partaker A22 Industrial All-in-One PC i5-8265U 16GB 512GB 21.5" Resistive Touch IP65

SKU CH-GQMW-1MDGR

A 21.5 inch IP65-rated all-in-one with resistive touchscreen, Intel Core i5-8265U, 16GB DDR4 and 512GB SATA SSD for industrial environments

  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 8th Gen
  • CPU NameIntel Core i5-8265U
  • GPU/VGA TypeIntel UHD Graphics 620

Memory Capacity 16GB DDR4

SSD 512GB

  • IP65 front panel resists dust and water ingress in harsh environments
  • Fanless aluminium chassis runs silently with passive cooling for 24/7 operation

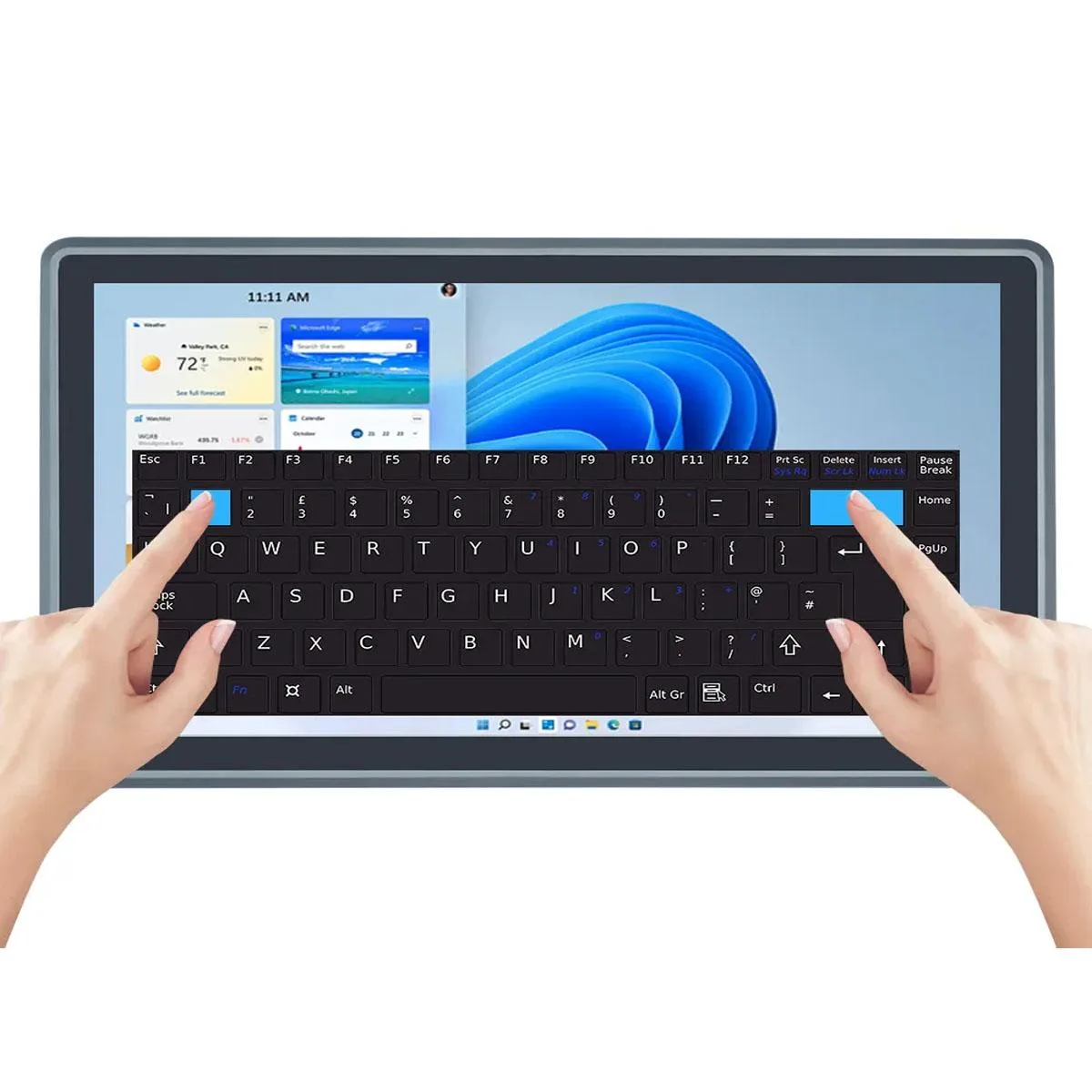

  • 5" Full HD resistive touchscreen supports gloved input on the production floor
  • Wide 9-36 V Phoenix power input suits unstable industrial supplies
  • Versatile I/O with dual LAN, dual COM and four USB 3.0 connects legacy and modern gear

Industrial All-in-One with IP65 Front Panel

The Partaker A22 is a 21.5 inch fanless panel PC built for continuous operation in harsh environments. Its resistive touchscreen works with gloves or stylus, and the Intel Core i5-8265U with 16GB DDR4 and 512GB SATA SSD runs Windows 11 Pro out of the box. The aluminium chassis is rated for 0 to 50°C commercial or -20 to 60°C industrial use.

Fanless Aluminium Build

Passive cooling removes moving parts, so dust and vibration cannot disable a fan. The front meets IP65 against water jets and particulates. A 9-36V 2-pin Phoenix connector accepts unstable plant power, while two Intel gigabit LAN ports, four USB 3.0, two COM ports configurable for RS232/422/485, and HDMI connect PLCs, HMIs and cameras. Embedded mounting cutout is 528 x 320mm.

Upgrade from Older Panel PCs

This unit replaces legacy resistive panels that lack TPM 2.0, modern OS support or sufficient I/O density. The jump is worth it when a single sealed device must survive wash-down, wide temperature swings and 24/7 duty without a fan to fail. Buyers who need projected-capacitive multi-touch, higher brightness or a larger display should look elsewhere.

Highlights

  • IP65 front panel resists dust and water ingress in harsh environments
  • Fanless aluminium chassis runs silently with passive cooling for 24/7 operation
  • 5" Full HD resistive touchscreen supports gloved input on the production floor
  • Wide 9-36 V Phoenix power input suits unstable industrial supplies
  • Versatile I/O with dual LAN, dual COM and four USB 3.0 connects legacy and modern gear

Specifications

ModelA22-I5 8260U-N-16G512G
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 8th Gen
CPU NameIntel Core i5-8265U
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity16GB DDR4
SSD512GB
HDDNo
Screen Size21.5"
TouchscreenYes

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the USB 3.0 interface run at 5 Gbit/s on the Partaker A22?

The four USB 3.0 ports operate at 5 Gbit/s, so external drives and peripherals are limited to that bandwidth.

What cut-out size is required for embedded mounting of the 21.5" panel?

The embedded installation cut-out is 528 x 320 mm, matching the 540 x 332 x 60 mm chassis dimensions.

How is Windows 11 Pro activated after the fanless unit is powered via the 9-36 V Phoenix connector?

Connect the Phoenix plug observing polarity, apply 9-36 V DC, and the system auto power-on boots into the pre-installed Windows 11 Pro.
