Partaker A26 12.1" AI edge system i5-5200U 16GB 512GB

Industrial panel PC for automation

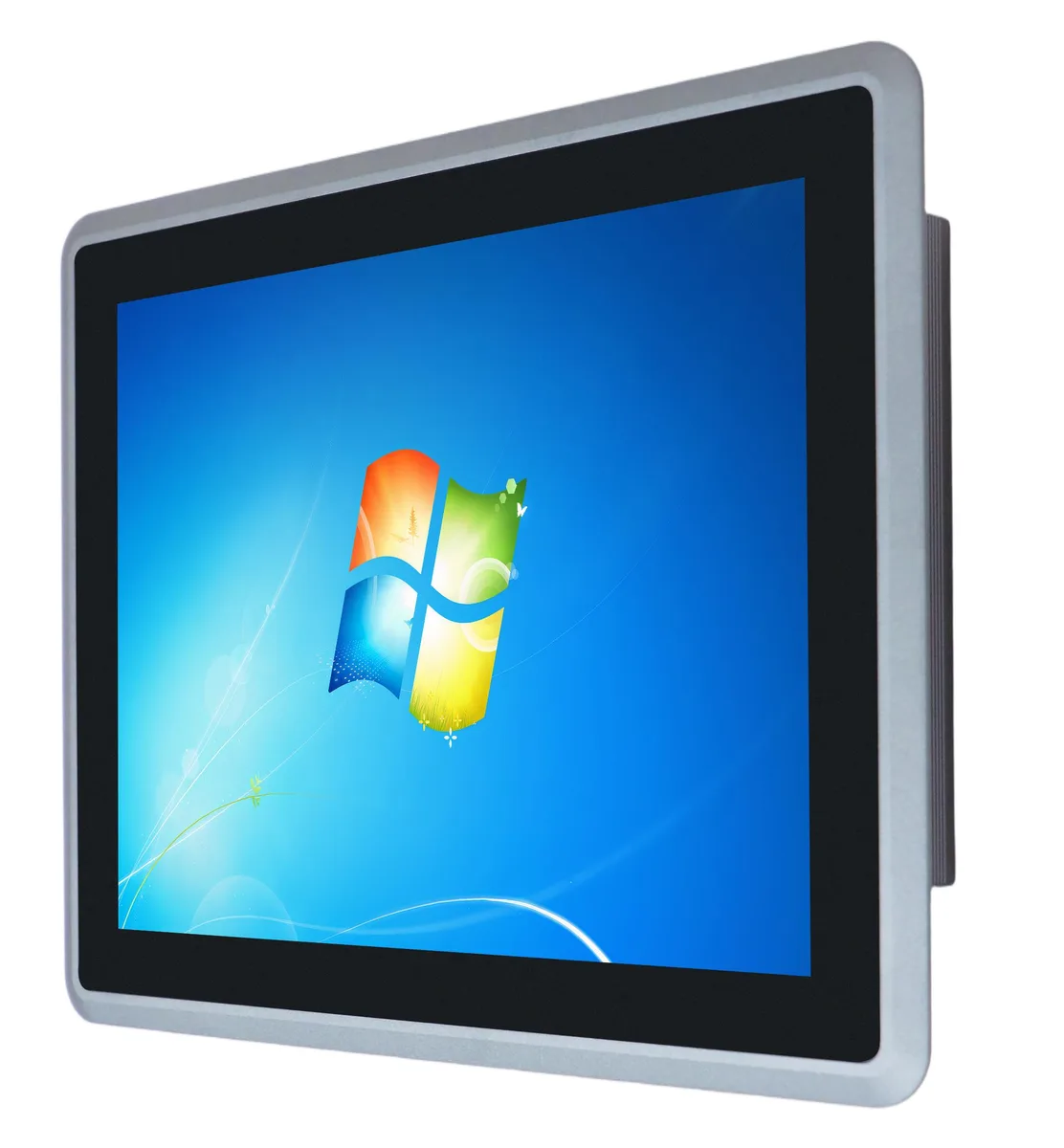

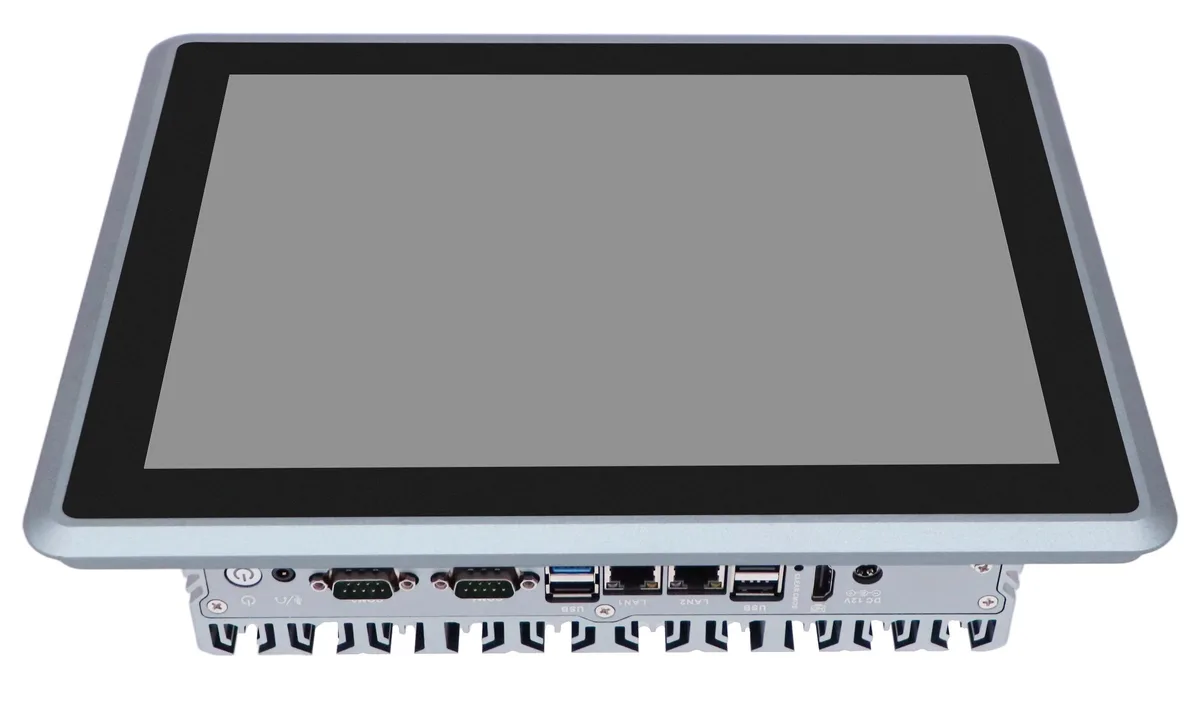

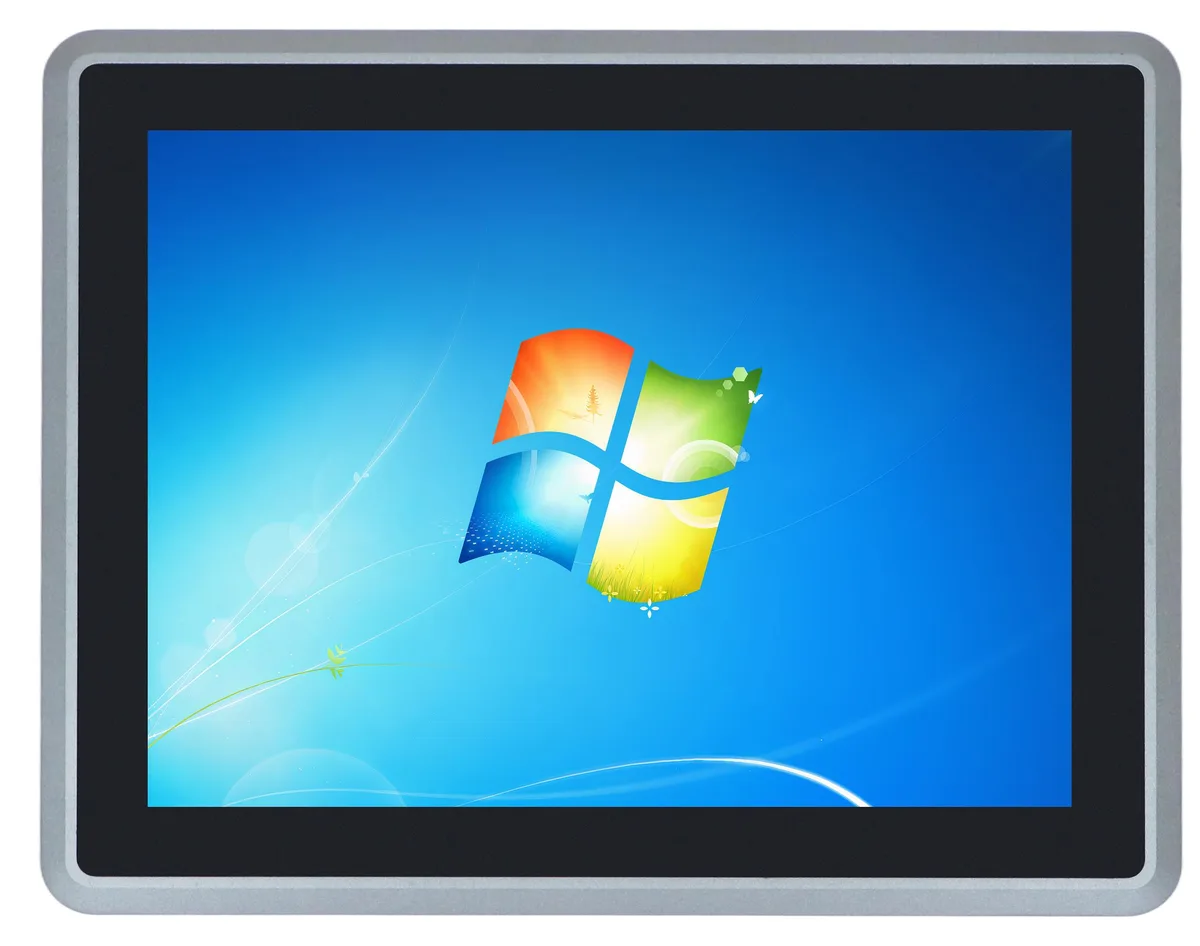

The Partaker A26 is a 12.1 inch all-in-one system built around an Intel Core i5-5200U processor with 16GB of DDR3 memory and a 512GB mSATA drive. Its fanless aluminium chassis and IP65-rated front panel suit harsh factory floors, control cabinets and outdoor kiosks. Windows 10 Pro is pre-installed for immediate deployment in SCADA, HMI or edge-AI inference roles. Dual Gigabit Ethernet and two configurable COM ports simplify integration with legacy PLCs and modern IoT gateways.

16GB DDR3 ceiling and 512GB mSATA limit

Memory tops out at 16GB across two DDR3 slots, so workloads that demand larger datasets must stay within that boundary or offload to the network. The single mSATA slot is occupied by the 512GB SSD, leaving no internal room for additional local storage without removing the boot drive. CPU performance scales to 2.70 GHz on two cores, adequate for real-time visualisation and light inference but not for heavy model training. Operating range spans -20 °C to +60 °C with the fitted solid-state drive.

Mini PCIe slots enable wireless and I/O expansion

Two mini PCIe sockets accept Wi-Fi, Bluetooth, 3G or 4G modules with a SIM holder, adding connectivity the base unit lacks. Optional GPIO, four extra COM ports and two extra USB ports are documented but not shipped standard, so buyers needing those interfaces must order the customised build. Dual-display output via HDMI and the internal LVDS link supports separate operator and maintenance screens. Watchdog timer with 255 levels and timer-on function improve unattended reliability.
