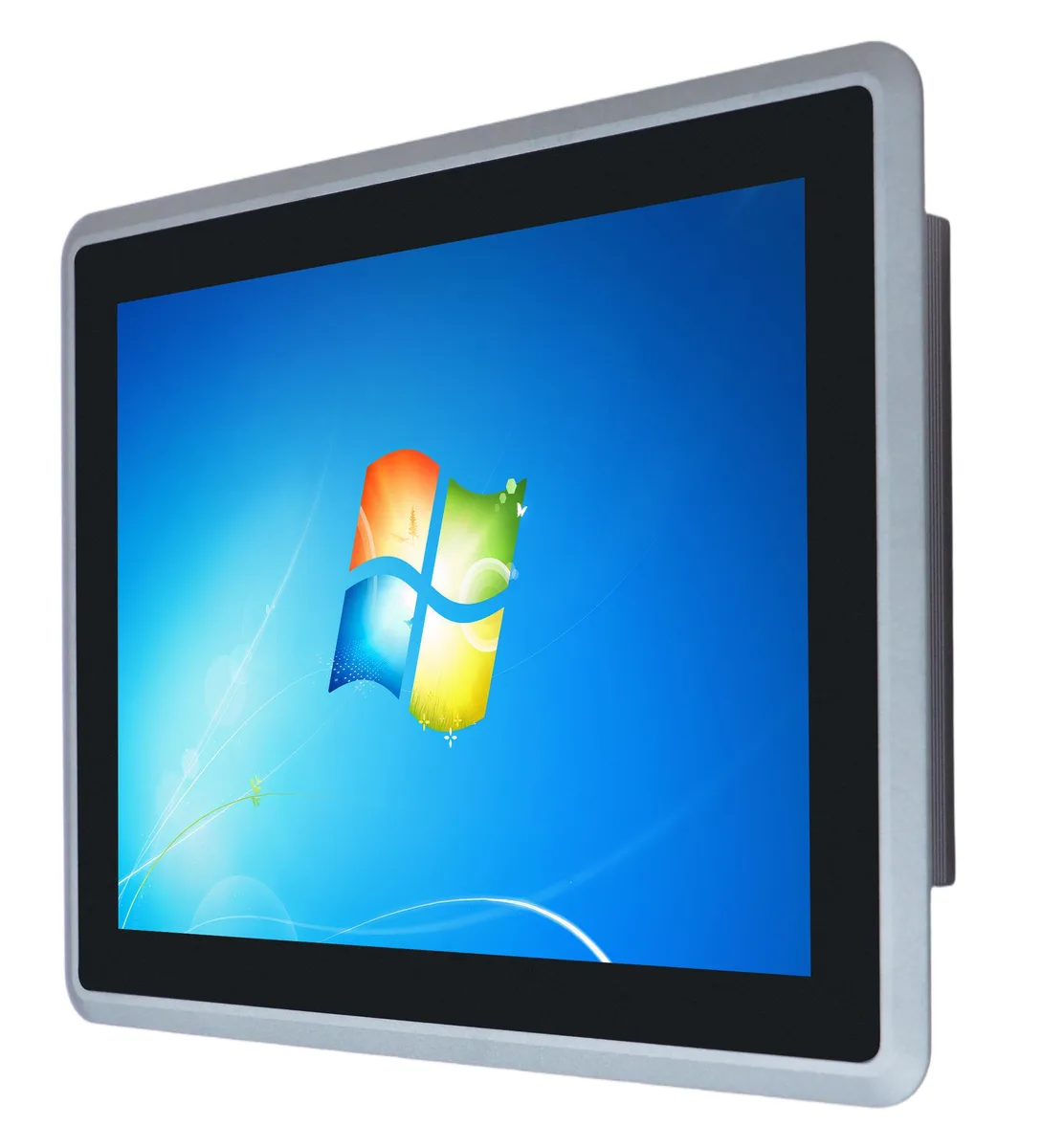

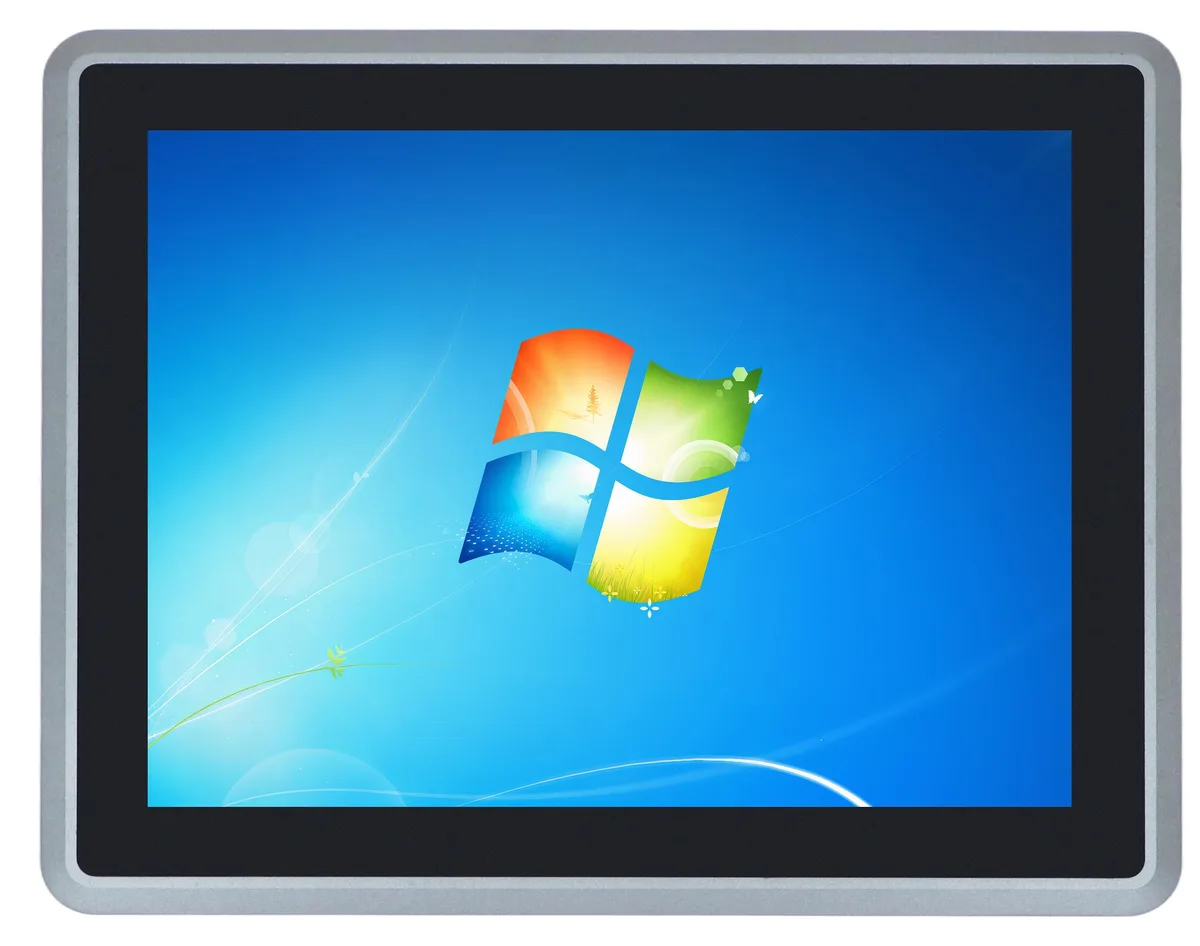

Gray 12.1 inch fanless all-in-one panel PC with capacitive touch screen and aluminum alloy chassis

partaker

Partaker A26 AI edge system 12.1" i5-5200U 16GB 256GB

SKU CH-B3QC-KGHNT

A 12.1-inch fanless industrial panel PC with a capacitive IP65 touch screen, Intel Core i5-5200U processor, 16GB DDR3 memory and a 256GB mSATA drive, built for harsh environments from -20 to +60 °C

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 5th Gen
  • CPU NameIntel Core i5-5200U

A26 12.1" Capacitive I5 5200U 16GB RAM / 256GB SSD

  • 1-inch capacitive multi-touch display gives responsive control at 1024×768 resolution
  • Fanless aluminium-alloy chassis runs silently from -20 °C to 60 °C
  • IP65-rated front panel resists dust and water in harsh industrial settings
  • Dual Gigabit Ethernet plus two RS232/485 COM ports connect machinery and networks
  • Intel Core i5-5200U with 16 GB DDR3 and 256 GB mSATA storage handles automation workloads

Industrial panel PC for automation

The Partaker A26 is a 12.1 inch all-in-one system built around an Intel Core i5-5200U processor with 16GB of DDR3 memory and a 256GB mSATA drive. Its capacitive multi-touch screen runs at 1024x768 resolution and is rated IP65 on the front panel for dust and water resistance. The unit targets factory-floor control, monitoring and edge-computing tasks that demand a sealed, fanless enclosure.

Fanless thermals and low power draw

An all-metal aluminium chassis dissipates heat without moving parts, so the system runs silently from -20°C to +60°C when equipped with a solid-state drive. The processor operates at up to 2.70 GHz within a standard 12V DC supply, with an optional 9-36V wide-range input available for unstable plant power. Dual Realtek Gigabit Ethernet ports support wake-on-LAN and PXE boot for remote management.

Expansion slots and mounting adapt

Two mini-PCIe sockets accept Wi-Fi, Bluetooth, 3G or 4G modules with a SIM holder, while the standard I/O set includes HDMI, two configurable RS232/485 COM ports, four USB ports and audio. The panel supports embedded mounting with a 298.5x237mm cutout and VESA attachment, and a watchdog timer offers 0-255 level reset control for unattended reliability.

Highlights

  • 1-inch capacitive multi-touch display gives responsive control at 1024×768 resolution
  • Fanless aluminium-alloy chassis runs silently from -20 °C to 60 °C
  • IP65-rated front panel resists dust and water in harsh industrial settings
  • Dual Gigabit Ethernet plus two RS232/485 COM ports connect machinery and networks
  • Intel Core i5-5200U with 16 GB DDR3 and 256 GB mSATA storage handles automation workloads

Specifications

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 5th Gen
CPU NameIntel Core i5-5200U
Screen Size12.1"
Screen TypeMulti-Touch Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How is the Partaker A26 mounted and what cut-out size is needed for embedded installation?

The unit uses a fully flat IP65 front panel for embedded mounting. The required panel cut-out is 298.5 x 237 mm. VESA mounting is also supported for alternative installations.

Which components may need replacement after extended operation in this fanless industrial PC?

The 256 GB mSATA SSD and the 16 GB DDR3 memory modules are the primary field-replaceable parts. The fanless aluminum chassis eliminates fan replacements, and the capacitive touch panel has no moving parts to wear out.

What is the maximum ambient temperature the system is rated for during sustained workloads?

The operating range tops out at +60 °C with a solid-state drive installed. The fanless design relies on the aluminum alloy shell for passive heat dissipation, so sustained loads must stay within this thermal envelope.
