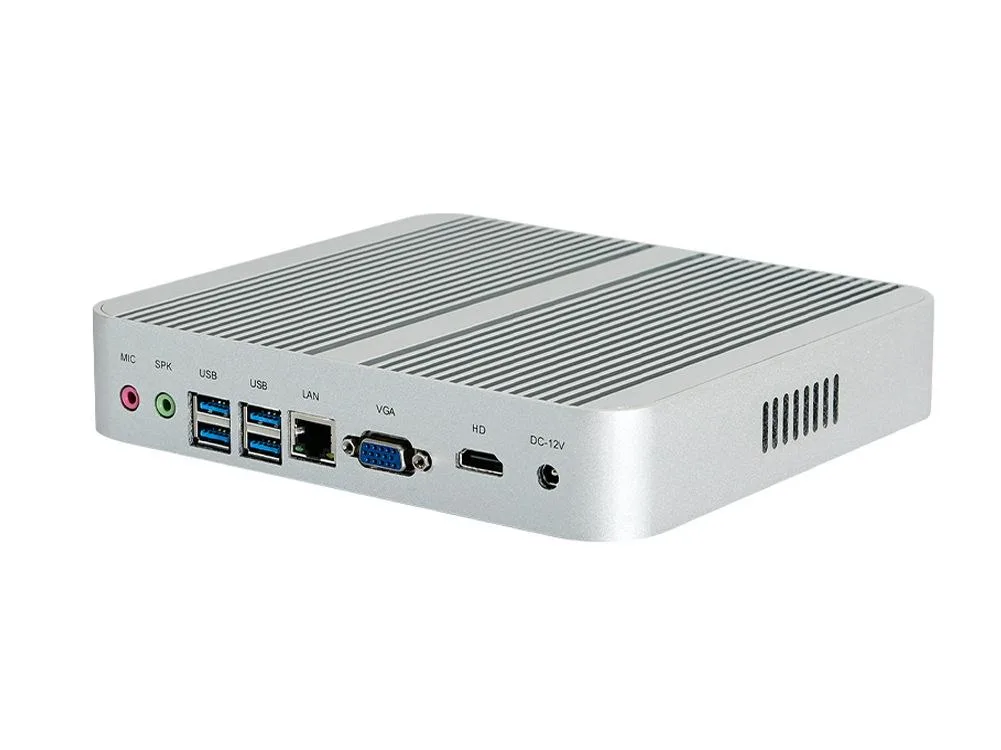

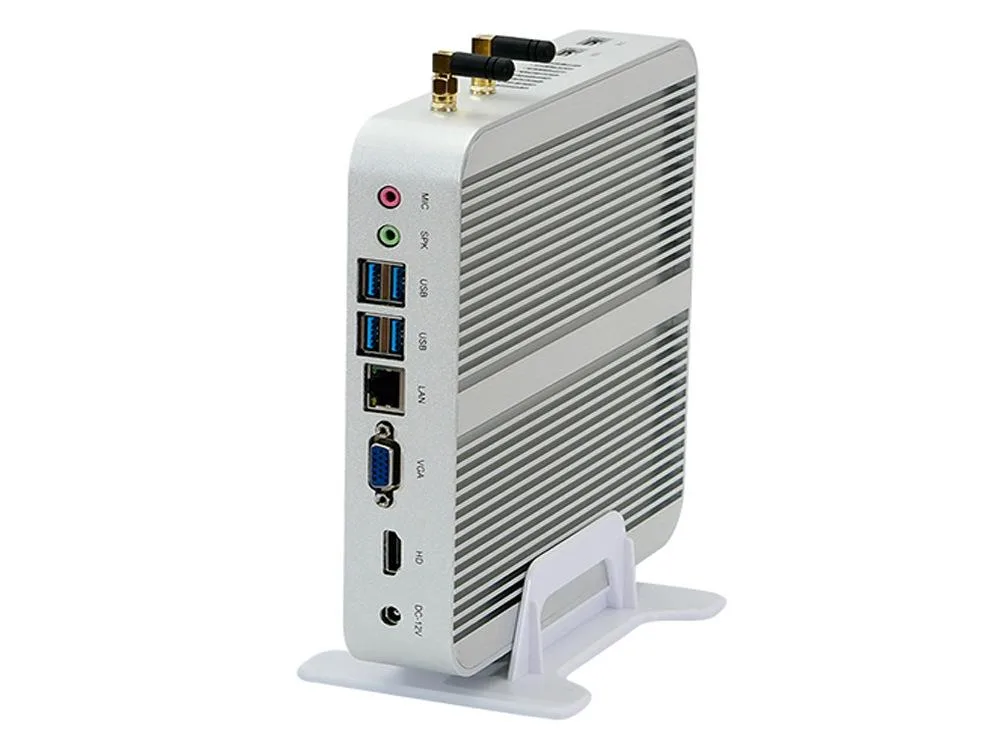

Silver fanless mini PC, 197 mm square, 37 mm thick, brushed aluminium case

partaker

partaker B1-i3 8145U-16G512G desktop PC 16GB DDR4 512GB NVMe Silver

SKU CH-87TA-PB0CF

A fanless mini desktop with an Intel Core i3-8145U, 16 GB DDR4, 512 GB NVMe storage, dual 4K video outputs and gigabit LAN

  • Form FactorMini PC
  • ColorSilver
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i3 8th Gen
  • CPU Name2.10GHz

Memory Capacity 16GB DDR4

SSD 512GB

  • Fanless aluminium chassis runs completely silent for 24-hour operation
  • Intel Core i3-8145U with 2 cores and 4 threads boosts to 3.9 GHz
  • 16 GB DDR4 memory and 512 GB NVMe SSD provide fast responsiveness
  • Dual display support via HDMI and VGA at 4K and 1080p
  • Compact 197 mm square footprint only 37 mm thick

Fanless Mini PC for Office and Media

The Partaker B1-i3 8145U-16G512G is a compact desktop computer built around an Intel Core i3 8145U processor with two cores and four threads. It ships with 16GB of DDR4 memory and a 512GB NVMe solid-state drive, running Windows 10 Pro out of the box. The aluminium chassis measures 197 by 197 by 37 millimetres and uses a fanless design suited to quiet offices, digital-signage screens or home-theatre setups.

Silent Operation and Low Power Draw

With a 15W thermal design power the system runs completely passively, so there are no moving parts to generate noise or fail over time. The 12V 3A or 5A power adapter accepts 100 to 240V AC input at 50 or 60Hz, keeping energy consumption low during 24-hour operation. Gigabit Ethernet, dual-band 802.11ac Wi-Fi with external antennas and a full set of USB 3.0 and 2.0 ports provide connectivity without adding heat.

Sustained Load Behaviour

The Whiskey Lake core can reach 3.9GHz for burst workloads, yet the fanless enclosure relies on the full-metal case to spread heat during extended tasks such as 4K video playback or light 3D rendering. Graphics are handled by the integrated Intel UHD Graphics 620 driving both HDMI and VGA outputs for dual-display support. Buyers who need discrete GPU performance, higher core counts or user-replaceable 2.5-inch drive bays should consider other form factors.

Highlights

  • Fanless aluminium chassis runs completely silent for 24-hour operation
  • Intel Core i3-8145U with 2 cores and 4 threads boosts to 3.9 GHz
  • 16 GB DDR4 memory and 512 GB NVMe SSD provide fast responsiveness
  • Dual display support via HDMI and VGA at 4K and 1080p
  • Compact 197 mm square footprint only 37 mm thick

Specifications

ModelB1-i3 8145U-16G512G
Part NumberB1-i3 8145U-16G512G
Form FactorMini PC
ColorSilver
MonitorMonitor not included
Operating SystemWindows 10 Pro
CPU TypeIntel Core i3 8th Gen
CPU Name2.10GHz
GPU/VGA TypeIntel UHD Graphics 620
Memory Capacity16GB DDR4
SSD512GB
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How do I install the 512GB NVMe SSD and which step is often missed?

The board has one M.2 slot for NVMe and one mSATA slot; insert the NVMe drive at an angle, secure it with the screw, then check BIOS to confirm the drive appears before installing Windows 10 Pro.

What maintenance or replacement will the fanless cooling need later?

No moving parts exist, so no fan replacement is required; only occasional dust removal from the aluminum fins with compressed air keeps the 15W CPU within thermal limits.

What limit appears first during sustained 24-hour loads?

The 15W TDP and passive chassis set the thermal ceiling; the i3-8145U will throttle from 3.9GHz toward 2.1GHz once the case saturates, so continuous heavy compute runs slower than burst speeds.
