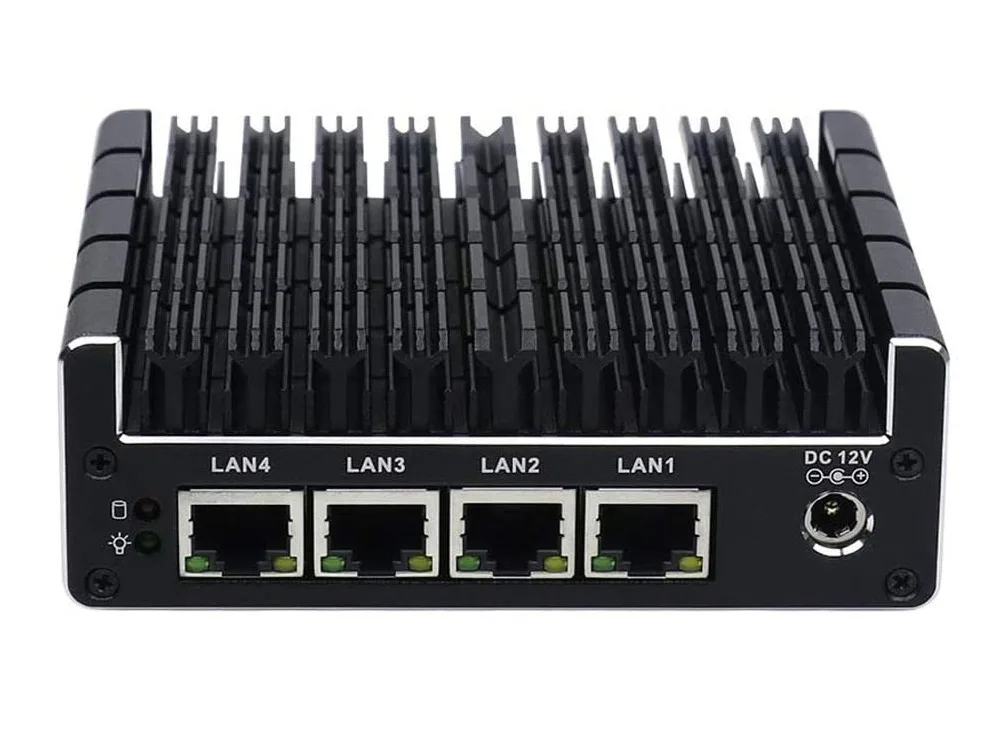

Black fanless mini PC barebone with four LAN ports and compact square chassis

partaker

Partaker C4-J3160-4 LAN-4G128G barebone mini PC

SKU CH-SZ8K-NM10H

Fanless quad-core mini PC with four Intel gigabit LAN ports, 4 GB DDR3L memory and 128 GB mSATA storage for firewall or router use

  • TypeBusiness Desktops & Workstations
  • Form FactorMini PC
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 7
  • CPU TypeCeleron
  • Fanless design runs silently in noise-sensitive spaces
  • Quad-core Celeron J3160 with AES-NI accelerates encryption tasks
  • Four Intel i211AT gigabit LAN ports enable router or firewall builds
  • 4 GB DDR3L memory and 128 GB mSATA SSD installed ready to deploy
  • Compact 115 × 107.5 × 39 mm chassis supports VESA mounting

Compact firewall appliance

The Partaker C4-J3160-4 is a fanless barebone mini PC built around an Intel Celeron J3160 quad-core processor running at 1.6 GHz with a 2.48 GHz turbo boost. It ships with 4 GB of DDR3L memory and a 128 GB mSATA SSD, targeting network administrators who need a silent, low-power platform for routing, VPN or firewall duties. AES-NI hardware acceleration is included for encrypted throughput.

Build integration

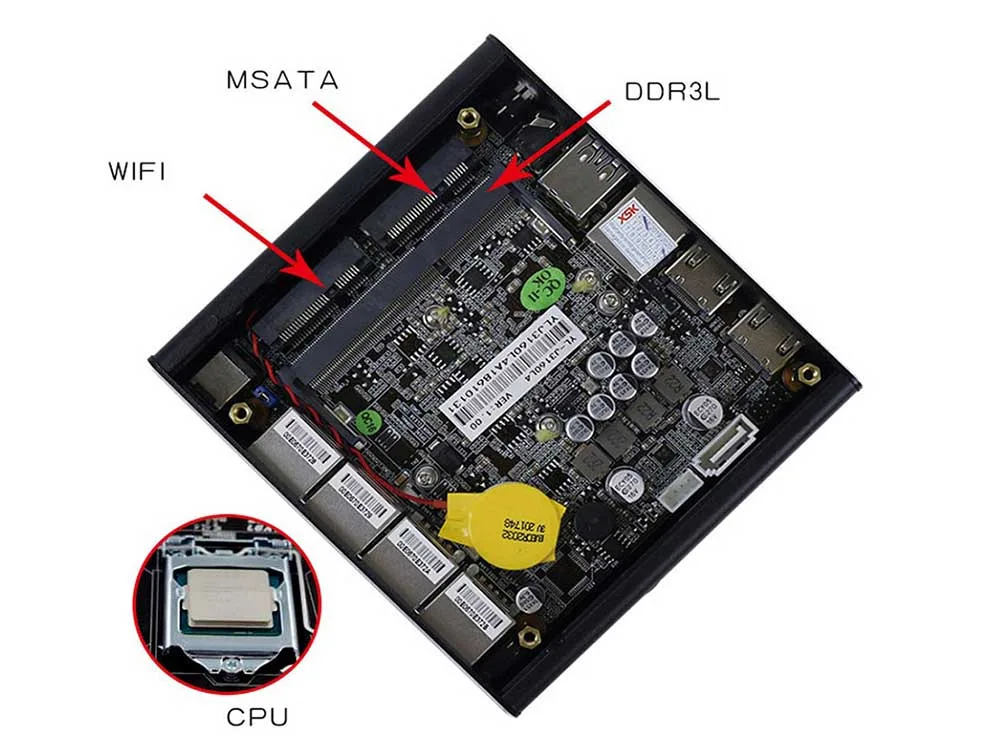

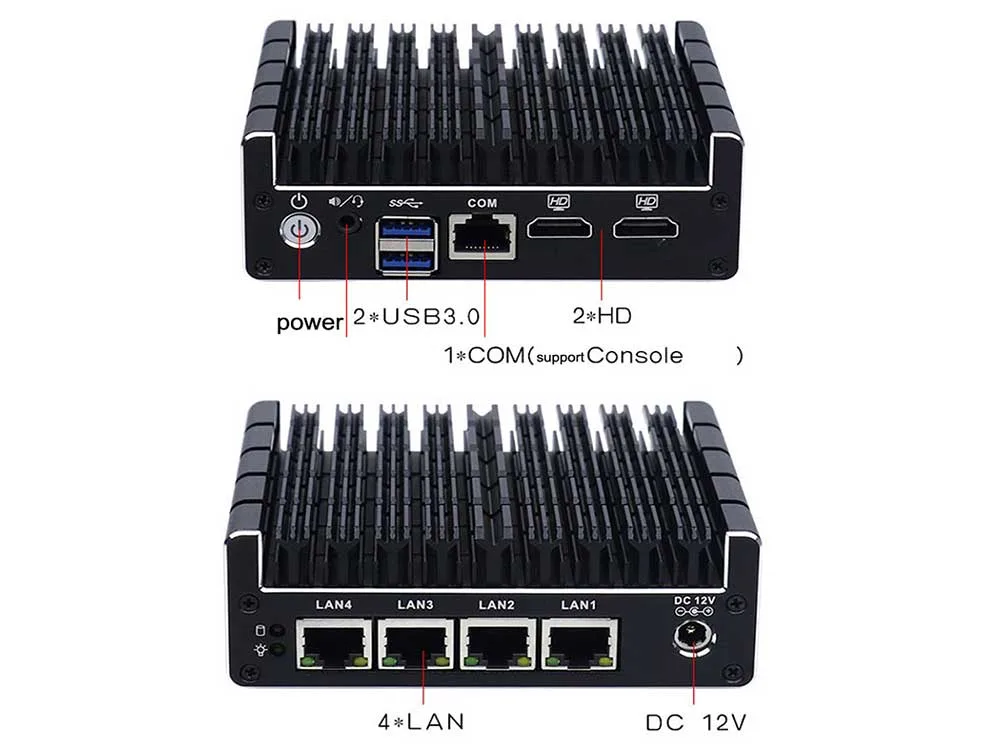

The chassis measures 115 by 107.5 by 39 mm and operates from a 12 V DC supply with an AC adapter included. Four Intel i211AT gigabit LAN ports provide wired connectivity, while two HDMI outputs, two USB 3.0 ports, an RJ45 COM port and audio jacks handle local management. A single DDR3L SODIMM slot supports up to 8 GB, and a half-size Mini-PCIe slot accepts optional Wi-Fi or Bluetooth modules using the USB channel.

Sustained operation

Passive cooling allows silent operation across a -10 to 60 °C temperature range and 5 to 95 % non-condensing humidity. The processor’s 2.24 GHz turbo ceiling and AES-NI engine maintain consistent cryptographic performance during long VPN or inspection sessions without thermal throttling. Intel i211AT controllers support Wake-on-LAN for remote power management, and the fanless design eliminates moving-part wear in continuous 24/7 deployments.

Highlights

  • Fanless design runs silently in noise-sensitive spaces
  • Quad-core Celeron J3160 with AES-NI accelerates encryption tasks
  • Four Intel i211AT gigabit LAN ports enable router or firewall builds
  • 4 GB DDR3L memory and 128 GB mSATA SSD installed ready to deploy
  • Compact 115 × 107.5 × 39 mm chassis supports VESA mounting

Specifications

ModelC4-J3160-4 LAN-4G128G
Part NumberC4-J3160-4 LAN-4G128G
TypeBusiness Desktops & Workstations
Form FactorMini PC
ColorBlack
MonitorMonitor not included
Operating SystemWindows 7
CPU TypeCeleron
CPU NameIntel Celeron J3160
GPU/VGA TypeIntel HD Graphics
Graphics InterfaceIntegrated video
Memory Capacity4GB DDR3
HDDNo
Screen SizeNo Screen
LAN Speed10/100/1000Mbps

Questions about this item

How far can the Celeron J3160 turbo boost to 2.48 GHz before the fanless chassis hits its thermal limit?

The processor runs at 1.6 GHz base with a 2.48 GHz turbo ceiling. The fanless design is rated for continuous operation from -10 °C up to 60 °C ambient, so sustained turbo depends on case temperature staying inside that window.

What are the noise and heat characteristics when the unit runs 24/7 as a firewall?

The system is completely fanless, so it produces no audible noise. Heat is dissipated passively through the aluminium chassis, and the operating range is specified as -10 °C to 60 °C with 5 % to 95 % non-condensing humidity.

Which DDR3L SODIMM do I need to populate the single memory slot?

The board accepts one DDR3L 1600 MHz SODIMM up to 8 GB. A 4 GB module is already installed, so adding a matching 4 GB or 8 GB stick will bring total memory to 8 GB maximum.
