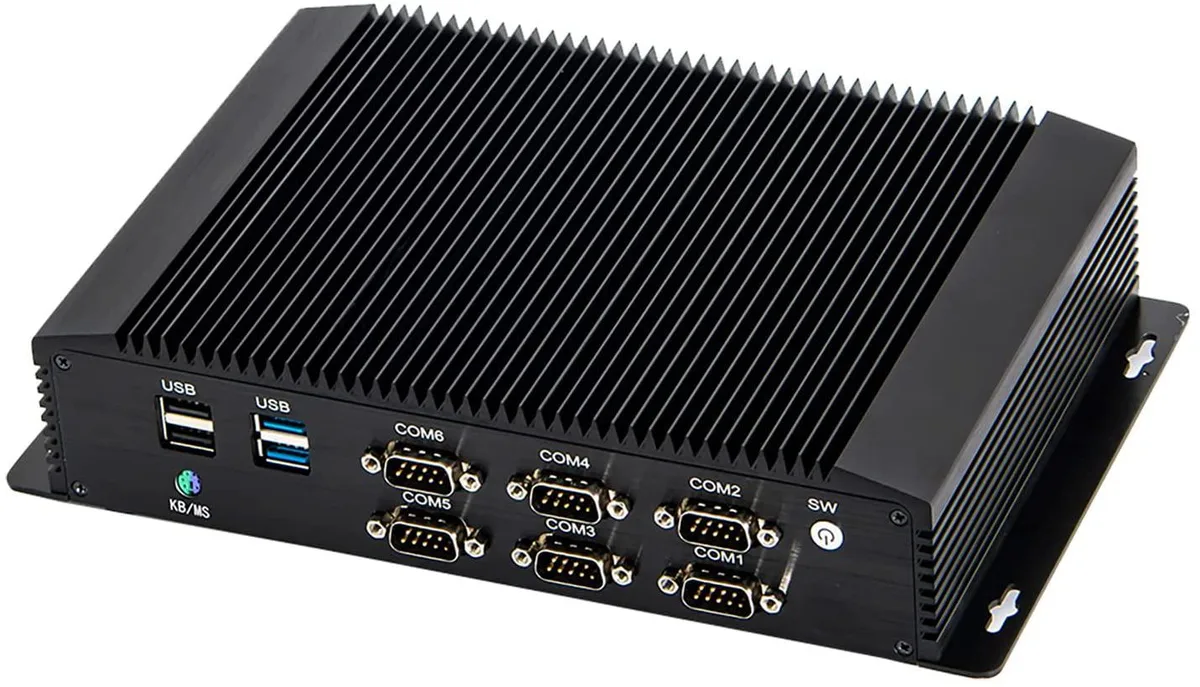

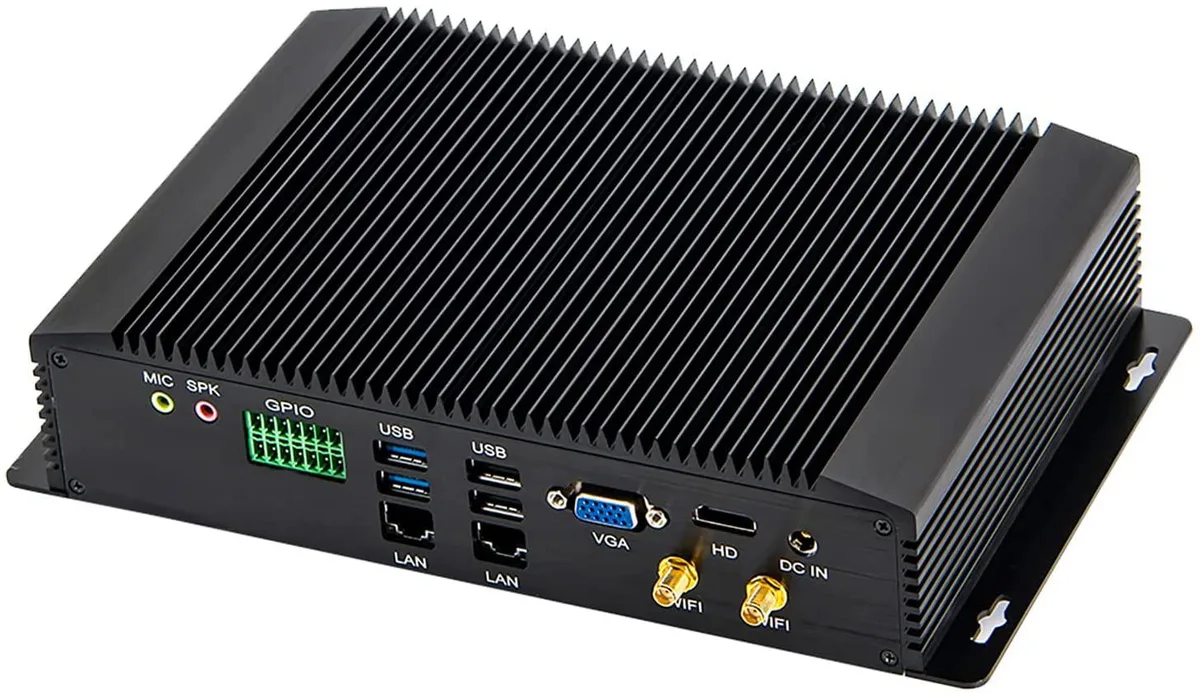

Compact black fanless desktop with mounting ears

partaker

partaker Fanless Industrial PC I27 Intel Core i3-7167U 8GB DDR4 256GB SSD Windows 10 Pro

SKU CH-XMQ2-H08S4

Fanless industrial desktop with Intel Core i3-7167U, 8GB DDR4, 256GB SSD, six COM ports, dual LAN and Windows 10 Pro

  • TypeBusiness Desktops & Workstations
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i3 7th Gen

CPU Type Intel Core i3 7th Gen

CPU Name 2.80GHz

GPU Intel Iris Plus Graphics 650

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

Struck-through versions exist but are not stocked here.

  • Fanless design ensures silent operation in noise-sensitive environments
  • Intel Core i3-7167U dual-core processor at 2.80 GHz delivers responsive performance
  • 8 GB DDR4 memory with 32 GB maximum capacity supports multitasking
  • 256 GB SSD provides fast boot and application loading
  • Extensive I/O including 6 COM ports, 4 USB 3.0, 4 USB 2.0, dual LAN, GPIO, HDMI, VGA and PS/2

Fanless Industrial Desktop for Embedded Use

This fanless industrial PC uses an Intel Core i3-7167U dual-core processor with Intel Iris Plus Graphics 650. It ships with 8 GB of DDR4 memory and a 256 GB SSD, running Windows 10 Pro. The compact chassis includes mounting ears for fixed installation in cabinets or machinery. It is aimed at integrators who need silent, reliable compute for control, display or gateway tasks.

Connectivity Limits on Legacy and Modern Ports

Six COM ports support RS232, RS422 and RS485 with BIOS-selectable modes, covering most industrial serial equipment. Two Intel I213 LAN ports provide wired networking, while dual-band 802.11ac Wi-Fi handles wireless links. Four USB 3.0 and four USB 2.0 ports connect peripherals, but the single HDMI and VGA outputs limit multi-monitor setups. Storage expansion uses one mSATA, one M.2 2280 (SATA or NVMe) and one 2.5-inch bay, so total drive count is capped at three.

Straightforward Install with BIOS Serial Care

The SO-DIMM slot and drive bays are accessible after removing the cover, allowing memory upgrades to 32 GB and storage changes without special tools. Mounting ears accept standard bolts for wall or DIN-rail kits. The main setup issue is configuring each COM port for the correct signalling standard in BIOS before connecting field devices; mismatched RS422/RS485 settings cause communication failures. Wireless antennas screw onto rear RP-SMA connectors and should be fitted before power-on.

Highlights

  • Fanless design ensures silent operation in noise-sensitive environments
  • Intel Core i3-7167U dual-core processor at 2.80 GHz delivers responsive performance
  • 8 GB DDR4 memory with 32 GB maximum capacity supports multitasking
  • 256 GB SSD provides fast boot and application loading
  • Extensive I/O including 6 COM ports, 4 USB 3.0, 4 USB 2.0, dual LAN, GPIO, HDMI, VGA and PS/2

Specifications

TypeBusiness Desktops & Workstations
ColorBlack
MonitorMonitor not included
Operating SystemWindows 10 Pro
Windows 11Ready
CPU TypeIntel Core i3 7th Gen
CPU Name2.80GHz
GPU/VGA TypeIntel Iris Plus Graphics 650
Memory Capacity8GB DDR4
SSD256GB
HDDNo
Screen SizeNo Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Should I pick the i3-7167U or one of the other five CPU options for this I27?

The i3-7167U runs at 2.8 GHz with 3 MB cache and Iris Plus 650 graphics. The i5-7267U reaches 3.5 GHz with 4 MB cache. The i5-8250U and i7-8550U have four cores and 15 W TDP. The i7-10510U boosts to 4.9 GHz. Choose based on core count, clock speed and thermal budget.

What does the 2.8 GHz figure mean once the i3-7167U is inside the fanless chassis?

The processor sustains 2.8 GHz base frequency within its 28 W TDP. The fanless design relies on the case as a heatsink, so prolonged heavy loads will throttle toward lower clocks to stay within thermal limits.

The board lists M.2 2280 (sata/nvme) — what does that cap in practice?

The slot accepts both SATA and NVMe M.2 2280 drives. An NVMe SSD will run at PCIe 3.0 x4 speeds, while a SATA M.2 drive is limited to the SATA 6 Gb/s interface. Both share the same physical slot.
