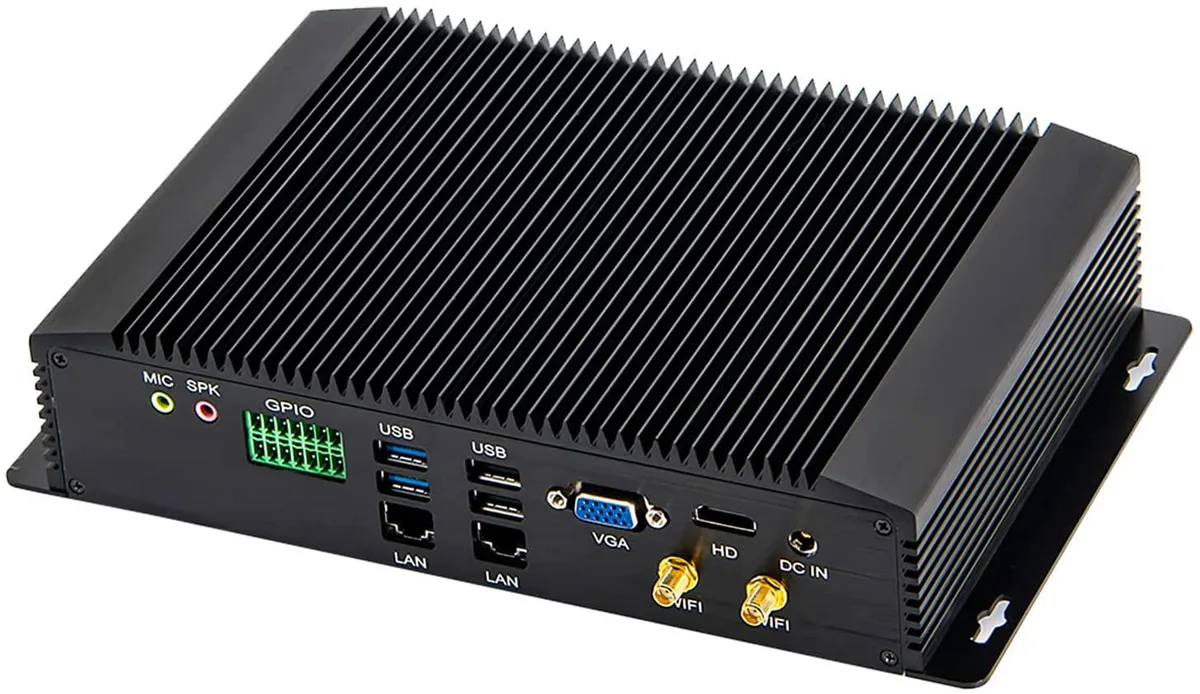

Compact black fanless desktop with mounting ears

partaker

partaker I27 Fanless Desktop PC i5-7267U 8GB 256GB DDR4 sata nvme

SKU CH-D815-Z1WXV

Fanless industrial desktop with Intel Core i5-7267U, 8GB DDR4, 256GB SSD, six COM ports, dual LAN, Wi-Fi and Windows 10 Pro

  • TypeBusiness Desktops & Workstations
  • ColorBlack
  • MonitorMonitor not included
  • Operating SystemWindows 10 Pro
  • Windows 11Ready
  • CPU TypeIntel Core i5 7th Gen

CPU Type Intel Core i5 7th Gen

CPU Name 3.10GHz

GPU Intel Iris Plus Graphics 650

Memory 8GB DDR4

SSD 256GB

  • 256GB
  • 512GB
  • 1TB

Struck-through versions exist but are not stocked here.

  • Fanless design enables silent operation in noise-sensitive environments
  • Intel Core i5-7267U dual-core processor reaches 3.5 GHz turbo for responsive performance
  • 8 GB DDR4 memory with single SO-DIMM slot expandable to 32 GB
  • Triple storage support via mSATA, M.2 2280 (sata/nvme) and 2.5 inch bay

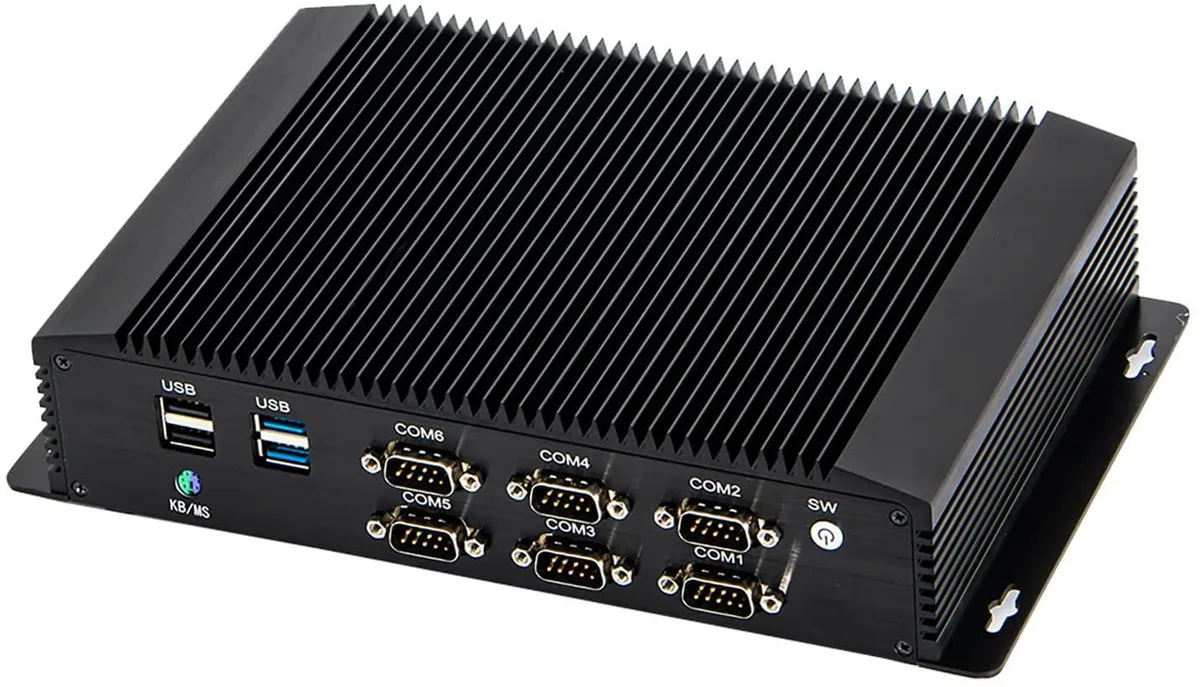

  • Six COM ports with BIOS-selectable RS232/RS422/RS485 for industrial connectivity

Fanless industrial PC for embedded use

The Partaker I27 is a fanless desktop computer built around an Intel Core i5-7267U dual-core processor with a 28 W TDP. It ships with 8 GB of DDR4 memory and a 256 GB SSD, running Windows 10 Pro and ready for Windows 11. The chassis includes mounting ears for fixed installation in cabinets or machinery.

Sustained load without active cooling

Because the system relies on passive heat dissipation, the 28 W processor maintains its base frequency of 3.1 GHz under continuous workloads rather than boosting to 3.5 GHz for extended periods. Intel Iris Plus Graphics 650 handles display output through HDMI and VGA without a discrete GPU. Two Intel I213 LAN ports and dual-band 802.11ac Wi-Fi provide steady network throughput for industrial data logging or edge gateway tasks.

Straightforward mounting and wiring

The unit mounts via integrated ears and connects to DC power through a barrel jack. Six COM ports support RS232, RS422 and RS485 modes selectable in BIOS, which is the most common configuration step. A single SO-DIMM slot accepts up to 32 GB of DDR4-2400, while storage expands through one mSATA, one M.2 2280 (SATA or NVMe) and one 2.5-inch bay. Installers should verify serial-mode jumpers and antenna placement before sealing the enclosure.

Highlights

  • Fanless design enables silent operation in noise-sensitive environments
  • Intel Core i5-7267U dual-core processor reaches 3.5 GHz turbo for responsive performance
  • 8 GB DDR4 memory with single SO-DIMM slot expandable to 32 GB
  • Triple storage support via mSATA, M.2 2280 (sata/nvme) and 2.5 inch bay
  • Six COM ports with BIOS-selectable RS232/RS422/RS485 for industrial connectivity

Specifications

TypeBusiness Desktops & Workstations
ColorBlack
MonitorMonitor not included
Operating SystemWindows 10 Pro
Windows 11Ready
CPU TypeIntel Core i5 7th Gen
CPU Name3.10GHz
GPU/VGA TypeIntel Iris Plus Graphics 650
Memory Capacity8GB DDR4
SSD256GB
HDDNo
Screen SizeNo Screen

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How much heat does the i5-7267U generate at its 28W TDP inside a fanless chassis?

The processor runs at a 28W TDP and the case acts as a heatsink, so it stays silent while dissipating heat through the aluminium enclosure.

Which display cables and monitor inputs do I need to use the HD and VGA ports?

You need a monitor with either an HDMI or VGA input and the matching cable; the unit provides both ports but no display is included.

Can I keep my RS-232 serial devices on the six COM ports without extra adapters?

Yes, COM1 and COM2 support RS232, RS422 and RS485 selectable in BIOS, giving native connectivity for legacy serial gear.
