White 120mm case fan with 30mm thick frame, DRGB lighting ring, seven blades, and daisy-chain connectors

Phanteks

Phanteks PH-F120D30_DRGB_PWM_WT01 120mm 30mm DRGB PWM case fan White

SKU CH-EGX6-MVHCS MPN PH-F120D30_DRGB_PWM_WT01

120 mm case fan with 30 mm frame, DRGB lighting and PWM control delivering 64.3 CFM at 30.2 dB(A)

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • CompatibilityCase
  • Fan Size120mm
  • Fan Thickness30mm

Fan Size 120mm

Style Regular

Model D30

Option Single Fan

Struck-through versions exist but are not stocked here.

  • 30 mm thick frame delivers high static pressure for radiators and restrictive filters

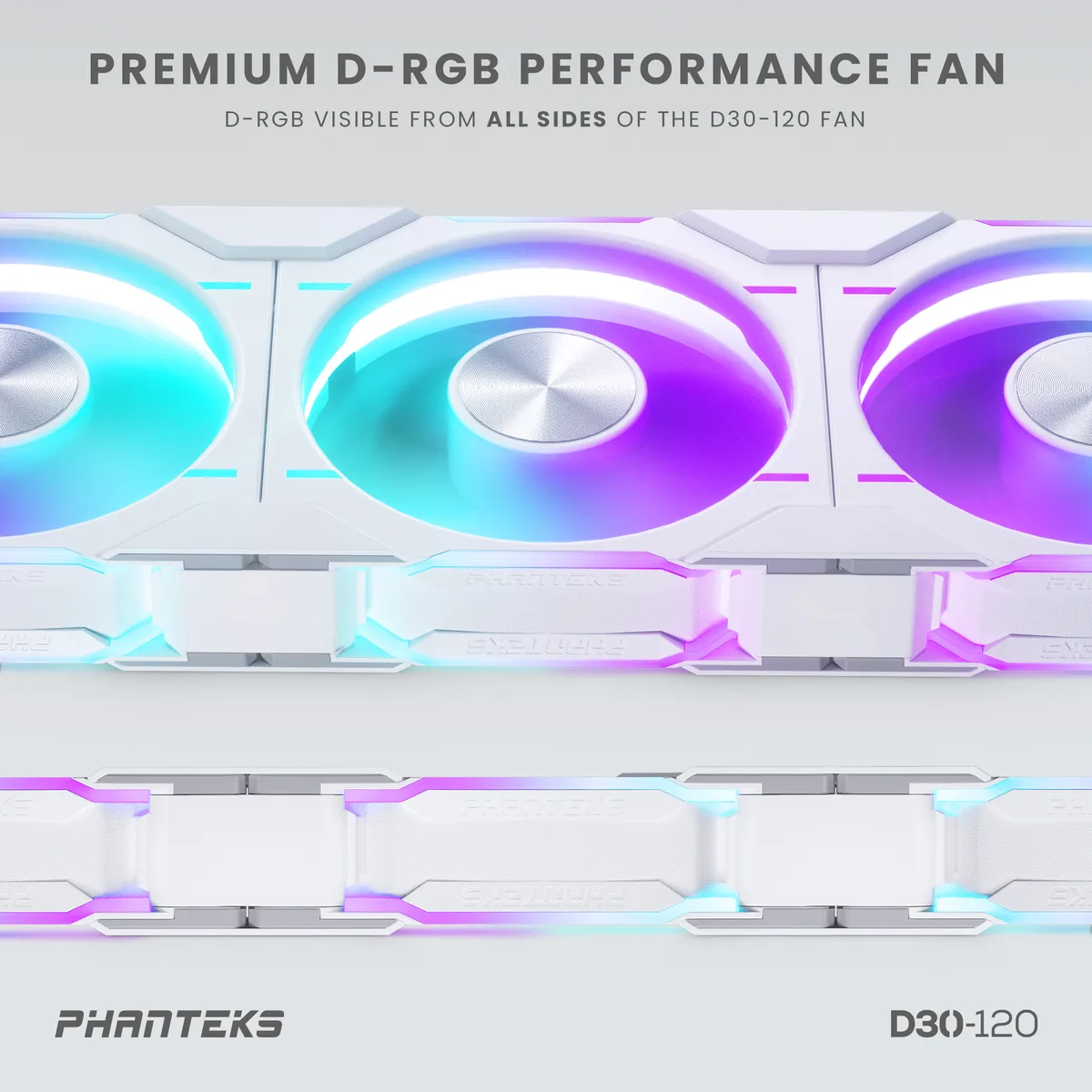

  • 32 addressable DRGB LEDs visible from all sides with daisy-chain JST connectors
  • PWM speed range 250 to 2000 RPM balances airflow of 64.3 CFM with 30.2 dB(A) noise

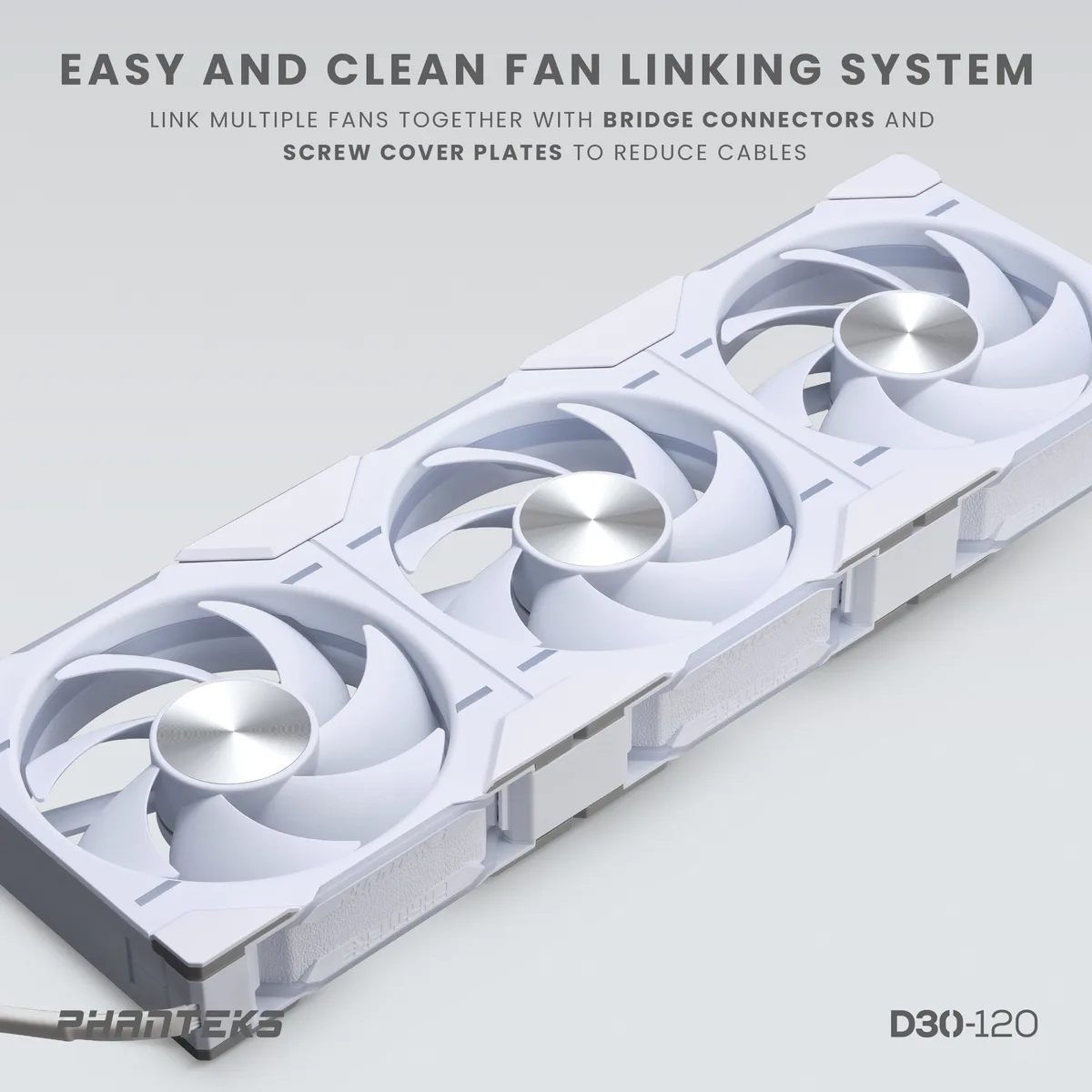

  • Clean multi-fan linking via bridge clips and corner covers reduces cable clutter
  • 700 mm PWM cable and 600 mm plus 100 mm DRGB cable with motherboard adapter included

120 mm 30 mm DRGB PWM case fan

The Phanteks D30-120 is a single 120 mm case fan with a 30 mm thick frame, designed for builders who need higher static pressure on radiators or behind restrictive mesh while keeping DRGB lighting visible from every angle.

Practical limits of the 4-pin PWM

Speed is controlled through a standard 4-pin PWM connector across a 250 to 2000 RPM range, while the 32 addressable LEDs draw up to 0.45 A from a 5 V 3-pin JST daisy-chain header; the 700 mm fan cable and 600 mm plus 100 mm DRGB cable reach most full-tower layouts, but the 5 V LED supply must come from a compatible motherboard or Phanteks DRGB controller because no controller is included.

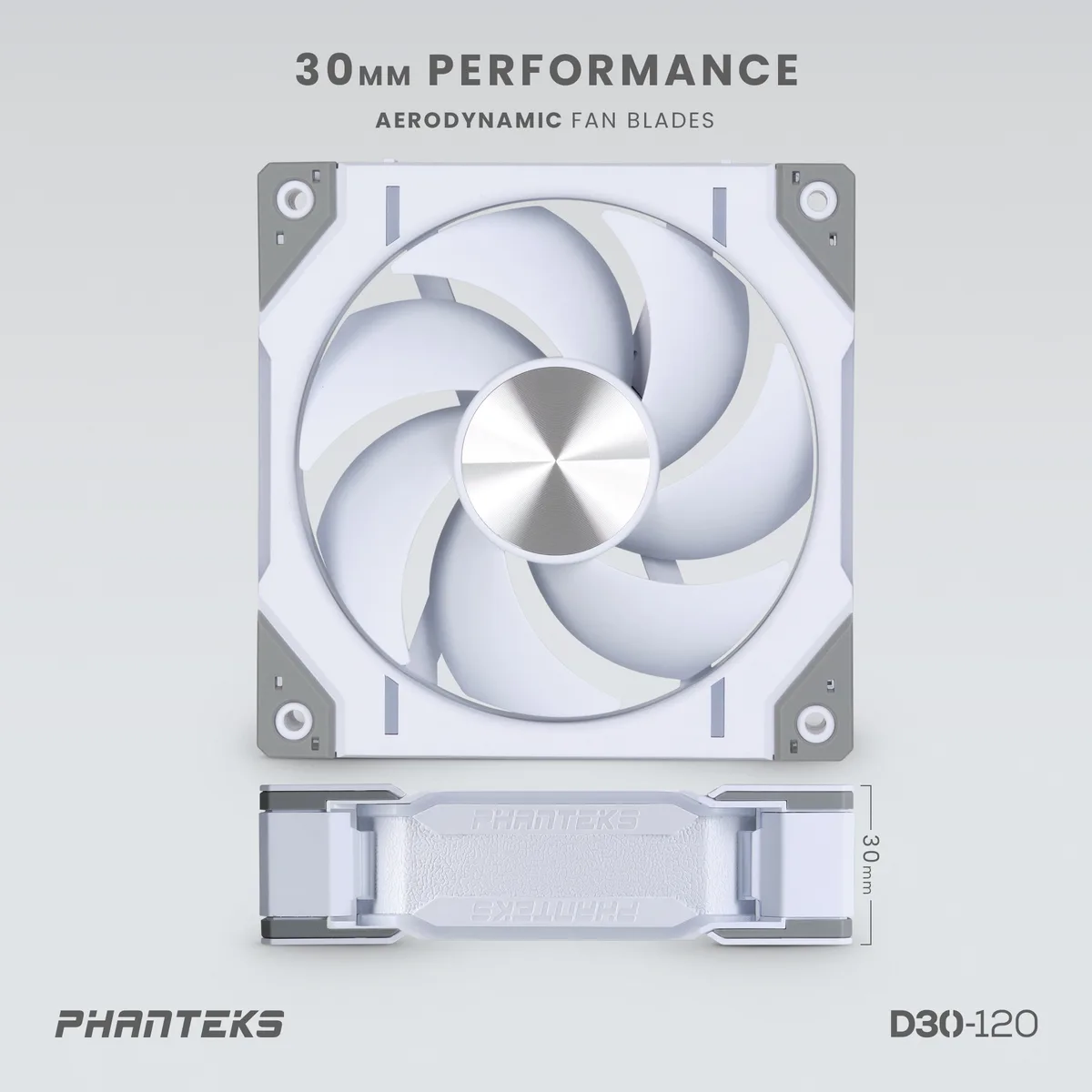

30 mm frame thickness decides fit and pressure

At 30 mm thick the fan delivers 3.01 mmH2O maximum static pressure and 64.3 CFM airflow at 30.2 dB(A), making it suitable for dense radiators or filtered intakes where a standard 25 mm fan would stall, but it will not fit cases or radiators that only accept 25 mm clearance.

Highlights

  • 30 mm thick frame delivers high static pressure for radiators and restrictive filters
  • 32 addressable DRGB LEDs visible from all sides with daisy-chain JST connectors
  • PWM speed range 250 to 2000 RPM balances airflow of 64.3 CFM with 30.2 dB(A) noise
  • Clean multi-fan linking via bridge clips and corner covers reduces cable clutter
  • 700 mm PWM cable and 600 mm plus 100 mm DRGB cable with motherboard adapter included

Specifications

BrandPhanteks
ModelF120D30_DRGB_PWM_WT01
Part NumberD30-120
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
CompatibilityCase
Fan Size120mm
Fan Thickness30mm
RPM250~2000+10%RPM
Air Flow64.3 CFM
Noise Level30.2dB(A)
Power Connector4 Pin
ColorWhite
LEDDRGB
Shipping weight0.40 kg
Package size198 × 124 × 33 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

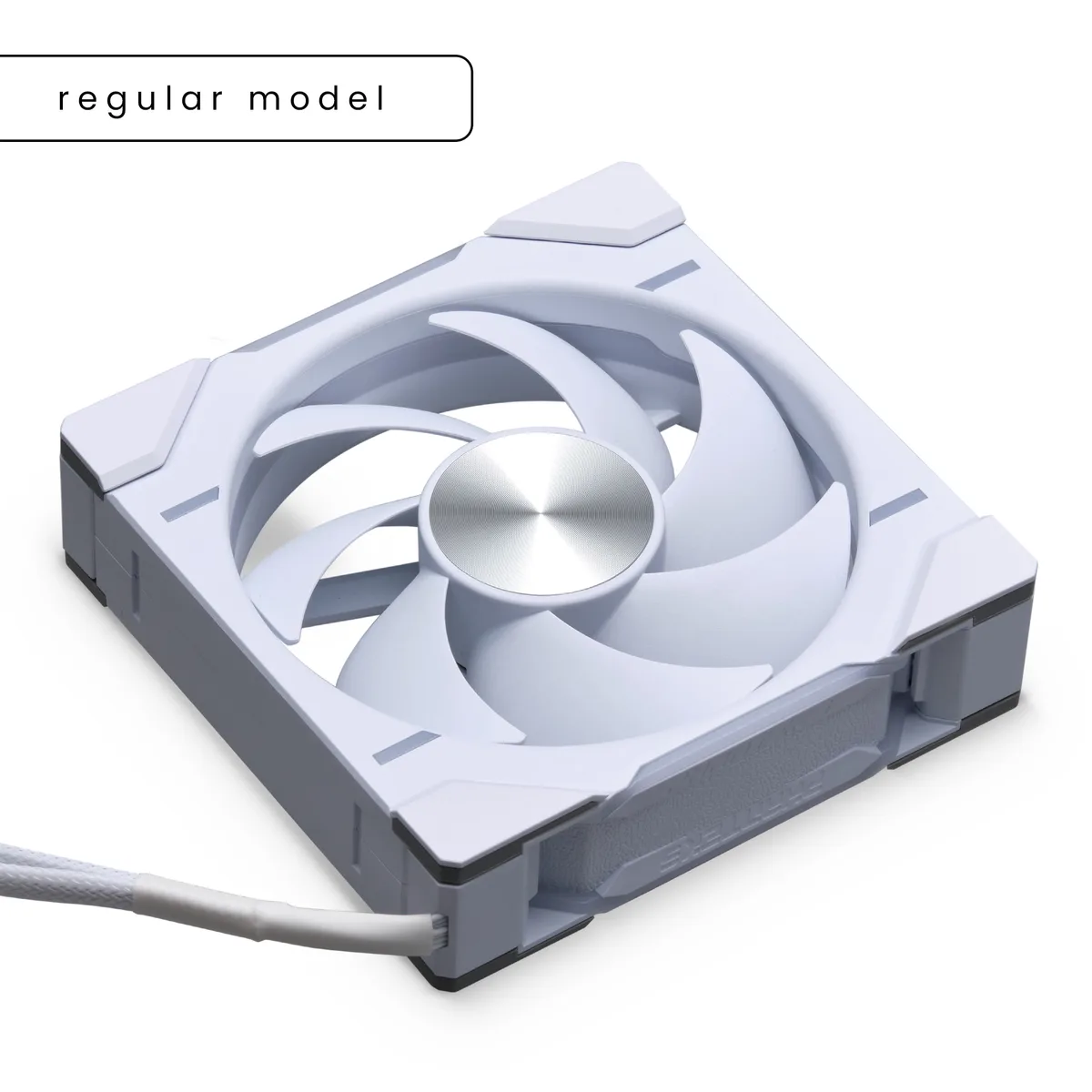

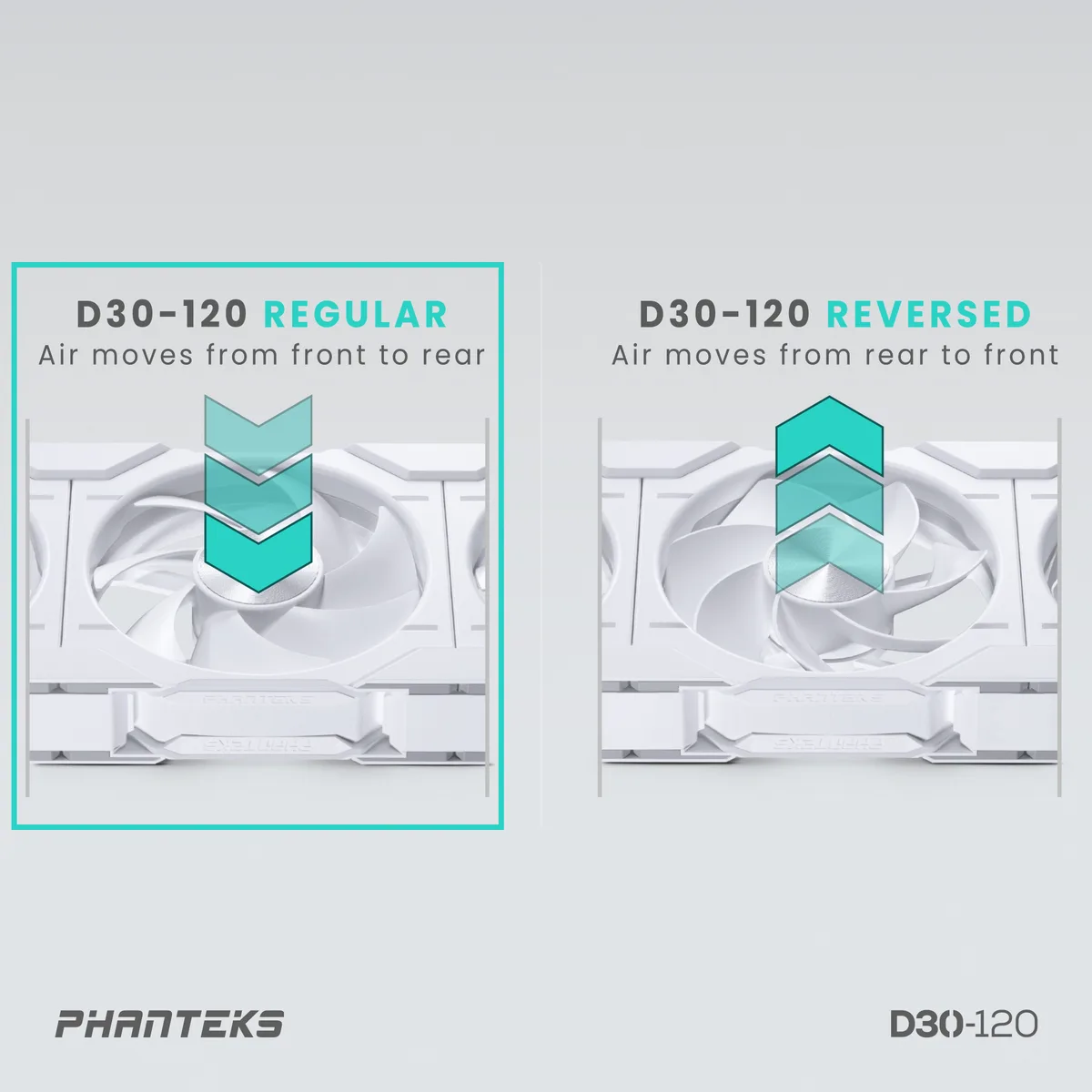

Should I choose the regular or reverse airflow version of the D30-120 fan?

Pick the regular model if you want air pushed through the fan in the standard direction, or the reverse model if you need airflow pulled the opposite way — both keep the blade lighting fully visible.

What does the 64.3 CFM airflow rating mean when the fan is mounted in a case?

At full speed the fan can move 64.3 CFM of air; on a radiator or behind dense mesh the 30 mm thickness and 3.01 mmH₂O pressure help maintain that flow where thinner fans would stall.

How does the 3‑pin JST daisy‑chain DRGB connector work with my motherboard?

Connect the first fan's 3‑pin JST lead to a 5 V digital‑RGB header using the included adapter, then link up to 32 LEDs per fan in series for synchronized lighting.
