Black frame 120mm case fan with white matte blades and infinity mirror ARGB hub

Phanteks

Phanteks PH-F120M25_G2_DBK01 120mm 25mm case fan

SKU CH-TX3M-RD7P9 MPN PH-F120M25_G2_DBK01

A 120 mm PWM fan with hydraulic bearing, 72.72 CFM airflow and daisy-chain ARGB lighting via a single Linq6 cable

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Regular

Model M25 Gen2

Option Single Fan

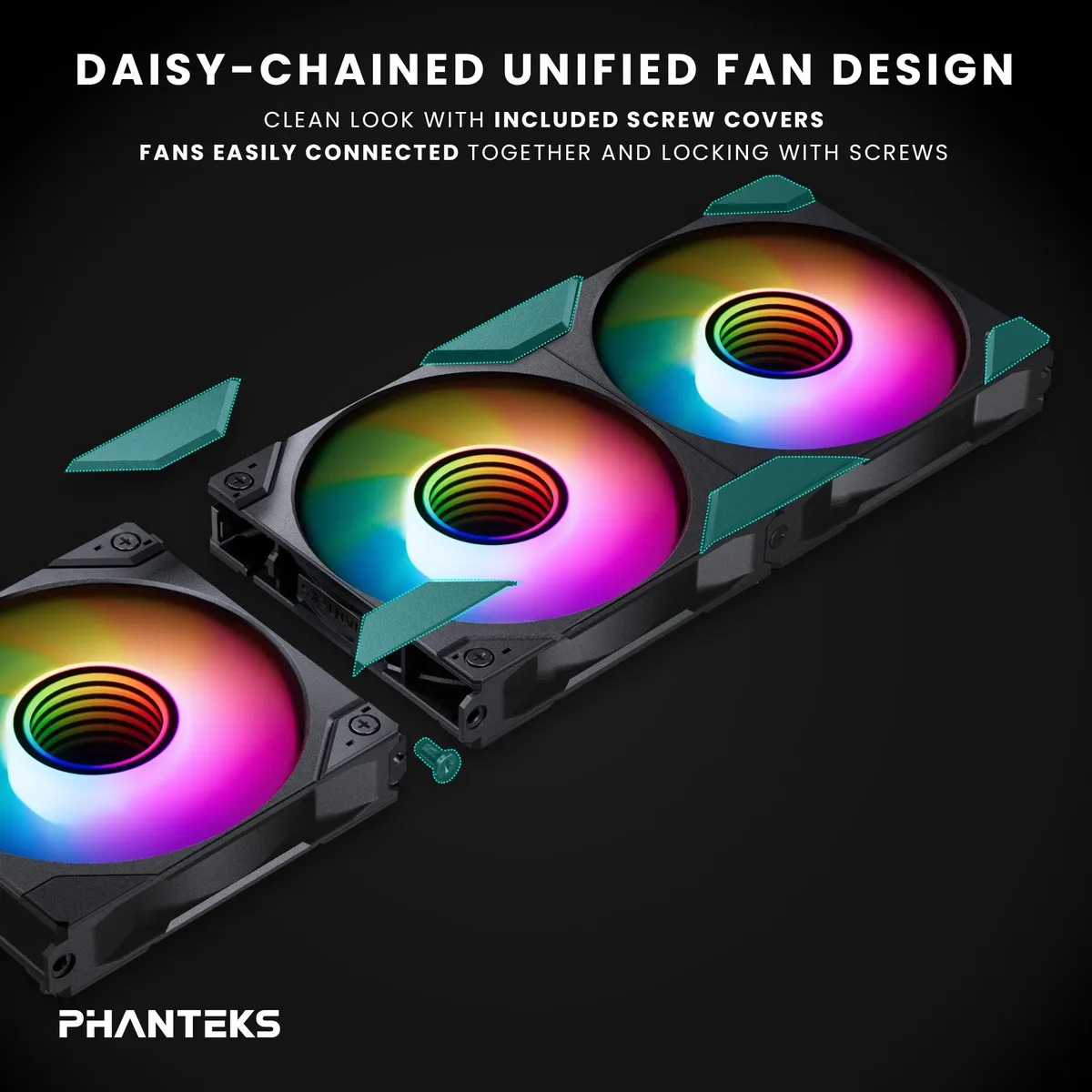

  • Daisy-chain frame links multiple fans with minimal clutter
  • Single Linq6 cable handles PWM and D-RGB together
  • Hydraulic bearing runs 350-2000 RPM for 72.72 CFM airflow
  • 51 mmH₂O static pressure excels on radiators and heatsinks

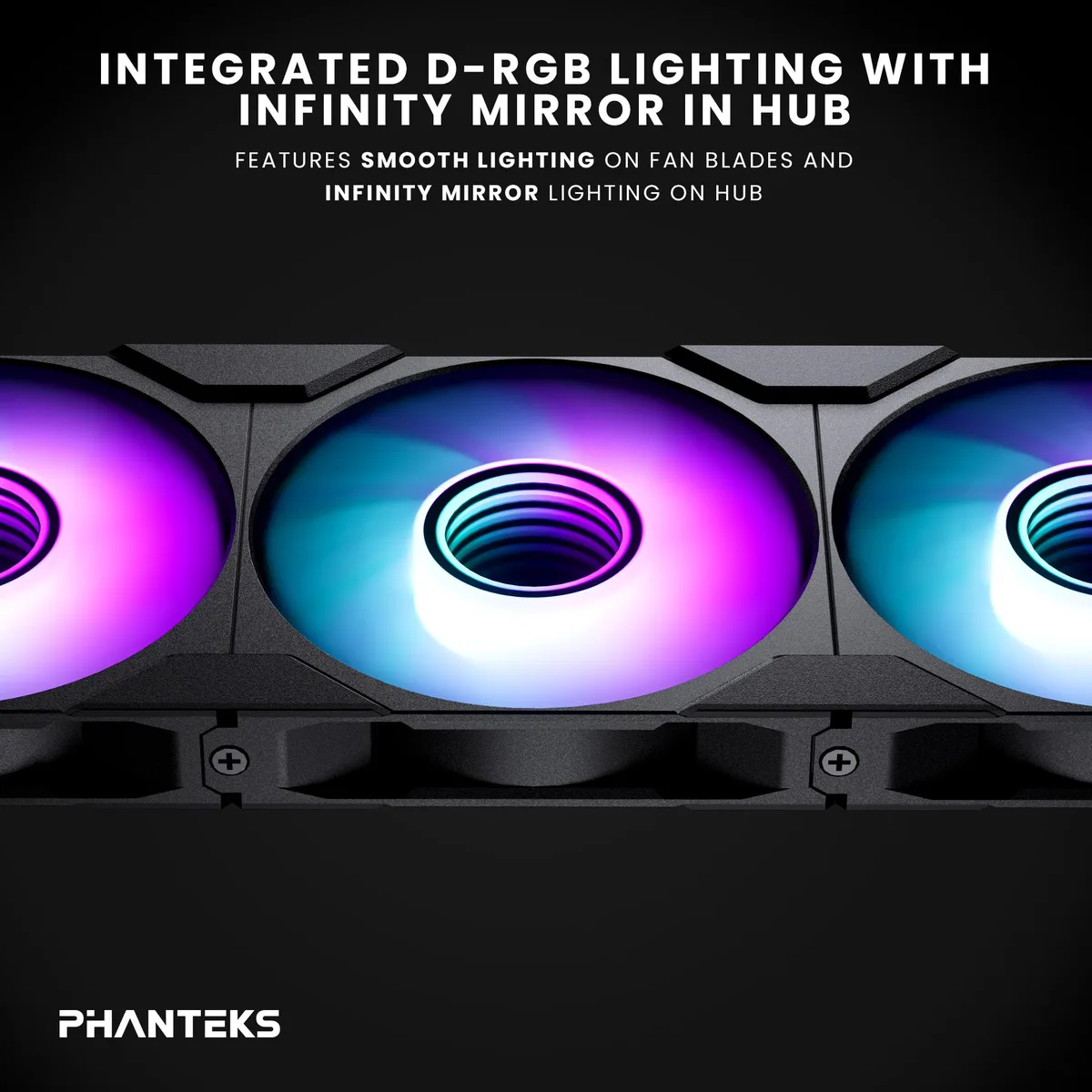

  • Infinity-mirror D-RGB lighting controlled via NexLinq app

120mm ARGB Daisy-Chain Fan

The Phanteks M25-120 Gen2 is a single 120mm by 25mm case fan with a hydraulic bearing and addressable D-RGB lighting. It uses a Linq6 connector that merges PWM control and lighting signal into one cable, allowing multiple fans to be daisy-chained together for a tidy internal layout. The package includes mounting screws, a 500mm extension cable, and screw covers for a finished appearance.

For RGB Builds and Radiator Stacks

This fan suits builders who want synchronised lighting and high static pressure on radiators or dense heatsinks, with a speed range of 350 to 2000 RPM delivering up to 72.72 CFM and 2.51 mmH2O. Buyers who need fans without integrated lighting, or who require a different frame thickness, should look elsewhere.

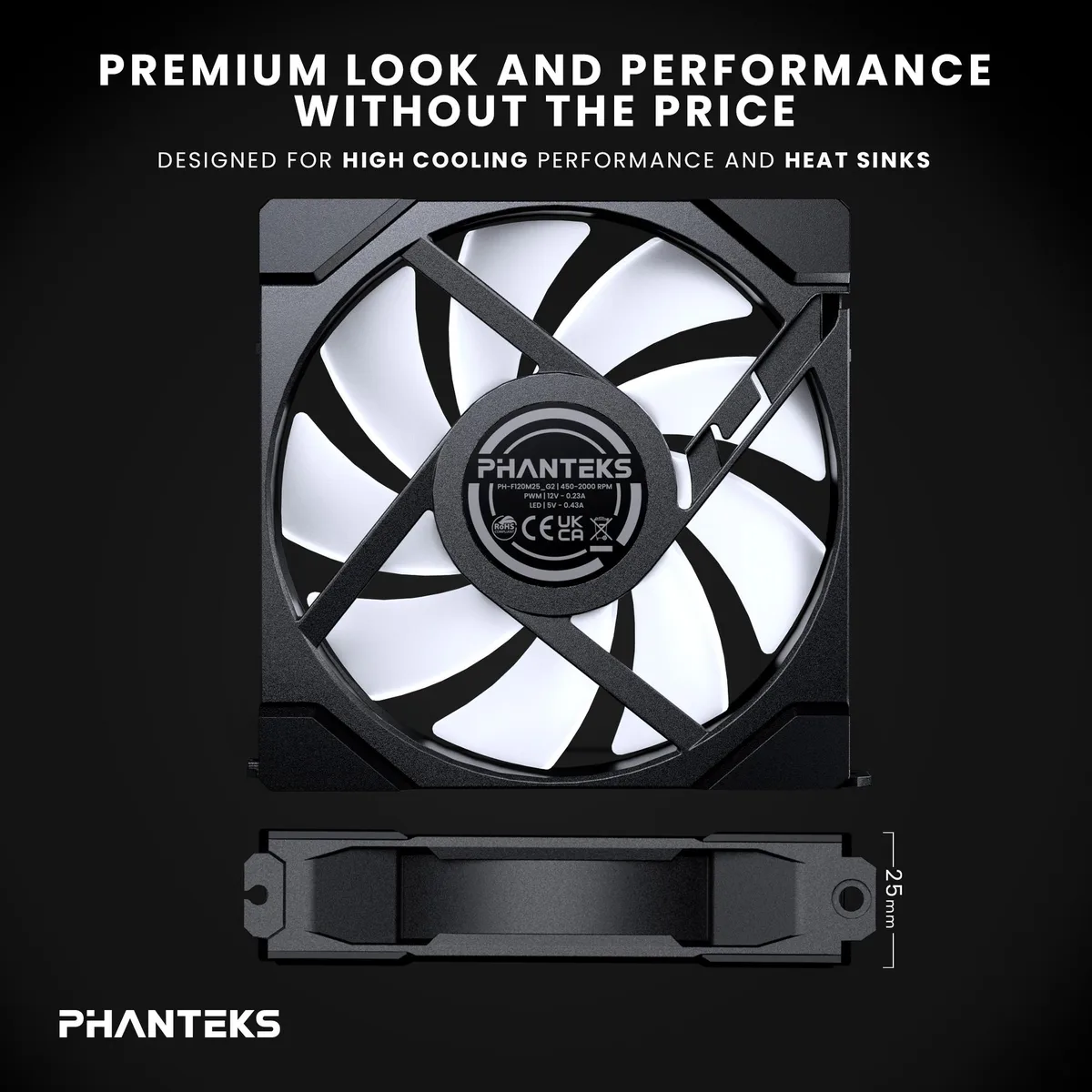

25mm Thickness and Linq6 Connector

The 25mm frame depth determines case and radiator clearance, while the proprietary Linq6 interface dictates compatibility with Phanteks NexLinq hubs and software. Verify that your chassis supports 25mm fans and that your lighting ecosystem accepts the Linq6 standard before purchasing.

Highlights

  • Daisy-chain frame links multiple fans with minimal clutter
  • Single Linq6 cable handles PWM and D-RGB together
  • Hydraulic bearing runs 350-2000 RPM for 72.72 CFM airflow
  • 51 mmH₂O static pressure excels on radiators and heatsinks
  • Infinity-mirror D-RGB lighting controlled via NexLinq app

Specifications

BrandPhanteks
ModelM25-120 Gen2 Regular
Part NumberPH-F120M25_G2_DBK01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow72.72 CFM Max
Air Pressure2.51 mmH2O Max
Noise Level35.13 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / Black Fan Frame
LEDDRGB
Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Fan: 1x
Fan Screws: 5x
500mm Linq6 Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Shipping weight0.23 kg
Package size132 × 124 × 50 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud does the 35.13 dBA maximum noise level sound when the fan runs at 2000 RPM all day?

At full speed the fan reaches 35.13 dBA, which is a moderate hum comparable to a quiet office; at the 350 RPM minimum it is near-silent for constant background use.

What motherboard header or controller is needed to run the PWM fan and DRGB lighting through the single Linq6 cable?

The fan uses a standard 4-pin PWM header for power and speed control, while the Linq6 extension cable carries the DRGB signal to a Phanteks NexLinq hub or compatible 5 V 3-pin addressable RGB header on the motherboard.

Will the 120 mm frame and 25 mm thickness line up with the mounting holes on an older 120 mm radiator or air cooler?

Yes — the fan measures 120 x 120 x 25 mm, matching the standard 120 mm mounting pattern used on most radiators and tower coolers from the last decade.
