White 120mm ARGB case fan with matte blades, infinity mirror hub and daisy-chain frame

Phanteks

Phanteks PH-F120M25R_G2_DWT01 120mm ARGB case fan, white

SKU CH-3WPA-CGFQR MPN PH-F120M25R_G2_DWT01

A 120 mm white ARGB case fan with reversed blades, 73.69 CFM airflow and daisy-chain Linq6 cabling for clean builds

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Reversed

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Single Fan

Struck-through versions exist but are not stocked here.

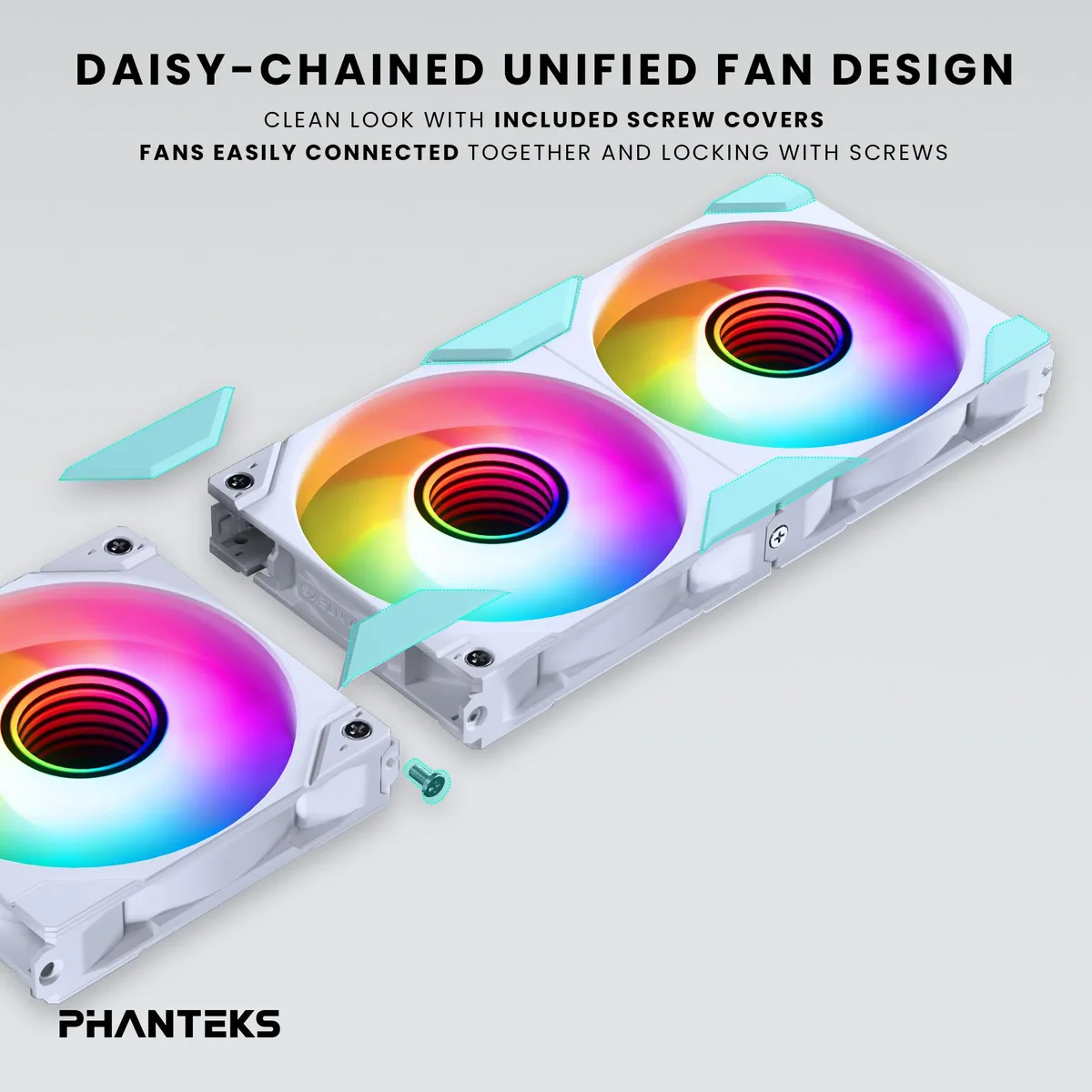

  • Daisy-chain frame links multiple fans with one cable
  • Single Linq6 cable carries both PWM and ARGB signals

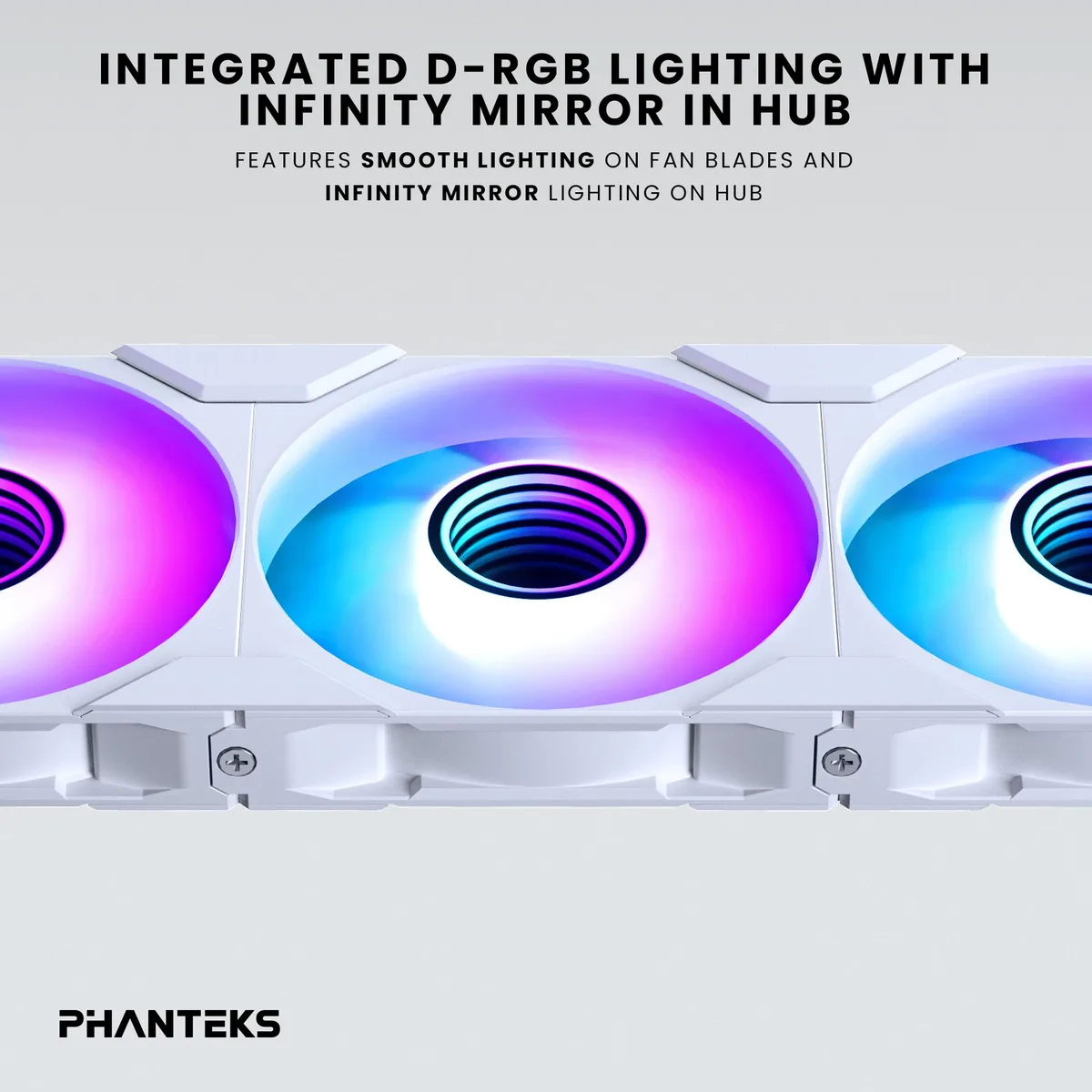

  • White matte blades with infinity-mirror D-RGB lighting
  • 69 CFM airflow at 1.99 mmH₂O pressure for radiators
  • Hydraulic bearing runs 350-2000 RPM at 39.28 dBA max

120 mm ARGB case fan with daisy-chain frame

The Phanteks M25 Gen2 Reversed is a single 120 mm fan built for builders who want clean cable routing and addressable lighting. Its white matte blades and frame suit light-themed builds, while the Linq6 connector merges PWM control and D-RGB signals into one 500 mm cable. Screw covers in corner and bridge styles complete the tidy appearance.

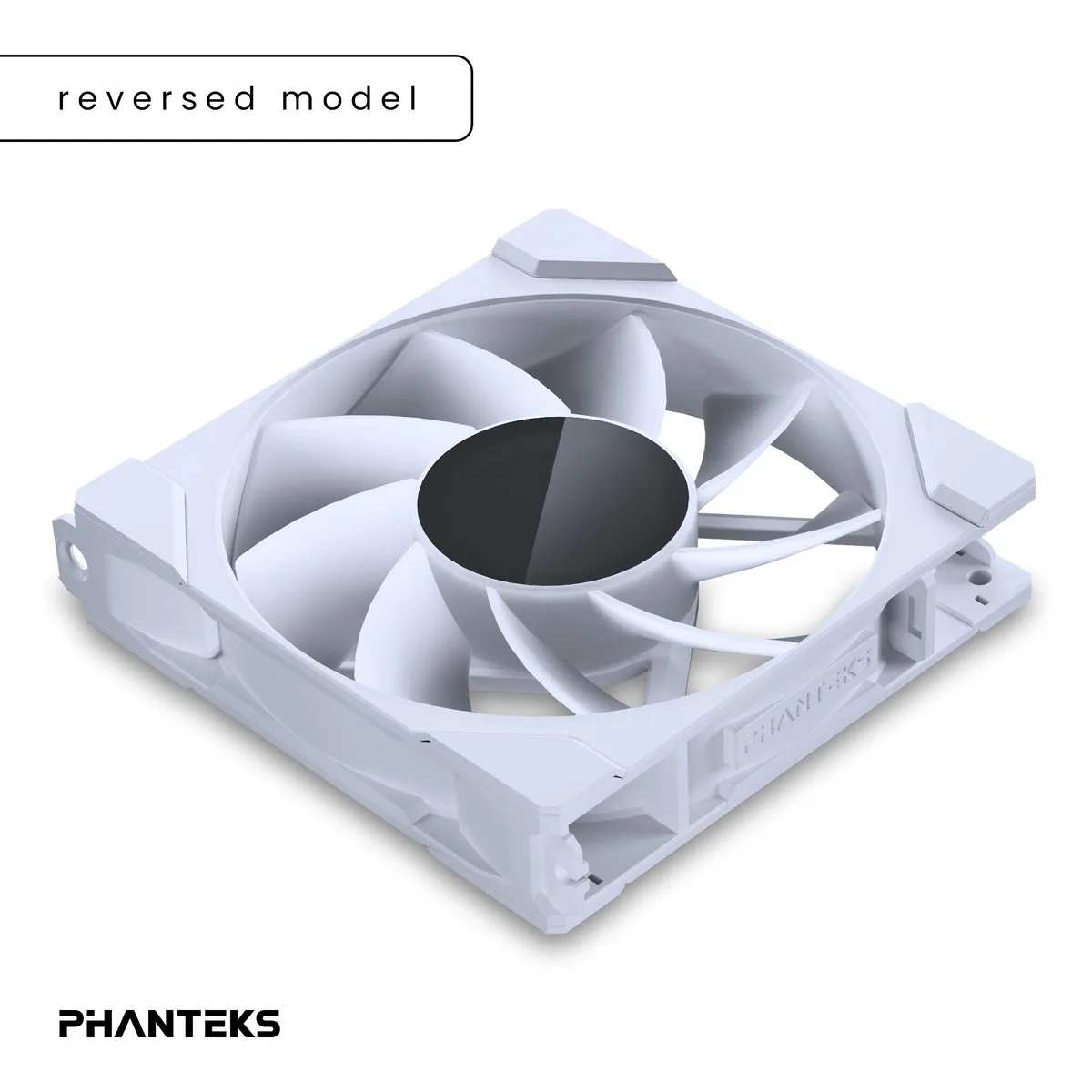

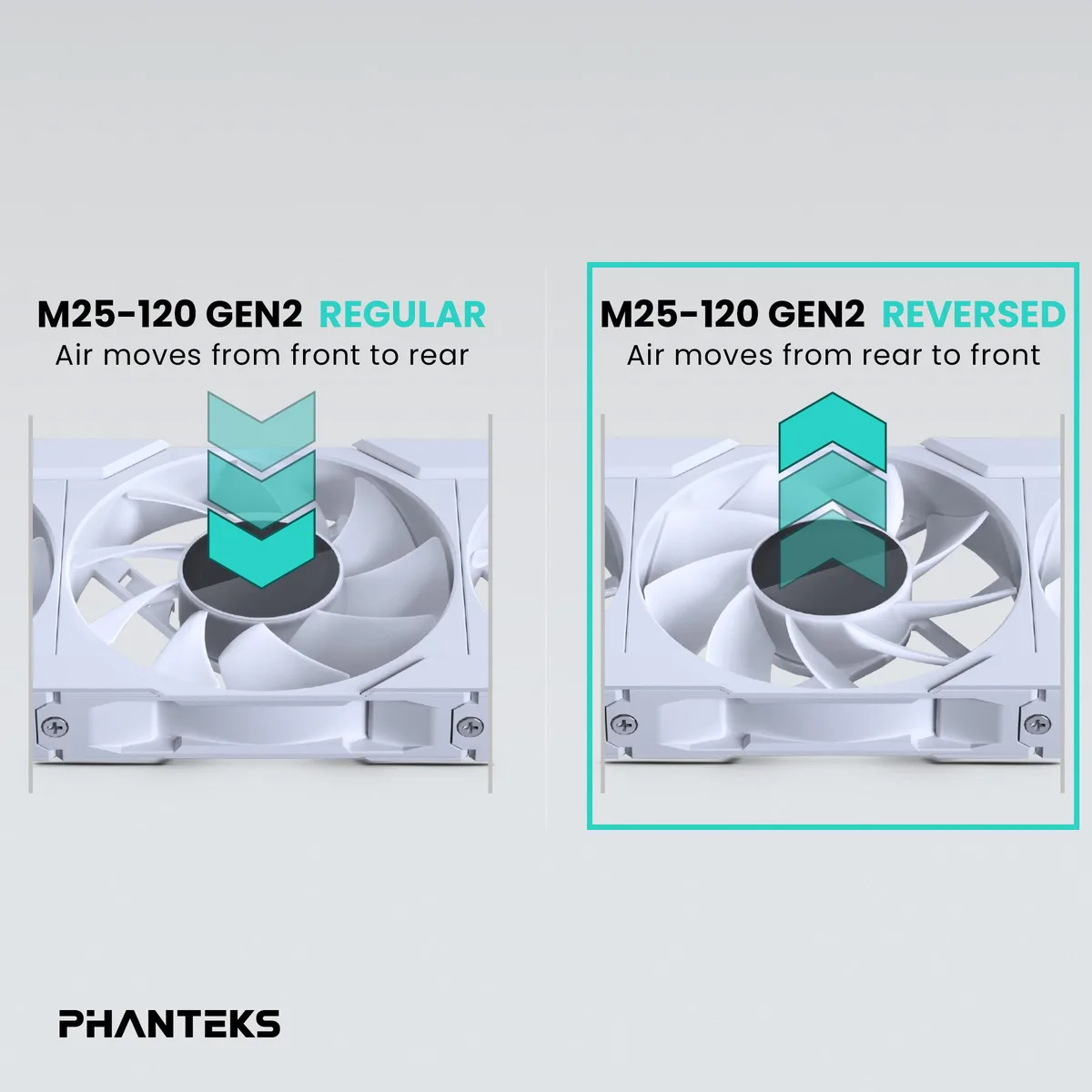

Reversed-blade airflow for radiators and heatsinks

The reversed blade profile pushes 73.69 CFM at 1.99 mmH₂O static pressure, spinning from 350 to 2000 RPM with a hydraulic bearing. At maximum speed the fan reaches 39.28 dBA, so sustained loads on dense fins stay cool without excessive noise. The unified frame locks multiple units together, keeping alignment and airflow consistent across a full radiator stack.

Upgrade from single-cable fans without integrated

This fan replaces basic PWM models that need separate RGB headers and individual cables. The jump is worth it when you are populating a radiator or case side panel with several fans and want one daisy-chained run to the motherboard or a NexLinq hub. Builders who need only one fan or who lack a 5 V addressable header will not benefit from the Linq6 ecosystem.

Highlights

  • Daisy-chain frame links multiple fans with one cable
  • Single Linq6 cable carries both PWM and ARGB signals
  • White matte blades with infinity-mirror D-RGB lighting
  • 69 CFM airflow at 1.99 mmH₂O pressure for radiators
  • Hydraulic bearing runs 350-2000 RPM at 39.28 dBA max

Specifications

BrandPhanteks
ModelM25-120 Gen2 Reversed
Part NumberPH-F120M25R_G2_DWT01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow73.69 CFM Max
Air Pressure1.99 mmH2O Max
Noise Level39.28 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / White Fan Frame
LEDDRGB

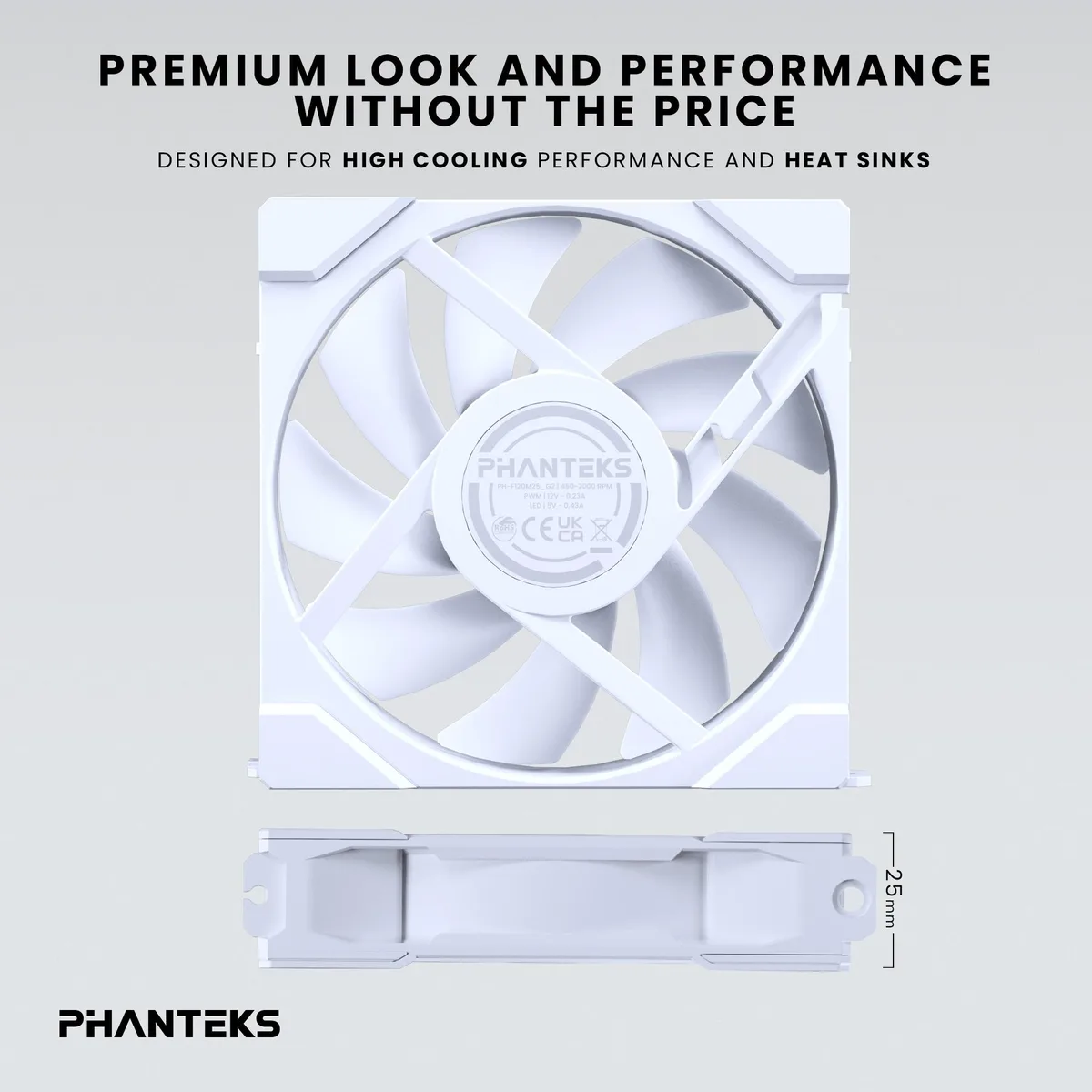

Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Reversed Fan: 1x
Fan Screws: 5x
500mm Linq6 Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Shipping weight0.23 kg
Package size137 × 127 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud and how much power does the 120 mm fan draw when it runs at 2000 RPM all day?

At the maximum 2000 RPM the fan produces 39.28 dBA and moves 73.69 CFM with 1.99 mmH₂O static pressure, drawing power through a standard PWM 4-pin connector.

What motherboard header or controller do I need to run the Linq6 daisy-chain and D-RGB lighting?

A single 4-pin PWM header supplies both fan control and D-RGB signal; the included 500 mm Linq6 extension cable lets you chain additional fans without extra headers.

Will the 25 mm thick white frame and screw covers fit alongside my existing 120 mm radiators and older Phanteks fans?

The 120 × 120 × 25 mm dimensions match standard 120 mm mounts, and the reversed-blade design is made for radiators and heatsinks, so it aligns with existing cooling hardware.
