Black 120mm ARGB case fan with reversed white matte blades, 25mm thick, daisy-chain frame, infinity mirror hub, single Linq6 cable

Phanteks

Phanteks PH-F120M25R_G2_DBK01 120mm ARGB case fan, reversed blade, 25mm

SKU CH-TNKW-WQF56 MPN PH-F120M25R_G2_DBK01

120 mm ARGB case fan with reversed 25 mm blades, daisy-chain frame and single Linq6 cable for PWM and lighting control

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Reversed

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Single Fan

Struck-through versions exist but are not stocked here.

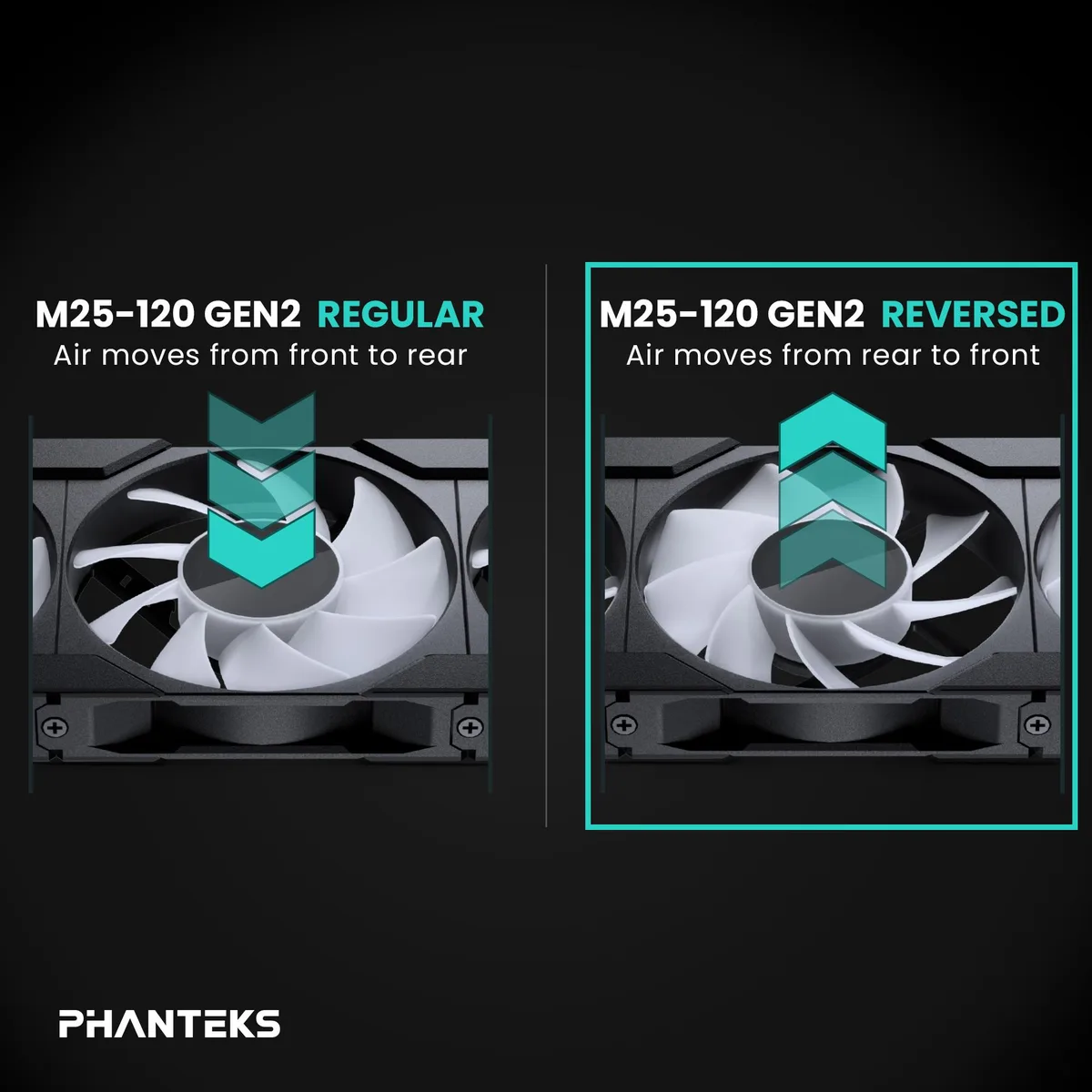

  • Reversed blades pull air through radiators efficiently

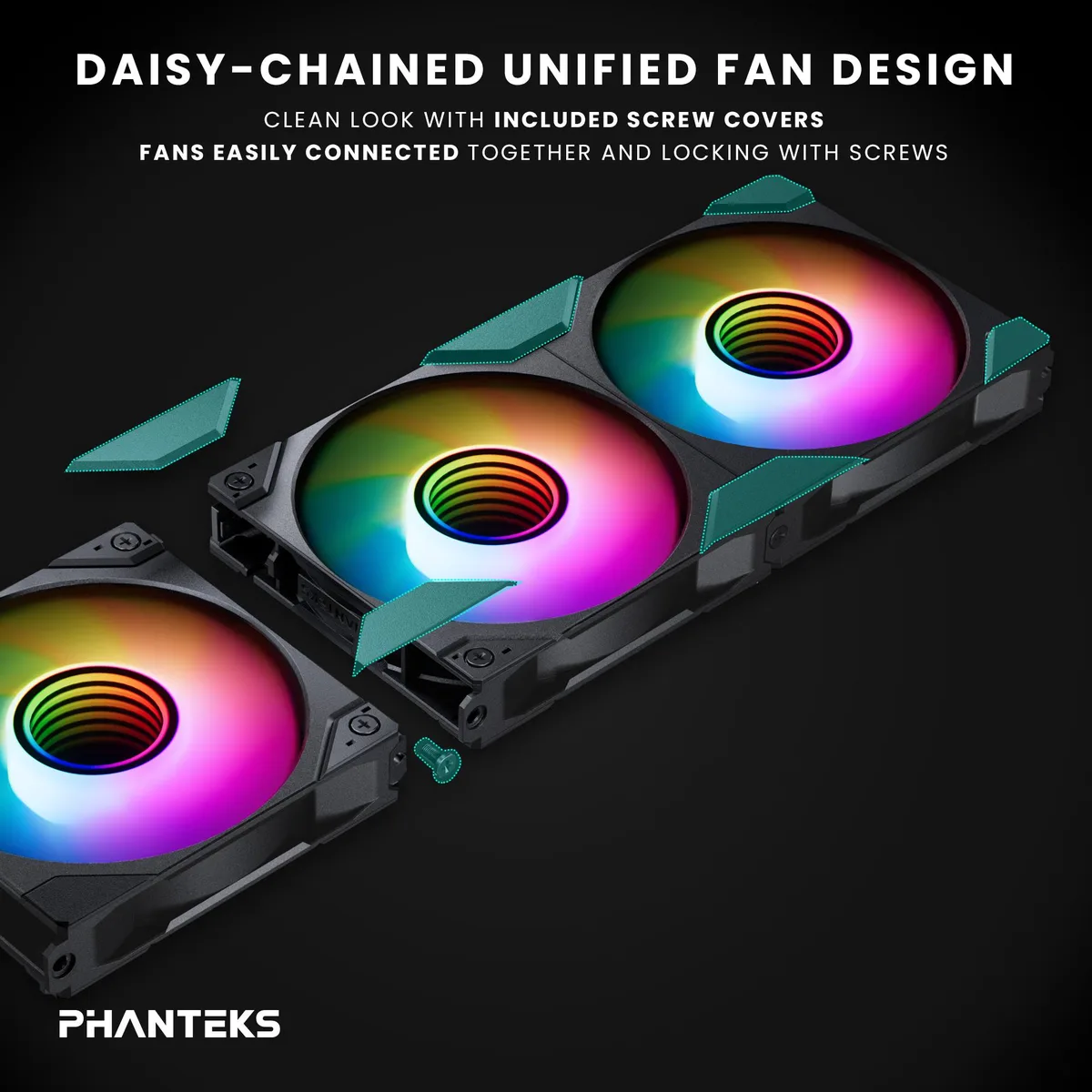

  • Daisy-chain frame locks fans together with one cable
  • 69 CFM airflow at 2000 RPM maximum
  • Hydraulic bearing runs as quiet as 39.28 dBA

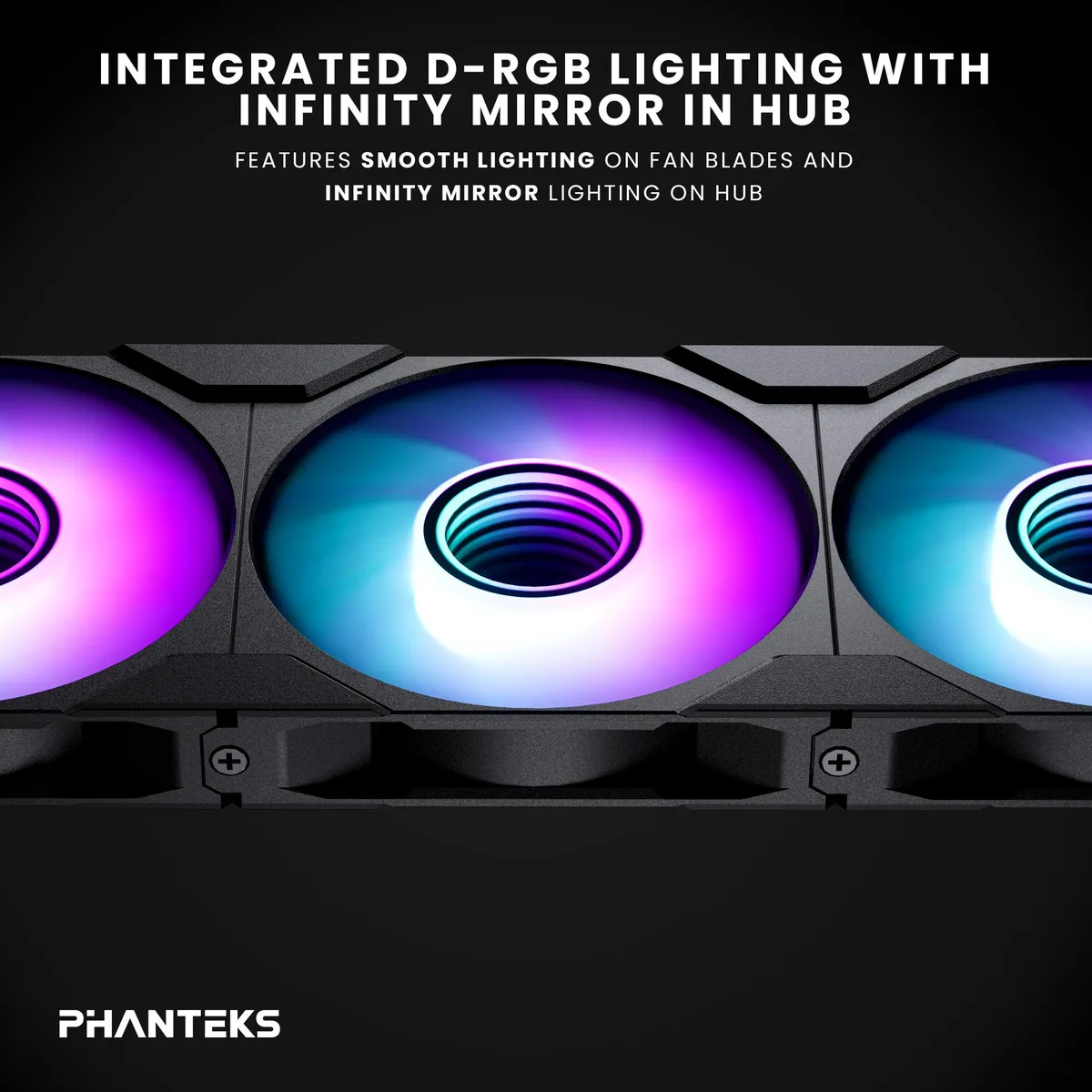

  • DRGB infinity mirror lighting syncs via NexLinq app

120mm Reversed-Blade ARGB Fan

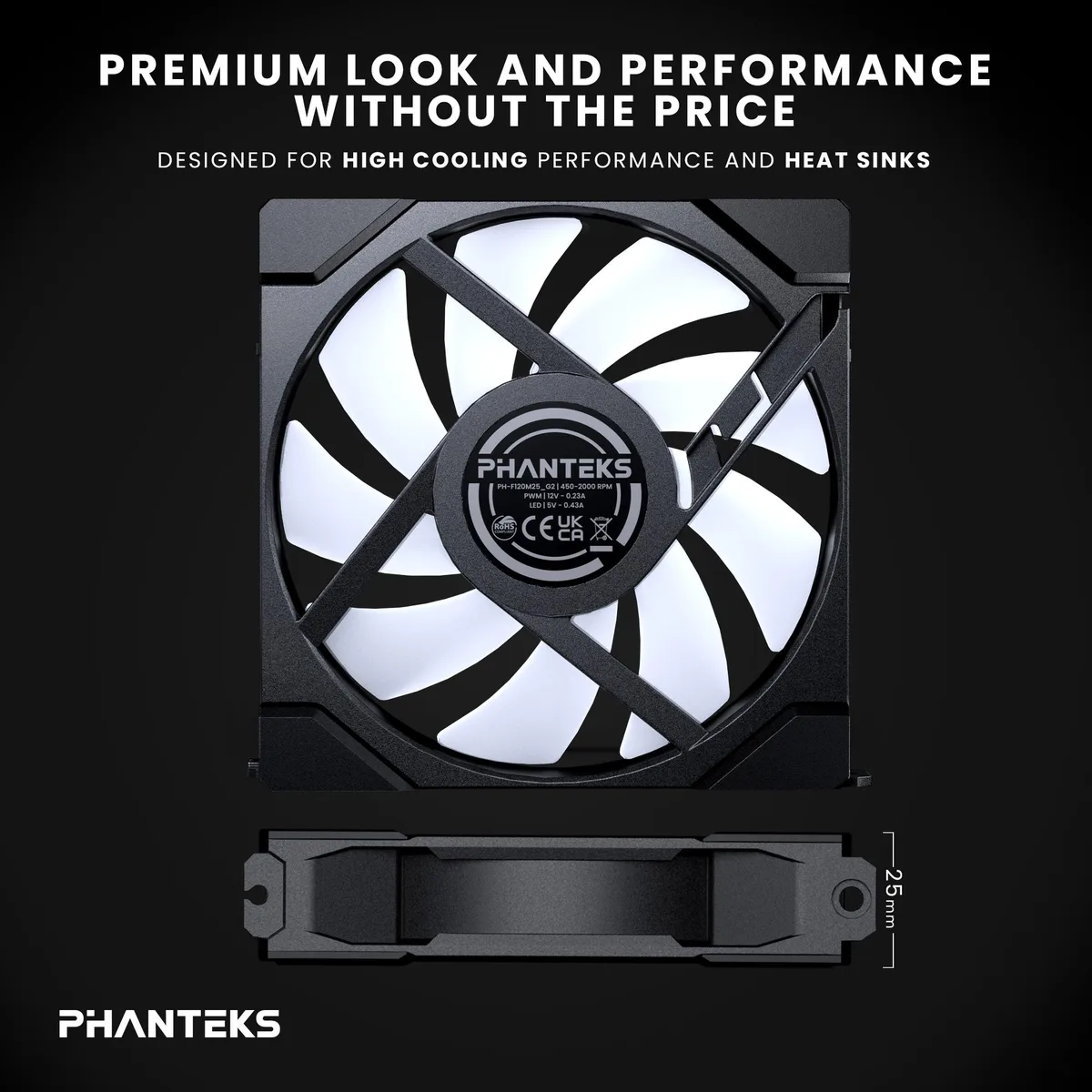

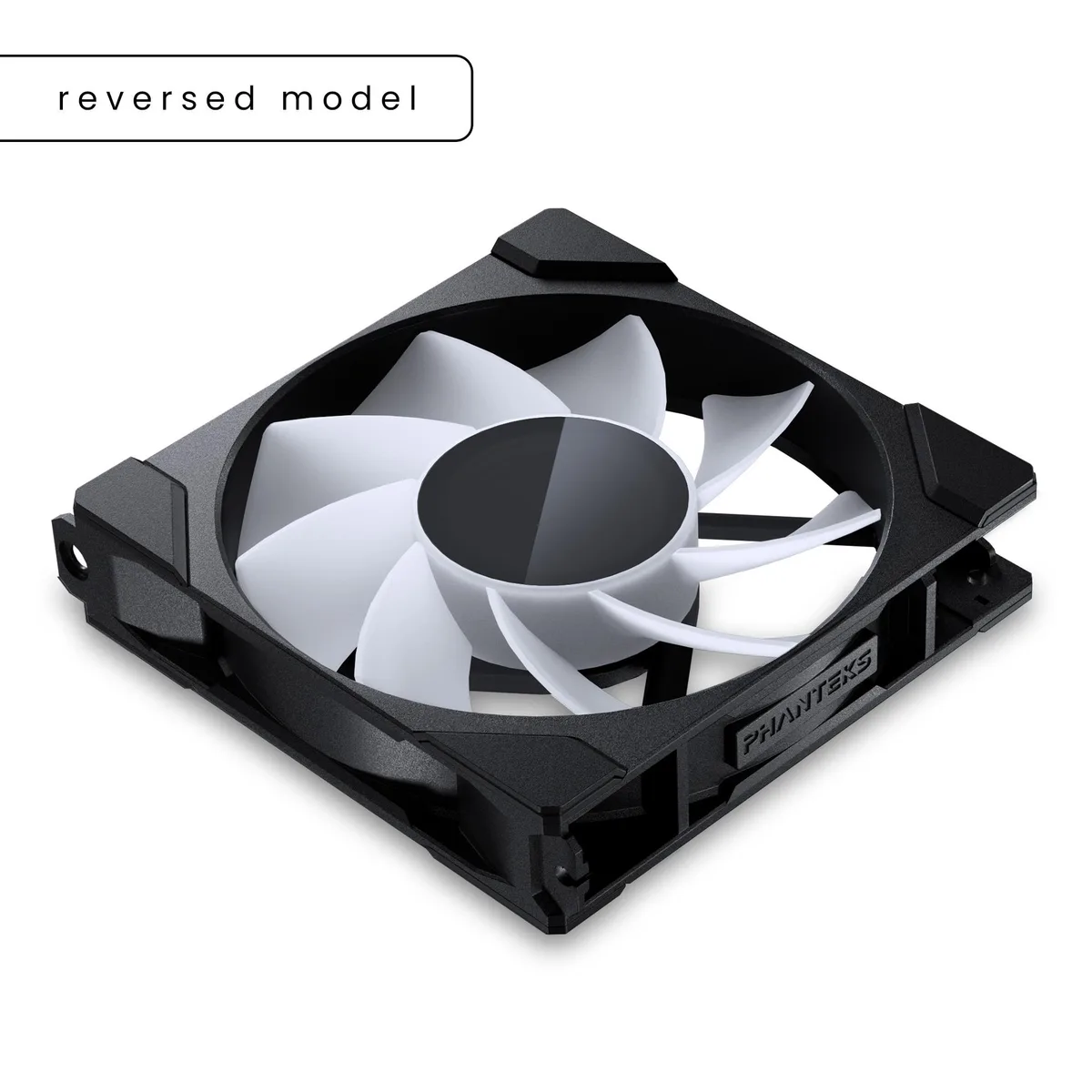

The Phanteks M25-120 Gen2 Reversed is a single 120mm case fan with a 25mm thick frame and hydraulic bearing. It targets builders who want a daisy-chainable cooling solution with integrated DRGB lighting and a single Linq6 cable for both power and lighting control.

Upgrade from Standard Single-Cable Fans

This unit replaces fans that require separate PWM and RGB headers by merging both signals into one 500mm Linq6 extension cable. The jump is worth it when you are mounting fans on radiators or heatsinks where the reversed blade orientation pushes air through the fins more effectively, delivering up to 73.69 CFM and 1.99 mmH2O at 2000 RPM.

Suits Radiator Builds Seeking Clean Cable Runs

The fan suits enthusiasts assembling liquid-cooling loops or dense air-cooling stacks who value the infinity-mirror lighting effect and included screw covers for a uniform look. Builders who need a bundled controller, prefer a non-reversed airflow direction, or require operation below 350 RPM should look at other options.

Highlights

  • Reversed blades pull air through radiators efficiently
  • Daisy-chain frame locks fans together with one cable
  • 69 CFM airflow at 2000 RPM maximum
  • Hydraulic bearing runs as quiet as 39.28 dBA
  • DRGB infinity mirror lighting syncs via NexLinq app

Specifications

BrandPhanteks
ModelM25-120 Gen2 Reversed
Part NumberPH-F120M25R_G2_DBK01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow73.69 CFM Max
Air Pressure1.99 mmH2O Max
Noise Level39.28 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / Black Fan Frame
LEDDRGB
Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Reversed Fan: 1x
Fan Screws: 5x
500mm Linq6 Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Shipping weight0.23 kg
Package size137 × 127 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 120 mm by 25 mm frame fit my standard case mounting points?

Yes, the 120 x 120 x 25 mm dimensions match standard 120 mm case fan mounts and the package includes five mounting screws.

How do I connect the PWM and DRGB lighting with the single Linq6 cable?

Plug the 500 mm Linq6 extension cable into the fan's unified connector, then into a motherboard PWM header or Phanteks NexLinq hub; the daisy-chain frame lets you link additional fans.

When should I expect to replace the hydraulic bearing?

The hydraulic bearing is rated for long life at 350-2000 RPM; replace the fan if noise exceeds 39.28 dBA or airflow drops below 73.69 CFM.
