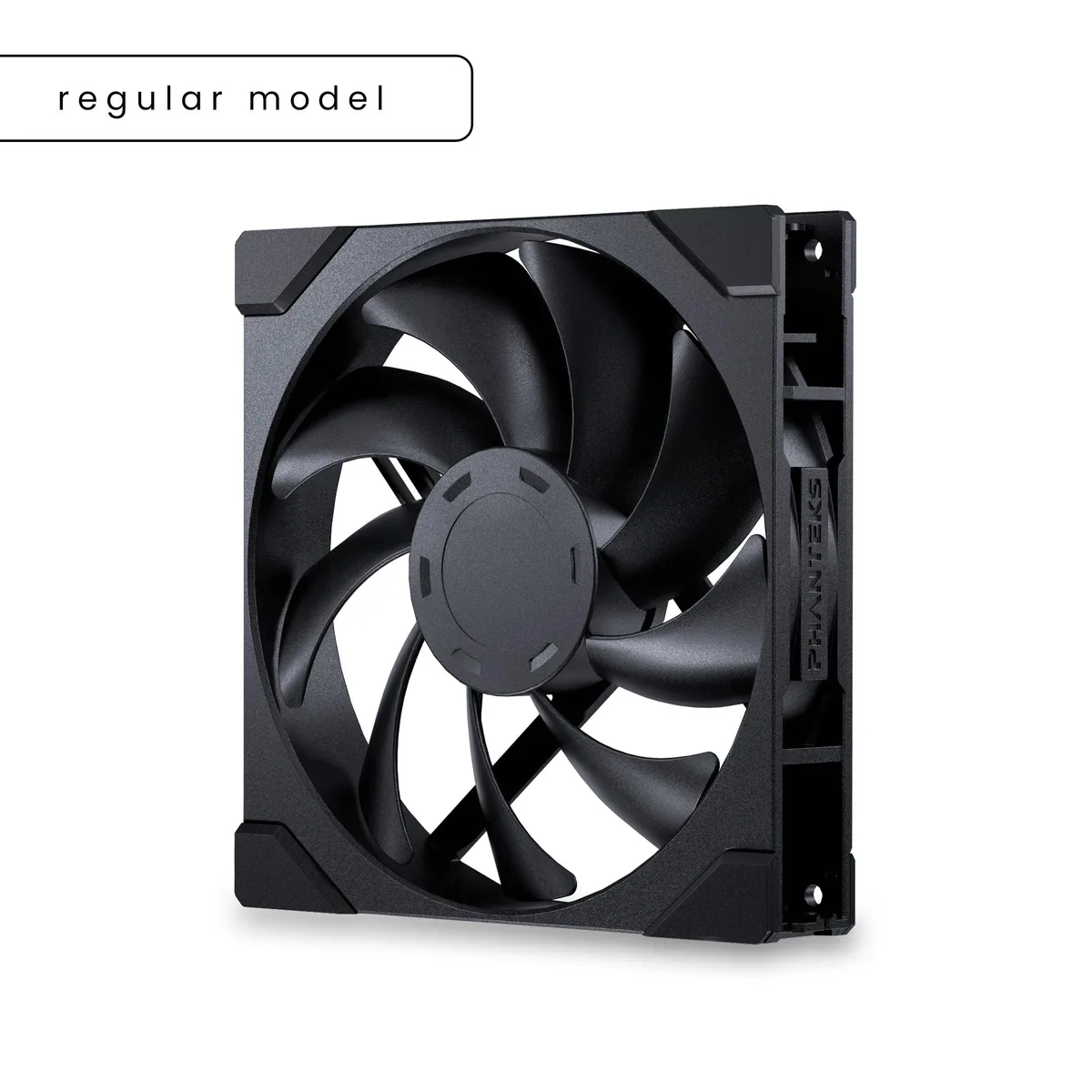

Black 140mm square PWM case fan with hydraulic bearing and screw covers

Phanteks

Phanteks PH-F140M25_G2_BBK01 140mm 25mm PWM case fan

SKU CH-JA3H-ZZ6H7 MPN PH-F140M25_G2_BBK01

140 mm PWM case fan with daisy-chain frame, 350–1800 RPM, 101.78 CFM airflow and 36.4 dBA noise

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 140mm

Style Regular / No DRGB

Model M25 Gen2

  • M25 Gen2
  • M25
  • D30

Option Single Fan

Struck-through versions exist but are not stocked here.

  • Daisy-chain frame links fans for tidy cable runs
  • 78 CFM maximum airflow targets radiators and heatsinks
  • 350-1800 RPM PWM range balances cooling and noise
  • Hydraulic bearing supports long service life
  • Screw covers included for a clean finished look

Phanteks M25-140 Gen2 140mm PWM Fan

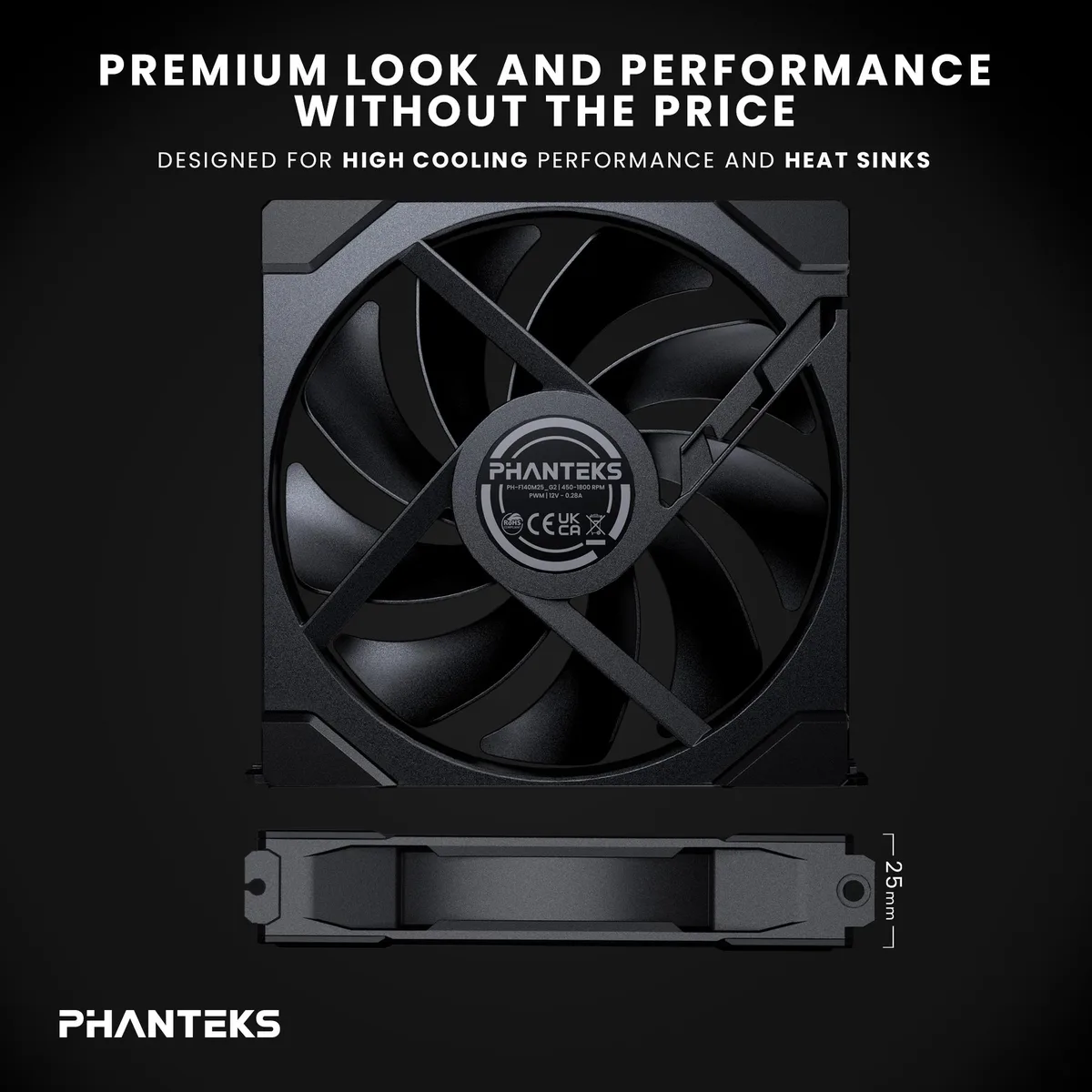

The Phanteks M25-140 Gen2 is a 140mm case fan with a 25mm thickness designed for high-performance cooling. It uses a hydraulic bearing and a PWM 4-pin connector to deliver speeds between 350 and 1800 RPM. The single black fan suits builders who want strong airflow for radiators or heat sinks without added lighting.

Daisy-chain frame and screw covers simplify

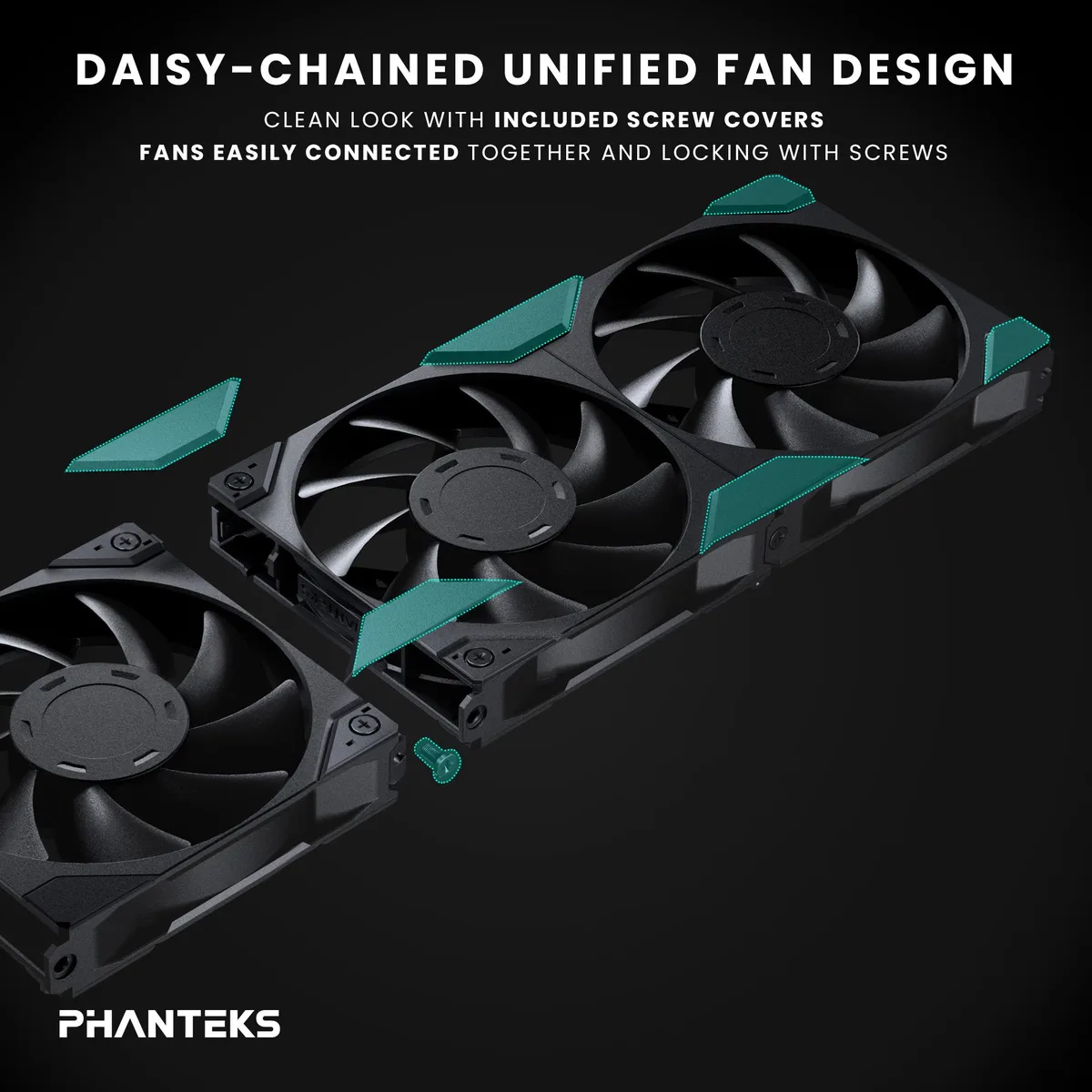

The Unified Fan Frame lets multiple fans interlock physically and share a single PWM signal, reducing cable clutter inside the chassis. A 500mm PWM extension cable is included for flexible routing. Four corner and two bridge screw covers hide mounting hardware for a cleaner visual finish.

Suits radiator and heatsink builds needing

This model works well for users who want to chain several fans under one header and value a tidy appearance. It is not for buyers who want addressable RGB lighting, as this version has no LEDs. It also lacks a dedicated fan controller in the box, so systems without PWM headers or software control cannot adjust speeds automatically.

Highlights

  • Daisy-chain frame links fans for tidy cable runs
  • 78 CFM maximum airflow targets radiators and heatsinks
  • 350-1800 RPM PWM range balances cooling and noise
  • Hydraulic bearing supports long service life
  • Screw covers included for a clean finished look

Specifications

BrandPhanteks
ModelM25-140 Gen2 Regular
Part NumberPH-F140M25_G2_BBK01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-1800 +/- 10% RPM Max
Air Flow101.78 CFM Max
Air Pressure2.23 mmH2O Max
Noise Level36.4 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorBlack Fan Blade / Black Fan Frame
LEDNo DRGB
Dimensions140 x 140 x 25 mm
Package ContentsM25-140 Gen2 Fan: 1x
Fan Screws: 5x
500mm PWM Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Shipping weight0.27 kg
Package size152 × 150 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How often will the hydraulic bearing need service or replacement?

The hydraulic bearing is sealed for the life of the fan and requires no scheduled maintenance or lubrication.

What limits continuous operation at the maximum 1800 RPM?

At 1800 RPM the fan reaches its peak 101.78 CFM airflow and 36.4 dBA noise rating; sustained loads are limited by thermal and acoustic thresholds.

How much noise and heat does the fan add when running all day at full speed?

At full 1800 RPM the fan produces up to 36.4 dBA and moves 101.78 CFM; power draw stays within the standard PWM 4-pin header limits.
