White 120mm ARGB case fan with matte blades and infinity mirror hub

Phanteks

Phanteks PH-F120M25_G2_DWT01 120mm 25mm ARGB case fan

SKU CH-S5PR-5MN4Q MPN PH-F120M25_G2_DWT01

120 mm PWM fan with hydraulic bearing, 72.72 CFM airflow, 2.51 mmH2O pressure, daisy-chain Linq6 cable and ARGB infinity-mirror lighting

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size120mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 120mm

Style Regular

Model M25 Gen2

Option Single Fan

  • Daisy-chain frame links multiple fans into one clean array
  • Single Linq6 cable carries both PWM and D-RGB signals
  • Hydraulic bearing spins 350-2000 RPM for 72.72 CFM peak airflow
  • 51 mmH₂O static pressure excels on radiators and heatsinks

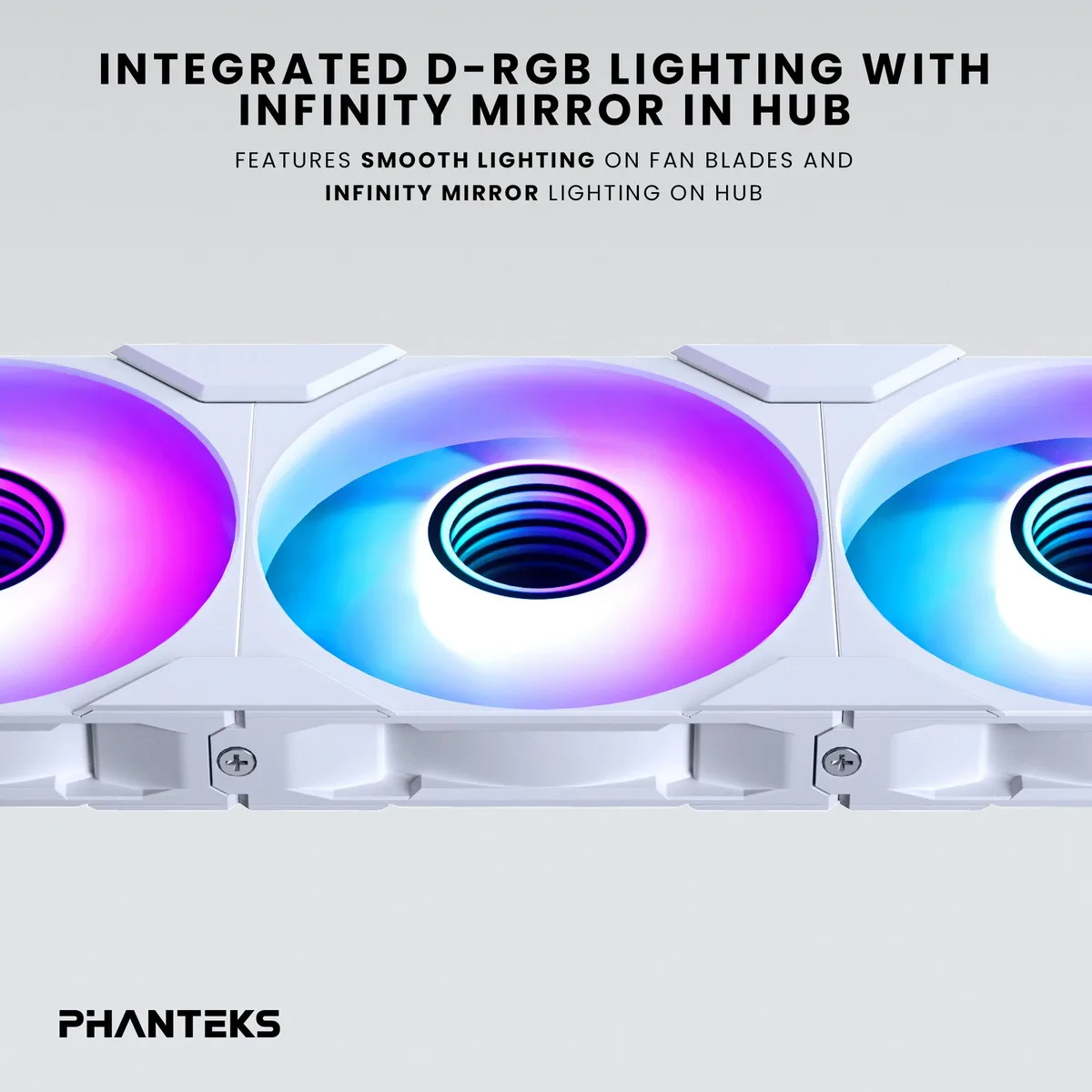

  • Infinity-mirror D-RGB lighting at 35.13 dBA max noise

Phanteks M25-120 Gen2 ARGB fan

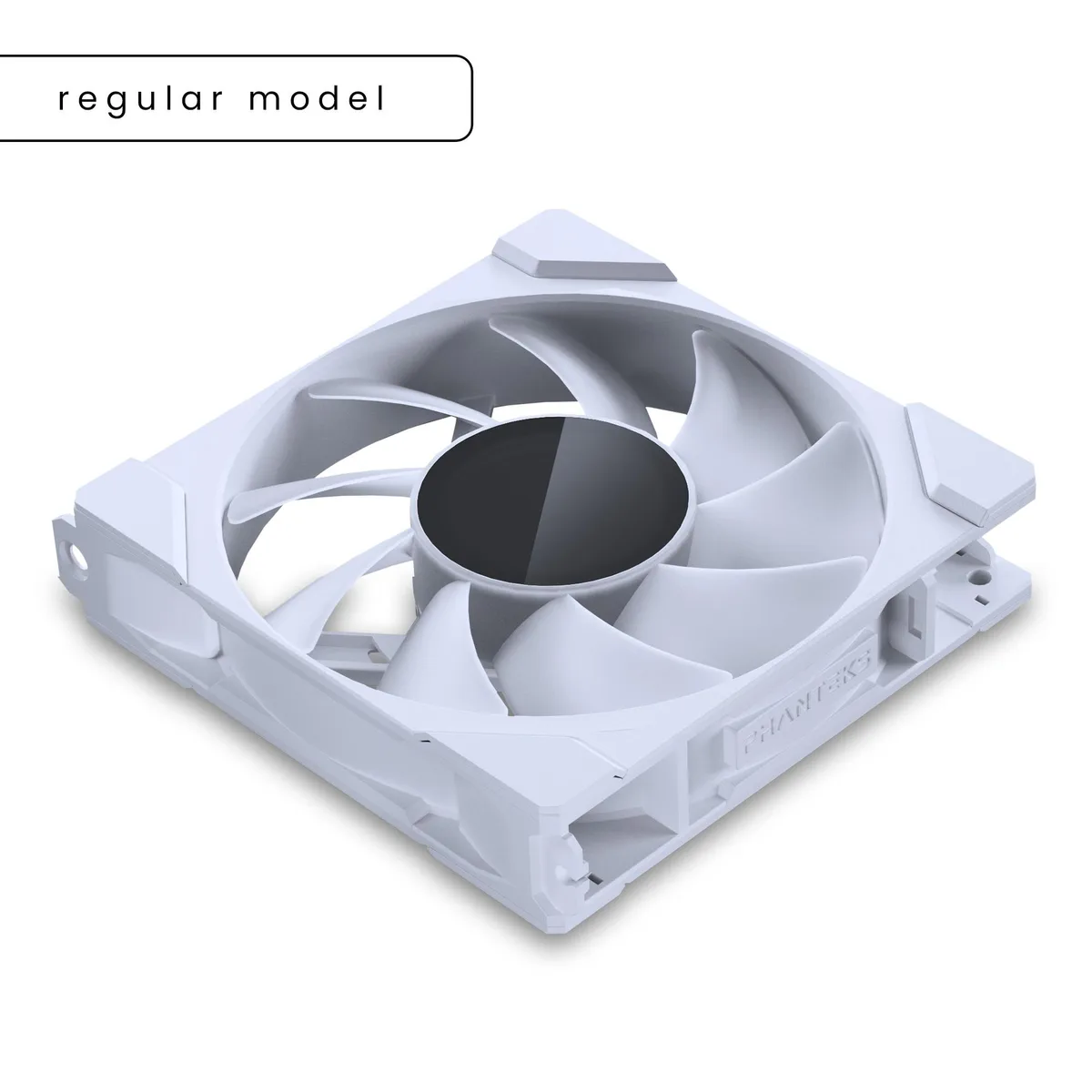

The Phanteks M25-120 Gen2 is a single 120mm case fan with a 25mm thick frame and hydraulic bearing. It targets builders who want addressable RGB lighting and a tidy cabling scheme inside a standard chassis. The white matte blades and frame suit light-themed builds. PWM control via a 4-pin connector lets the motherboard regulate speed automatically.

Daisy-chain frame and Linq6 cable

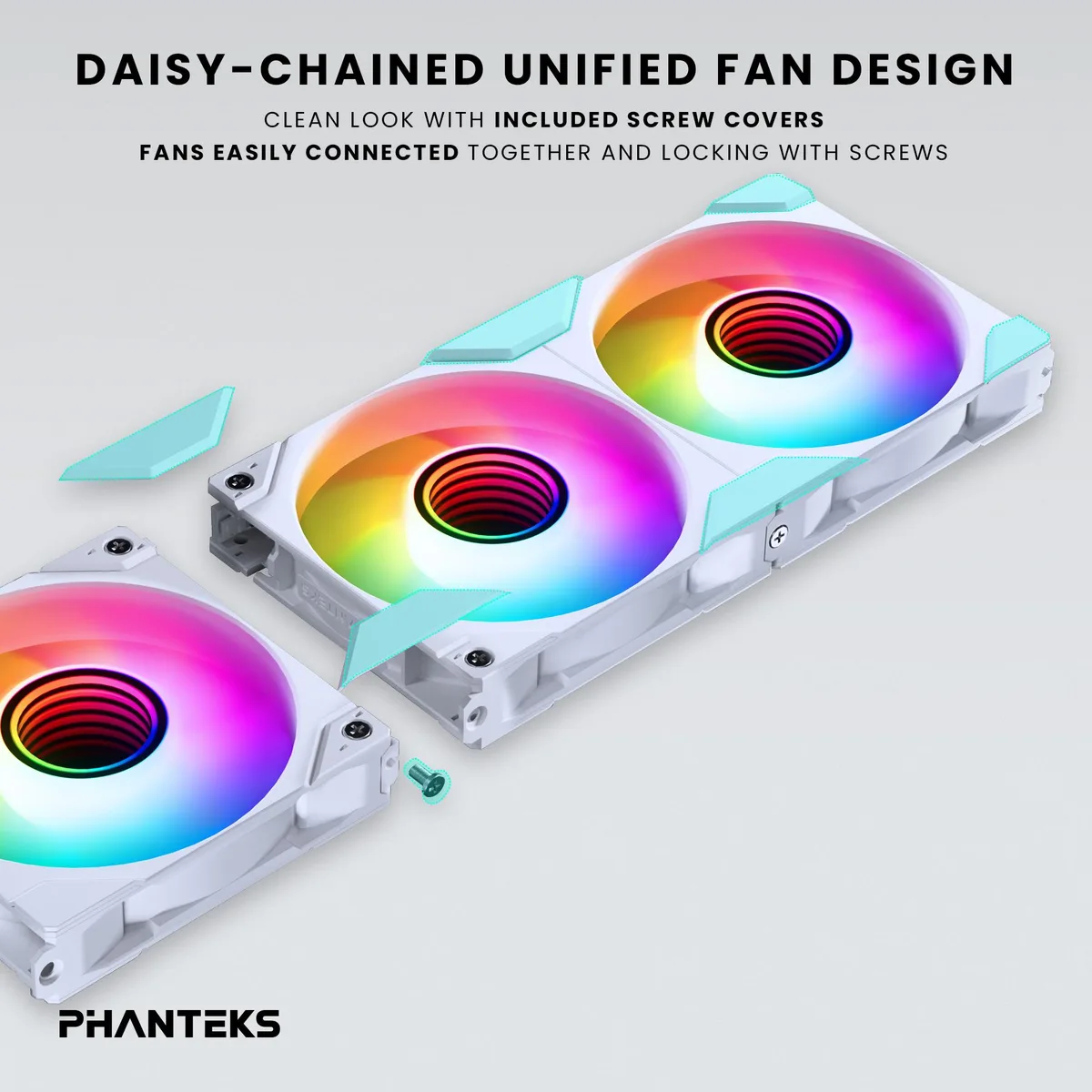

The unified frame interlocks with identical fans so multiple units connect in a daisy chain, reducing cable clutter. A 500mm Linq6 extension cable merges both PWM and DRGB signals into one run, simplifying routing to a compatible hub or motherboard header. Four screw-cover corners and two bridge covers hide mounting hardware for a cleaner finish. The package includes five fan screws and an installation guide.

Builders wanting simple RGB cooling

This fan suits users who value easy multi-fan wiring and integrated lighting effects such as the infinity mirror look. It is less suited for buyers who need a bundled controller hub in the box, or those who require higher static pressure than the rated 2.51 mmH2O maximum for dense radiator stacks. Silent-focused builders should note the 35.13 dBA maximum noise level at 2000 RPM.

Highlights

  • Daisy-chain frame links multiple fans into one clean array
  • Single Linq6 cable carries both PWM and D-RGB signals
  • Hydraulic bearing spins 350-2000 RPM for 72.72 CFM peak airflow
  • 51 mmH₂O static pressure excels on radiators and heatsinks
  • Infinity-mirror D-RGB lighting at 35.13 dBA max noise

Specifications

BrandPhanteks
ModelM25-120 Gen2 Regular
Part NumberPH-F120M25_G2_DWT01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size120mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-2000 +/- 10% RPM Max
Air Flow72.72 CFM Max
Air Pressure2.51 mmH2O Max
Noise Level35.13 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte blade / White Fan Frame
LEDDRGB

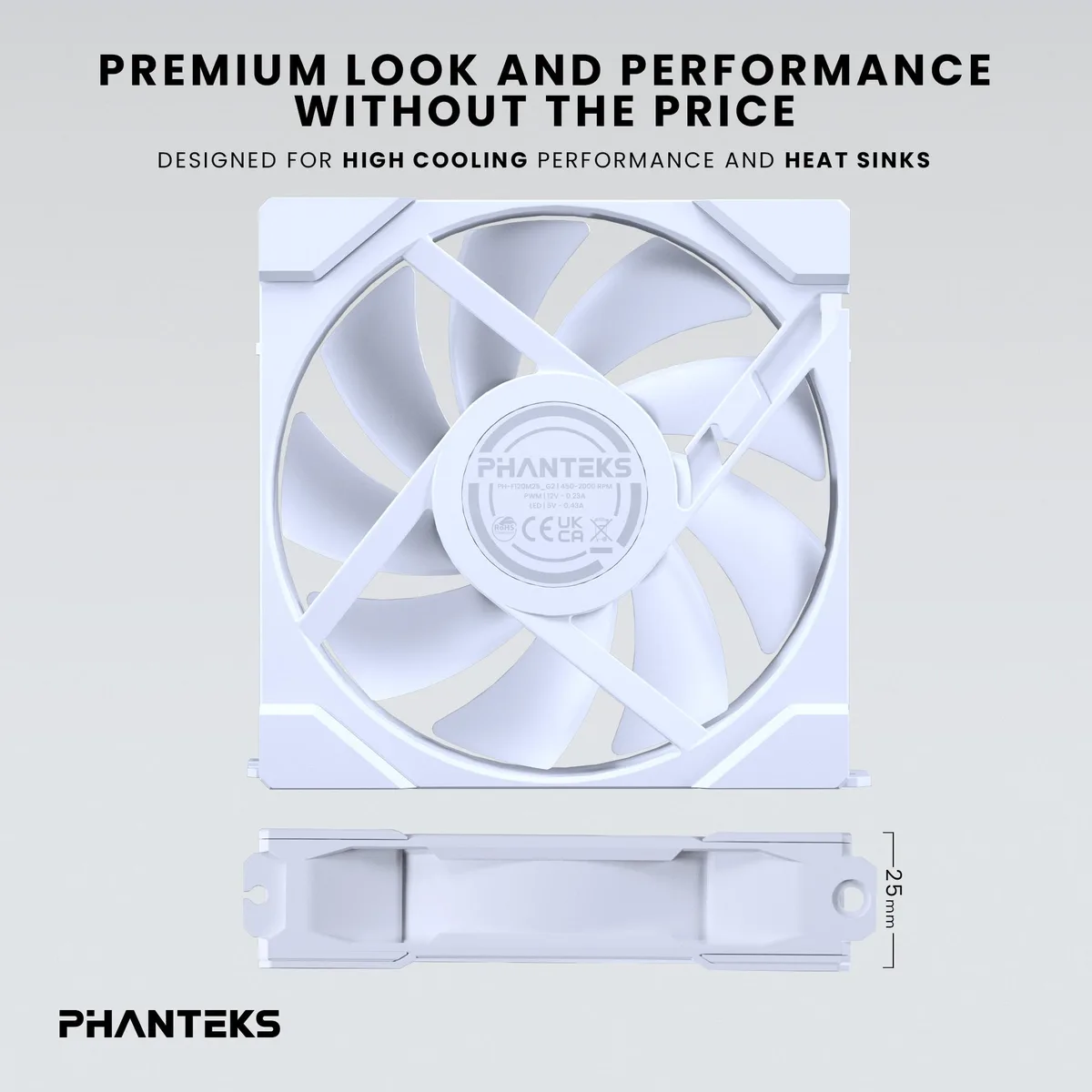

Dimensions120 x 120 x 25 mm
Package ContentsM25-120 Gen2 Fan: 1x
Fan Screws: 5x
500mm Linq6 Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Shipping weight0.23 kg
Package size137 × 127 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the hydraulic bearing need lubrication or replacement during the fan's life?

The hydraulic bearing is sealed and rated for continuous operation at up to 2000 RPM without a user-service interval.

At full speed the fan reaches 2000 RPM, so what limit appears first during sustained load — airflow, pressure or noise?

Noise peaks at 35.13 dBA while airflow tops out at 72.72 CFM and static pressure at 2.51 mmH2O, so the acoustic limit is reached first.

Running at 2000 RPM all day, how much heat and noise does the 120 mm white frame fan add to the case?

At maximum speed the unit draws power through its 4-pin PWM connector and emits 35.13 dBA while moving 72.72 CFM across radiators or heatsinks.
