140mm square black frame fan with white matte blades and infinity mirror RGB centre

Phanteks

Phanteks PH-F140M25_G2_DBK01 140mm case fan 1800 RPM 101.78 CFM

SKU CH-GKP3-K36H7 MPN PH-F140M25_G2_DBK01

140 mm hydraulic-bearing case fan moves up to 101.78 CFM at 1800 RPM with 2.23 mmH2O pressure and 36.4 dBA noise, featuring daisy-chain Linq6 cabling and addressable D-RGB infinity-mirror lighting

  • Fan Counts1 Fan
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic

Fan Size 140mm

Style Regular

Model M25 Gen2

Option Single Fan

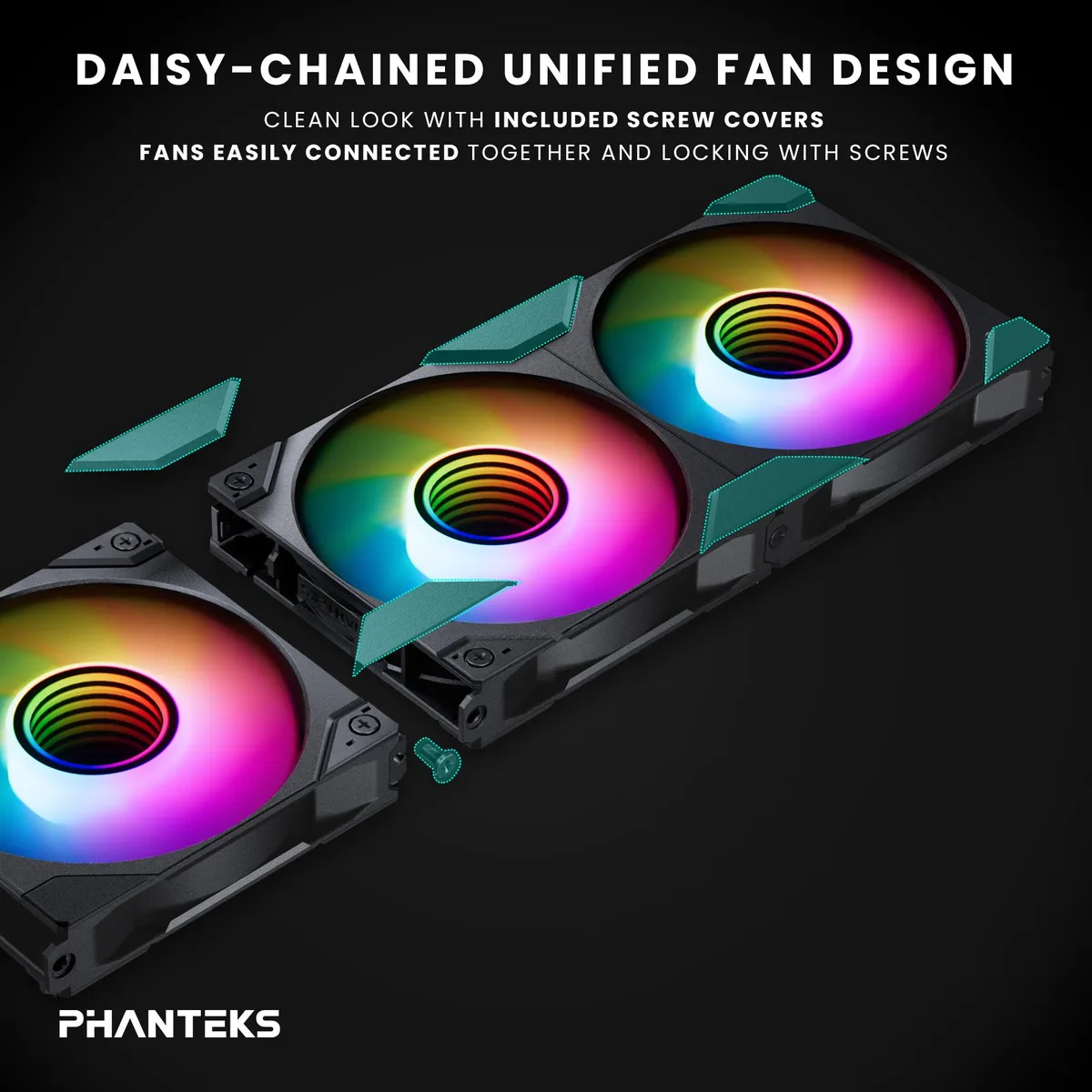

  • Daisy-chain frame links fans together for tidy cable routing
  • Single Linq6 cable handles PWM and D-RGB control in one connection
  • 78 CFM airflow at 1800 RPM targets radiators and heatsinks
  • Hydraulic bearing runs at 36.4 dBA maximum for quiet operation

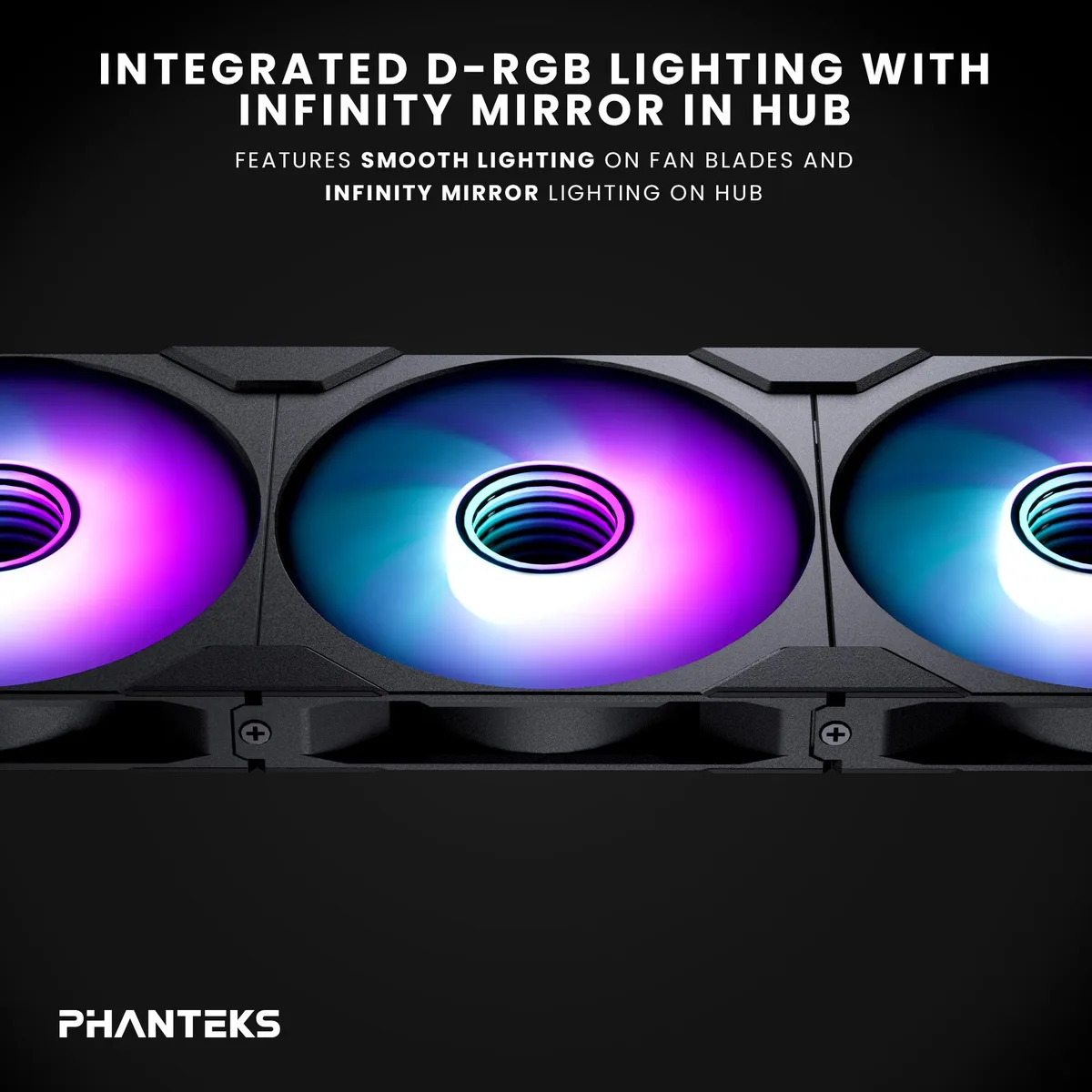

  • Screw covers and infinity mirror D-RGB give a clean, lit appearance

Phanteks M25 140mm Gen2 Fan

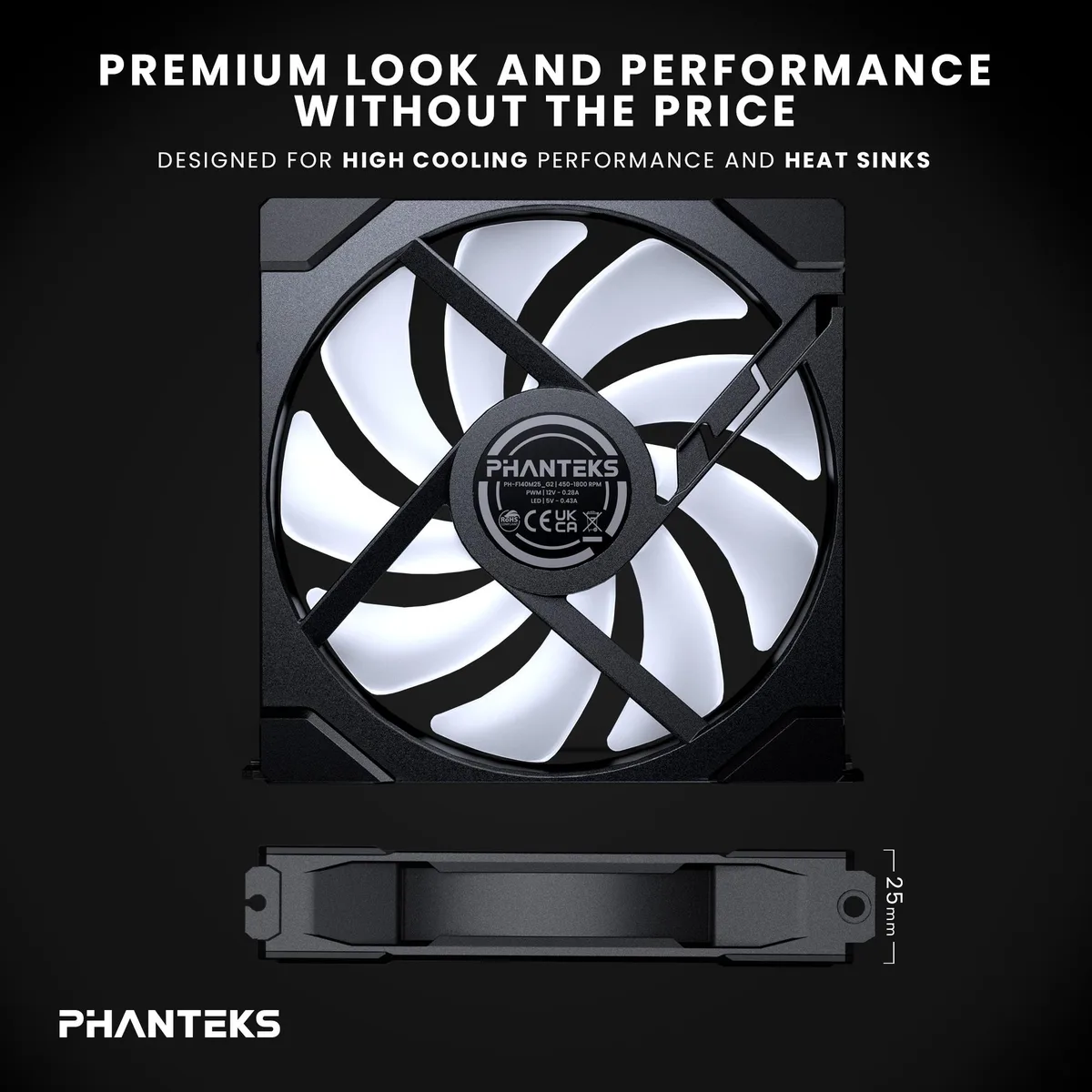

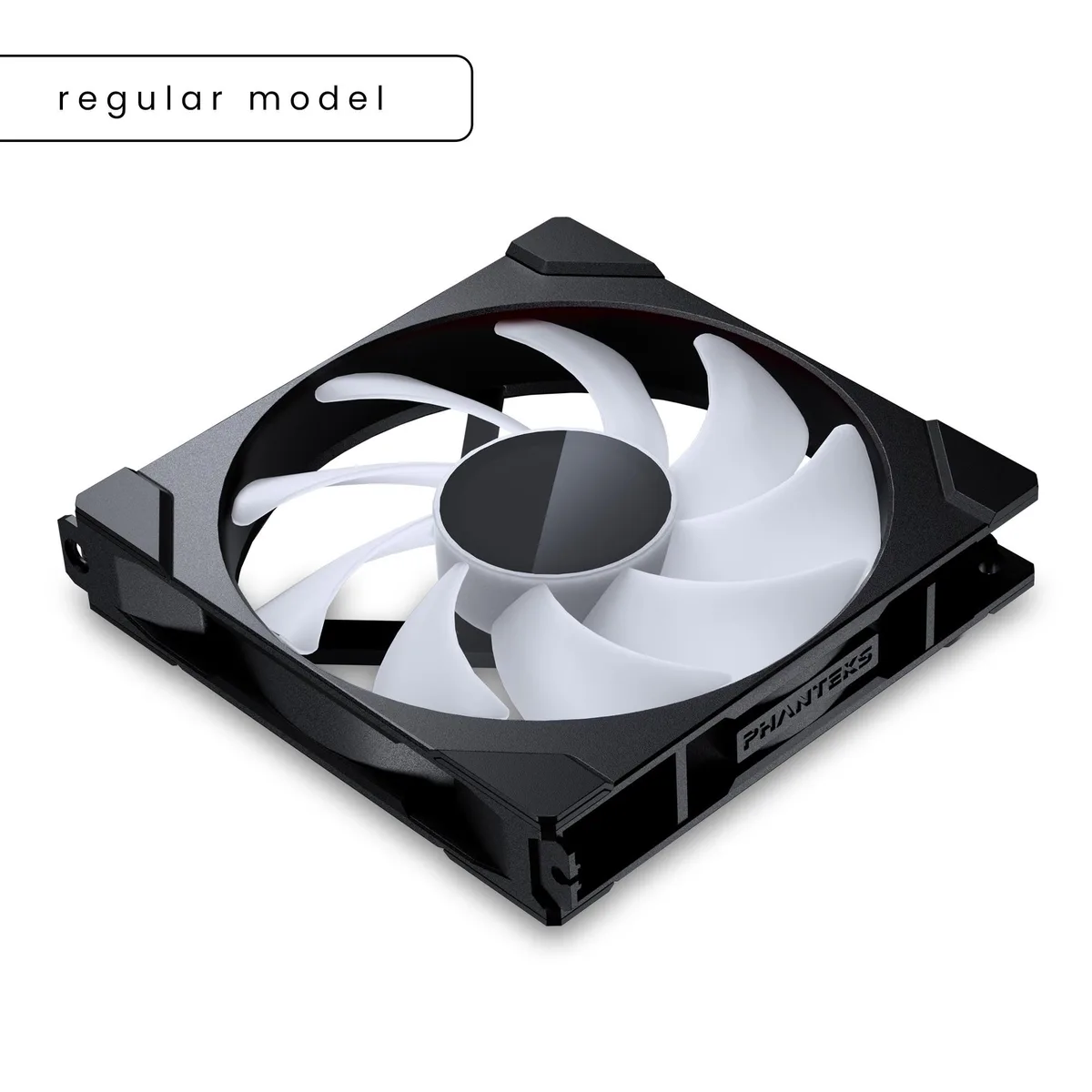

The Phanteks M25-140 Gen2 is a single 140 mm case fan built for high airflow cooling. It uses a hydraulic bearing and spins between 350 and 1800 RPM to move up to 101.78 CFM at 2.23 mmH2O static pressure. Integrated D-RGB lighting adds an infinity mirror effect.

Builders wanting daisy-chain ARGB cooling

This fan suits builders who want to link multiple units using the Linq6 single-cable system for unified PWM and lighting control without a separate hub. Buyers who need a bundled controller, prefer a different frame size, or require fans without any LED illumination should look at something else.

Linq6 single-cable daisy-chain connector

The Linq6 interface merges fan power and D-RGB signal into one 500 mm extension cable, letting you chain fans directly to a compatible Phanteks NexLinq hub or motherboard header. This connector type decides whether the fan fits your existing lighting ecosystem.

Highlights

  • Daisy-chain frame links fans together for tidy cable routing
  • Single Linq6 cable handles PWM and D-RGB control in one connection
  • 78 CFM airflow at 1800 RPM targets radiators and heatsinks
  • Hydraulic bearing runs at 36.4 dBA maximum for quiet operation
  • Screw covers and infinity mirror D-RGB give a clean, lit appearance

Specifications

BrandPhanteks
ModelM25-140 Gen2 Regular
Part NumberPH-F140M25_G2_DBK01
Fan Counts1 Fan
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPM350-1800 +/- 10% RPM Max
Air Flow101.78 CFM Max
Air Pressure2.23 mmH2O Max
Noise Level36.4 dBA Max
Power ConnectorPWM, 2-Fase/4-poles
ColorWhite Matte Blade / Black Fan Frame
LEDDRGB
Dimensions140 x 140 x 25 mm
Package ContentsM25-140 Gen2 Fan: 1x
Fan Screws: 5x
500mm Linq6 Extension Cable: 1x
Screw Cover Corner: 4x (2xL, 2xR)
Screw Cover Bridge: 2x
Installation Guide: 1x
Shipping weight0.27 kg
Package size152 × 150 × 51 mm

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Will the 140mm by 25mm frame fit my case fan slots?

The fan measures 140mm square and 25mm thick, so it fits standard 140mm mounting holes.

How do I connect the PWM and DRGB signals with the single Linq6 cable?

Plug the 500mm Linq6 extension into a Phanteks NexLinq hub or motherboard Linq6 header; the daisy-chain frame then links the next fan without extra cables.

When should I clean the hydraulic bearing fan and replace the screw covers?

Clean dust from the blades and frame every few months; the hydraulic bearing is sealed, and the four corner plus two bridge covers only need replacing if they crack.
